IPC-T1B20-0360B

Dostępność: 0
Cena: 299,00 zł 299.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: DAHUA
Kod produktu: IPC-T1B20-0360B

Opis

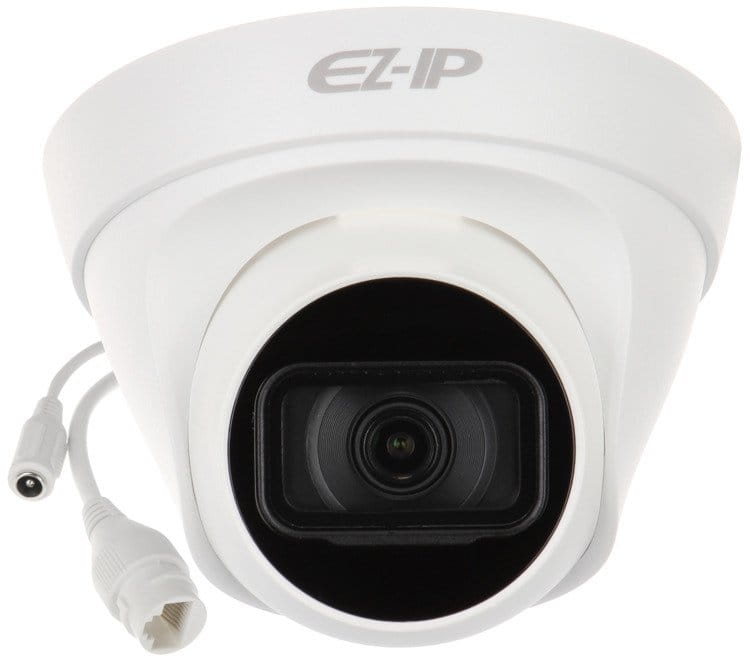

Kamera IP kopułkowa typu turret z serii EZ-IP, 1/2,7" 2 Mpx CMOS, ICR, H.265+/H.265/H.264+/H.264, 2 Mpx (1~30 kl./s), obiektyw stałoogniskowy 3,6 mm, IR 30 m, IP67, DC 12 V, PoE...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

ALPS 2.0 | DH-IPC-T1B20-L

System Overview
ALPS 2.0 is perfect for small to medium size applications like home/
residential security, small retail shops, and other typical SMB
applications. It offers a perfect alternative to migrate from analog to an
IP system with its easy to use nature and cost effectiveness.
ALPS 2.0 is fully in line with Dahua’s quality. Stable and reliable
components are utilized and Various tests such as anti-vibration, water
resistance, and aging tests are performed to ensure Dahua quality
standards.

Functions
Smart Codec (H.265+ & H.264+)
Smart Codec is the optimized implementation of standard video
compression (H.265 & H.264) that uses a scene-adaptive encoding
strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference
structure and intelligent noise reduction to deliver high-quality video
without straining the network. Smart Codec technology reduces bit rate
and storage requirements by up to 70% when compared to the standard
video compression.
True Day/Night
A day/night mechanical IR cut filter makes this camera ideal for
applications with fluctuating lighting conditions, delivering color images
during the day and automatically switching to monochrome as the scene
darkens
Regions of interest
Regions of Interest (ROI) is a user defined feature that allows the
operator to monitor specific areas of a scene while still maintaining
overall situational awareness of less important areas
Smart IR
With IR illumination, detailed images can be captured in low light or
total darkness. The camera's Smart IR technology adjusts to the intensity
of camera's infrared LEDs to compensate for the distance of an object.
Smart IR technology prevents IR LEDS from whiting out images as they
come closer to the camera. The camera's integrated infrared illumination
provides high performance in extreme low-light environments up to 30m
(98ft).
Image flip
Capturing unnecessary data such as surrounding hallway walls can
increase storage requirements without any added value. The image flip
feature allows the camera's image to be rotated in 90° increments for
better video optimization.
Environmental
Dahua cameras operate in extreme temperature environments, rated for
use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95%
humidity.
Protection (IP67, wide voltage)
The camera allows for ±25% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 2KV lightning
rating provides effective protection for both the camera and its structure
against lightning. Subjected and certified to rigorous dust and immersion
tests (IP67) .
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer
· 1/2.7” 2Megapixel progressive CMOS
· H.265+ & H.265 dual-stream encoding
· 20fps@1080P(1920x1080) & 25/30fps@1.3MP(1280x960)
· DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
· 2.8 mm fixed lens (3.6mm optional)
· Max IR LEDs Length 30m
· IP67, PoE
DH-IPC-T1B20-L
2MP IR Turret Network Camera

IP67
H.265+
30m IR

1080p

ALPS 2.0 | DH-IPC-T1B20-L

Technical Specification
Camera
Image Sensor1/2.7” 2Megapixel progresive CMOS
Effective Pixels
1920(H) x1080(V)
RAM/ROM
64MB/16MB
Scanning System
Progressive
Minimum Illumination
0.09Lux/F2.0(Color,1/3s,30IRE)
0.5Lux/F2.0(Color,1/30s,30IRE)
0Lux/F2.0(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 30m(98ft)
IR On/Off Control
Auto/ Manual
IR LEDs
1
Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length2.8 mm (3.6 mm optional)
Max. ApertureF2.0/F2.0
Angle of ViewH:115°/87.5°, V:60°/47°
Focus ControlFixed
Close Focus Distance0.5m(1.64ft)
DORI Distance
LensDetectObserveRecognizeIdentify
2.8 mm43.5m(143ft)17.4m(57ft)8.7m(28.5ft)4.3m(14ft)
3.6 mm53.3m(175ft)21.3m(70ft)10.7m(35ft)5.3m(17.4ft)
PTZ
Pan/Tilt RangePan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Video
CompressionH.265/H.264H/MJPEG(Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability2 Streams
Resolution
1080P(1920x1080)/1.3M(1280x960)/
720P(1280x720)/D1(704x576/704x480)/ VGA(640x480)/
CIF(352x288/352x240)
Frame Rate
Main Stream: 1080P (1 ~ 20fps)
Sub Stream: D1(1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit Rate
H265:12K~5632K
H.264:32K ~8192K
Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / DWDR


White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization
(EIS)
N/A
Smart IRSupport
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionN/A
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP;TCP;ARP;RTSP;RTP;RTCP;UDP;DHCP;DNS;IPV4;
NTP;Multicas; ICMP; IGMP
InteroperabilityONVIF Profile S
Streaming MethodUnicast / Multicast
Max. User Access10 Users/20 Users
Edge StorageN/A
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS,DMSS
Smart PhoneIOS, Android
Certifications
Certifications
CE: (EN 60950:2000)
FCC: FCC Part 15 Subpart B
Interface
Video InterfaceN/A
Audio InterfaceN/A
RS485N/A
AlarmN/A
Electrical
Power SupplyDC12V, PoE (802.3af)(Class 0)
Power Consumption<4.8W

ALPS 2.0 | DH-IPC-T1B20-L

Ordering Information
TypePart NumberDescription
2MP Camera
DH-IPC-T1B20P-L-0280B
2MP IR turret Network Camera,
2.8mm,PAL
DH-IPC-T1B20N-L-
0280B
2MP IR turret Network Camera,
2.8mm, NTSC
DH-IPC-T1B20P-L-0360B
2MP IR turret Network Camera,
3.6mm,PAL
DH-IPC-T1B20N-L-
0360B
2MP IR turret Network Camera,
3.6mm,NTSC
Accessories
(optional)
PFA130-EJunction box
PFA152-EPole mount
PFA151Corner mount
PFB203W Wall mount
PFA106Ceiling mount
PFB220C Ceiling mount

Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal ResistanceN/A
Construction
CasingMetal+Plastic
DimensionsΦ109mmx85.5mm(4.29''x3.36'')
Net Weight0.24Kg(0.53lb)
Gross Weight0.36Kg(0.79lb)
Dimensions (mm/inch)
t

Wa t

Po

PF A152-E+ PFB203W

PFB203W

PF A130-E
PF A151+PFB203W

PF A106 + PFB220C

t

t

© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.Rev 001.001
Accessories
Optional:

PFA130-E
Junction Box
PFB203W
Wall mount
PFA152-E
Pole mount

PFA151
Cornermount
PFA106
Ceiling mount
PFB220C
Ceiling mount
