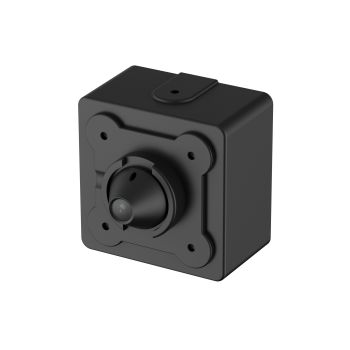

IPC-HUM8231-L4-0280B

Kamera IP pinhole z serii ATM, Obiektyw typu pinhole, 8 m kabla, obiektyw stałoogniskowy 2,8 mm, rekomendowany do kamer 2 Mpx...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Ultra Series | IPC-HUM8231-L4

System Overview
Dahua covert camera used modular design, this product provides
an independent miniature sensor unit (with 8-meters cable), while
there is a main unit for customers to choose. It can be easily installed
into any indoor environments, which makes this camera ideal for the
ATMs(Automatic Teller Machines), banks, stores, hotels and offices.

www.dahuasecurity.com
· 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
· Day/Night(Electronic), WDR
· 2.8mm Fixed Pinhole Lens
· 8-meters cable
· Require a Main Box to work together
IPC-HUM8231-L4
2MP Covert Pinhole Network Camera-Lens Unit

Technical Specification
Camera
Image Sensor1/2.8” 2Megapixel progressive scan CMOS
Scanning SystemProgressive
Effective Pixels
1920(H)x1080(V)
Minimum Illumination
0.02Lux/F2.4 (Color,1/3s,30IRE)
0.08Lux/F2.4 (Color,1/30s,30IRE)
0.01Lux/F2.4 (B/W,1/3s,30IRE)
0.04Lux/F2.4 (B/W,1/30s,30IRE)
IR Distance
N/A
IR On/Off Control
N/A
IR LEDs
N/A
Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length2.8mm
Max. ApertureF2.4
Angle of ViewH:103° ,V:59°
Optical ZoomN/A
Focus ControlFixed
Close Focus Distance0.5m
DORI Distance
DetectObserveRecognizeIdentify
42m(137ft)16m(52ft)8m(26ft)4m(13ft)

Pan/Tilt/Rotation
Pan/Tilt/Rotation RangeN/A

Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B

Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection
N/A
Vandal ResistanceN/A
Construction
CasingMetal
Dimensions30mmx31mmx29.3mm(1.18”x1.22”x1.15”)
Net Weight0.40Kg (0.88lb)
Gross Weight0.47Kg (1.03lb)

7HPSHUDWXUH

0S


Ultra Series | IPC-HUM8231-L4
www.dahuasecurity.com

Installation
Dimensions (mm/inch)
Rev 001.001© 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.

Ordering Information
TypePart NumberDescription
2MP Camera
Lens Unit
IPC-HUM8231-L4
2MP Rectangular Pinhole Lens with 8
meters Cable
Accessories
(Required)
DH-IPC-
HUM8231P-E1
2MP Covert Pinhole Network Camera
Main Box, PAL
DH-IPC-
HUM8231N-E1
2MP Covert Pinhole Network Camera
Main Box, NTSC
IPC-HUM8231P-E1
2MP Covert Pinhole Network Camera
Main Box, PAL
IPC-HUM8231N-E1
2MP Covert Pinhole Network Camera
Main Box, NTSC
DH-IPC-
HUM8231P-E2
2x2MP Covert Pinhole Network Camera
Main Box, PAL
DH-IPC-
HUM8231N-E2
2x2MP Covert Pinhole Network Camera
Main Box, NTSC
IPC-HUM8231P-E2
2x2MP Covert Pinhole Network Camera
Main Box, PAL
IPC-HUM8231N-E2
2x2MP Covert Pinhole Network Camera
Main Box, NTSC
