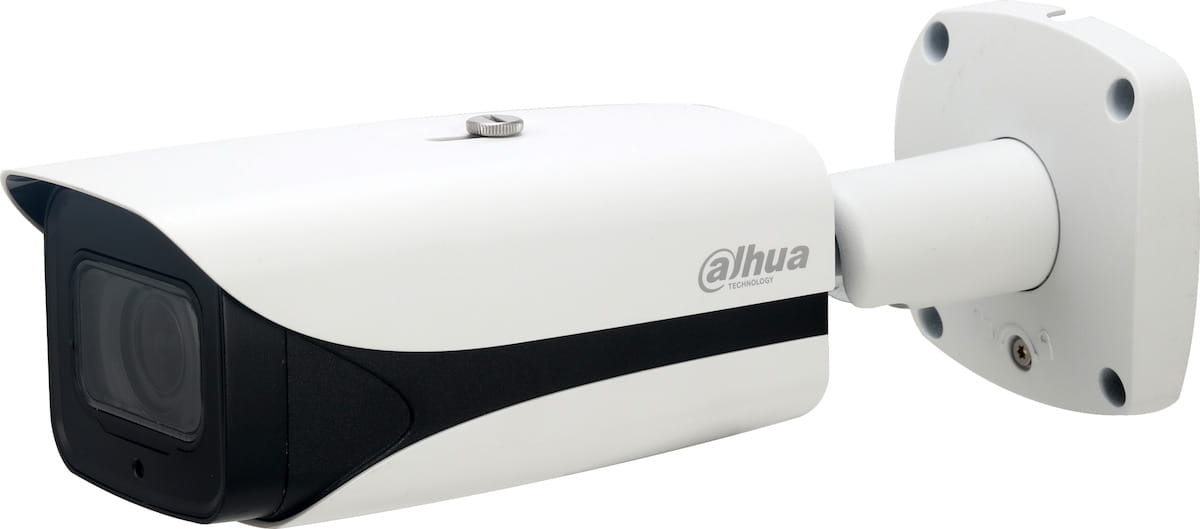

IPC-HFW5541E-Z5E-0735

Kamera IP bullet z serii AI, 1/2,7" 5 Mpx CMOS, 50/60 kl./s @ 1080P, H.265+ i H.265, WDR (120 dB), dzień/noc (ICR), alarm 2x we / 1x wy, audio 1x we / 1x wy, obiektyw 7-35mm, IR do 120 m, micro SD, IP67, IK10, 12V, PoE, AI: perymetryka, zliczanie osób, atrybuty twarzy, przechwytywanie zdjęć twarzy...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Pro AI Series | DH-IPC-HFW5541E-Z5E

www.dahuasecurity.com
DH-IPC-HFW5541E-Z5E
5MP WDR IR Bullet AI Network Camera

Dahua AI series products adopt the most advanced AI technologies, includ-
ing deep learning algorithms that primarily target people and vehicles,
which provides higher flexibility and accuracy for end-users. This enables
the Dahua AI series to offer various advanced applications such as Face
Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc.
The complete lineup of Dahua AI includes network (PTZ) cameras, network
video recorders, servers, and platform management products. Beyond see-
ing the world, the power of AI allows devices to perceive the environment
and understand the world in a better way.
System Overview
Pro AI series contains Face Capture, Perimeter Protection and People
Counting functions.Powered by deep-learning Artificial Intelligence algo-
rithms, significantly improved accuracy. Meanwhile, the series features
starlight and smart IR technology. This series fully protected from dust
and water, certified to IP67 and vandal resistant to IK10 standard.
Functions
Face Capture
Face capture is a software application that automatically captures faces
from within a digital image or a video frame from a video source. Dahua
cameras use advanced deep learning algorithms and are trained by a
large number of face data sources, enabling the camera to locate faces
quickly and accurately from the video source and capture facial images.
Face Attributes
Through the use of deep learning algorithms to analyze facial images,
Dahua cameras can extract six facial attributes from each frame, includ-
ing Age, Gender,Expression(Jolly/Surprise/Normal/Rage/Sad/Disgusted/
Confused/Frightened), Glasses,Mouth Mask, Moustache & Beard. Cus-
tomers can acquire data of interest via face attributes statistics.
Perimeter Protection
Dahua’s Perimeter Protection functions significantly improved accuracy.
Perimeter Protection reduces false alarms and decreases pixel count re-
quirements for object detection. Perimeter Protection features custom
tripwires based on object type for automation in limited access areas
such as pedestrian or vehicle-only zones. This combination of advanced
AI analytics and real-time alerts to a desktop or to a mobile
· 1/2.7” 5Megapixel progressive scan CMOS
· H.265&H.264 triple-stream encoding
· 20fps@2592x1944
· WDR(120dB), Day/Night(ICR), 3D DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
· 7mm ~35mm motorized lens
· 2/1 Alarm in/out, 1/1 audio in/out
· Max. IR LEDs Length 130m
· Micro SD memory, IP67, IK10
client reduces system requirements and resources resulting in greater
surveillance system efficiency.
People Counting
People Counting function uses advanced image processing technology
to capture depth information from within images. The camera pairs this
information with deep learning algorithms to analyze and detect human
bodies and track target objects in real time. The camera provides statis-
tics for separate individuals’ entrance and exit with up to 95% counting
accuracy.
Metadata
Metadata is feature attribute information extracted from a target object
which can be used for data retrieval. Dahua face detection camera can
extract six facial attributes and output the metadata for analysis.
ePoE technology
The ePoE technology of Dahua, designed internally, adopts advanced
2D-PAM3 coding modulation from physical layer, and realizes full duplex
transmission over 800 meters at the speed of 10Mbps, or 300 meters at
the speed of 100Mbps via Cat 5 or coaxial cable media. Besides, it sup-
ports PoE and PoC power supply technology which has greatly simplified
construction and wiring. Dahua ePoE technology offer a new way to
accomplish long distance transmission between IP camera and network
switch. It allows more flexible surveillance system design, improves reli-
ability and saves construction and wiring cost.
Protection(IP67, IK10, wide voltage)
The camera allows for ±30% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning rat-
ing provides effective protection for both the camera and its structure
against lightning. Subjected and certified to rigorous dust and immer-
sion tests (IP67) and impact tests (IK10), the camera is the choice for
installation in even the most unforgiving environments.


Pro AI Series | DH-IPC-HFW5541E-Z5E

Technical Specification
Camera
Image Sensor1/2.7” 5Megapixel progressive scan CMOS
Effective Pixels
2592(H) x 1944(V)
RAM/ROM
1GB/128MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.01Lux/F1.3 ( Color,1/3s,30IRE)
0.098Lux/F1.3 ( Color,1/30s,30IRE)
0Lux/F1.3(IR on)
IR Distance
Distance up to 130m (427ft)
IR On/Off Control
Auto/ Manual
IR LEDs
4
Lens
Lens TypeMotorized
Mount TypeBoard-in
Focal Length7mm~35mm
Max. ApertureF1.3
Angle of View
H: 31°~9°, V:23°~ 7°(2592x1944)
H: 32°~9°, V:18°~5°(2688x1520)
Optical Zoom5x
Aperture TypeAuto(HALL)
Close Focus Distance0.4m~2m(1.31ft~6.56ft)
DORI Distance
LensDetectObserveRecognizeIdentify
W190m(623ft)76m(249ft)38m(125ft)19m(62ft)
T620m(2034ft)248m(814ft)124m(407ft)62m(203ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation RangePan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚
Artificial Intelligence
Face CaptureSupport face image capture
Face Attributes
Support 6 kinds of face attributes extraction: Age,
Gender,Expression(Jolly/Surprise/Normal/Rage/Sad/
Disgusted/Confused/Frightened), Glasses,Mouth Mask,
Moustache & Beard
Perimeter ProtectionTripwire, Intrusion(Human & Vehicle classification)
People CountingLine crossing people counting, Region people counting
General Intelligence
Event Trigger
Motion detection, Video tampering , Scene changing,
Network disconnection , IP address conflict, Illegal
Access,Storage anomaly
General IntelligenceObject Abandoned/Missing
Video
Compression
H.265+/H.265/H.264+/H.264/H.264B/H.264H/
MJPEG(sub stream)
Streaming Capability3 Streams

Resolution
2592x1944/2688x1520/2304x1296/1080P(
1920x1080)/1.3M(1280x960)/720P(1280x7
20)/D1(704x576/704x480)/VGA(640x480)/
CIF(352x288/352x240)
Frame Rate
Main Stream: 2592x1944(1~20fps)
Sub Stream: D1(1~20/30fps)
Third Stream: 1080P(1~13fps)
Bit Rate ControlCBR/VBR
Bit Rate
H.264: 32~ 8192Kbps
H.265: 19~ 8192Kbps
Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / WDR(120dB)
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization
(EIS)
Support
Smart IRSupport
DefogSupport
Digital ZoomN/A
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionG.711a/ G.711Mu/ AAC/ G.726/G.723
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP;SMTP;
FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP;QoS;
UPnP;NTP
Interoperability
ONVIF(Profile S/Profile G),
CGI,Milstone,Genetec,P2P
Streaming MethodUnicast / Multicast
Max. User Access20 Users
Edge Storage
NAS
FTP
Mirco SD card 256GB
Web Viewer
IE(versions newer than IE8), Chrome,
Firefox, Safari(versions newer than Safari 12)
Management SoftwareSmart PSS, DSS, P2P
Smart PhoneiOS, Android
Certifications
Certifications
CE-LVD:EN60950-1
CE-EMC:Electromagnetic Compatibility Directive
2014/30/EU
FCC:47 CFR FCC Part 15, Subpart B
UL/CUL:
UL60950-1
CAN/CSA C22.2 No.60950-1-07
www.dahuasecurity.com

Pro AI Series | DH-IPC-HFW5541E-Z5E

Ordering Information
TypePart NumberDescription
5MP camera
DH-IPC-
HFW5541EP-Z5E
5MP WDR IR Bullet AI Network Camera,
WDR,PAL
DH-IPC-
HFW5541EN-Z5E
5MP WDR IR Bullet AI Network Camera,
WDR,NTSC
IPC-HFW5541EP-
Z5E
5MP WDR IR Bullet AI Network Camera,
WDR,PAL
IPC-HFW5541EN-
Z5E
5MP WDR IR Bullet AI Network Camera,
WDR,NTSC
Accessories
(optional)
PFA152-EPole mount
www.dahuasecurity.com

RS485N/A
Alarm
2 channel In: 5mA 5VDC
1 channel Out: 300mA 12VDC
Electrical
Power SupplyDC12V(±30%), PoE(802.3af)(Class 0)
Power Consumption
DC12V:3W 9.9W(IR on)
PoE:3.7W 10.9W(IR on)
Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / 10%RH~95% RH
Strorage Conditions
+5° C ~ +40° C (+41° F ~ +104° F) (daily temperature
difference within 15° C/59° F ) / 10%RH~95% RH
Ingress Protection IP67
Vandal ResistanceIK10
Construction
CasingMetal,plastic
Dimensions273.2mmx95.0mmx95.0mm (10.76”x3.74”x3.74”)
Net Weight1.11Kg (2.44lb)
Gross Weight1.51Kg (3.33lb)
Accessories
Optional:
Rev 001.001© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.

Interface
Video InterfaceN/A
Audio Interface1/1 channel In/Out
Dimensions (mm/inch)

LR1002
ePoE Over Coax Converter

a Mu t e Mu tCe Mu t

PFA152-E
Pole Mount
