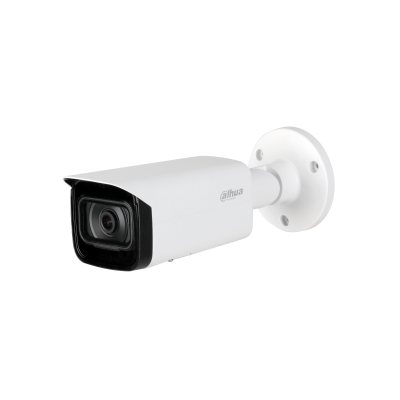

IPC-HFW5442T-ASE-0360B

Kamera IP bullet z serii AI, 1/1,8" 4 Mpx CMOS, 50/60 kl./s @ 1080P, H.265+ i H.265, WDR (140 dB), dzień/noc (ICR), alarm 1x we / 1x wy, audio 1x we / 1x wy, obiektyw 3,6 mm, IR do 50 m, micro SD, IP67, 12V, PoE, AI: perymetryka, zliczanie osób, przechwytywanie zdjęć twarzy...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Pro AI Series | DH-IPC-HFW5442T-ASE

www.dahuasecurity.com
DH-IPC-HFW5442T-ASE
4MP WDR IR Bullet AI Network Camera

Metadata
Metadata is feature attribute information extracted from a target object
which can be used for data retrieval. Dahua face detection camera can
extract six facial attributes and output the metadata for analysis.
ePoE technology
The ePoE technology of Dahua, designed internally, adopts advanced
2D-PAM3 coding modulation from physical layer, and realizes full duplex
transmission over 800 meters at the speed of 10Mbps, or 300 meters at
the speed of 100Mbps via Cat 5 or coaxial cable media. Besides, it sup-
ports PoE and PoC power supply technology which has greatly simplified
construction and wiring. Dahua ePoE technology offer a new way to
accomplish long distance transmission between IP camera and network
switch. It allows more flexible surveillance system design, improves reli-
ability and saves construction and wiring cost.
Protection(IP67, wide voltage)
The camera allows for ±30% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning rat-
ing provides effective protection for both the camera and its structure
against lightning. Subjected and certified to rigorous dust and immer-
sion tests (IP67) , the camera is the choice for installation in even the
most unforgiving environments.
· 1/1.8” 4Megapixel progressive scan CMOS
· H.265&H.264 triple-stream encoding
· 25/30fps@2688x1520
· WDR(120dB), Day/Night(ICR), 3D DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
· 2.8mm fixed lens (3.6mm, 6mm optional)
· 1/1 Alarm in/out, 1/1 audio in/out
· Max. IR LEDs Length 55m
· Micro SD memory, IP67
Dahua AI series products adopt the most advanced AI technologies,
including deep learning algorithms that primarily target people and
vehicles, which provides higher flexibility and accuracy for end-users.
This enables the Dahua AI series to offer various advanced applications
such as Face Recognition, ANPR, Metadata, People Counting, traffic data
statistics, etc.The complete lineup of Dahua AI includes network (PTZ)
cameras, network video recorders, servers, and platform management
products. Beyond seeing the world, the power of AI allows devices to
perceive the environment and understand the world in a better way.
System Overview
Pro AI series contains Face Capture, Perimeter Protection and People
Counting functions.Powered by deep-learning Artificial Intelligence
algorithms, significantly improved accuracy. Active Deterrence and
Full Color camera are also in this series. Meanwhile, the series features
starlight and smart IR technology. This series fully protected from dust
and water, certified to IP67 standard.
Functions
Perimeter Protection
Dahua’s Perimeter Protection functions significantly improved accu-
racy. Perimeter Protection reduces false alarms and decreases pixel
count requirements for object detection. Perimeter Protection features
custom tripwires based on object type for automation in limited access
areas such as pedestrian or vehicle-only zones. This combination of
advanced AI analytics and real-time alerts to a desktop or to a mobile
client reduces system requirements and resources resulting in greater
surveillance system efficiency.
People Counting
People Counting function uses advanced image processing technology
to capture depth information from within images. The camera pairs this
information with deep learning algorithms to analyze and detect human
bodies and track target objects in real time. The camera provides statis-
tics for separate individuals’ entrance and exit with up to 95% counting
accuracy.


Pro AI Series | DH-IPC-HFW5442T-ASE

Technical Specification
Camera
Image Sensor1/1.8” 4Megapixel progressive scan CMOS
Effective Pixels
2688(H) x 1520(V)
RAM/ROM
512MB/128MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.0016Lux/F1.6 ( Color,1/3s,30IRE)
0.015Lux/F1.6 ( Color,1/30s,30IRE)
0Lux/F1.6 (IR on)
IR Distance
Distance up to 55m (180ft)
IR On/Off Control
Auto/ Manual
IR LEDs
4
Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length2.8mm,3.6mm,6mm
Max. ApertureF1.6
Angle of ViewH: 113°, V:60°/H: 89°, V:48°/H: 56°, V:31°
Optical ZoomN/A
Aperture TypeFixed
Close Focus Distance1.3m(4.27ft)/1.9m(6.23t)/3.8m(12.47ft)
DORI Distance
LensDetectObserveRecognizeIdentify
2.8mm58m(190ft)23m(75ft)12m(39ft)6m(20ft)
3.6mm72m(236ft)29m(95ft)14m(46ft)7m(23ft)
6mm113m(371ft)45m(148ft)23m(75ft)11m(36ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation RangePan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚
Artificial Intelligence
Perimeter ProtectionTripwire, Intrusion(Human & Vehicle classification)
People Counting
Line crossing people counting, Region people
counting
General Intelligence
Event Trigger
Motion detection, Video tampering , Scene
changing, Network disconnection , IP address
conflict, Illegal Access,Storage anomaly
General IntelligenceObject Abandoned/Missing
Video
Compression
H.265+/H.265/H.264+/H.264/H.264B/H.264H/
MJPEG(sub stream)
Streaming Capability3 Streams
Resolution
2688x1520/2304x1296/1080P(1920x1080)/1.3M(1
280x960)/720P(1280x720)/D1(704x576/704x480)/
VGA(640x480)/CIF(352x288/352x240)

Frame Rate
Main Stream: 2688x1520(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 1080P(1~11fps)
Bit Rate ControlCBR/VBR
Bit Rate
H.264: 32~ 8192Kbps
H.265: 19~ 8192Kbps
Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / WDR(120dB)
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization
(EIS)
N/A
Smart IRSupport
DefogSupport
Digital ZoomN/A
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionG.711a/ G.711Mu/ AAC/ G.726/G.723
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP;SMTP;
FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP;QoS;
UPnP;NTP
Interoperability
ONVIF(Profile S/Profile G),
CGI,Milstone,Genetec,P2P
Streaming MethodUnicast / Multicast
Max. User Access20 Users
Edge Storage
NAS
FTP
Mirco SD card 256GB
Web Viewer
IE(versions newer than IE8), Chrome,
Firefox, Safari(versions newer than Safari 12)
Management SoftwareSmart PSS, DSS, P2P
Smart PhoneiOS, Android
www.dahuasecurity.com

Certifications

Certifications
CE-LVD:EN60950-1
CE-EMC:Electromagnetic Compatibility Directive
2014/30/EU
FCC:47 CFR FCC Part 15, Subpart B
UL/CUL:
UL60950-1
CAN/CSA C22.2 No.60950-1-07

Pro AI Series | DH-IPC-HFW5442T-ASE

Ordering Information
TypePart NumberDescription
4MP camera
DH-IPC-
HFW5442TP-ASE
4MP WDR IR Bullet AI Network Camera,
WDR,PAL
DH-IPC-
HFW5442TN-ASE
4MP WDR IR Bullet AI Network Camera,
WDR,NTSC
IPC-HFW5442TP-
ASE
4MP WDR IR Bullet AI Network Camera,
WDR,PAL
IPC-HFW5442TN-
ASE
4MP WDR IR Bullet AI Network Camera,
WDR,NTSC
Accessories
(optional)
PFA130-EJunction box
PFA152-EPole Mount
PFA151Corner Mount
www.dahuasecurity.com

Interface
Video InterfaceN/A
Audio Interface1/1 channel In/Out
RS485N/A
Alarm
1 channel In: 5mA 5VDC
1 channel Out: 300mA 12VDC
Electrical
Power SupplyDC12V(±30%), PoE(802.3af)(Class 0)
Power Consumption
DC12V:2.4W 7.1W(IR on)
PoE:3W 8.4W(IR on)
Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / 10%RH~95% RH
Strorage Conditions
+5° C ~ +40° C (+41° F ~ +104° F) (daily temperature
difference within 15° C/59° F ) / 10%RH~95% RH
Ingress Protection IP67
Vandal ResistanceN/A
Construction
CasingMetal
Dimensions244.1mmx79.0mmx75.9mm (9.61”x3.11”x2.99”)
Net Weight0.815Kg (1.80lb)
Gross Weight1.08Kg (2.38lb)
Accessories
Optional:
Dimensions (mm/inch)
Rev 001.001© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.

PFA130-E
Junction box
PFA152-E
Pole Mount
PFA151
Corner Mount

Junction MountPole Mount
PFA3-E PFA52-EPFA3-E

Corner Mount
PFA3-E PFA5

LR1002
ePoE Over Coax Converter
