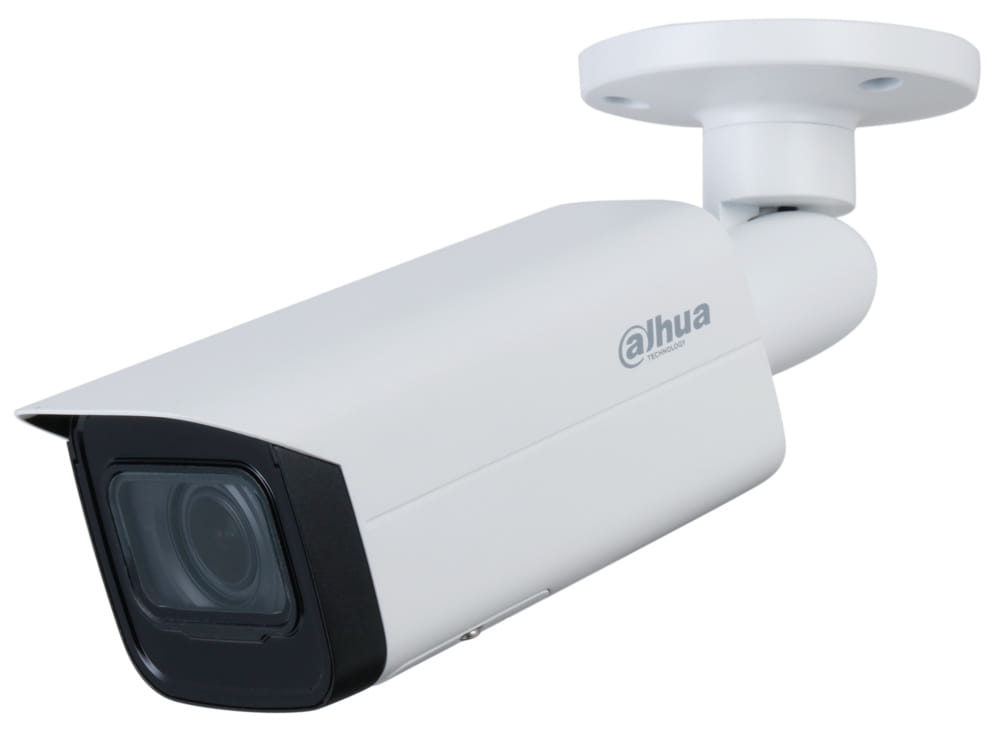

IPC-HFW3841T-ZAS-27135

Kamera IP bullet z serii AI, przetwornik 1/2,8" 8 Mpx CMOS, Smart H.265/H.264, 20 kl./s @ 8Mpx, WDR (120dB), mirco SD (max 256 GB), obiektyw 1,7-13,5 mm, IR 60 m, IP67, DC 12V/PoE, IVS (przekroczenie linii, intruz w strefie)...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.dahuasecurity.com
DH-IPC-HFW3841T-Z(A)S
8MP IR Vari-focal Bullet WizSense Network Camera

· 8MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
· Outputs max. 8MP (3840 x 2160) @20 fps (AI function enabled by
default) and supports 8MP (3840 x 2160) @25/30 fps (when AI function
disabled)
· H.265 codec, high compression rate, low bit rate
· Built-in IR LED, max. IR distance: 60 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments.
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire (support the classification and
accurate detection of vehicle and human)
· Abnormality detection: Motion detection, video tampering, scene
changing, audio detection (Only - ZAS support), no SD card, SD card
full, SD card error, network disconnection, IP conflict, illegal access, and
voltage detection
· Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out
(Only - ZAS supports)
· Supports max. 256 G Micro SD card
· 12V DC/PoE power supply
· IP67, IK10(optional) protection
· SMD Plus

Series Overview
With advanced deep learning algorithm, Dahua WizSense 3 Series
network camera supports intelligent functions, such as perimeter
protection and smart motion detection. With starlight technology, this
series camera provides a better image effect in the condition of low
illuminance.
Functions
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology
can categorize the targets that trigger motion detection and filter the
motion detection alarm triggered by non-concerned targets to realize
effective and accurate alarm.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology
can recognize human and vehicle accurately. In restricted area (such
as pedestrian area and vehicle area), the false alarms of intelligent
detection based on target type (such as tripwire, intrusion, fast
moving,parking detection, loitering detection and gathering detection)
are largely reduced.
Starlight
Dahua Starlight technology mainly applies to the environment of
low illumination, and it can provide clear colorful video. Even in the
environment of min. illumination, the technology can guarantee the
good image effect.
Cyber Security
Dahua network camera is equipped with a series of key security
technologies, such as security authentication and authorization, access
control, trusted protection, encrypted transmission, and encrypted
storage, which improve its security defense and data protection, and
prevent malicious programs from invading the device.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.

Launched by Dahua Technology, WizSense is a series of AI products and
solutions that adopt independent AI chip and deep learning algorithm.
It focuses on human and vehicle with high accuracy, enabling users to
fast act on defined targets. Based on Dahua's advanced technologies,
WizSense provides intelligent, simple and inclusive products and
solutions.
| DH-IPC-HFW3841T-Z(A)S

Smar t Code c
Starlight


www.dahuasecurity.com

Technical Specification
Camera
Image Sensor1/2.8”8Megapixel progressive CMOS
Max. Resolution
3840 (H) x 2160 (V)
ROM128 MB
RAM512 MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.007 Lux@F1.5 (Color, 30IRE)
0.0007 Lux@F1.5 (B/W, 30IRE)
0 Lux (Illuminator on)
S/N Ratio> 56 dB
Illumination Distance60 m (197 ft)
Illuminator On/Off ControlAuto/Manual
Illuminator Number4 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens TypeMotorized vari-focal
Mount Typeφ14
Focal Length2.7 mm–13.5 mm
Max. ApertureF1.5
Field of View
Horizontal: 113°–31°
Vertical: 58°–17°
Diagonal:138°–36°
Iris TypeFixed
Close Focus Distance0.8 m (2.6 ft)
DORI Distance
LensDetectObserveRecognizeIdentify
W
85.3 m
(279.9 ft)
34.1 m
(111.9 ft)
17.0 m
(55.8 ft)
8.5 m
(27.9 ft)
T
280.0 m
(918.6 ft)
112.0 m
(367.5 ft)
56.0 m
(183.7 ft)
28.0 m
(91.9 ft)
Professional, intelligent
IVS (Perimeter Protection)
Tripwire; intrusion (support the classification and
accurate detection of vehicle and human)
Intelligent Search
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to event
videos.
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported
by the sub stream)
Smart CodecSmart H.265+/ Smart H.264+

Video Frame Rate
Main stream:
3840 x 2160 @(1–20 fps by default)
3840 x 2160 @(1–25/30 fps when AI function disabled)
sub stream:
704 x 576 @(1–25 fps)/704 x 480 @ (1–30 fps)
third stream:
1920 x 1080 @(1–25/30 fps)
Stream Capability3 streams
Resolution
8M (3840 x 2160); 6M (3072 x 2048); 5M (3072 x
1728/2592 x 1944); 4M (2688 x 1520); 3M (2048 x
1536/2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x
960); 720p (1280 x 720); D1(704 x 576/704 x 480); VGA
(640 x 480); CIF (352 x 288/352 x 240)
Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps
Day/NightAuto (ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
Scene Self-adaptation
(SSA)
Yes
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Smart IlluminationYes
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 1080p
resolution and lower.)
MirrorYes
Privacy Masking4 areas
Audio
Audio CompressionG.711a; G.711Mu; G726
Alarm
Alarm Event
-ZAS：
No SD card; SD card full; SD card error; service life
warning (only supported by Dahua card); network
disconnection; IP conflict; illegal access; motion
detection; video tampering; intrusion; tripwire; scene
changing; audio detection; voltage detection; defocus
detection; external alarm;SMD; safety exception
-ZS：
No SD card; SD card full; SD card error; service life
warning (only supported by Dahua card); network
disconnection; IP conflict; illegal access; motion
detection; video tampering; intrusion; tripwire; scene
changing; voltage detection; defocus detection; SMD;
safety exception
| DH-IPC-HFW3841T-Z(A)S


NetworkRJ-45 (10/100 Base-T)
SDK and APIYes
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP;
SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP;
Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security
Video encryption; firmware encryption; configuration
encryption; Digest; WSSE; account lockout; security logs;
IP/MAC filtering; generation and importing of X.509
certification; syslog; HTTPS; 802.1x; trusted boot; trusted
execution; trusted upgrade
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone;
Genetec
User/Host20 (Total bandwidth: 72 M)
StorageFTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser
IE: IE8; IE9; IE11
Chrome
Firefox
Management SoftwareSmart PSS; DSS; DMSS
Mobile PhoneIOS; Android
Certification
Certifications
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input1 channel (RCA port) (Only - ZAS supports)
Audio Output1 channel (RCA port) (Only - ZAS supports)
Alarm Input1 channel in: 5mA 3V–5V DC (Only - ZAS supports)
Alarm Output1 channel out: 300mA 12V DC (Only - ZAS supports)
Power
Power Supply12V DC/PoE (802.3af)
Power Consumption
Basic power consumption: 3.0W (12V DC); 3.5W (PoE)
Max. power consumption (WDR + H.265 + IR LED
intensity): 9.2W (12V DC); 10.7W (PoE)
Environment
Operating Conditions–30°C to +60°C (–22°F to +140°F)/Less than 95% RH
Storage Conditions–40°C to +60°C (–40°F to +140°F)
Protection GradeIP67
Structure
CasingMetal
Dimensions
244.1 mm x 79.0 mm x 75.9 mm (9.6" x 3.1" x 3.0") (L
x W x H)
Net Weight820g (1.8 lb)
Gross Weight1090g (2.4 lb)

Ordering Information
TypeModelDescription

www.dahuasecurity.com
Accessories
Optional:
PFA152-E
Pole Mount

8MP
Camera
DH-IPC-HFW3841TP-ZAS
8MP IR Vari-focal Bullet WizSense
Network Camera, PAL
DH-IPC-HFW3841TN-ZAS
8MP IR Vari-focal Bullet WizSense
Network Camera, NTSC
DH-IPC-HFW3841TP-ZS
8MP IR Vari-focal Bullet WizSense
Network Camera, PAL
DH-IPC-HFW3841TN-ZS
8MP IR Vari-focal Bullet WizSense
Network Camera, NTSC
IPC-HFW3841TP-ZAS
8MP IR Vari-focal Bullet WizSense
Network Camera, PAL
IPC-HFW3841TN-ZAS
8MP IR Vari-focal Bullet WizSense
Network Camera, NTSC
IPC-HFW3841TP-ZS
8MP IR Vari-focal Bullet WizSense
Network Camera, PAL
IPC-HFW3841TN-ZS
8MP IR Vari-focal Bullet WizSense
Network Camera, NTSC
Accessories
(optional)
PFA130-EJunction Box
PFA152-EPole Mount
PFM321DDC12V1A Power Adapter
LR1002-1ET/1EC
Single-port Long Reach Ethernet
over Coax Extender
PFM900-EIntegrated Mount Tester
PFM114TLC SD Card
PFM900-E
Integrated Mount
Tester
PFM321D
DC12V1A Power
Adapter
LR1002-1ET/1EC
Single-port Long
Reach Ethernet over
Coax Extender
PFM114
TLC SD Card

PFA130-E
Junction Box
| DH-IPC-HFW3841T-Z(A)S

Network

www.dahuasecurity.com

Dimensions (mm[inch])

Rev 001.001© 2020 Dahua . All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
| DH-IPC-HFW3841T-Z(A)S

Junction Box
PFAPFAEPFB130-E
Pole Mount
