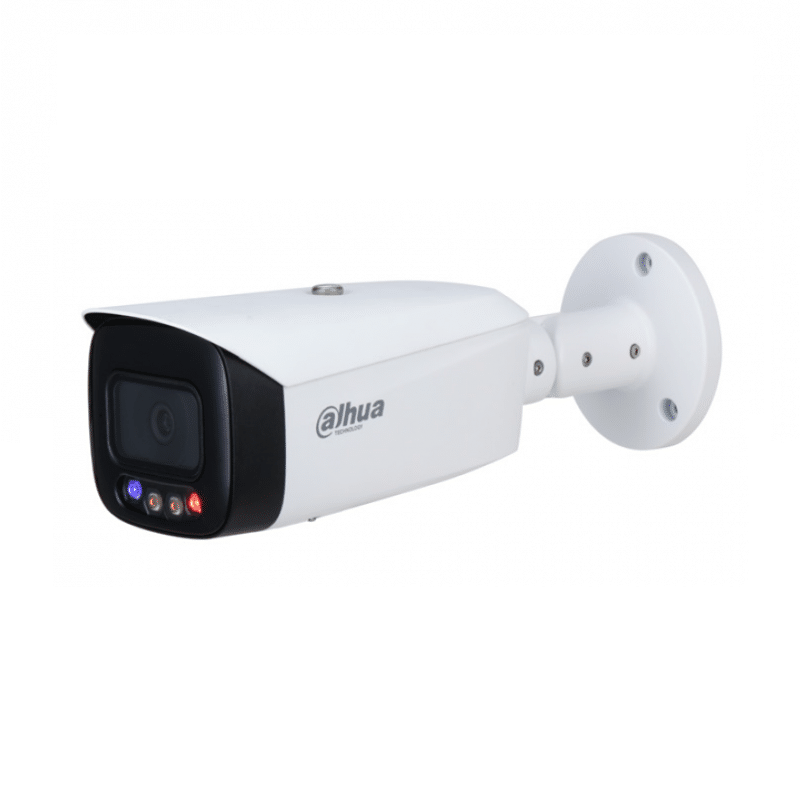

IPC-HFW3549T1-AS-PV-0280B

Kamera IP bullet z serii AI, przetwornik 1/2,7" 5 Mpx CMOS Full Color, Smart H.265/H.264, 20 kl./s @ 5Mpx, WDR (120dB), mirco SD (max 256 GB), obiektyw 2,8 mm, LED 40 m, alarm (1/1), wsparcie audio (1/1), IP67, DC 12V/PoE, IVS (przekroczenie linii, intruz w strefie)...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.dahuasecurity.com
DH-IPC-HFW3549T1-AS-PV
5MP Full-color Active Deterrence Fixed-focal Bullet WizSense Network Camera

Launched by Dahua Technology, WizSense is a series of AI products and
solutions that adopt independent AI chip and deep learning algorithm.
It focuses on human and vehicle with high accuracy, enabling users to
fast act on defined targets. Based on Dahua's advanced technologies,
WizSense provides intelligent, simple and inclusive products and
solutions.
Series Overview
With advanced deep learning algorithm, Dahua WizSense 3 Series net-
work camera supports intelligent functions, such as perimeter protection
and smart motion detection. In addition, with full-color technology, it
provides a better image effect in the condition of low illuminance.
Functions
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology
can categorize the targets that trigger motion detection and filter the
motion detection alarm triggered by non-concerned targets to realize
effective and accurate alarm.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Full-color
With high-performance sensor and large aperture lens, Dahua Full-color
technology can display clear colorful image in the environment of ultra-
low illuminance. With this photosensitivity technology, the camera can
capture more available light, and display more colorful image details.
Siren and Light Active Deterrence
Dahua siren and light active deterrence network camera supports light
alarm and voice alarm when perimeter event occurs, to realize the
deterrence and effective intervention. The camera is built in multiple
voices for selection, and supports customized voice importing.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology
can recognize human and vehicle accurately. In restricted area (such as
pedestrian area and vehicle area), the false alarms of intelligent detec-
tion based on target type (such as tripwire, intrusion, fast moving, park-
ing detection, loitering detection and gathering detection) are largely
reduced.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.
· 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
· Outputs max. 5MP (2592 x 1944) @20 fps, and supports 4MP
(2688 x 1520) @25/30 fps
· H.265 codec, high compression rate, low bit rate
· Built-in warm illuminator, and the max. illumination distance: 40 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire (support the classification and
accurate detection of vehicle and human)
· Abnormality detection: Motion detection, video tampering, scene
changing, audio detection, no SD card, SD card full, SD card error,
network disconnection, IP conflict, illegal access, and voltage
detection.
· Supports sound and light alarm linkage. When an alarm is triggered,
the camera links sound alarm and light flashing.
· Supports one-tap disarming. You can disarm the events of alarm
output, sending email, audio, and light in the configured period.
· Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD
card, built-in Mic and speaker
· 12V DC/PoE power supply
· IP67 protection
· SMD Plus
· Red and blue flashlight alarm

Smart C odec
Full-color
Active Deterrence

| DH-IPC-HFW3549T1-AS-PV


Technical Specification
Camera
Image Sensor
1/2.7”5Megapixel progressive CMOS
Max. Resolution
2592 (H) x 1944 (V)
ROM
128 MB
RAM
512 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.003 Lux @ F1.0
S/N Ratio
>56 dB
Illumination Distance
40 m (131.2 ft)
Illuminator On/Off Control
Auto/Manual
Illuminator Number
2 (Warm light)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8 mm; 3.6 mm; 6 mm
Max. ApertureF1.0
Field of View
2.8 mm: Horizontal 98° x Vertical 71° x Diagonal 129°
3.6 mm: Horizontal 77° x Vertical 56° x Diagonal 101°
6 mm: Horizontal 53° x Vertical 40° x Diagonal 66°
Iris TypeFixed
Close Focus Distance
2.8 mm: 1.2 m (3.9 ft)
3.6 mm: 2.1 m (6.9 ft)
6 mm: 4.5 m (14.8 ft)
DORI
Distance
LensDetectObserveRecognizeIdentify
2.8 mm
67.4 m
(221.1 ft)
27 m
(88.6 ft)
13.5 m
(44.3 ft)
6.7 m
(22.0 ft)
3.6 mm
80.0 m
(262.5 ft)
32.0 m
(105.0 ft)
16.0 m
(52.5 ft)
8.0 m
(26.2 ft)
6 mm
120.0 m
(393.7 ft)
48.0 m
(157.5 ft)
24.0 m
(78.7 ft)
12.0 m
(39.4 ft)
Professional, intelligent
IVS (Perimeter Protection)
Tripwire; intrusion (support the classification and
accurate detection of vehicle and human)
Intelligent Search
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to
event videos.
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported
by the sub stream)
Smart CodecSmart H.265+/Smart H.264+
Video Frame Rate
Main stream: 2592 x 1944 @1-20 fps/
2688 x 1520 @1-25/30 fps
Sub stream: 704 x 576 @1-25 fps/704 x 480 @ 1-20fps
Third stream: 1920 x 1080 @1-25/30 fps

www.dahuasecurity.com

Stream Capability3 streams
Resolution
5M (2592 x 1944); 4M (2688 x 1520); 4M (2560 x
1440); 3M (2304 x 1296); 1080p (1920 x 1080); 1.3M
(1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x
480); VGA (640 x 480); CIF (354 x 288/354 x 240)
Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps
Day/NightColor/B/W
BLCYes
HLCYes
WDR120 dB
Scene Self-adaptation Yes
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas)
Region of Interest (RoI)Yes (4 areas)
Smart IlluminationYes
Image Rotation
0°/90°/180°/270° (Support with 2592x1944 resolution
and lower)
MirrorYes
Privacy Masking4 areas
Audio
Built-in MICYes
Audio CompressionPCM; G.711a; G.711Mu; G.726; AAC; G.723
Alarm
Alarm Event
No SD card; SD card full; SD card error; network
disconnection; IP conflict; illegal access; motion
detection; video tampering; tripwire; intrusion; scene
changing; audio detection; voltage detection; external
alarm; SMD; safety exception; light alarm; sound alarm
(11 built-in sounds and custom voices importing)
Network
NetworkRJ-45 (10/100 Base-T)
SDK and APIYes
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP;
RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS;
QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA;
PPPoE; 802.1x; SNMP
Interoperability
ONVIF( Profile S/Profile G/Profile T); CGI; Milestone;
Genetec; P2P
User/Host20 (Total bandwidth: 80 M)
Storage
FTP; SFTP; Micro SD card (support max. 256 G); Dahua
Colud; NAS
Browser
IE: IE8 and later
Chrome
Firefox
Safari: Safari 12 and later
Management SoftwareSmart PSS; DSS; DMSS
| DH-IPC-HFW3549T1-AS-PV


www.dahuasecurity.com

Mobile PhoneIOS; Android
Certification
Certification
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Port
Audio Input1 channel (RCA port)
Audio Output1 channel (RCA port)
Alarm Input1 channel in: 5mA 3V–5V DC
Alarm Output1 channel out: 300mA 12V DC
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption
Basic power consumption: 2W (12V DC); 2.6W (PoE)
Max. power consumption (H.265 + warm light + IVS
+ sound alarm + red and blue lights flash): 7.5W (12V
DC); 8.8W (PoE)
Environment
Operating Conditions–40°C to +60°C (–40°F to +140°F)/Less than 95% RH
Storage Conditions–40°C to +60°C (–40°F to +140°F)
Protection GradeIP67
Structure
CasingMetal + plastic
Dimensions
288.4 mm x 94.4 mm x 84.7 mm
(11.4" x 3.7" x 3.3") (L x W x H)
Net Weight1.0 kg (2.2 lb)
Gross Weight1.23 kg (2.7 lb)


Ordering Information
TypePart NumberDescription
5MP Camera
DH-IPC-
HFW3549T1P-
AS-PV
5MP Full-color Active Deterrence Fixed-focal
Bullet WizSense Network Camera, PAL
DH-IPC-
HFW3549T1N-
AS-PV
5MP Full-color Active Deterrence Fixed-focal
Bullet WizSense Network Camera, NTSC
IPC-HFW3549T1P-
AS-PV
5MP Full-color Active Deterrence Fixed-focal
Bullet WizSense Network Camera, PAL
IPC-HFW3549T1N-
AS-PV
5MP Full-color Active Deterrence Fixed-focal
Bullet WizSense Network Camera, NTSC
Accessories
(optional)
PFA130-EJunction Box
PFA152-EPole Mount
PFM321D12V DC 1A Power Adapter
LR1002-1ET/1EC
Single-port Long Reach Ethernet over Coax
Extender
PFM900-EIntegrated Mount Tester
PFM114TLC SD Card
Accessories
Optional:
PFA152-E
Pole Mount

PFM321D
12V DC 1A Power
Adapter
PFA130-E
Junction Box
PFM900-E
Integrated Mount
Tester

PFM114
TLC SD Card
LR1002-1ET/1EC
Single-port Long
Reach Ethernet over
Coax Extender
| DH-IPC-HFW3549T1-AS-PV

Dimensions (mm/inch)

Rev 001.001 © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
