IPC-HFW2831T-ZS-27135-S2

Kamera IP bullet z serii Lite , przetwornik 1/2,7" 8 Mpx progresywny CMOS, Smart H.265/H.264, 15 kl./s @ 4K, WDR (120dB), mirco SD(max 256 GB), obiektyw 2,7-13,5 mm, IR 60 m, IP67, DC 12V/PoE, IVS (przekroczenie linii, intruz w strefie)...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.dahuasecurity.com
DH-IPC-HFW2831T-ZS-S2

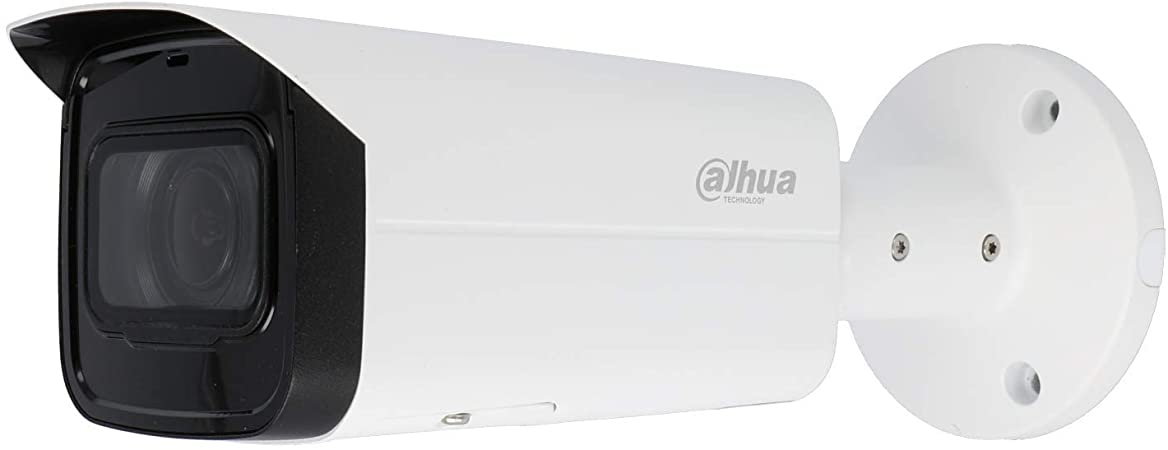

8MP Lite IR Vari-focal Bullet Network Camera

· 8MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
· Outputs max. 8MP (3840 x 2160) @15 fps, and supports 2688x1520
(2688 x 1520) @25/30 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in IR LED, max IR distance: 60 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, no SD card,
SD card full, SD card error, network disconnection, IP conflict, illegal ac-
cess, voltage detection
· Supports max. 256 GB Micro SD card
· 12V DC/PoE power supply
· IP67 protection
Lite Series | DH-IPC-HFW2831T-ZS-S2
Series Overview
With upgraded H.265 encoding technology, Dahua Lite series network
camera has efficient video encoding capacity, which saves bandwidth
and storage space. This camera adopts the latest starlight technology
and displays better color image in the condition of low illumination. It
supports SD card storage, dust-proof function, waterproof function and
vandal-proof function, complying with the standards of IP67 (Supported
by some select models).
Functions
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network
camera provides clear details in the environment of strong brightness
contrast. The bright and dark area can get clear video even in high
brightness environment or with backlight shadow.
Starlight
With advanced image processing technology and optical technology,
Dahua Starlight technology can provide clear colorful video in
the environment of low illuminance. It widely applies to various
environments of low illuminance.
IVS
With advanced video algorithm, Dahua IVS technology supports
intelligent functions, such as tripwire and intrusion.
Cyber Security
Dahua network camera is equipped with a series of key security
technologies, such as security authentication and authorization, access
control, trusted protection, encrypted transmission, and encrypted
storage, which improve its security defense and data protection, and
prevent malicious programs from invading the device.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies)
input voltage tolerance (wide voltage range), and it is widely applied to
outdoor environment with instable voltage.

Smar t C odec
WDR
S tar ligh t
IVS


www.dahuasecurity.com

Technical Specification
Camera
Image Sensor1/2.7” 8Megapixel progressive CMOS
Max. Resolution
3840 (H) x 2160 (V)
ROM128 MB
RAM256 MB
Scanning SystemProgressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination0.008 Lux@F1.5
S/N Ratio>56 dB
Illumination Distance60 m (196.85 ft)
Illuminator On/Off ControlAuto/Manual
Illuminator Number4 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens TypeMotorized vari-focal
Mount Typeφ14
Focal Length2.7 mm–13.5 mm
Max. ApertureF1.5
Field of View
Horizontal: 113°–31°
Vertical: 58°–17°
Diagonal: 138°–36°
Iris TypeFixed
Close Focus Distance0.8 m–0.8 m (2.62 ft–2.62 ft)
DORI Distance
LensDetectObserveRecognizeIdentify
W
85.3 m
(279.9 ft)
34.1 m
(111.9 ft)
17 m
(55.8 ft)
8.5 m
(27.9 ft)
T
280 m
(918.6 ft)
112 m
(367.5 ft)
56 m
(183.7 ft)
28 m
(91.9 ft)
Smart Event
IVSTripwire; intrusion
Video
Video Compression
H.265; H.264; H.264B; MJPEG (only supported by the
sub stream)
Smart CodecSmart H.265+/ Smart H.264+
Video Frame Rate
Main stream:
3840 x 2160 (1 fps–15 fps)
2688 x 1520 (1 fps–25/30 fps)
Sub stream:
704 x 576 (1 fps–25 fps)
704 x 480 (1 fps–30 fps)
Stream Capability2 streams

Resolution
3840 x 2160 (3840 x 2160); 3072 x 2048 (3072 x 2048);
3072 x1728 (3072 x 1728); 2592 x 1944 (2592 x 1944);
2688 x 1520 (2688 x 1520); 3M (2048 x 1536); 2304 x
1296 (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x
960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA
(640 x 480); CIF (352 x 288/352 x 240)
Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps
Day/NightAuto(ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest(RoI)Yes (4 areas)
Smart IlluminationYes
Image Rotation
0°/90°/180°/270° (Supports 90°/270° with 2688 x 1520
resolution and lower.)
MirrorYes
Privacy Masking4 areas
Alarm
Alarm Event
No SD card; SD card full; SD card error; network
disconnection; IP conflict; motion detection; video
tampering; tripwire; intrusion; illegal access; voltage
detection; safety exception
Network
NetworkRJ-45 (10/100 Base-T)
SDK and APIYes
Cyber Security
Video encryption; firmware encryption; configuration
encryption; Digest; WSSE; account lockout; security logs;
IP/MAC filtering; generation and importing of X.509
certification; syslog; HTTPS; 802.1x; trusted boot; trusted
execution; trusted upgrade
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP;
RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP;
NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone;
Genetec
User/Host20
StorageFTP; Micro SD card (support max. 256 G); NAS; SFTP
Browser
IE
Chrome
Firefox
Management SoftwareSmart PSS; DSS; DMSS
Mobile PhoneIOS; Android
Lite Series | DH-IPC-HFW2831T-ZS-S2

Certification
Certifications
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply12V DC/PoE (802.3af)
Power Consumption< 9.9W
Environment
Operating Conditions –30°C to +60°C (–22°F to +140°F)/less than ≤ 95% RH
Storage Temperature–40°C to +60°C (–40°F to +140°F)
ProtectionIP67
Structure
CasingMetal
DimensionsΦ244.1 mm x 90.4 mm (Φ9.61" x 3.26")
Net Weight0.86 kg (1.90 lb)
Gross Weight1.10 kg (2.43 lb)

Ordering Information
TypePart NumberDescription
8MP
Camera
DH-IPC-HFW2831TP-ZS-S2
8MP Lite IR Vari-focal Bullet Nework
Camera,PAL
DH-IPC-HFW2831TN-ZS-S2
8MP Lite IR Vari-focal Bullet Nework
CameraNTSC
Accessories
(optional)
PFA130-EJunction Box
PFA152-EPole Mount
PFM321DDC12V1A Power Adapter
LR1002-1ET/1EC
Single-port Long Reach Ethernet
over Coax Extender
PFM900-EIntegrated Mount Tester
PFM114TLC SD Card

Dimensions (mm[inch])

Rev 001.001© 2020 Dahua . All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

www.dahuasecurity.com
Lite Series | DH-IPC-HFW2831T-ZS-S2

Accessories
Optional:
PFA130-E
Junction Box
PFA152-E
Pole Mount
PFM114
TLC SD Card
PFM321D
DC12V1A Power
Adapter
LR1002-1ET/1EC
Single-port Long
Reach Ethernet over
Coax Extender
PFM900-E
Integrated Mount
Tester

PFAEPFAEPFAE
le utJunction Mount
