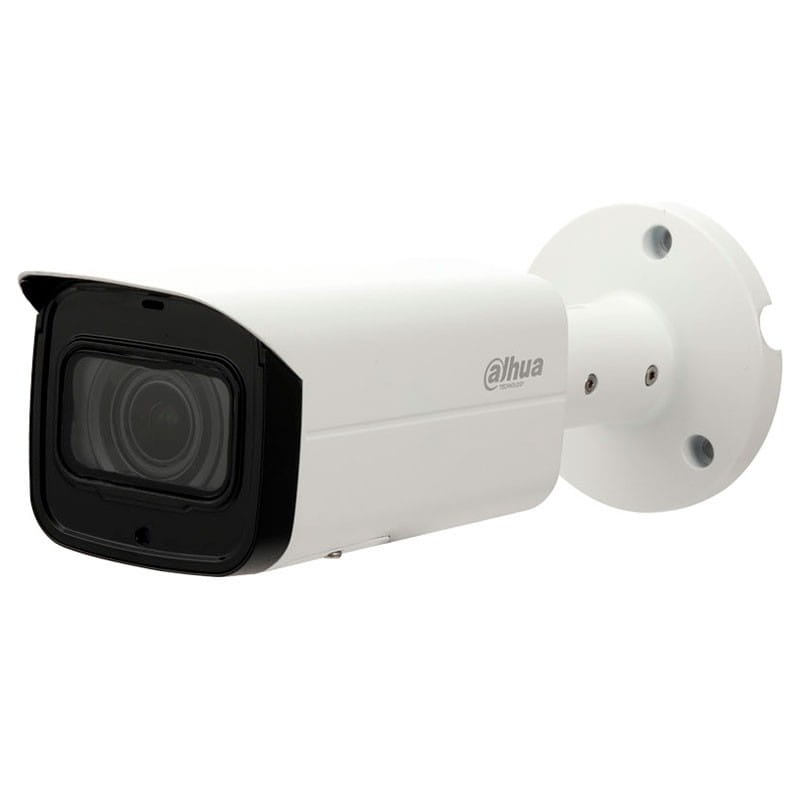

IPC-HFW2431S-S-0360B-S2

Kamera IP bullet z serii Lite , 1/3" 4 Mpx Starlight, Smart H.265/H.264, 20 kl./s @ 4Mpx, WDR (120dB), mirco SD(max 256 GB), obiektyw stałoogniskowy 3,6 mm, IR 30 m, IP67, DC 12V/PoE, IVS (przekroczenie linii, intruz w strefie)...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Lite Series | DH-IPC-HFW2431S-S-S2

www.dahuasecurity.com
DH-IPC-HFW2431S-S-S2
4MP WDR IR Bullet Network Camera

System Overview
With upgraded H.265 encoding technology, Dahua Lite series camera has
efficient video encoding capacity, which saves bandwidth and storage
space. This camera adopts the latest starlight technology and displays
better colorful image in the environment of low illumination. It supports
SD card storage, waterproof function, dust-proof function, complying to
the standards of IP67.
Functions
Smart ( H.265+ & H.264+ )
Adopting advanced algorithm of auto stream control according to the
environment, Dahua smart encoding technology realizes the higher effi-
ciency than (H.265 & H.264 ), providing high-quality video, and reducing
the cost of storage and transmission.
Wide dynamic range (WDR)
Dahua adopts advanced Wide Dynamic Range (WDR) technology. You
can get clear details in the environment of strong brightness contrast.
In high brightness and back-light environment, bright region and dark
region with strong light source, you can also get clear images.
· 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
· Outputs 4MP (2560 x 1440)@25/30fps, Max. supports
4MP (2688 x 1520)@20 fps
· H.265 coding, high compression ration, low bit rate
· Built-in IR LED, max IR distance: 30 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, no SD card,
SD card full, SD card error, network disconnected, IP conflict, illegal access,
voltage detection
· Max. 256 GB SD card
· 12V DC/POE power support
· IP67 protection grade

Starlight
Dahua Starlight technology mainly applies to the environment of low illu-
mination, and it can provide clear colorful video. Even in the environment
of min. illumination, the technology can guarantee the good image effect.
Intelligent Video Analysis (IVS)
With advanced video algorithm, Dahua camera supports intelligent detec-
tion, such as tripwire and intrusion and so on.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking in 1
m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide volt-
age range), and it is widely applied to outdoor environment with instable
voltage.

4Mp

IP67

H.265+

Starlight

IVS


Lite Series | DH-IPC-HFW2431S-S-S2

Technical Specification
Camera
Image Sensor
1/3” CMOS
Effective Pixels
2688 (H) x 1520 (V)
ROM
128 MB
RAM
128 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100000 s
Min. Illumination
0.01 Lux@F1.6
IR Distance
30 m (98.43 ft) (IR)
IR On/Off Control
Auto/Manual
IR LEDs Number
1 (IR LED)
Pan/Tilt/Rotation Range
Horizonal: 0°–360°
Vertical: 0°–90°
Rotation: 0°–360°
Lens
Lens TypeFix focal
Mount TypeM12
Focal Length
2.8 mm
3.6 mm
Max. Aperture
F1.6
F1.6
Field of View
2.8 mm:
Horizonal: 102.0°
Vertical: 55.0°
Diagonal: 121.0°
3.6 mm :
Horizonal: 84.0°
Vertical: 45.0°
Diagonal: 100.0°
Iris TypeFixed
Close Focus Distance
2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.6 m (3.61 ft)
DORI
Distance
LensDetectObserveRecognizeIdentify
2.8 mm
56 m
(183.73 ft)
22.4 m
(73.49 ft)
11.2 m
(36.75 ft)
5.6 m
(18.37 ft)
3.6 mm
80 m
(262.47 ft)
32.0 m
(104.99 ft)
16.0 m
(52.49 ft)
8.0 m
(26.25 ft)
Smart event
General IVS AnalyticsIntrusion; tripwire
Video
Video Compression H.265; H.264; H.264B; MJPEG
Smart Codec
H.264: Yes
H.265: Yes
Video Frame Rate
50Hz
Main stream (2560 x 1440@25 fps); sub stream (704
x 576@25 fps)
Main stream (2688 x 1520@20 fps); sub stream (704 x
576@20 fps)
60Hz
Main stream (2560 x 1440@30 fps); sub stream (704
x 480@30 fps)
Main stream (2688 x 1520@20 fps); sub stream (704 x
480@20 fps)

www.dahuasecurity.com

Stream CapabilityMain stream; sub stream
Resolution
2688 x 1520 (2688 x 1520); 2560 x 1440 (2560 x
1440); 2304 x 1296 (2304 x 1296); 1080p (1920 x
1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704
x 576/704 x 480); VGA (640 x480); CIF (352 x 288/352
x 240)
Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6144 Kbps
Day/NightICR switch
BLCYes
WDR120 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionDisable/Enable (4 areas, rectangle)
Region of Interest(RoI)Yes (4 areas)
Smart IRYes
Image Rotation
0°/90°/180°/270° (Supports 90°/270° with 1080p
resolution.)
MirrorYes
Privacy Masking4 areas
Network
NetworkRJ-45 (10/100 Base-T)
Protocol
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP;
DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP;
RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP
InteroperabilityONVIF (Profile S/Profile G); CGI; Milestone; Genetec
User/Host20
Edge StorageDahua Cloud; FTP; Micro SD card (max. 256 GB); NFS
Browser
IE
Google
Firefox
Management SoftwareSmart PSS; DSS; DMSS
Mobile PhoneIOS; Android
Certification
Certifications
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply12V DC/POE
Power Consumption
Basic power consumption: 2.2W (12V DC), 2.7W (POE)
Max power consumption (H.265, Max resolution, Max
stream, WDR, IR full intensity, IVS): 4.2W (12V DC),
5W (POE)

Lite Series | DH-IPC-HFW2431S-S-S2

Environment
Operating Temperature -40°C to +60°C (-40°F to +140°F)
Operating Humidity≤95%
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Storage Humidity≤95%
Protection GradeIP67
Structure
CasingMetal
Dimensions166.2 mm x Φ70 mm (6.54" x Φ2.76")
Net Weight0.48 kg (1.06 lb)
Gross Weight0.57 kg (1.26 lb)


Ordering Information
TypePart NumberDescription
4MP Camera
DH-IPC-
HFW2431SP-S-S2
4MP WDR IR Bullet Network Camera,PAL
DH-IPC-
HFW2431SN-S-S2
4MP WDR IR Bullet Network Camera,NTSC
Accessories
PFA134Junction Box
PFA152-EPole mount
PFM321DDC12V1A Power adapter
LR1002-1ET/1EC
Single-port long reach ethernet over coax
extender
PFM900-EIntegrated mount tester
PFM114TLC SD card

Pe ut
Junction Mount

PFA134
PFA134PFA152-E

Dimensions (mm[inch])

www.dahuasecurity.com

Rev 001.001 © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

PFM114
TLC SD card
Accessories
Optional:

PFA134
Junction Box
PFA152-E
Pole Mount
PFM321D
DC12V1A
Power adapter

PFM900-E
Integrated mount
tester
LR1002-1ET/1EC
Single-port long reach
ethernet over coax
extender
