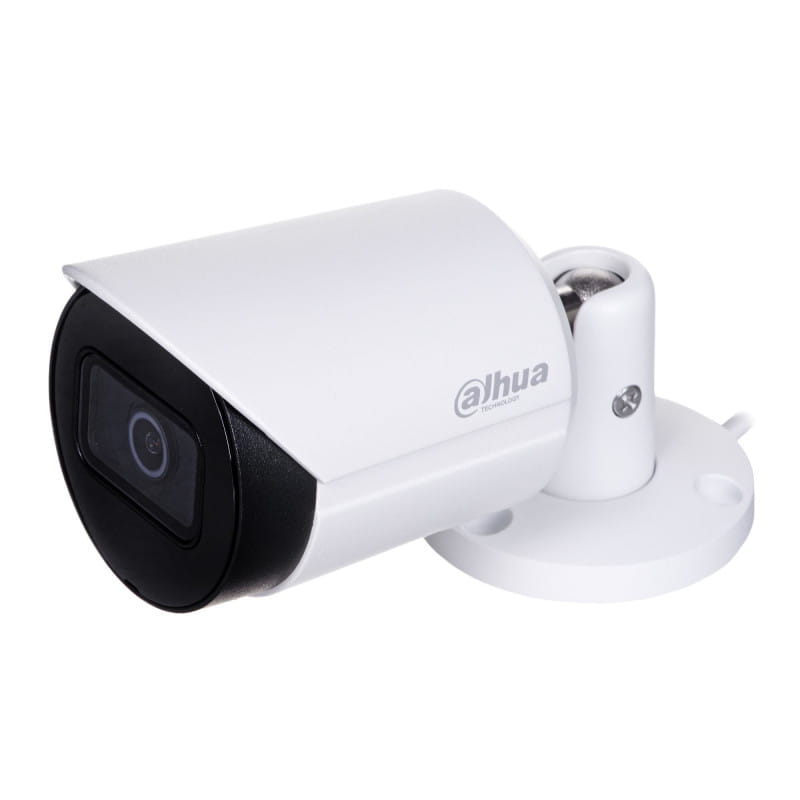

IPC-HFW2231S-S-0360B-S2

Kamera IP bullet z serii Lite , 1/2,8" 2 Mpx Starlight, Smart H.265/H.264, 25/30 kl./s @ 1080P, WDR (120dB), mirco SD(max 256 GB), obiektyw stałoogniskowy 3,6 mm, IR 30 m, IP67, DC 12V/PoE, IVS (przekroczenie linii, intruz w strefie)...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Lite Series | DH-IPC-HFW2231S-S-S2

www.dahuasecurity.com
DH-IPC-HFW2231S-S-S2
2MP WDR IR Bullet Network Camera

System Overview
With upgraded H.265 encoding technology, Dahua Lite series camera has
efficient video encoding capacity, which saves bandwidth and storage
space. This camera adopts the latest starlight technology and displays
better colorful image in the environment of low illumination. It supports
SD card storage, waterproof function, dust-proof function, complying to
the standards of IP67.
Functions
Smart ( H.265+ & H.264+ )
Adopting advanced algorithm of auto stream control according to the
environment, Dahua smart encoding technology realizes the higher effi-
ciency than (H.265 & H.264 ), providing high-quality video, and reducing
the cost of storage and transmission.
Wide dynamic range (WDR)
Dahua adopts advanced Wide Dynamic Range (WDR) technology. You
can get clear details in the environment of strong brightness contrast.
In high brightness and back- light environment, bright region and dark
region with strong light source, you can also get clear images.
· 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
· Outputs max. 2MP (1920 x 1080) @25/30 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in IR LED, max. IR distance: 30 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, no SD
card, SD card full, SD card error, network disconnection, IP conflict,
illegal access, voltage detection
· Supports max. 256 GB Micro SD card
· 12V DC/PoE power support
· IP67 protection

Starlight
Dahua Starlight technology mainly applies to the environment of low illu-
mination, and it can provide clear colorful video. Even in the environment
of min. illumination, the technology can guarantee the good image effect.
Intelligent Video Analysis (IVS)
With advanced video algorithm, Dahua camera supports intelligent detec-
tion, such as tripwire and intrusion and so on.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking in 1
m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide volt-
age range), and it is widely applied to outdoor environment with instable
voltage.

2Mp

IP67

H.265+

Starlight

IVS


Lite Series | DH-IPC-HFW2231S-S-S2

Technical Specification
Camera
Image Sensor
1/2.8”2Megapixel progressive CMOS
Effective Pixels
1920 (H) x1080 (V)
ROM
128 MB
RAM
128 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100000 s
Min. Illumination
0.002 Lux @F1.6
IR Distance
30 m (98.4 ft)
IR On/Off Control
Auto/Manual
IR LEDs Number
1
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length
2.8 mm
3.6 mm
Max. Aperture
F1.6
F1.6
Field of View
2.8 mm:
Pan:106°
Tilt: 56°
Diagonal: 126°
3.6 mm:
Pan:87°
Tilt: 46°
Diagonal: 104°
Iris TypeFixed aperture
Close Focus Distance
2.8 mm: 0.6 m (2.0 ft)
3.6 mm: 1.2 m (3.9 ft)
DORI
Distance
LensDetectObserveRecognizeIdentify
2.8 mm
38.6 m
(126.6 ft)
15.4 m
(50.5 ft)
7.7 m
(25.3 ft)
3.9 m
(12.8 ft)
3.6 mm
55.2 m
(181.1 ft)
22.1 m
(72.5 ft)
11.0 m
(36.1 ft)
5.5 m
(18.0 ft)
Smart event
General IVS AnalyticsTripwire; intrusion
Video
Video Compression H.265; H.264; H.264B; MJPEG
Smart CodecYes
Video Frame Rate
Main stream:
1920 x 1080 (1 fps-25/30 fps)
Sub stream:
704 x 576 (1 fps-25 fps)
704 x 480 (1 fps-30 fps)
Stream Capability2 streams

www.dahuasecurity.com

Resolution
1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x
720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF
(352 x 288/352 x 240)
Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6144 Kbps
Day/NightAuto(ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest(RoI)Yes (4 areas)
Smart IRYes
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 1080p
resolution and lower.)
MirrorYes
Privacy Masking4 areas
Network
NetworkRJ-45 (10/100 Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP;
RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS;
QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE;
802.1x; Bonjour
Interoperability
ONVIF(Profile S/Profile G/Profile T);CGI; P2P;
Milestone; Genetec
User/Host20
Edge Storage
Dahua Cloud; FTP; SFTP; Micro SD Card (support max.
256 GB); NAS
Browser
IE
Chrome
Firefox
Management SoftwareSmart PSS; DSS; DMSS
Mobile PhoneIOS; Android
Certification
Certifications
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply12V DC/PoE (802.3af)
Power Consumption< 4.9W

Lite Series | DH-IPC-HFW2231S-S-S2

Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than ≤ 95% RH
Strorage Conditions -40°C to +60°C (-40°F to +140°F)
Ingress ProtectionIP67
Structure
CasingMetal
Dimensions166.2 mm x Φ70 mm (6.5" x Φ2.8")
Net Weight0.48 kg (1.1 lb)
Gross Weight0.57 kg (1.3 lb)


Ordering Information
TypePart NumberDescription
2MP Camera
DH-IPC-
HFW2231SP-S-S2
2MP WDR IR Bullet Network Camera,PAL
DH-IPC-
HFW2231SN-S-S2
2MP WDR IR Bullet Network Camera,NTSC
Accessories
(optional)
PFA134Junction Box
PFA152-EPole Mount
PFM321DDC12V1A Power Adapter
LR1002-1ET/1EC
Single-port Long Reach Ethernet over Coax
Extender
PFM900-EIntegrated Mount Tester
PFM114TLC SD Card

Pe ut
Junction Mount

PFA134
PFA134+PFA152-E

Dimensions (mm[inch])

www.dahuasecurity.com

Rev 001.001 © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

PFM114
TLC SD Card
Accessories
Optional:

PFA134
Junction Box
PFA152-E
Pole Mount
PFM321D
DC12V1A
Power Adapter

PFM900-E
Integrated Mount
Tester
LR1002-1ET/1EC
Single-port Long
Reach Ethernet over
Coax Extender
