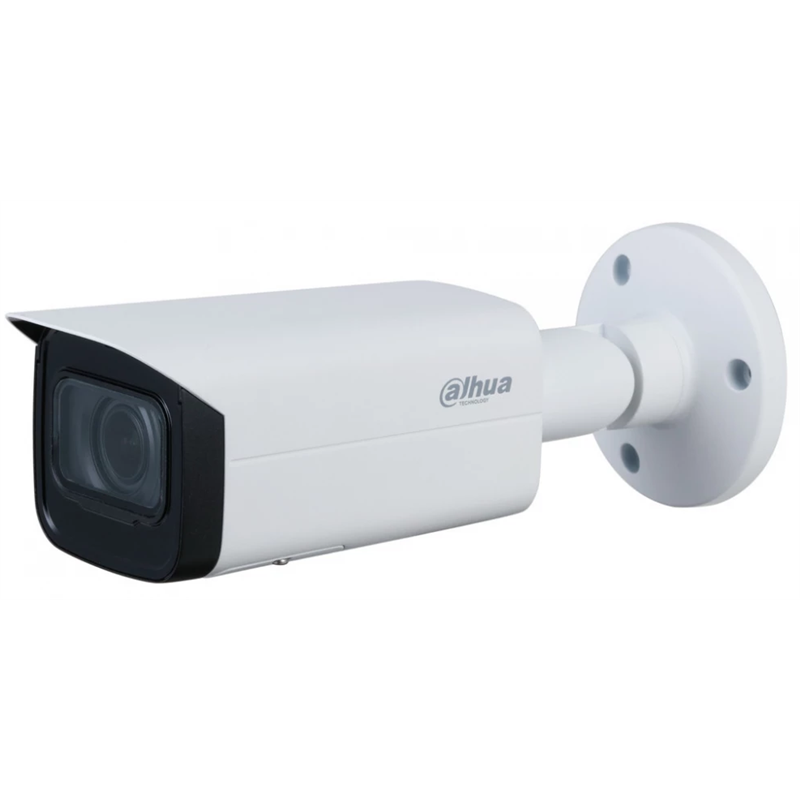

IPC-HFW1230T-ZS-2812-S5

Kamera IP bullet z serii Lite , przetwornik 1/2,7" 2 Mpx CMOS, 25/30 kl./s (1920 x 1080), WDR, IR max 50m, H265/H264, obiektyw zmiennoogniskowy 2.8-12 mm, IP67, 12VDC, PoE, HLC, BLC...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.dahuasecurity.com
DH-IPC-HFW1230T-ZS-S5
2MP Entry IR Vari-focal Bullet Netwok Camera

· 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
· Outputs max. 2MP (1920 x 1080p) @25/30 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in IR LED, max. IR distance: 50 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Abnormality detection: Motion detection, video tampering, network
disconnection, IP conflict, illegal access
· Supports max. 256 GB Micro SD card
· 12V DC/PoE power supply
· IP67 protection
Series Overview
With features of simple installation, easy operation, and high
performance-cost ratio, Dahua Entry series network camera is
applicable to small and medium-sized scenes, such as homes/
residences, small-sized retail stores, and other small and medium-sized
enterprises.
Functions
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Motion Detection
When moving objects appear in the monitoring image, Dahua Motion
Detection (General) technology triggers alarm or records.
Smart Illumination
Dahua Smart Illumination technology can display image in the
environment of low illuminance or completely dark environment.
According to the distance of the targets, the camera adjusts
Illuminations intensity automatically to display the details of the moving
target.
Image Flip
For narrow and long scenes, Dahua image flip technology flips the
image by 90°/180°/270° to realize better surveillance in rotation mode.
Cyber Security
Dahua network camera is equipped with a series of key security
technologies, such as security authentication and authorization, access
control, trusted protection, encrypted transmission, and encrypted
storage, which improve its security defense and data protection,
and prevent malicious programs from invading the device. With
UL CAP Certification, TÜV Rheinland Protected Privacy IoT Product
Certification, and ETSI EN 303645 Certification, Dahua network camera
better meets the demands of cyber security and privacy protection.
Protection (IP67,wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.

Motion Detection
Smart C odec
Smart Illumination
Entry Series | DH-IPC-HFW1230T-ZS-S5

www.dahuasecurity.com

Technical Specification
Camera
Image Sensor1/2.8" CMOS
Max. Resolution
1920 (H) x 1080 (V)
ROM16 MB
RAM128 MB
Scanning SystemProgressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination0.005 Lux @F1.5
S/N Ratio>56 dB
Illumination Distance50 m (164.0 ft)
Illuminator On/Off ControlAuto/Manual
Illuminator Number2 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens TypeMotorized vari-focal
Lens Mountφ14
Focal Length2.8 mm–12 mm
Max. ApertureF1.5
Field of View
Pan: 101°–33.5°
Tilt: 52.5°–19°
Diagonal: 125°–38.5°
Iris ControlFixed
Close Focus Distance1.2m (3.9 ft)
DORI
Distance
LensDetectObserveRecognizeIdentify
W
48 m
(157.5 ft)
19 m
( 62.3 ft)
10 m
(32.8 ft)
5 m
(16.4 ft)
T
131 m
(429.8 ft)
52 m
(170.6 ft)
26 m
(85.3 ft)
13 m
(42.7 ft)
Video
Video Compression
H.265; H.264; H.264B; MJPEG (only supported by the
sub stream)
Smart CodecSmart H.265+/Smart H.264+
Video Frame Rate
Main Stream:
1920 x 1080 (1 fps–25/30 fps)
Sub stream:
704 x 576 (1 fps–25 fps)
704 x 480 (1 fps–30 fps)
Stream Capability2 streams
Resolution
1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280
x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF
(352 x 288/352 x 240)
Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6400 kbps

Day/NightAuto (ICR)/Color/B/W
BLCYes
HLCYes
WDRDWDR
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Smart IlluminationYes
Image Rotation
0°/90°/180°/270° (support 90°/270° with 1080p
resolution and lower)
MirrorYes
Privacy Masking4 areas
Alarm
Alarm Event
No SD card; SD card full; SD card error; network
disconnection; IP conflict; illegal access; motion
detection; video tampering; safety abnormity; defocus
detection
Network
Network PortRJ-45 (10/100 Base-T)
SDK and APIYes
Cyber Security
Video encryption; configuration encryption; Digest;
WSSE; account lockout; security logs;generation and
importing of X.509 certification; HTTPS; trusted boot;
trusted execution; trusted upgrade
Network Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP;
SMTP; FTP; DHCP; DNS; NTP; Multicast
InteroperabilityONVIF (Profile S/Profile T); CGI; P2P; Genetec; milestone
User/Host6
StorageFTP; Micro SD card (support max. 256G)
Browser
IE
Chrome
Firefox
Management SoftwareSmart PSS; DSS; DMSS
Mobile ClientIOS; Android
Certification
Certifications
CE-LVD : EN60950-1
CE-EMC : Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply12V DC/PoE (802.3af)
Power Consumption
Basic power consumption: 1.4W (12V DC); 2.2W (PoE)
Max. power consumption (ICR + IR intensity + DWDR):
5W (12V DC); 6.4W (PoE)
Entry Series | DH-IPC-HFW1230T-ZS-S5

Environment
Operating Temperature–30°C to +60°C (–22°F to +140°F)
Operating Humidity≤95%
Storage TemperatureNA
ProtectionIP67
Structure
CasingMetal
Product Dimensions244.1 mm x Φ90.4 mm (9.6" x Φ3.6")
Net Weight0.86 kg (1.9 lb)
Gross Weight1.12 kg (2.5 lb)

Ordering Information
TypeModelDescription
2MP
Camera
DH-IPC-HFW1230TP-ZS-S5
2MP Entry IR vari-focal Bullet Netwok
Camera,PAL
DH-IPC-HFW1230TN-ZS-S5
2MP Entry IR vari-focal Bullet Netwok
Camera,NTSC
Accessories
(optional)
PFA130-EJunction Box
PFA152-EPole Mount
PFM321D12V DC 1A Power Adapter
LR1002-1ET/1EC
Single-port Long Reach Ethernet over
Coax Extender
PFM900-EIntegrated Mount Tester
PFM114TLC SD Card
Accessories
Optional：
PFA130-E
Junction Box

PFA152-E
Pole Mount
PFM900-E
Integrated Mount Tester

PFM321D
12V DC 1A Power Adapter

PFM114
TLC SD Card

LR1002-1ET/1EC
Single-port Long Reach
Ethernet over Coax Extender

Dimensions (mm[inch])

www.dahuasecurity.com
Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
Entry Series | DH-IPC-HFW1230T-ZS-S5
