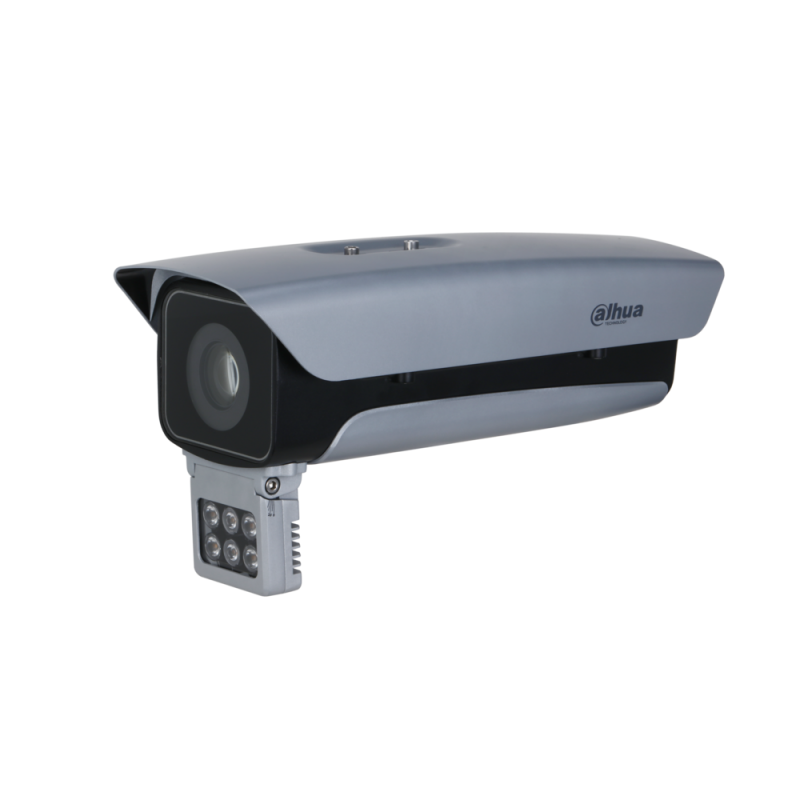

IPC-HFS7842-Z-5G-LED-0856

Kamera IP bullet z serii LED, przetwornik 1/1,8" 8 Mpx CMOS, Smart H.265/H.264, 30 kl./s @ 8Mpx, WDR (120dB), 5G, mirco SD (max 256 GB), obiektyw 5-56 mm, LED 80 m, alarm (2/1), wsparcie audio (7/3), IP67, DC 12V, AI: perymetryka, detekcja twarzy, liczenie ludzi, metadane....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

· 8MP 1/1.8" CMOS image sensor, low illuminance, high image definition
· Outputs max. 8MP (3840 x 2160) @25/30 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in efficient warm light, max. illumination distance: 80 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking
· With deep learning algorithm, it supports people counting, face
detection,perimeter protection, video metadata etc
· Alarm: 7 in, 3 out; audio: 2 in, 1 out; 485; BNC; supports max. 256 G SD
card
· 12V DC power supply; easy for installation
· IP67 protection
· GPS/BDS
· Support 5G module (N41, N78, and N79 frequency range), and NSA and
SA network
DH-IPC-HFS7842-Z-5G-LED
8MP 5G Bullet WizMind Network Camera

www.dahuasecurity.com
With advanced deep learning algorithm, Dahua WizMind 7 Series net-
work camera supports various intelligent functions and satisfies the re-
quirements in different scenes. The camera can accurately recognize per-
son, vehicle, and non-motor vehicle, face, ANPR, and liveness. This series
camera has ultra starlight night version effect, and works with ultra-low
stream. It supports dust-proof function, waterproof function and vandal-
proof function, complying with the standards of IP67.
Launched by Dahua Technology, Dahua WizMind is a full portfolio of so-
lutions composed of project-oriented products including IPC, NVR, PTZ,
XVR, Thermal and software platform which adopts industry-leading deep
learning algorithms. Focusing on customer's requirements, WizMind pro-
vides precise, reliable and comprehensive AI solutions for verticals.
Series Overview
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology
can recognize human and vehicle accurately. In restricted area (such
as pedestrian area and vehicle area), the false alarms of intelligent
detection based on target type (such as tripwire, intrusion, fast moving,
parking detection, loitering detection and gathering detection) are
largely reduced.
Video Metadata
With deep learning algorithm, Dahua Video Metadata technology can
detect, track, capture vehicle, non-motor vehicle and people, and select
the best images, and extract attributes.
Face Detection
Dahua Face Detection technology can detect the face in the image. With
deep learning algorithm, the technology supports detecting, tracking,
capturing and selecting the best face image, and then outputs face
snapshot.
People Counting
With deep learning algorithm, Dahua People Counting technology
can track and process moving human body targets to realize the
accurate statistics of enter No., leave No., and In Area No. Working with
management platform, it outputs reports to meet your requirements.
5G
Equipped with built-in high-performance 5G mobile communication
module, the network camera supports 5G network connection and two
networking methods: Non-Standalone (NSA) and Standalone (SA). It
is backward compatible with 4G connection (The module is different
for band compatibility). It can be registered on the platform through
wireless connection, and can transmit videos, pictures, intelligent
feature information, and alarm events. Through the client, you can
remotely monitor and operate in real time.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies)
input voltage tolerance (wide voltage range), and it is widely applied to
outdoor environment with instable voltage.

Smart C odec
Video Metadata
ANPR
Perimeter Protection

5G

| DH-IPC-HFS7842-Z-5G-LED

Functions

www.dahuasecurity.com

Technical Specification
Camera
Image Sensor1/1.8”8Megapixel progressive CMOS
Max. Resolution3840 (H) x 2160 (V)
ROM4 GB
RAM2 GB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.003 Lux@F1.2 (Color,30IRE)
0.0003 Lux@F1.2 (B/W,30IRE)
0 Lux (Illuminator on)
S/N Ratio> 56 dB
Illumination Distance80 m
Illuminator On/Off ControlAuto/Manual
Illuminator Number6 (Warm light)
Lens
Lens TypeMotorized vari-focal
Mount TypeModule
Focal Length8 mm–56 mm
Max. ApertureF1.2 (Constant)
Field of View
Horizontal: 40° (W)–9° (T)
Vertical: 22° (W)–5° (T)
Diagonal: 46° (W)–10° (T)
Iris TypeAuto
Close Focus Distance
W: 2 m (6.6 ft)
T: 3 m (9.8ft)
DORI Distance
Lens DetectObserveRecognizeIdentify
W
151.1 m
(495.4 ft)
60.7 m
(199.1 ft)
30.3 m
(99.4 ft)
15.1 m
(49.5 ft)
T
400.0 m
(1312.3 ft)
160.0m
(524.9 ft)
80.0m
(262.5 ft)
40.0m
(131.2 ft)

Smart Event
IVSAbandoned object; missing object
Professional, intelligent
IVS (Perimeter Protection)
Tripwire; intrusion; fast moving (the three functions
support the classification and accurate detection
of vehicle and human); loitering detection; people
gathering; parking detection
Face Detection
Face detection; track; optimization; snapshot;
report high quality picture; face enhancement; face
exposure; face attribute extract, 6 attributes and
8 expressions: Gender, age, glasses, expressions
(anger, calm, happiness, sadness, disgust, surprise,
confusion and fear), mask, beard; face matting
setting: Face, single inch photo; three snapshot
methods: Real-time snapshot, optimization
snapshot, quality priority; face angle filter;
optimization time setting
People Counting
Support the people counting of tripwire, people
counting in area, and displaying and outputting
yearly/monthly/daily reports
Support queue management, and displaying and
outputting monthly/daily reports
Support 4 rules configuration for people counting of
tripwire, 4 rules configuration for people counting in
area , 4 rules configuration for queue management
ANPR
ANPR, track, priority, snapshot
Vehicle attributes: license plate, vehicle type, vehicle
color, vehicle brand
Other attributes: sun visor, seat belt, smoking,
phoning, in-car accessories, annual vehicle
inspection mark
Video Metadata
Support human body, human face, motor vehicle
and non-motor vehicle image capture and attributes
extraction.
Intelligent Search
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to
event videos.
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only
supported by the sub stream)
Smart CodecSmart H.265+/H.264+
Video Frame Rate
Main Stream: 3840 x 2160 (1-25/30 fps)
Sub stream: 704 x 576 (1-25 fps)/704 x 480 (1–30
fps)
Third stream: 1920 x 1080 (1-25/30 fps)
Fourth stream: 1920 x 1080 (1-25/30 fps)
Fifth stream: 704 x 576 (1-25fps)/704 x 480 (1–30
fps)
Stream Capability5 streams
Resolution
8M (3840 x 2160); 6M (3072 x 2048/3072 x 1728);
5M (2592 x 1944)/4M (2688 x 1520); 3M (2048 x
1536/2304 x 1296); 1080p (1920 x 1080); 1.3M
(1280 x 960); 720p (1280 x 720); D1 (704 x 576/704
x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)
Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 9 kbps–17664 kbps
H.265: 9 kbps–17664 kbps
Day/NightAuto (ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
Scene Self-adaptation (SSA)Yes
ANPR
With high-performance GPU chip, deep learning algorithm, and lots of
sample training learning, Dahua ANPR technology can automatically
collect and recognize the vehicle information, including license plate,
logo, vehicle type, and vehicle color.
Cyber Security
Dahua network camera is equipped with a series of key security
technologies, such as security authentication and authorization, access
control, trusted protection, encrypted transmission, and encrypted
storage, which improve its security defense and data protection, and
prevent malicious programs from invading the device.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
| DH-IPC-HFS7842-Z-5G-LED


www.dahuasecurity.com

White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Electronic Image Stabilization
(EIS)
Yes
Smart IlluminationYes
DefogYes
Image Rotation
0°/90°/180°/270°
(Support 90°/270° with 1080p resolution and lower)
MirrorYes
Privacy Masking4 areas
Audio
Audio CompressionG.711A; G.711Mu; G.726; G.723
Alarm Event
Alarm Event
No SD card; SD card full; SD card error; network
disconnection; illegal access; security exception;
IP conflict; motion detection; video tampering;
intrusion; tripwire; abandoned object; missing
object; fast moving; parking detection; people
gathering; loitering detection; scene changing;
audio detection; defocus detection; people
counting; people counting in area; face detection;
video metadata; external alarm; voltage detection
Network
NetworkRJ-45 (10/100/1000 Base-T)
5G
Support 5G module (N41, N78, and N79 frequency
range), and NSA and SA network
SDK and APIYes
Cyber Security
Video encryption; firmware encryption;
configuration encryption; Digest; WSSE;
account lockout; security logs; IP/MAC filtering;
generation and importing of X.509 certification;
syslog; HTTPS; 802.1x; trusted boot; trusted
execution; trusted upgrade
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP;
RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS;
QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS;
SAMBA; PPPoE; 802.1x; SNMP; Bonjour
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; P2P;
Milestone; Genetec
User/Host20 (Total bandwidth: 80 M)
StorageFTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser
IE: IE9 and later
Chrome: 50 and later
Firefox: 48 and later
Management SoftwareSmart PSS; DSS; DMSS
Mobile PhoneIOS; Android
Certifications
Certification
CE-LVD: EN62368-1CE-EMC: Electromagnetic
Compatibility Directive 2014/30/EUFCC: 47 CFR FCC
Part 15,Support B

Port
RS-4851 (baud rate range: 1200 bps–115200 bps)
Audio Input2 channel (RCA port)
Audio Output1 channel (RCA port)
Alarm Input7 channels in: 5mA 3V–5V DC
Alarm Output3 channels out: 1,000mA 30V DC/500mA 50V AC
Power
Power Supply12V DC
Power Consumption
Basic power consumption: 5.2W (12V DC)
Max. power consumption (ICR + warm light full
intensity + 5G acquiring): 25.5W (12V DC)
Environment
Operating Conditions–30°C to +60°C (–22°F to +140°F)/Less than 95% RH
Protection GradeIP67
Construction
CasingMetal + Plastic
Dimensions
404.3 mm x 163.8 mm x 211.8 mm
(15.9 x 6.4" x 8.3") (L x W x H)
Net Weight4.02 kg (8.9 lb)
Gross Weight4.98 kg (11 lb)

Ordering Information
TypeModelDescription
8MP Camera
DH-IPC-HFS7842P-Z-
5G-LED-0856
8MP 5G Bullet WizMind Network
Camera, PAL
DH-IPC-HFS7842N-Z-
5G-LED-0856
8MP 5G Bullet WizMind Network
Camera, NTSC
Accessories
PFA150-SGPole Mount
PFA162-SGPlane Mount
PFB605W-SGWall Mount
| DH-IPC-HFS7842-Z-5G-LED


www.dahuasecurity.com
Rev 001.001© 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

Dimensions (mm[inch])
| DH-IPC-HFS7842-Z-5G-LED

PFA150-SG
Pole Mount
PFA162-SG
Plane Mount
Accessories
Optional:
PFB605W-SG
Wall Mount
