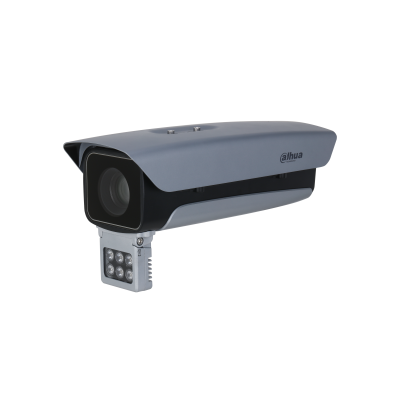

IPC-HFS7443-Z-LI-D2-1272

Kamera IP bullet z serii AI, przetwornik 1/1,8" 4 Mpx CMOS, 25/30 kl./s @ 4Mpx, technologia Polar Light 2.0, WDR (140dB), Micro SD, IP67, 12V, Max IR 150m, obiektyw 12mm-72mm, AI: perymetryka, detekcja twarzy, rozpoznawanie twarzy, mapy zatłoczenia, metadane, inteligentne wyszukiwanie...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.dahuasecurity.com
DH-IPC-HFS7443-Z-LI-D2
4MP Polar Light Bullet WizMind Network Camera

· Built-in GPU chip and deep learning algorithm, improve detection
accuracy
· Five intelligent resources switchable: Video metadata, face recognition,
face detection
· Two 4MP, 1/1.8” CMOS image sensors, one is for collecting black and
white information, and the other is for collecting colorful information,
and the camera will integrate the collected information
· With multi-spectrum fusion technology, the camera can guarantee the
clarity of the image and color rendition in the environment of ultra-low
illuminance; and it can provide colorful image with IR LED on
· Outputs max. 4MP (2688 x 1520) @25/30 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in illuminator of dual light fusion, and the max. illumination
distance is 150 m
· ROI, SVC, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
· Alarm: 3 in, 2 out; audio: 2 in, 1 out; RS-485; BNC; supports max. 256 G
Micro SD card
· 12V DC power supply; 12V DC power output, and max. current 165mA;
easy for installation
· P-Iris
Series Overview
Equipped with dual-sensor construction and multispectral merging
technology, Dahua Polar Light series network camera can realize color
imaging in the environment of low illuminance to provide better
experience. Based on deep learning algorithm, the camera supports
various intelligent functions, such as precise classification of human,
motor vehicle and non-motor vehicle, face recognition, and face
detection, to meet different needs of customers. The camera has
ultra-starlight night vision, ultra-low bit rate, complying to the standards
of IP67.
Functions
Polar Light 2.0
With multispectral merging technology and image merging algorithm,
Dahua Polar Light 2.0 technology can realize color imaging in the
environment of ultra-low illuminance to provide better experience.
Multi-Spectrum Fusion
Dahua Multi-Spectrum Fusion technology extracts the details and
brightness of the visible spectrum and infrared spectrum to make the
fusion brightness close to the visible light brightness, so that the camera
provides a better image.
Dual Light Fusion
Dahua Dual Light Fusion technology integrates the light sources of
different waves. With good illumination, it meanwhile can minimize the
light pollution to avoid dazzle problem. The camera provides multiple
illumination solutions to satisfy different demands.
Face Recognition
Dahua Face Recognition technology extracts the features of captured
faces and compares them with that in face database to recognize the
person identity.
Face Detection
Dahua Face Detection technology can detect the face in the image. With
deep learning algorithm, the technology supports detecting, tracking,
capturing and selecting the best face image, and then outputs face
snapshot.
Video Metadata
With deep learning algorithm, Dahua Video Metadata technology can
detect, track, capture vehicle, non-motor vehicle and people, and select
the best images, and extract attributes.

| DH-IPC-HFS7443-Z-LI-D2

Launched by Dahua Technology, Dahua WizMind is a full portfolio of
solutions composed of project-oriented products including IPC, NVR,
PTZ, XVR, Thermal and software platform which adopts industry-leading
deep learning algorithms. Focusing on customer's requirements,
WizMind provides precise, reliable and comprehensive AI solutions for
verticals.

Face Detection

2.0
Polarlight2.0

Dual Light Fusion





Multi-Spectrum Fusion
Face Recognition
ieo Metaata


www.dahuasecurity.com

Technical Specification
Camera
Image Sensor1/1.8” CMOS
Max. Resolution
2688 (H) x 1520 (V)
ROM4 GB
RAM32 GB
Scanning SystemProgressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination0.0002 Lux@F1.3
S/N Ratio>56 dB
Illumination Distance150 m (492.1 ft)
Illuminator On/Off ControlAuto/Manual/Zoomprio
Illuminator Number6 (illuminator with dual light fusion)
Lens
Lens TypeMotorized vari-focal
Focal Length12 mm–72 mm
Max. ApertureF1.3
Field of View
Horizontal: 26°–7°
Vertical: 14°–4°
Diagonal: 30°–8°
Iris ControlAuto;P-Iris
Close Focus Distance3 m (9.8 ft)
DORI
Distance
LensDetectObserveRecognizeIdentify
W
220.6 m
(723.8 ft)
88.2 m
(289.4 ft)
44.1 m
(144.7 ft)
22.0 m
(72.2 f)
T
827.5 m
(2714.9 ft)
331 m
(1086.0 ft)
165.5 m
(543.0 ft)
82.7 m
(271.3 ft)
Smart Event
IVSAbandoned object; missing object
Professional, intelligent
IVS (Perimeter Protection)
Tripwire; intrusion; fast moving (the three functions
support the classification and accurate detection
of vehicle and human); loitering detection; people
gathering; parking detection

Face Detection
Face detection; track; optimization; snapshot; report
high quality picture; face enhancement; face exposure;
face attribute extraction, 6 attributes and 8 expressions:
Gender, age, glasses, expressions (anger, calm, happiness,
sadness, disgust, surprise, confusion and fear), mouth
mask, beard; face matting setting: face, single inch photo;
three snapshot modes: Real-time snapshot, optimized
snapshot, quality priority; face angle filter; optimization
time setting
Face Recognition
Face detection; track; optimization; snapshot; report
high quality picture; face enhancement; face exposure;
face attribute extraction, 6 attributes and 8 expressions:
Gender, age, glasses, expressions (anger, calm, happiness,
sadness, disgust, surprise, confusion and fear), mouth
mask, beard; face matting setting: face, single inch photo;
two snapshot modes: Real-time snapshot and optimized
snapshot; face angle filter; optimization time setting;
support adding 5 groups of face database, registration
and batch registration, similarity setting, and support
face comparison with the face database containing up to
300 thousand face pictures
Crowd Distribution Map
Crowd map, global people counting; people counting in
area; snapshot for crowd density exception
Video Metadata
Support detection of motor vehicle, non-motor vehicle,
face and human body; track,
motor vehicle priority; snapshot; report high quality
captured picture
Motor vehicle attributes (license plate, vehicle color,
vehicle type, car logo, license plate color, vehicle Model,
visor, seatbelt, smoke,
ornament, inspection sticker)
Non-motor vehicle attributes (vehicle type, vehicle
color, occupancy, top color, top, hat)
Human body attributes (gender, top, top color, bottom,
bag, umbrella, hat)
Face attributes (gender, age, glasses, expressions,
mouth mask, beard)
Smart Search
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to event
videos.
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported
by the sub stream)
Smart Codec
Smart H.265+: Yes
Smart H.264+: Yes
Video Frame Rate
50Hz:
Main stream: 2688 x 1520 @25 fps
Sub stream: 704 x 576 @25 fps
Third stream: 1920 x 1080 @25 fps
60Hz:
Main stream: 2688 x 1520 @30 fps
Sub stream: 704 x 480 @30 fps
Third stream: 1920 x 1080 @30 fps
Stream Capability3 streams
Resolution
4M (2688 x 1520); 3M (2304 x 1296); 1080p (1920 x
1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704
x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352
x 240)
Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 3 kbps–17664 kbps
H.265: 3 kbps–17664 kbps
Day/Night
Yes (Switchable between colorful channel and B/W
channel)
BLCYes
HLCYes
WDR140 dB

| DH-IPC-HFS7443-Z-LI-D2
Cyber Security
Dahua network camera is equipped with a series of key security
technologies, such as security authentication and authorization, access
control, trusted protection, encrypted transmission, and encrypted
storage, which improve its security defense and data protection, and
prevent malicious programs from invading the device. With UL CAP
Certification, TÜV Rheinland Protected Privacy IoT Product Certification,
and ETSI EN 303645 Certification, Dahua network camera better meets
the demands of cyber security and privacy protection.

Scene Self-adaptation Yes
Scene Self-adaptation
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas)
Region of Interest (RoI)Yes (4 areas)
Smart IlluminationYes
DefogYes
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 1080p
resolution and lower)
MirrorYes
Privacy Masking4 areas
Audio
Audio Compression
PCM; G.711a; G.711Mu; G726; MPEG2-Layer2; G722.1;
G729; G.723
Alarm
Alarm Event
No SD card; SD card full; SD card error; network
disconnection; IP conflict; illegal access; motion
detection; video tampering; defocus detection; scene
changing; input abnormal detection; intensity change
detection; tripwire; intrusion; fast moving; abandoned
object; missing object; loitering detection; people
gathering; parking detection; face recognition; face
detection; crowd distribution map; video metadata;
external alarm
Network
Network PortRJ-45 (10/100/1000 Base-T)
SDK and APIYes
Network Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP;
SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP;
Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security
Video encryption; firmware encryption; configuration
encryption; Digest; WSSE; account lockout; security logs;
IP/MAC filtering; generation and importing of X.509
certification; syslog; HTTPS; 802.1x; trusted boot; trusted
execution; trusted upgrade
Interoperability
ONVIF(Profile S/Profile G/Profile T); CGI; Milestone;
RTMP; P2P
User/Host20(Total bandwidth: 133M)
StorageFTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser
IE: IE9 and later
Chrome: 41.0 and later
Firefox: 50.0 and later
Safari: 10.0 and later
Management SoftwareSmart PSS; DSS; DMSS
Mobile ClientIOS; Android
Certification
Certification
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15
Port
RS-4851 (baud rate range: 1,200 bps–115,200 bps)
www.dahuasecurity.com

| DH-IPC-HFS7443-Z-LI-D2

Audio Input2 channels (RCA port)
Audio Output1 channel (RCA port)
Alarm Input3 channels in: 5mA 3V–5V DC
Alarm Output2 channels out: 1,000mA 30V DC/500mA 50V DC
Power
Power Supply12V DC
Power Consumption
Basic power consumption: 8.6W (12V DC)
Max. power consumption (illuminator on): 26.6W
Environment
Operating Conditions–30°C to +60°C (–22°F to +140°F)
Strorage Conditions≤95%
Protection GradeIP67
Structure
CasingMetal + Plastic
Product Dimensions
404.3 mm x 163.8 mm x 211.8 mm (15.9" x 6.4" x 8.3")
(L x W x H)
Net Weight4040 g (8.9 lb)
Gross Weight4940 g (10.9 lb)

Ordering Information
TypeModelDescription
4MP
Camera
DH-IPC-HFS7443P-Z-
LI-D2-1272
4MP Polar Light Bullet WizMind
Network Camera, PAL
DH-IPC-HFS7443N-Z-
LI-D2-1272
4MP Polar Light Bullet WizMind
Network Camera, NTSC
Accessories
(optional)
PFA150-SGPole Mount
PFA162-SGPlane Mount
PFB605W-SGWall Mount
Accessories
Optional：
PFA150-SG
Pole Mount

PFA162-SG
Plane Mount
PFB605W-SG
Wall Mount


www.dahuasecurity.com

| DH-IPC-HFS7443-Z-LI-D2

Dimensions (mm[inch])

Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
