IPC-HF8231F-E

Dostępność: 0
Cena: 2 269,00 zł 2269.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: DAHUA
Kod produktu: IPC-HF8231F-E

Opis

Kamera IP box z serii ULTRA, 1/2,8" 2 Mpx STARVIS CMOS, H.265+/H.265/H.264+/H.264, 50/60 kl./s @ 1080P (1920x1080), D/N (ICR), WDR (140 dB), ABF, Micro SD, ePoE, DC 12 V, AC 24 V,...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

Ultra Series | DH-IPC-HF8231F-E

System Overview
Ultra series adopts high performance DSP and Sony advanced image
sensor technology, which can provide excellent image effects for users.
With Dahua advanced software algorithm, the series is able to support
people counting and heat map which brings extra business analysis value
for customers.
Functions
ePoE technology
The ePoE technology of Dahua, designed internally, adopts advanced
2D-PAM3 coding modulation from physical layer, and realizes full duplex
transmission over 800 meters at the speed of 10Mbps, or 300 meters
at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides,
it supports PoE and PoC power supply technology which has greatly
simplified construction and wiring. Dahua ePoE technology offer a new
way to accomplish long distance transmission between IP camera and
network switch. It allows more flexible surveillance system design,
improves reliability and saves construction and wiring cost.
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.003lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
Ultra WDR
Standard WDR/HDR camera can provide 120dB dynamic range,However,
for some scenes with wider contrast range, 120dB is slightly insufficient.
By adopting the latest technology, Dahua Cameras can provide an
amazing dynamic range up to140dB.
Business intelligent analysis (People counting, Heatmap)
Dahua Camera also supports more advanced intelligent features such as
people counting and heat map besides basic IVS functions. These two
functions can be applied to business intelligence and bring extra values
to customers. It is available to acquire daily, weekly, monthly and yearly
people flow via people counting and output data report. Heat map can
be based on a moving object in time of space movement for analysis,
find the most active area and output the report, which is to provide
valuable data support for commercial applications.
Smart Scene Adaptive (SSA)
Smart Scene Adaptive (SSA) is a Dahua self-developed intelligent
image technology, the camera automatically evaluates the change in
scene, in particular strong lights.In a strong backlight environment, it
will automatically regulate exposure parameters to get better image
quality. This can effectively address the impact of traffic lights, providing
excellent video quality.
Smart Codec (H.265+ & H.264+)
Smart Codec is the optimized implementation of standard video
compression (H.265 & H.264) that uses a scene-adaptive encoding
strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference
structure and intelligent noise reduction to deliver high-quality video
without straining the network. Smart Codec technology reduces bit rate
and storage requirements by up to 70% when compared to the standard
video compression.
www.dahuasecurity.com
· 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
· H.265&H.264 triple-stream encoding
· 50/60fps@1080P(1920x1080)
· WDR(140dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
· Auto back focus(ABF)
· Micro SD memory, PoE
DH-IPC-HF8231F-E
2MP WDR Box Network Camera

2MpH.265+
Starlight
Vandal-proof

Analysis

www.dahuasecurity.com
Ultra Series | DH-IPC-HF8231F-E

Technical Specification
Camera
Image Sensor1/2.8” 2Megapixel progressive scan CMOS
Effective Pixels
1920(H)x1080(V)
RAM/ROM
1024MB/128MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.003Lux/F1.2(Color,1/3s,30IRE)
0.03Lux/F1.2(Color,1/30s,30IRE)
0.0009Lux/F1.2(B/W,1/3s,30IRE)
0.01Lux/F1.2(B/W,1/30s,30IRE)
S/N Ratio
More than 50dB
IR Distance
N/A
IR On/Off Control
N/A
IR LEDs
N/A
Lens
Lens TypeN/A
Mount TypeC/CS
Focal LengthN/A
Max. ApertureN/A
Angle of ViewN/A
Optical ZoomN/A
Focus ControlN/A
Close Focus DistanceN/A
Pan/Tilt/Rotation
Pan/Tilt/Rotation RangeN/A
Intelligence
Event Trigger
Motion detection, Video tampering , Scene
changing, Network disconnection , IP address
conflict, Illegal Access,Storage anomaly
IVSTripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent FunctionsFace Detection, People Counting, Heat Map
Video
CompressionH.265/H.264/H.264B/H.264H/MJPEG(Sub Stream)
Smart CodecSupport H.265+/H.264+
Streaming Capability3 Streams
Resolution
1080P(1920x1080)/ 1.3M(1280x960)/
720P(1280x720)/ D1(704x576/704x480)/
VGA(640x480)/ CIF(352x288/342x240)
Frame Rate
Main Stream: 1080P(1~50/60fps)
Sub Stream: D1 (1 ~ 50/60fps)
Third Stream: 1080P(1~50/60fps)
Bit Rate ControlCBR/VBR
Bit Rate
H.264: 24~ 10240Kbps
H.265: 14~ 6144Kbps
Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / WDR(140dB)/ SSA


White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization
(EIS)
Support
Smart IRN/A
DefogSupport
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionG.711a/ G.711Mu/ AAC/ G.726
Network
EthernetRJ-45 (100/1000Base-T)
Protocol
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;
FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;
NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S
NMP;TLS
InteroperabilityONVIF Profile S&G, API
Streaming MethodUnicast / Multicast
Max. User Access10 Users/20 Users
Edge Storage
NAS
Local PC for instant recording
Mirco SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, DMSS
Smart PhoneIOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B

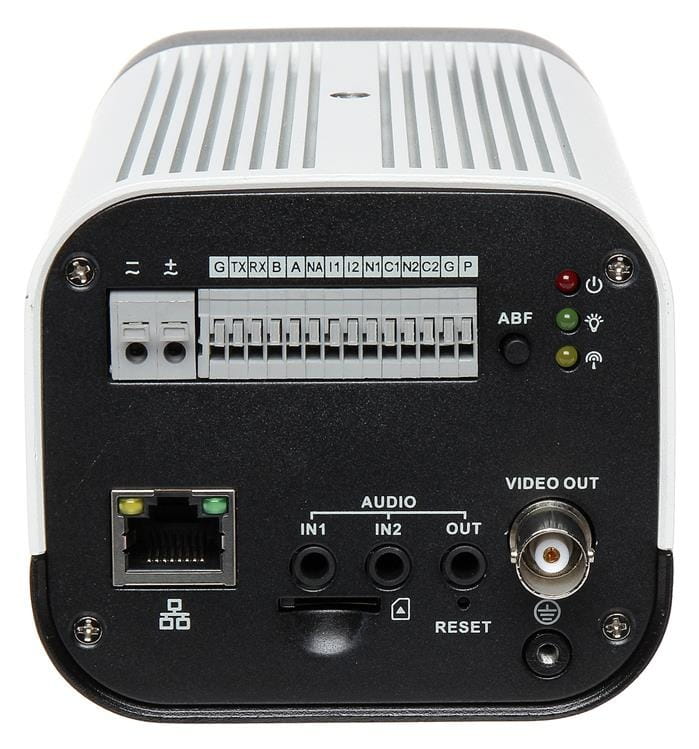

Interface
Video Interface1 port(BNC,1Vp-p,75Ω)
Audio Interface2/1 channel In/Out, 1 Built-in Mic
RS4851 port
Alarm
2 channel In: 5mA 5VDC
2 channel Out: 1A 30VDC / 0.5A 50VAC
Electrical
Power SupplyDC12V, AC24V, PoE(802.3af)(Class 0)
Power Consumption<5.5W
Power Out165mA 12VDC

Ultra Series | DH-IPC-HF8231F-E

Ordering Information
TypePart NumberDescription
2MP camera
DH-IPC-HF8231FP-E2MP WDR Box Network Camera, PAL
DH-IPC-HF8231FN-E2MP WDR Box Network Camera, NTSC
IPC-HF8231FP-E2MP WDR Box Network Camera, PAL
IPC-HF8231FN-E2MP WDR Box Network Camera, NTSC
Accessories
(optional)
PFB110W Wall mount
PFB121W Wall mount
PLZ1040-D2.7~12mm Lens
PFL0550-E6D5~50mm Lens
PFH610 SeriesHousings
www.dahuasecurity.com

Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection
N/A
Vandal ResistanceN/A
Construction
CasingMetal
Dimensions161.6mmx85.5mmx74.0mm (6.36”x3.37”x2.91”)
Net Weight0.72Kg (1.59lb)
Gross Weight0.92Kg (2.03lb)
Accessories
Optional:
© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.Rev 001.001
Dimensions (mm/inch)

Wa ll Moun t
Wa ll/Ceilin g/ Plane Moun t

PFB110W
PFB121W

PFB110W
Wa ll moun t
PFB121W
Wa ll moun t

PLZ1040-D
PFL0550-E6D
PFH610 Series
