IPC-HF7842F

Kamera IP box z serii AI, 1/1,8" 8 Mpx CMOS, 25/30 kl./s @ 4K, WDR (120dB), Micro SD, 12V, 24V, PoE, AI: perymetryka, przechwytywanie zdjęć twarzy, zliczanie osób, ANPR, strukturyzacja wideo, inteligentne wyszukiwanie...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Ultra-AI | DH-IPC-HF7842F

www.dahuasecurity.com

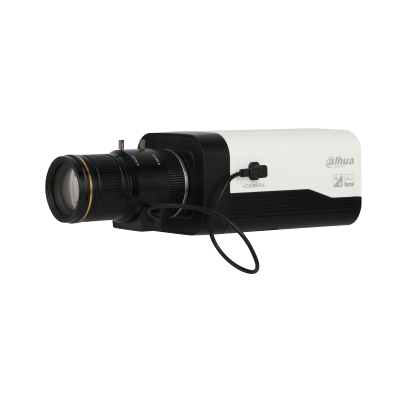

DH-IPC-HF7842F
8MP AI BOX Network Camera

System Overview
With Hisilicon advanced chip, image sensor and deep learning algorithm,
Dahua Ultra-AI series network camera supports various intelligent func-
tions and meet customers' requirements in different scenes. Adopting
excellent image processing technology, Dahua AI network camera per-
forms good in WD and low illuminance environment. For intelligent func-
tions, it supports face detection, people counting, perimeter protection,
video structurization (vehicle, non-motor vehicle, personnel detection
and snapshot), and ANPR. The camera provides better solution to image
processing and intelligent application.
Functions
Face Capture
Face capture is a software application that automatically captures faces
from within a digital image or a video frame from a video source. Dahua
cameras use advanced deep learning algorithms and are trained by a
large number of face data sources, enabling the camera to locate faces
quickly and accurately from the video source and capture facial images.
People Counting
People counting adopts deep learning algorithm to detect human body
target, and track the target in real time, which realizes independent
statistics of entry number and exit number. And the accuracy rate is up
to 98%.
Video Structurization
Video structurization adopts deep learning algorithm to detect vehicle,
non-motor vehicle and people in the image, track the target in real
time, and then snapshot the target and extract attribute.
Smart H.265+
Smart H.265+ is an effective coding method based on H.265. Com-
paring with H.265, smart H.265+ improves efficiency more than 70%
through auto scene judgement, dynamic ROI and dynamic GOP. Smart
H.265+ provides better solution to save storage, bandwidth and power
consumption.
EPOE
Dahua ePoE technology, designed internally, adopts advanced 2D-PAM3
coding modulation from physical layer, and realizes full duplex transmis-
sion over 800 meters at the speed of 10Mbps, or 300 meters at the
speed of 100Mbps via Cat 5 or coaxial cable media. Besides, it supports
PoE and PoC power supply technology which has greatly simplified
construction and wiring. Dahua ePoE technology offer a new way to
accomplish long distance transmission between IP camera and network
switch. It allows more flexible surveillance system design, improves reli-
ability and saves construction and wiring cost.
Perimeter Protection
Dahua’s Perimeter Protection functions significantly improved accuracy.
Perimeter Protection reduces false alarms and decreases pixel
count requirements for object detection. Perimeter Protection features
custom tripwires based on object type for automation in limited access
areas such as pedestrian or vehicle-only zones. This combination of
advanced AI analytics and real-time alerts to a desktop or to a mobile
client reduces system requirements and resources resulting in greater
surveillance system efficiency.
· 8MP, 1/1.8" CMOS image sensor,low illuminance, high image
definition
· Max output 8MP (2840x2160)@25/30fps
· H.264&H.265 coding, high compression ration
· Wide dynamic, day/night, 3D noise reduction, AWB, HLC, BLC
· ROI, SVC, SMART H.264/H.265, flexible coding, applicable to vari-
ous bandwidth and storage environments
· With deep learning algorithm, it supports people counting, face
detection, perimeter protection, ANPR and video metadata.
· 24V AC/POE/ 12V DC power support
· Five streams for three-channel HD video dispaly


Ultra-AI | DH-IPC-HF7842F

Technical Specification
Camera
Image Sensor
1/1.8” 8Megapixel progressive CMOS
Effective Pixels
3840 (H) x 2160 (V)
ROM
4 GB
RAM
2 GB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100000 s
Min. Illumination
0.005 Lux@F1.5 (Color, 1/3s, 30IRE)
Lens
Lens TypeManual zoom
Mount TypeC/CS
Smart event
General IVS AnalyticsAbandoned object, moving object
Professional, intelligent
Perimeter Protection
Tripwire, intrusion (Recognition of vehicle and people),
fast moving, loitering detection, parking detection and
people gathering.
Face SnapshotYes
Face Detection
Face detection, track, priority, snapshot, face
enhancement, face exposure, face attribute extract,
6 attributes and 8 expressions: Gender, age, glasses,
expressions (anger, sadness, disgust, fear, surprise,
calm, happiness and confusion), mask, beard Face
matting setting: face, single inch photo Three snapshot
methods: real-time snapshot, priority snapshot, quality
priority
Face angle filter Priority time setting
ANPR
ANPR, track, priority, snapshot
Vehicle attributes: license plate, vehicle type, vehicle
color,vehicle brand
Other attributes: sun visor, seat belt, smoking,
phoning, in-car accessories, annual vehicle inspection
mark
Video Structurization
Vehicle detection, non-motor vehicle detection,
personnel detection, face detection, track, snapshot,
optimization, report high quality picture, vehicle
attributes (license plate, vehicle type, vehicle color,
and vehicle brand), other attributes (sun visor,
seatbelt, smoking, phoning, in-car accessories, and
annual vehicle inspection mark), non-motor vehicle
attributes: vehicle type, vehicle color,driver number,
cloth type, cloth color, and hat), personnel attribute
(cloth type, trousers type, cloth color, trousers color,
knapsack, and gender), face attribute (gender, age ,
glasses, mask, and beard)
People Counting
People counting (count the entry number, exit number
and pass number), display and output daily/monthly/
annual statistics, No. in area
Intelligent Search
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to
event videos.
Video
Video Compression H.265, H.264, H.264H, H.264B, MJPEG
Smart Codec
H.264: Yes
H.265: Yes

www.dahuasecurity.com

Video Frame Rate
Main Stream: 3840 x 2160 (1–25/30 fps)
sub stream 1: 704 x 576 (1–25/30 fps)
sub stream 2: 1920 x 1080 (1–25/30 fps)
sub stream 3: 1920 x 1080 (1–25/30 fps)
sub stream 4: 704 x 576 (1–25/30 fps)
Stream Capability5 streams
Resolution
8M (3840 x 2160), 6M (3072 x 2048/3072 x 1728),
5M (2592 x 1944), 4M (2688 x 1520), 3M(2048 x
1536/2304 x 1296), 1080p (1920 x1 080), 1.3M (1280
x 960), 720p (1280 x 720), D1 (704 x 576/704 x 480),
VGA (640 x 480), CIF (352 x 288/352 x 240)
Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 32 kbps–16384 kbps
H.265: 12 kbps–16384 kbps
Day/NightICR switch
BLCYes
WDR120 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlManual
Noise Reduction3DNR
Motion DetectionYes
Region of Interest(RoI)Yes (4 areas)
Electronic Image
Stabilization(EIS)
Yes
Smart IRYes (Adjust by user)
DefogYes
Image Rotation
0°/90°/180°/270° (Supports 90°/270° with 1080p
resolution or below.)
MirrorYes
Privacy Masking4 areas
Audio
Audio CompressionG.711a, G.711Mu, G726, AAC
Network
NetworkRJ-45 (100/1000 Base-T)
Protocol
HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP,
DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP
InteroperabilityONVIF(Profile S/Profile G); CGI; P2P; RTMP
Scene self-adaptation Yes
User/Host20
Edge StorageFTP; Micro SD card (256 G); NAS; SFTP
Browser
IE: Versions later than IE9
Google: Versions later than Chrome 42 Firefox:
Versions later than Firefox 48.0.2
Management SoftwareSmart PSS, DSS PRO, NVR, IVSS
Mobile PhoneIOS, Android

Ultra-AI | DH-IPC-HF7842F

Certification
Certifications
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
RS-4851 (Bit rate: 1200 bps-115200 bps)
Audio Input
Audio Interface: 2/1 channel In/Out
Audio Output
Alarm Input
2 channel In: 5mA 5V DC
2 channel Out: 1000mA 30V DC/500mA 50V AC
Alarm Output
Power
Power Supply12V DC/24V AC/POE
Power Consumption<14.4W
Environment
Operating Temperature -30°C to +60°C (-22°F to +140°F)
Operating Humidity≤95%
Storage Temperature -30°C to +60°C (-22°F to +140°F)
Structure
CasingMetal
Dimensions
86 mmx74 mmx150 mm (3.39" x 2.91" x 5.91") (L x
W x H)
Net Weight0.8 kg (1.76 lb)
Gross Weight0.9 kg (1.98 lb)


Ordering Information
TypePart NumberDescription
8MP Camera
DH-IPC-HF7842FP
8MP AI BOX Network Camera
IPC-HF7842FP
DH-IPC-HF7842FN
IPC-HF7842FN
Accessories
(optional)
DH-PFB110WWall /Ceiling/Plane mount
DH-PFB121WWall Mount
DH-PLZ21C0-D 10.5-42 mm
DH-PLZ20C0-D 3.7-16 mm
PFH610V-IRHousings
www.dahuasecurity.com

Rev 001.001 © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
Dimensions (mm/inch)

all ountCeilingPlane mount

PFBW

all ount

PFB2W


voW

DH-PFB110W
Wall Mount
DH-PFB121W
Wall Mount
DH-PLZ21C0-D
10.5-42 mm

DH-PLZ20C0-D
3.7-16 mm
PFH610V-IR
Housings
