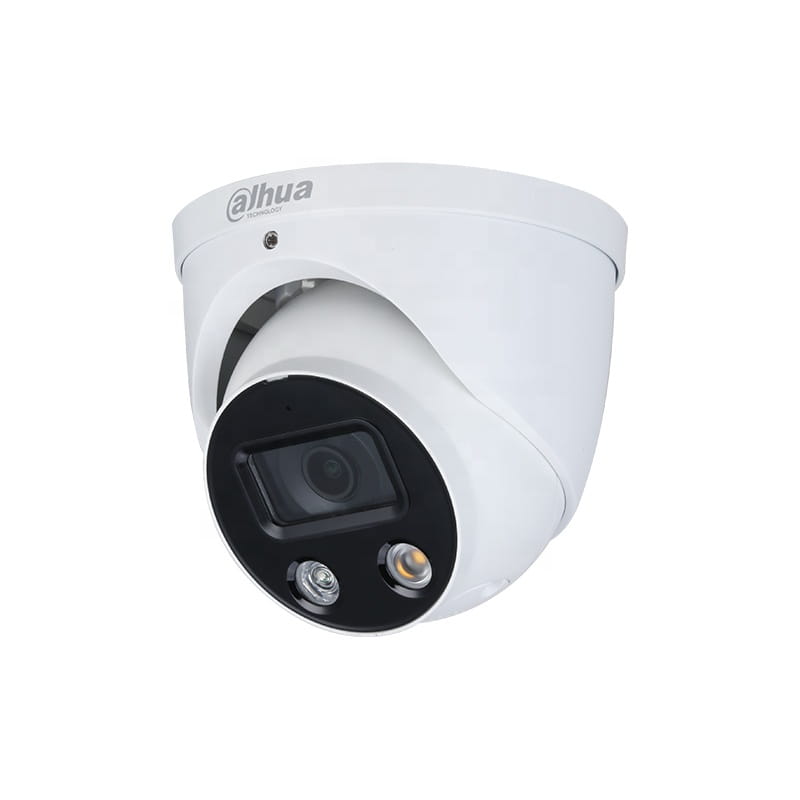

IPC-HDW3849H-AS-PV-0280B

Kamera IP kopułkowa typu dome z serii AI, przetwornik 1/2,8" 8 Mpx CMOS Full Color, Smart H.265/H.264, 20 kl./s @ 8Mpx, WDR (120dB), mirco SD (max 256 GB), obiektyw 2,8 mm, LED 30 m, alarm (1/1), wsparcie audio (1/1), IP67, DC 12V/PoE, IVS (przekroczenie linii, intruz w strefie)...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.dahuasecurity.com
DH-IPC-HDW3849H-AS-PV
8MP Full-color Active Deterrence Fixed-focal Eyeball WizSense Network Camera


· 8MP, 1/2.8" CMOS image sensor, low illuminance, high image definition
· Outputs max.8MP (3840 x 2160) @20 fps (AI function enabled by
default)and supports 8MP (3840 x 2160) @25/30 fps (with AI function
disabled)
· H.265 codec, high compression rate, low bit rate
· Built-in warm illuminator, and the max. illumination distance: 30 m
· ROI, Smart H.265+/Smart H.264+, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D NR, HLC, BLC, digital ·
watermarking, applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire (support the classification and ·
accurate detection of vehicle and human)
· Abnormality detection: Motion detection, video tampering, scene
changing, audio detection, no SD card, SD card full, SD card error,
network disconnection, IP conflict, illegal access, and voltage detection
· Supports sound and light alarm linkage. When an alarm is triggered, the
camera links sound alarm and light flashing
· Supports one-tap disarming. You can disarm the events of alarm output,
sending email, audio, and light in the configured period
· Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD
card, built-in Mic and speaker
· 12V DC/PoE power supply
· IP67 protection
· SMD Plus
· Red and blue flashlight alarm
Series Overview
With advanced deep learning algorithm, Dahua WizSense 3 Series
network camera supports intelligent functions, such as perimeter
protection and smart motion detection. In addition, with full-color
technology, it provides a better image effect in the condition of low
illuminance.
Functions
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology
can categorize the targets that trigger motion detection and filter the
motion detection alarm triggered by non-concerned targets to realize
effective and accurate alarm.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Full-color
With high-performance sensor and large aperture lens, Dahua Full-color
technology can display clear colorful image in the environment of ultra-
low illuminance. With this photosensitivity technology, the camera can
capture more available light, and display more colorful image details.
Siren and Light Active Deterrence
Dahua siren and light active deterrence network camera supports light
alarm and voice alarm when perimeter event occurs, to realize the
deterrence and effective intervention. The camera is built in multiple
voices for selection, and supports customized voice importing.
Cyber Security
Dahua network camera is equipped with a series of key security
technologies, such as security authentication and authorization, access
control, trusted protection, encrypted transmission, and encrypted
storage, which improve its security defense and data protection, and
prevent malicious programs from invading the device.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.
| DH-IPC-HDW3849H-AS-PV
Launched by Dahua Technology, WizSense is a series of AI products and
solutions that adopt independent AI chip and deep learning algorithm.
It focuses on human and vehicle with high accuracy, enabling users to
fast act on defined targets. Based on Dahua's advanced technologies,
WizSense provides intelligent, simple and inclusive products and
solutions.

Smart C odec
Full-color
Active Deterrence


www.dahuasecurity.com

Technical Specification
Camera
Image Sensor1/2.8" 8Megapixel progressive CMOS
Max. Resolution
3840(H) x 2160 (V)
ROM128 MB
RAM512 MB
Scanning SystemProgressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination0.007 Lux @ F1.4
S/N Ratio> 56 dB
Illumination Distance30 m (98.4 ft)
Illuminator On/Off ControlAuto/Manual
Illuminator Number1 (Warm light)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8 mm; 3.6 mm
Max. ApertureF1.4
Field of View
2.8 mm: Horizontal 107° x Vertical 56° x Diagonal 127°
3.6 mm: Horizontal 89° x Vertical 46° x Diagonal 102°
Iris TypeFixed
Close Focus Distance
2.8 mm: 1.5 m (4.9 ft)
3.6 mm: 2.2m (7.2 ft)
DORI
Distance
LensDetectObserveRecognizeIdentify
2.8 mm
87.7m
(287.7 ft)
35.1 m
( 115.2 ft)
17.5m
(57.4 ft)
8.8m
(28.8 ft)
3.6 mm
110.3m
(361.8 ft)
44.1m
(144.7ft)
22.1m
(72.5 ft)
11m
(36 ft)
Professional, intelligent
IVS (Perimeter Protection)
Tripwire; intrusion (support the classification and
accurate detection of vehicle and human)
Intelligent Search
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to event
videos.
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG
(only supported by the sub stream)
Smart CodecSmart H.265+/Smart H.264+
Video Frame Rate
Main stream:
3840 x 2160 @(1–20 fps by default)
3840 x 2160 @(1–25/30 fps with AI function disabled)
sub stream: 704 x 576 @ (1–25 fps)/704 x 480 @ (1–30
fps)
third stream:1280 x 1080 @ (1–25/30 fps)
Stream Capability3 streams

Resolution
8M (3840 x 2160); 6M (3072 x 2048); 5M (3072 x
1728/2592 x 1944); 4M (2688 x 1520); 3M (2048 x
1536/2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x
960); 720p (1280 x 720); D1(704 x 576/704 x 480);
VGA (640 x 480); CIF (352 x 288/352 x 240)
Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps
Day/NightColor/B/W
BLCYes
HLCYes
WDR120 dB
Scene Self-adaptation
(SSA)
Yes
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas)
Region of Interest (RoI)Yes (4 areas)
Smart IlluminationYes
Image Rotation
0°/90°/180°/270° (Support with 1920 x 1080 resolution
and lower)
MirrorYes
Privacy Masking4 areas
Audio
Built-in MICYes
Audio CompressionPCM, G.711a, G.711Mu, G726
Alarm
Alarm Event
No SD card; SD card full; SD card error; service
life warning (supported by Dahua card); network
disconnection; IP conflict; illegal access; motion
detection; video tampering; tripwire; intrusion; audio
detection; voltage detection; external alarm; SMD; safety
exception; light alarm; sound alarm (11 built-in sounds
and custom voices importing)importing)
Network
NetworkRJ-45 (10/100 Base-T)
SDK and APIYes
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP;
RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP;
NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security
Video encryption; firmware encryption; configuration
encryption; Digest; WSSE; account lockout; security logs;
IP/MAC filtering; generation and importing of X.509
certification; syslog; HTTPS; 802.1x; trusted boot; trusted
execution; trusted upgrade
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone;
Genetec; P2P
User/Host20 (Total bandwidth: 80 M)
StorageFTP; SFTP; Micro SD card (support max. 256 G); NAS
| DH-IPC-HDW3849H-AS-PV


Browser
IE: IE8 and later
Chrome
Firefox
Safari: Safari 12 and later
Management SoftwareSmart PSS; DSS; DMSS
Mobile PhoneIOS; Android
Certification
Certification
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Port
Audio Input1 channel (RCA port)
Audio Output1 channel (RCA port)
Alarm Input1 channel in: 5mA 3V–5V DC
Alarm Output1 channel out: 300mA 12V DC
Power
Power Supply12V DC/PoE (802.3af)
Power Consumption
Basic power consumption: 3.1W (DC12V); 3.5W (POE)
Max. power consumption (WDR + H.265 + red and blue
lights flashing alternately + warm light + sound alarm):
7.8W (DC12V); 8.2W (POE)
Environment
Operating Conditions–40°C to +60°C (–40°F to +140°F)/Less than 95% RH
Storage Conditions–40°C to +60°C (–40°F to +140°F)
Protection GradeIP67
Structure
CasingMetal
DimensionsΦ122.0 mm x 110.9 mm (4.8" x 4.4")
Net Weight754 g (1.7 lb)
Gross Weight915 g (2.0 lb)

Ordering Information
TypeModelDescription
8MP
Camera
DH-IPC-HDW3849HP-AS-PV
8MP Full-color Active Deterrence
Fixed-focal Eyeball WizSense
Network Camera, PAL
DH-IPC-HDW3849HN-AS-PV
8MP Full-color Active Deterrence
Fixed-focal Eyeball WizSense
Network Camera, NTSC
IPC-HDW3849HP-AS-PV
8MP Full-color Active Deterrence
Fixed-focal Eyeball WizSense
Network Camera, PAL
IPC-HDW3849HN-AS-PV
8MP Full-color Active Deterrence
Fixed-focal Eyeball WizSense
Network Camera, NTSC
PFA137Junction Box

www.dahuasecurity.com

Accessories
PFA137
Junction Box
PFA152-E
Pole Mount
PFM114
TLC SD Card
PFM321D
12V DC/1A Power
Adapter
Optional
LR1002-1ET/1EC
Single-port Long Reach
Ethernet over Coax Extender
PFB205W
Wall Mount
PFM900-E
Integrated Mount
Tester
PFB220C
Ceiling Mount

| DH-IPC-HDW3849H-AS-PV

8MP
Camera
PFB205WWall Mount
PFB220CCeiling Mount
PFA152-EPole Mount
PFM321D12V DC 1A Power Adapter
LR1002-1ET/1EC
Single-port Long Reach Ethernet over
Coax Extender
PFM900-EIntegrated Mount Tester
PFM114TLC SD Card

www.dahuasecurity.com
| DH-IPC-HDW3849H-AS-PV

Dimensions (mm[inch])

Rev 001.001© 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
