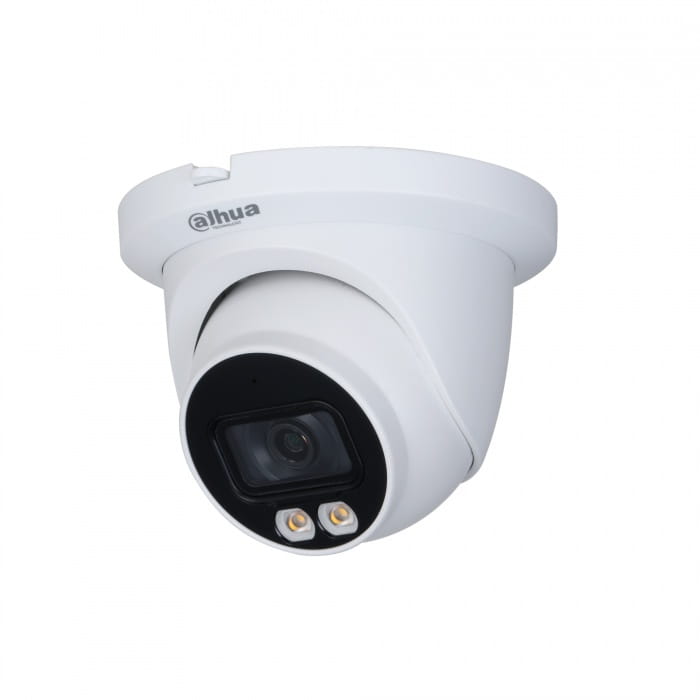

IPC-HDW3549TM-AS-LED-0280B

Kamera IP kopułkowa typu dome z serii AI, 1/2,7" 5 Mpx CMOS, 20 kl./s (2582 x 1944), WDR, IR max 30 m, Micro SD, IP67, 12VDC, PoE, AI: IVS (klasyfikacja obiektów: człowiek, pojazd), SMD Plus...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.dahuasecurity.com
DH-IPC-HDW3549TM-AS-LED
5MP Full-color Fixed-focal Warm LED Eyeball WizSense Network Camera

· 5MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
· Outputs max. 5MP (2592 x 1944) @20 fps, and supports 4MP (2688 x
1520) @25/30 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in warm light, max. illumination distance: 30 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire (support the classification and
accurate detection of vehicle and human)
· Abnormality detection: Motion detection, video tampering, scene
changing, audio detection, no SD card, SD card full, SD card error,
network disconnection, IP conflict, illegal access, voltage detection
· Supports max. 256 G Micro SD card, built-in Mic
· 12V DC/PoE power supply, easy for installation
· IP67 protection
· SMD Plus
| DH-IPC-HDW3549TM-AS-LED

System Overview
With advanced deep learning algorithm, Dahua WizSense 3 series
network camera supports some intelligent functions, such as perimeter
protection and smart motion detection. In addition, with full-color
technology, it provides a better image effect in the condition of low
illuminance.

Smar t c ode c
Fu ll -c olor

WD R
Functions
Full-color
With high-performance sensor and large aperture lens, Dahua Full-color
technology can display clear colorful image in the environment of ultra-
low illuminance. With this photosensitivity technology, the camera can
capture more available light, and display more colorful image details.
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology
can categorize the targets that trigger motion detection and filter the
motion detection alarm triggered by non-concerned targets to realize
effective and accurate alarm.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology
can recognize human and vehicle accurately. In restricted area (such
as pedestrian area and vehicle area), the false alarms of intelligent
detection based on target type (such as tripwire, intrusion, fast moving,
parking detection, loitering detection and gathering detection) are
largely reduced.
WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network
camera provides clear details in the environment of strong brightness
contrast. The bright and dark area can get clear video even in high
brightness environment or with backlight shadow.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.

Launched by Dahua Technology, WizSense is a series of AI products
and solutions that adopt independent AI chip and deep learning
algorithm. It focuses on human and vehicle with high accuracy,
enabling users to fast act on defined targets. Based on Dahua's
advanced technologies, WizSense provides intelligent, simple
and inclusive products and solutions.

www.dahuasecurity.com

Technical Specification
Camera
Image Sensor
1/2.7”5Megapixel progressive CMOS
Max. Resolution2592 (H) x 1944 (V)
ROM128 MB
RAM512 MB
Scanning System
Progressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. Illumination0.003 Lux @F1.0
S/N Ratio>56 dB
Illumination Distance30 m (98.4 ft) (Warm light)
Illuminator On/Off ControlAuto/Manual
Illuminator Number2 (Warm light)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8 mm; 3.6 mm
Max. ApertureF1.0
Field of View
2.8 mm: Horizontal 98° x Vertical 71° x Diagonal 129°
3.6 mm: Horizontal 77° x Vertical 56° x Diagonal 101°
Iris TypeFixed
Close Focus Distance
2.8 mm: 1.2 m (3.9 ft)
3.6 mm: 2.4 m (7.9 ft)
DORI Distance
LensDetectObserveRecognizeIdentify
2.8 mm
25.0 m
(82.0 ft)
22.4 m
(73.5 ft)
11.2 m
(36.7 ft)
5.6 m
(18.4 ft)
3.6 mm
72.0 m
(236.2 ft)
28.8 m
(94.5 ft)
14.4 m
(47.2 ft)
7.2 m
(23.6 ft)
Professional, Intelligent
IVS (Perimeter Protection)
Tripwire; intrusion (support the classification and
accurate detection of vehicle and human)
Intelligent Search
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to event
videos.
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported
by the sub stream)
Smart CodecSmart H.265+/ Smart H.264+
Video Frame Rate
Main stream: 2592 x 1944 @1–20 fps
2688 x 1520 @1–25/30 fps
Sub stream: 704 x 576 @1–25 fps/704 x 480 @1–30 fps
Third stream: 1280 x 720@1–25/30 fps
Stream Capability3 streams

Resolution
5M (2592 x 1944); 4M (2688 x 1520); 3M (2304 x 1296);
1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280
x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF
(352 x 288/352 x 240)
Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps
Day/NightColor/B/W
BLCYes
HLCYes
WDR120 dB
Scene Self-adaptation Yes
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Smart IlluminationYes
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 1080p
resolution and lower.)
MirrorYes
Privacy Masking4 areas
Audio
Built-in MICYes
Audio CompressionG.711a; G.711Mu; G726; AAC
Alarm
Alarm Event
No SD card; SD card full; SD card error; network
disconnection; IP conflict; illegal access; motion
detection; video tampering; tripwire; intrusion; scene
changing; audio detection; voltage detection; SMD
Network
NetworkRJ-45 (10/100 Base-T)
SDK and APIYes
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP;
RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS;
UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE;
802.1x; SNMP
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone;
Genetec
User/Host20 (Total bandwidth: 64 M)
Storage
FTP; SFTP; Micro SD card (support max. 256 G); Dahua
Cloud; NAS
Browser
IE: IE8, IE9, IE11
Chrome
Firefox
Management SoftwareSmart PSS; DSS; DMSS
Mobile PhoneIOS; Android
| DH-IPC-HDW3549TM-AS-LED


Ordering Information
TypePart NumberDescription
5MP
Camera
DH-IPC-HDW3549TMP-AS-
LED
5MP Full-color Fixed-focal Warm
LED Eyeball WizSense Network
Camera, PAL
DH-IPC-HDW3549TMN-
AS-LED
5MP Full-color Fixed-focal Warm
LED Eyeball WizSense Network
Camera, NTSC
Accessories
(optional)
PFA130-EJunction Box
PFB203WWall Mount
PFA152-EPole Mount
PFM321D12V DC 1A Power Adapter
LR1002-1ET/1EC
Single-port Long Reach Ethernet
over Coax Extender
PFM900-EIntegrated Mount Tester
PFM114TLC SD Card

Dimensions (mm[inch])
Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

www.dahuasecurity.com

Accessories
Optional:
PFA130-E
Junction Box
PFB203W
Wall Mount
PFA152-E
Pole Mount
PFM114
TLC SD Card
PFM321D
DC12V1A Power
Adapter
LR1002-1ET/1EC
Single-port Long
Reach Ethernet over
Coax Extender
PFM900-E
Integrated Mount
Tester

W all Moun t
PF A3-E PFB23W

P ole Moun t
PFB52-EPF A23W

Certification
Certification
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply12V DC/PoE
Power Consumption< 8.4W
Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)/ less than 95%
Strorage Conditions -40°C to +60°C (-40°F to +140°F)
Ingress ProtectionIP67
Structure
Casing
Inner core: Metal
Cover: Metal
Decoration ring: Plastic
Dimensions99.1 mm x Φ121.9 mm (3.9" x Φ4.8")
Net Weight480 g (1.1 lb)
Gross Weight660 g (1.5 lb)
| DH-IPC-HDW3549TM-AS-LED
