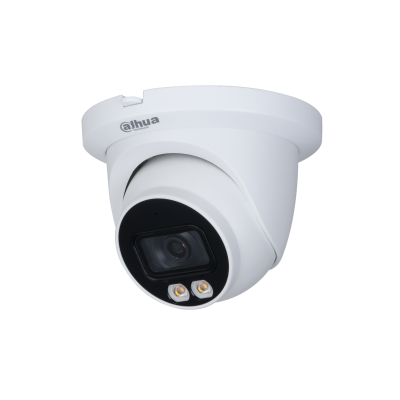

IPC-HDW3249TM-AS-LED-0280B

Kamera IP kopułkowa typu dome z serii AI, 1/2,8" 2 Mpx CMOS, 25/30 kl./s (1920 x 1080), WDR, IR max 30 m, Micro SD, IP67, 12VDC, PoE, AI: IVS (klasyfikacja obiektów: człowiek, pojazd), SMD Plus...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.dahuasecurity.com
DH-IPC-HDW3249TM-AS-LED
2MP Full-color Warm LED Fixed-focal Eyeball WizSense Network Camera

· 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
· Outputs max. 2MP (1920 x 1080)@30 fps
· H.265 codec, high compression rate, low bit rate
· Built-in Warm LED, max. LEDs distance: 30 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire (support the classification and
accurate detection of vehicle and human)
· Abnormality detection: Motion detection, video tampering, scene
changing, audio detection, no SD card, SD card full, SD card error,
network disconnection, IP conflict, illegal access, voltage detection
· Supports max. 256 G Micro SD card, built-in Mic
· 12V DC/POE power support
· IP67 protection
· SMD Plus

Series Overview
With advanced deep learning algorithm, Dahua WizSense 3 Series
network camera supports intelligent functions, such as perimeter
protection and smart motion detection. In addition, with full-color
technology, it provides a better image effect in the condition of low
illuminance.

Functions
Full-color
With high-performance sensor and large aperture lens, Dahua Full-color
technology can display clear colorful image in the environment of ultra-
low illuminance. With this photosensitivity technology, the camera can
capture more available light, and display more colorful image details.
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology
can categorize the targets that trigger motion detection and filter the
motion detection alarm triggered by non-concerned targets to realize
effective and accurate alarm.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology
can recognize human and vehicle accurately. In restricted area (such
as pedestrian area and vehicle area), the false alarms of intelligent
detection based on target type (such as tripwire, intrusion, fast moving,
parking detection, loitering detection and gathering detection) are
largely reduced.
WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network
camera provides clear details in the environment of strong brightness
contrast. The bright and dark area can get clear video even in high
brightness environment or with backlight shadow.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.

Launched by Dahua Technology, WizSense is a series of AI products
and solutions that adopt independent AI chip and deep learning
algorithm. It focuses on human and vehicle with high accuracy,
enabling users to fast act on defined targets. Based on Dahua's
advanced technologies, WizSense provides intelligent, simple
and inclusive products and solutions.

| DH-IPC-HDW3249TM-AS-LED


www.dahuasecurity.com

Technical Specification
Camera
Image Sensor1/2.8”2Megapixel progressive CMOS
Max. Resolution
1920 (H) x 1080 (V)
ROM128 MB
RAM512 MB
Scanning SystemProgressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100, 000 s
Min. Illumination0.0015 Lux @ F1.0
S/N Ratio> 56 dB
Illumination Distance30 m (98.4 ft) (Warm light)
Illuminator On/Off ControlAuto/Manual
Illuminator Number2 (warm LED)
Pan/Tilt/Rotation RangeHorizontal: 0°–360°; vertical: 0°–78°; rotation: 0°–360°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8 mm; 3.6 mm
Max. ApertureF1.0
Field of View
2.8 mm: Horizontal 107° x vertical 55° x diagonal 127°
3.6 mm: Horizontal 84° x vertical 45° x diagonal 99°
Iris TypeFixed
Close Focus Distance
2.8 mm: 0.8 m (2.6 ft)
3.6 mm: 1.7 m (5.6 ft)
DORI Distance
LensDetectObserveRecognizeIdentify
2.8mm
38.6 m
(126.6 ft)
15.4 m
(50.5 ft)
7.7 m
(25.3 ft)
3.9 m
(12.8 ft)
3.6mm
55.2 m
(181.1 ft)
22.1 m
(72.5 ft)
11.0 m
(36.1 ft)
5.5 m
(18.0 ft)
Professional, Intelligent
Perimeter Protection Tripwire, intrusion (Recognition of vehicle and people)
Intelligent Search
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to event
videos
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG(only supported by
the sub stream)
Smart CodecSmart H.265+/ Smart H.264+
Video Frame Rate
Main stream (1920 x 1080 @ 1–25/30 fps)
sub stream (704 x 576 @ 1–25/704 x 480 @ 1-30 fps)
third stream (1280 x 720 @ 1–25/30 fps)
Stream Capability3 streams
Resolution
1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280
x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF
(352 x 288/352 x 240)
Bit Rate ControlCBR; VBR
Video Bit Rate
H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps

Day/NightColor/B/W
BLCYes
WDR120 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Smart IlluminationYes
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 1920 x 1080
resolution and lower.)
MirrorYes
Privacy Masking4 areas
Audio
Built-in MICYes
Audio CompressionG.711a; G.711Mu; G726; AAC
Alarm
Alarm Event
No SD card; SD card full; SD card error; less service time
of SD card (smart card supports); network disconnection;
IP conflict; illegal access; voltage detection; security
exception; motion detection; video tampering; scene
changing;intensity change; tripwire; intrusion; SMD
Network
NetworkRJ-45 (10/100 Base-T)
SDK and APIYes
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP;
RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS;
UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x;
SNMP
InteroperabilityONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec
Scene self-adaptation Yes
User/Host20 (Total bandwidth: 64M.)
Storage
FTP; SFTP; Micro SD Card (support max. 256 G); Dahua
Cloud; NAS
Browser
IE: IE8; IE9; IE11
Chrome
Firefox
Management SoftwareSmart PSS; DSS; DMSS
Mobile PhoneIOS; Android
Certification
Certifications
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply12V DC/PoE
Power Consumption< 8.1W
| DH-IPC-HDW3249TM-AS-LED


Ordering Information
TypePart NumberDescription
2MP
Camera
DH-IPC-HDW3249TMP-AS-
LED
2MP Full-color Warm LED Fixed-
focal Eyeball WizSense Network
Camera, PAL
DH-IPC-HDW3249TMN-
AS-LED
2MP Full-color Warm LED Fixed-
focal Eyeball WizSense Network
Camera, NTSC
Accessories
(optional)
PFA130-EJunction Box
PFB203WWall mount
PFA152-EPole mount
PFM321DDC12V1A Power adapter
LR1002-1ET/1EC
Single-port long reach ethernet over
coax extender
PFM900-EIntegrated mount tester
PFM114TLC SD card

Dimensions (mm[inch])
Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

www.dahuasecurity.com
PFM114
TLC SD card

Accessories
Optional:
PFA130-E
Junction Box
PFB203W
Wall Mount
PFA152-E
Pole Mount
PFM321D
DC12V1A Power
Adapter
LR1002-1ET/1EC
Single-port long
reach ethernet over
coax extender
PFM900-E
Integrated Mount
tester

W all Moun t
PF A3-E PFB23W

P ole Moun t
PFB2-EPF A23W

| DH-IPC-HDW3249TM-AS-LED

Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)/ less than 95%
Storage Conditions -40°C to +60°C (-40°F to +140°F)
Protection GradeIP67
Structure
CasingInner core: Metal
Cover: Metal -40°C to +60°C (-40°F to +140°F)/ less than 95%
Decoration ring: Plastic -40°C to +60°C (-40°F to +140°F)/ less than 95%
Dimensions99.1 mm x Φ121.9 mm (3.9" x Φ4.8")
Net Weight480 g (1.05 lb)
Gross Weight660 g (1.45 lb)
