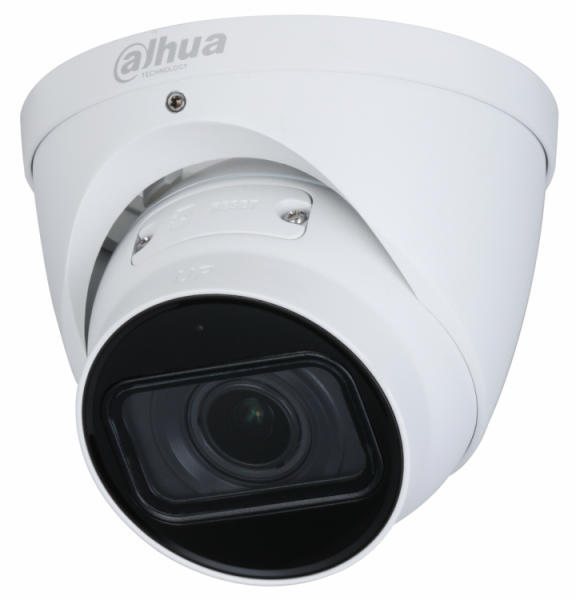

IPC-HDW3241T-ZAS-27135

Kamera IP kopułkowa typu dome z serii AI , 1/2,8" 2 Mpx Starlight, Smart H.265/H.264, 25/30 kl./s @ 1080P, WDR (120dB), mirco SD(max 256 GB), obiektyw motozoom 2,7-13,5 mm, IR 40 m, IP67, DC 12V/PoE, wbudowany mikrofon, AI: SMD, perymetryka...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.dahuasecurity.com
DH-IPC-HDW3241T-ZAS
2MP Lite AI IR Vari-focal Eyeball Network Camera

· 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
· Outputs max. 2MP (1920 x 1080)@30 fps
· H.265 codec, high compression rate, low bit rate
· Built-in IR LED, max. IR distance: 40 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, scene
changing, audio detection, no SD card, SD card full, SD card error, net
work disconnection, IP conflict, illegal access, voltage detection
· Supports max. 256 G Micro SD card, built-in Mic
· 12V DC/POE power support
· IP67 protection
· SMD
Lite AI Series | DH-IPC-HDW3241T-ZAS

2Mp

IP67
H.265+

Starlight
Perimeter

System Overview
With advanced deep learning algorithm, Dahua Lite AI series network
camera supports some intelligent functions, such as perimeter
protection and smart motion detection. It adopts starlight solution,
which makes a better image effect in low illuminance.
Functions
Smart (H.265+ & H.264+)
Adopting advanced algorithm of auto stream control according to the
environment, Dahua smart encoding technology realizes the higher
efficiency than (H.265 & H.264 ), providing high-quality video, and
reducing the cost of storage and transmission.
Wide dynamic range (WDR)
Dahua adopts advanced Wide Dynamic Range (WDR) technology. You
can get clear details in the environment of strong brightness contrast.
In high brightness and back-light environment, bright region and dark
region with strong light source, you can also get clear images.
Starlight
Dahua Starlight technology mainly applies to the environment of
low illumination, and it can provide clear colorful video. Even in the
environment of min. illumination, the technology can guarantee the
good image effect.
Intelligent Video Analysis (IVS)
With advanced video algorithm, Dahua camera supports intelligent
detection, such as tripwire and intrusion and so on.
Smart Motion Detection (SMD)
With intelligent algorithm, Dahua Smart Motion Detection technology
can effectively recognize the target types, flitting the motion detection
alarm triggered by non-concerned target types. It can realize effective
and accurate alarm.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.

www.dahuasecurity.com

Technical Specification
Camera
Image Sensor1/2.8” 2Megapixel progressive CMOS
Effective Pixels
1920 (H) x1080 (V)
ROM128 MB
RAM256 MB
Scanning SystemProgressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100000 s
Min. Illumination0.002 Lux@F1.5
IR Distance40 m (131.2 ft)
IR On/Off ControlAuto/Manual
IR LEDs Number2 (IR LEDs)
Pan/Tilt/Rotation RangeHorizontal: 0°–360°; vertical: 0°–78°; rotation: 0°–360°
Lens
Lens TypeMotorized vari-focal
Mount Typeφ14
Focal Length2.7 mm–13.5 mm
Max. ApertureF1.5
Field of View
Horizontal: 108°–28°
Vertical: 57° –16°
Diagonal: 130° –33°
Iris TypeFixed aperture
Close Focus Distance0.8 m (2.6 ft)
DORI Distance
LensDetectObserveRecognizeIdentify
W
44.1 m
(144.7 ft)
17.6 m
(57.7 ft)
8.8 m
(28.9 ft)
4.4 m
(14.4 ft)
T
153.1 m
(502.3 ft)
61.2 m
(200.8 ft)
30.6 m
(82.9 ft)
15.3 m
(50.2 ft)
Professional, Intelligent
Perimeter ProtectionTripwire; intrusion (Recognition of human and vehicle)
Intelligent Search
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to event
videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG
Smart CodecYes
Video Frame Rate
Main stream (1920 x 1080@1–25/30 fps)
sub stream(704 x 576@1–25 fps/704 x 480@1–30 fps)
third stream(1280 x 720@1–25/30 fps)
Stream Capability3 streams
Resolution
1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280
x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF
(352 x 288/352 x 240)
Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 3 Kbps–8192 Kbps
H.265: 3 Kbps–8192 Kbps
Day/NightAuto(ICR)/Color/B/W

BLCYes
HLCYes
WDR120 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest(RoI)Yes (4 areas)
Smart IRYes
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 1920 x 1080
resolution.)
MirrorYes
Privacy Masking4 areas
Audio
Built-in MICYes
Audio CompressionG.711a; G.711Mu; G726; AAC
Network
NetworkRJ-45 (10/100 Base-T)
Protocol
IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;
RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;
Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
InteroperabilityONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec
Scene Self-adaptation Yes
User/Host20 (Total bandwidth: 64 M)
Edge Storage
FTP; SFTP; Micro SD Card (support max. 256 G); Dahua
Cloud; NAS
Browser
IE: IE8, IE9, IE11
Chrome
Firefox
Management SoftwareSmart PSS, DSS, DMSS
Mobile PhoneIOS; Android
Certification
Certifications
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply12V DC/PoE (802.3af)
Power Consumption<7.8W
Environment
Operating Conditions-30°C to +60°C (-22°F to +140°F)/less than≤95%
Strorage Conditions-40°C to +60°C (-40°F to +140°F)
Ingress ProtectionIP67
Structure
Lite AI Series | DH-IPC-HDW3241T-ZAS

CasingMetal
Dimensions108.3 mm x Φ122 mm (4.3" x Φ4.8")
Net Weight685g (1.5 lb)
Gross Weight828 g (1.8 lb)

Ordering Information
TypePart NumberDescription
2MP
Camera
DH-IPC-HDW3241TP-ZAS
2MP Lite AI IR Vari-focal Eyeball
Network Camera,PAL
DH-IPC-HDW3241TN-ZAS
2MP Lite AI IR Vari-focal Eyeball
Network Camera,NTSC
Accessories
(optional)
PFA130-EJunction Box
PFB203WWall mount
PFA106Mount adapter
PFB220CCelling mount
PFA152-EPole Mount
PFM321DDC12V1A Power adapter
LR1002-1ET/1EC
Single-port long reach ethernet over
coax extender
PFM900-EIntegrated mount tester
PFM114TLC SD card

Dimensions (mm[inch])

Rev 001.001© 2019 Dahua . All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

www.dahuasecurity.com
Lite AI Series | DH-IPC-HDW3241T-ZAS

Junction Mount
PFA-EPFB2W PFAPFB22CPFB2WPFA2-E
Wall MountCeiling MountPole Mount

Accessories
Optional:

PFA130-E
Junction Box
PFB203W
Wall Mount
PFA152-E
Pole Mount
PFM114
TLC SD card
PFM321D
DC12V1A Power
Adapter
LR1002-1ET/1EC
Single-port long
reach ethernet over
coax extender
PFM900-E
Integrated Mount
tester
PFA106
Mount Adapter
PFB220C
Ceiling Mount
