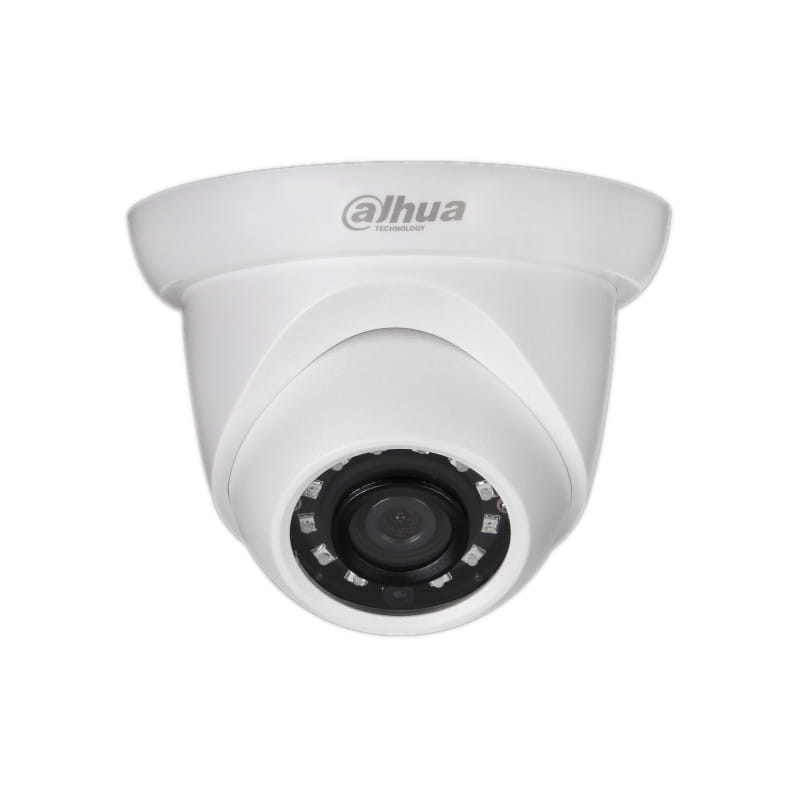

IPC-HDW1431S-0280B-S4

Kamera IP kopułkowa typu dome z serii Lite, 1/3" 4 Mpx Sony CMOS, D/N (ICR), H.265+/H.265/H.264+/H.264, 25 kl./s @4 Mpx, DWDR, obiektyw stałoogniskowy 2,8 mm, IR 30 m, IP67, DC 12V/PoE...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.dahuasecurity.com
DH-IPC-HDW1431S-S4
4MP Entry IR Fixed-focal Eyeball Netwok Camera

· 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
· Outputs 4MP (2560 x 1440) @25/30 fps, and supports max. 4MP
(2688 x 1520) @20 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in IR LED, max. IR distance: 30 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various
bandwidth and storage environments
· Image Rotation, WDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Abnormality detection: Motion detection, video tampering, network
disconnection, IP conflict, illegal access, voltage detection
· 12V DC/PoE power support
· IP67, protection
Entry Series |DH-IPC-HDW1431S-S4
System Overview
With features of simple installation, easy operation, and high
performance-cost ratio, Dahua Entry Series camera is applicable to small
and medium-sized scenes, such as homes/residences, small-sized retail
stores, and other small and medium-sized enterprises.
Functions
Smart (H.265+ & H.264+)
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Motion Detection
When moving objects appear in the monitoring image, Dahua Motion
Detection (General) technology triggers alarm or records.
Wide Dynamic Range (WDR)
With advanced Wide Dynamic Range (WDR) technology, Dahua network
camera provides clear details in the environment of strong brightness
contrast. The bright and dark area can get clear video even in high
brightness environment or with backlight shadow.

Smart IR
Dahua Smart IR technology can display image in the environment of low
illuminance or completely dark environment. According to the distance
of the targets, the camera adjusts IR LEDs intensity automatically to
display the details of the moving target.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.

4Mp
H.265+

IP67

Motion
Detection

www.dahuasecurity.com

Technical Specification
Camera
Image Sensor1/3”4Megapixel progressive CMOS
Effective Pixels
2688 (H) x1520 (V)
ROM128 MB
RAM128 MB
Scanning SystemProgressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100000 s
Min. Illumination0.03 Lux @ F2.0
IR Distance30 m (98.4 ft)
IR On/Off ControlAuto/Manual
IR LEDs Number12
Pan/Tilt/Rotation Range
Horizontal: 0°–355°
Vertical: 0°–78°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length
2.8 mm
3.6 mm
Max. ApertureF2.0
Field of View
2.8 mm:
Horizontal: 93°
Vertical: 53°
Diagonal: 111°
3.6 mm:
Horizontal: 81°
Vertical: 44°
Diagonal: 95°
Iris TypeFixed aperture
Close Focus Distance
2.8 mm: 0.8 m (2.6 ft)
3.6 mm: 1.4 m (4.6 ft)
DORI Distance
LensDetectObserveRecognizeIdentify
2.8mm
50.0 m
(183.7 ft)
22.4 m
(73.5 ft)
11.2 m
(36.7 ft)
15.1 m
(18.4 ft)
3.6mm
80.0 m
(262.5 ft)
32.0 m
(105.0 ft)
16.0 m
(52.5 ft)
8.0 m
(26.2 ft)
Video
Video Compression H.265; H.264; H.264B; MJPEG
Smart CodecYes
Video Frame Rate
Main Stream:
2688 x 1520 (1 fps–20 fps)
2560 x 1440 (1 fps–25/30 fps)
Sub Stream:
704 x 576 (1 fps–20/25 fps)
704 x 480 (1 fps–20/30 fps)
Stream Capability2 streams
Resolution
2688 x 1520 (2688 x 1520); 2560 x 1440 (2560 x 1440);
2304 x 1296 (2304 x 1296); 1080p (1920 x 1080); 1.3M
(1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x
480); VGA (640 x 480); CIF (352 x 288/352 x240)
Bit Rate ControlCBR; VBR

Video Bit Rate
H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6144 Kbps
Day/NightAuto(ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlManual/Auto
Noise Reduction3D DNR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest(RoI)Yes (4 areas)
Smart IRYes
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 2688 x 1520
resolution.)
MirrorYes
Privacy Masking4 areas
Network
NetworkRJ-45 (10/100 Base-T)
Protocol
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP;
DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP;
RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP
InteroperabilityONVIF (Profile S/Profile G/Profile T); CGI; Milestone;
User/Host20
Edge StorageDahua Cloud; FTP; SFTP; NAS
Browser
IE
Chrome
Firefox
Management SoftwareSmart PSS; DSS; DMSS
Mobile PhoneIOS; Android
Certification
Certifications
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply12V DC/POE (802.3af)
Power Consumption< 4.9W
Environment
Operating Conditions -40°C to +55°C (-40°F to +131°F) /less than≤95%
Strorage Conditions -40°C to +60°C (-40°F to +140°F)
Ingress ProtectionIP67
Entry Series |DH-IPC-HDW1431S-S4

Structure
CasingMetal + plastic
Dimensions84.9 mm x Φ108 mm (3.3" x Φ4.3")
Net Weight0.27 kg (0.6 lb)
Gross Weight0.40 kg (0.9 lb)

Ordering Information
TypePart NumberDescription
4MP
Camera
DH-IPC-HDW1431SP-S4
4MP Entry IR Fixed-focal Eyeball
Netwok Camera,PAL
DH-IPC-HDW1431SN-S4
4MP Entry IR Fixed-focal Eyeball
Netwok Camera,NTSC
Accessories
(optional)
PFA130-EJunction Box
PFB203WWall Mount
PFA106Mount Adapter
PFB220CCeiling Mount
PFA152-EPole Mount
PFM321DDC12V1A Power Adapter
LR1002-1ET/1EC
Single-port Long Reach Ethernet
over Coax Extender
PFM900-EIntegrated Mount Tester

Rev 001.001© 2019 Dahua . All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

www.dahuasecurity.com

Dimensions (mm[inch])

Junction Mount
A3E
Wall Mount
B23W
Ceiling Mount
A6B22C

Pole Mount
B23WA2E
Entry Series |DH-IPC-HDW1431S-S4
Accessories
Optional:

PFA130-E
Junction Box
PFA106
Mount Adapter

PFA152-E
Pole Mount

PFM900-E
Integrated Mount
ester
PFB203W
Wall Mount

LR1002-1ET/1EC
Single-port ong
each thernet over
oax xtender

PFB220C
Ceiling Mount

PFM321D
DC12V1A Power
Adapter
