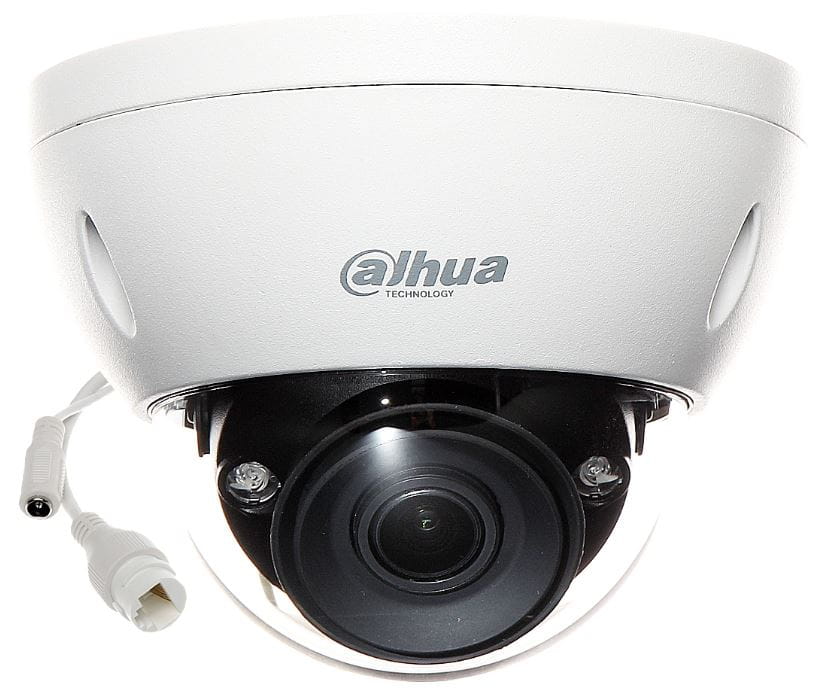

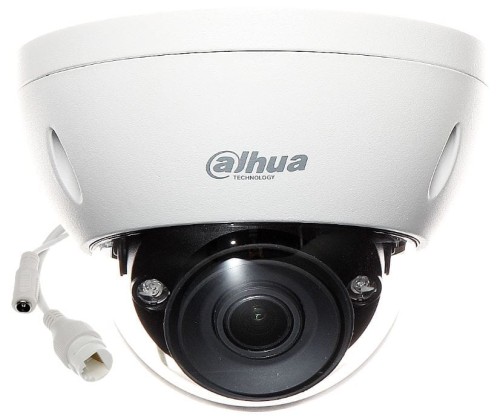

IPC-HDBW8331E-ZEH

Kamera IP kopułkowa typu dome wandaloodporna z serii ULTRA, 1/2,8" 3 Mpx SONY CMOS, ICR, WDR (140 dB), H.265+/H.265/H.264+/H.264, 3 Mpx (1 ~ 60 kl./s), obiektyw motozoom 7 - 35 mm, IR 100 m, alarm 1/1, audio 1/1, micro SD, IP67, IK10, AC 24V / DC 12V / ePoE, funkcje analizy wideo...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DH-IPC-HDBW8331E-Z


3MP HD Ultra WDR Network Vandal-proof IR Dome Camera



Features
* 1/2.8" 3 Megapixel progressive scan CMOS
* Support H.265/H.264/MJPEG dual codec
* Smart triple streams supported
* Max 25/30fps@3MP(2048x1536)
* Ultra WDR up to 140dB
* Ultra 3D DNR
* Ultra Defog, ROI, EIS
* Smart detection
* Intelligent Function
* 2.8 ~12mm varifocal motorized lens
* Max. IR LEDs length 50m
* Micro SD memory, IP66, IK10, PoE,




DH-IPC-HDBW8331E-Z


Technical Specifications
Model IPC-HDBW8331E-Z
Camera
Image Sensor 1/2.8” 3Megapixel CMOS
Effective Pixels 2048(H)x1536(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3(4)~1/100000s
Min. Illumination 0. 005Lux/F1.4(Color), 0Lux/F1.4(IR on)
S/N Ratio More than 50dB
Video Output 1 port
Camera Features
Max. IR LEDs Length 50m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / WDR (140dB)
White Balance Auto/Sunny/Night/Outdoor/Customized
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
EIS Support
Ultra Defog Support
Lens
Focal Length 2.7 -12mm motorized
Max Aperture F1.4
Focus Control Auto
Angle of View H: 87°~31°
Lens Type Motorized/Auto Iris(DC)
Mount Type Board-in Type
Video
Compression H.265/H.264 / MJPEG
Resolution 3M(2048x1536)/1080P(1920x1080)/720P(1280x720)/D1(704x576)/CIF(352x28
8)
Frame
Rate
Main Stream 3M/1080P/720P(1~25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Third Stream 1080P/720P/D1(1 ~ 25/30fps)
Bit Rate H.264: 40K ~ 10Mbps
ROI Up to 4 areas
Audio
Compression G.711a / G.711u/AAC
Interface 1/1 channel In/Out
Smart Function
Smart detection
Tripwire
Intrusion
Scene change


DH-IPC-HDBW8331E-Z


Missing/Abandoned
Audio detect
Face detect
Intelligent function
People counting
Heat map
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP,
SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 128GB
RS485 N/A
Alarm 2/1 channel In/Out
PIR Sensor Range N/A
General
Power Supply DC12V/AC24V, PoE(802.3af)
Power Consumption Max 12W
Working Environment -30°C~+60°C , Less than 90%RH
Ingress Protection IP67
Vandal Resistance IK10
Dimensions Φ159mmx117.9mm
Weight 0.8kg











DH-IPC-HDBW8331E-Z


Dimensions (mm)


Accessory (optional)
PFA101 PFB302S PFA152


PFA138 PFB201C PFB300C





Dahua Technology Co., Ltd.
1199 BinAn Road, Binjiang District, Hangzhou, China
Tel: +86-571-87688883
Fax: +86-571-87688815
Email:overseas@dahuatech.com
www.dahuatech.com
*Design and specifications are subject to change without notice.
© 2014 Dahua Technology Co., Ltd.
