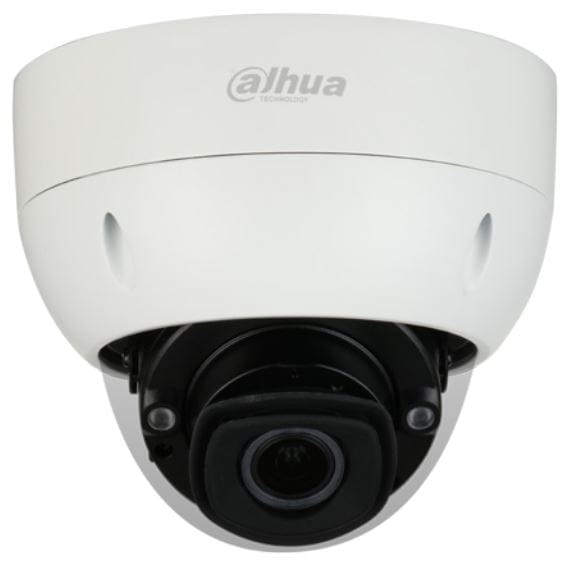

IPC-HDBW7442H-Z4FR-0832-DC12AC24V

Kamera IP kopułkowa typu dome wandaloodporna z serii AI, 1/1,8" 4 Mpx CMOS, 50/60 kl./s @ 4Mpx, WDR (140dB), Micro SD, IP67, IK10, 12V, 24V, PoE, Max IR 80m, obiektyw 8-32mm, AI: perymetryka, przechwytywanie zdjęć twarzy, rozpoznawanie twarzy, zliczanie osób, ANPR, strukturyzacja wideo, inteligentne wyszukiwanie...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Ultra-AI Series | DH-IPC-HDBW7442H-Z4FR

www.dahuasecurity.com
DH-IPC-HDBW7442H-Z4FR
4MP AI IR Dome Network Camera

System Overview
With Hisilicon advanced chip, image sensor and deep learning algorithm,
Dahua Ultra-AI series network camera supports various intelligent func-
tions and meet customers' requirements in different scenes. Adopting
excellent image processing technology, Dahua AI network camera
performs good in WD and low illuminance environment. For intelligent
functions, it supports face detection, people counting, perimeter protec-
tion, video structurization (vehicle, non-motor vehicle, people detection
and snapshot), and ANPR. The camera provides better solution to image
processing and intelligent application.
Functions
People Counting
People counting adopts deep learning algorithm to detect human body
target, and track the target in real time, which realizes independent
statistics of entry number and exit number. And the accuracy rate is up
to 98%.
Video Structurization
Video structurization adopts deep learning algorithm to detect vehicle,
non-motor vehicle and people in the image, track the target in real
time, and then snapshot the target and extract attributes.
Ultra WDR
Standard WDR/HDR camera can provide 120dB dynamic range. How-
ever, for some scenes with wider contrast range, 120dB is slightly insuf-
ficient. By adopting the latest technology, Dahua Cameras can provide
an amazing dynamic range up to 140dB.
Smart H.265+
Smart H.265+ is an effective coding method based on H.265. Com-
paring with H.265, smart H.265+ improves efficiency more than 70%
through auto scene judgement, dynamic ROI and dynamic GOP. Smart
H.265+ provides better solution to save storage, bandwidth and power
consumption.
EPOE
Dahua ePoE technology, designed internally, adopts advanced 2D-PAM3
coding modulation from physical layer, and realizes full duplex transmis-
sion over 800 meters at the speed of 10Mbps, or 300 meters at the
speed of 100Mbps via Cat 5 or coaxial cable media. Besides, it supports
PoE and PoC power supply technology which has greatly simplified
construction and wiring. Dahua ePoE technology offer a new way to
accomplish long distance transmission between IP camera and network
switch. It allows more flexible surveillance system design, improves reli-
ability and saves construction and wiring cost.
Perimeter Protection
Dahua’s Perimeter Protection functions significantly improved accuracy.
Perimeter Protection reduces false alarms and decreases pixel count
requirements for object detection. Perimeter Protection features
custom tripwires based on object type for automation in limited access
areas such as pedestrian or vehicle-only zones. This combination of
advanced AI analytics and real-time alerts to a desktop or to a mobile
client reduces system requirements and resources resulting in greater
surveillance system efficiency.
Face Recognition
Once facial features are extracted from captured faces, they are stored
in a database where they can be easily searched and compared against
other images. Once a successful match is found, the system outputs the
result. The Dahua Face Recognition camera supports a built-in database
that stores up to 200,000 facial images, helping the camera achieve real-
time face capture and comparison.
· 4MP, 1/1.8” CMOS image sensor, low illuminance, high image definition
·Max outputs 4MP (2688 x 1520) @ 25 fps/30 fps, meets high frame rate
requirement, and max. supports 50 fps/60 fps
· H.256 coding, high compression ration, low bit rate
· Max IR distance: 80 m (262.5ft)
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking
· ROI, SVC, SMART H.264/H.265, flexible coding, applicable to various
bandwidth and storage environments
· Defog detection, intrusion, tripwire, abandoned/missing object, scene
changing, loitering detection, people gathering, fast moving, parking
detection, audio detection, external alarm, face recognition, people count-
ing, video metadata (Snapshot of vehicle, non-motor vehicle, and person
detection, and attributes recognition), privacy protection
· Alarm: 3 in, 2 out, audio:in, out, RS-485, BNC, 256 G SD card, built-in
ports, without cables
· 24V AC/POE/12V DC power support, 12V power output and the max
current 165mA
· Five streams for three-channel HD video
· IP67, IK10 protection grade

4Mp

Metadata
Face Recognition
People Counting
Temperature

Perimeter

IP67


Ultra-AI Series | DH-IPC-HDBW7442H-Z4FR

Technical Specification
Camera
Image Sensor
1/1.8” 4Megapixel progressive CMOS
Effective Pixels
2688 (H) x 1520 (V)
ROM
16 GB
RAM
2 GB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100000 s
Min. Illumination
0.001 Lux@F1.6
IR Distance
Distance up to 80 m (262.5 ft)
IR On/Off Control
Auto
IR LEDs Number
3 (IR LEDs)
Pan/Tilt/Rotation Range
Horizontal: 0°–355°
Vertical: 0°–80°
Rotation: 0°–355°
Lens
Lens TypeElectric zoom
Mount TypeModule interface
Focal Length8 mm–32 mm
Max. ApertureF1.6
Field of View
Horizontal: 40° (W)–15° (T)
Vertical: 23° (W)–9° (T)
Diagonal: 46° (W)–18° (T)
Optical Zoom4 times
Iris TypeAuto aperture
Close Focus Distance
W: 2.5 m (W: 8.20 ft)
T: 6 m (T: 19.68 ft)
DORI
Distance
LensDetectObserveRecognizeIdentify
W
151 m
(495.4 ft)
60.7 m
(199.1 ft)
30.3 m
(99.4 ft)
15.1 m
(49.5 ft)
T
400 m
(1312.3 ft)
160 m
(524.9 ft)
80 m
(262.5 ft)
40 m
(131.2 ft)
Smart event
General IVS AnalyticsAbandoned object, moving object
Professional, intelligent
Perimeter Protection
Tripwire, intrusion, fast moving, loitering detection,
parking detection and people gathering.
Face SnapshotYes
Face Recognition
Face recognition, track, priority, snapshot, face
enhancement, face exposure, face attribute extract,
6 attributes and 8 expressions: Gender, age, glasses,
expressions (anger, sadness, disgust, fear, surprise,
calm, happiness and confusion), mask, beard
Face matting setting: face, single inch photo
Two snapshot strategies: priority snapshot, recognition
Face angle filter
Priority time setting
Management of 5 group face libraries
Single person register and person register in batch
Face recognition and similarity setting
Max supports face contrast in face library with
200,000 faces

www.dahuasecurity.com

People Counting
Count the entry number and exit number , display and
output daily/monthly/annual report
Count people in area, display and output daily/
monthly/annual report
Video Structurization
Vehicle detection, non-motor vehicle detection,
personnel detection, face detection, track, snapshot,
optimization, report high quality picture, vehicle
attributes (license plate, vehicle type, vehicle color,
and vehicle brand), other attributes (sun visor,
seatbelt, smoking, phoning, in-car accessories, and
annual vehicle inspection mark), non-motor vehicle
attributes: vehicle type, vehicle color,driver number,
cloth type, cloth color, and hat), personnel attribute
(cloth type, trousers type, cloth color, trousers color,
knapsack, and gender), face attribute (gender, age ,
glasses, mask, and beard)
Intelligent Search
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to
event videos.
Video
Video Compression H.265, H.264, H.264H, H.264B, MJPEG
Smart Codec
H.264: Yes
H.265: Yes
Video Frame Rate
Main Stream: 2688 x 1520 (1–50/60 fps)
sub stream 1: 704 x 576 (1–25/30 fps)
sub stream 2: 1920 x 1080 (1–25/30 fps)
sub stream 3: 1920 x 1080 (1–25/30 fps)
sub stream 4: 704 x 576 (1–25/30 fps)
Stream Capability5 streams
Resolution
4M (2688 x 1520), 3M (2304 x 1296), 1080p (1920 x
1080), 1.3M (1280 x 960), 720p (1280 x 720), D1 (704
x 576/704 x 480), VGA (640 x 480), CIF (352 x 288/352
x 240)
Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 32 Kbps–10240 Kbps
H.265: 12 Kbps–10240 Kbps
Day/NightICR switch
BLCYes
WDR140 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlManual/Auto
Noise Reduction3D DNR
Motion DetectionYes
Region of Interest(RoI)Yes (4 areas)
Electronic Image
Stabilization(EIS)
Yes
Smart IRYes
DefogYes
Image Rotation
0°/90°/180°/270° (Supports 90°/270° with 1080p
resolution or below.)
MirrorYes
Privacy Masking4 areas
Audio
Audio CompressionG.711a, G.711Mu, G726, AAC
Network

Ultra-AI Series | DH-IPC-HDBW7442H-Z4FR

NetworkRJ-45 (100/1000 Base-T)
Protocol
HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP,
DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP
InteroperabilityONVIF(Profile S/Profile G); CGI; P2P; RTMP
Scene Self-adaptationYes
User/Host20
Edge StorageFTP; Micro SD card (256 G); NAS; SFTP
Browser
IE: Versions later than IE9
Google: Versions later than Chrome 42,
Firefox: Versions later than Firefox 48.0.2,
Management SoftwareSmart PSS, DSS PRO, NVR, IVSS
Mobile PhoneIOS, Android
Certification
Certifications
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
RS-4851 (Bit rate: 1200 bps–115200 bps)
Audio Input
Audio Interface: 1/1 channel In/Out
Audio Output
Video Port
1 Channel CVBS (2 pin white socket at interval of 1.25
mm , with BNC cable)
Alarm Input
3 channel In: 5mA 5V DC
2 channel Out: 1000mA 30V DC/500mA 50V AC
Alarm Output
Power
Power Supply12V DC/24V AC/POE
Power Consumption
Basic power consumption: 5.4W (12V DC); 5W (24V AC
active power); 4.9W (POE);
Max power consumption (ICR switch, and IR full
intensity): 16.7W (12V DC); 15.7W (24V AC active
power); 15.6W (POE);
Environment
Operating Temperature -40°C to +60°C (-40°F to +140°F)
Storage Temperature ≤95%
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Ingress ProtectionIP67, IK10
Structure
Dimensions129.1 mm x Φ157.9 mm (5.08" x Φ6.22") (L x W x H)
Box Dimensions
212 mm x 212 mm x 200 mm (8.35" x 8.35" x 7.87")
(L x W x H)
Gross Weight1600 g (3.53 lb)
Installationceiling-mounted, side-mounted, and pole-mounted


Ordering Information
TypePart NumberDescription
4MP Camera
DH-IPC-
HDBW7442HP-
Z4FR
4MP AI IR Dome Network Camera
DH-IPC-
HDBW7442HN-
Z4FR
4MP AI IR Dome Network Camera
IPC-HDBW7442HP-
Z4FR
4MP AI IR Dome Network Camera
IPC-HDBW7442HN-
Z4FR
4MP AI IR Dome Network Camera
Accessories
PFA773Wall Mount
PFB210WPole Mount
PFA152-EPole Mount
PFA101Ceiling Mount
PFB300CCeiling Mount
www.dahuasecurity.com
Accessories
Optional:

PFA773
Wall Mount
PFB210W
Pole Mount
PFA152-E
Pole Mount

PFA101
Ceiling Mount
PFB300C
Ceiling Mount

Ceiling Mount

Wall Mount

PFA773

Hang Mount

PFB300CPFA101

Wall Mount

PFA210W

Wall Mount

PFA210W

Pole Mount

PFB210WPFA152-E


Ultra-AI Series | DH-IPC-HDBW7442H-Z4FR

www.dahuasecurity.com

Rev 001.001 © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
Dimensions (mm[inch])
