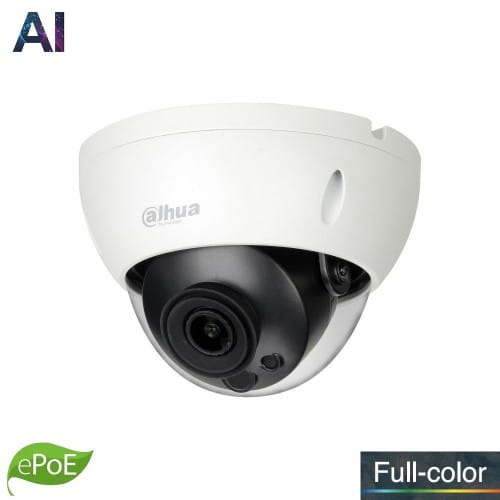

IPC-HDBW5449R-ASE-NI-0360B

Kamera IP kopułkowa typu dome wandaloodporna z serii AI, 1/1,8" 4 Mpx STARVIS™ CMOS full-color, 25/30 kl./s @ 1080P, H.265, alarm 1/1, audio 1 /1, obiektyw stałoogniskowy 2,8 mm, micro SD (max. 256G), IP67, IK10, 12V, ePoE, AI: SMD, perymetryka, zliczanie osób, detekcja twarzy...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Pro AI Series | DH-IPC-HDBW5449R-ASE-NI
DH-IPC-HDBW5449R-ASE-NI
4MP Pro AI Full-color Fixed-focal Dome Network Camera
www.dahuasecurity.com
System Overview
Pro AI series contains Face Detection, Perimeter Protection and People
Counting functions.Powered by deep-learning Artificial Intelligence algo-
rithms, significantly improved accuracy. Meanwhile, the series features
starlight technology. This series fully protected from dust and water,
certified to IP67 and vandal resistant to IK10 standard.
Functions
Face Detection
Face Detection is a software application that automatically captures
faces from within a digital image or a video frame from a video source.
Dahua cameras use advanced deep learning algorithms and are trained
by a large number of face data sources, enabling the camera to locate
faces quickly and accurately from the video source and capture facial
images.
Perimeter Protection
Dahua’s Perimeter Protection functions significantly improved accu-
racy. Perimeter Protection reduces false alarms and decreases pixel
count requirements for object detection. Perimeter Protection features
custom tripwires based on object type for automation in limited access
areas such as pedestrian or vehicle-only zones. This combination of
advanced AI analytics and real-time alerts to a desktop or to a mobile
client reduces system requirements and resources resulting in greater
surveillance system efficiency.
People Counting
People Counting function uses advanced image processing technology
to capture depth information from within images. The camera pairs
this information with deep learning algorithms to analyze and detect
human bodies and track target objects in real time. The camera provides
statistics for separate individuals’ entrance and exit with up to 95%
counting accuracy.
·1/1.8” 4Megapixel progressive scan CMOS
·H.265 & H.264 triple-stream encoding
·25/30 fps@2688 x 1520, 50/60 fps@1080 (1920 x 1080)
·WDR (140 dB), Day/Night (Electronic), 3D DNR, AWB, AGC, BLC
·Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
·3.6 mm fixed lens
·1/1 Alarm in/out, 1/1 audio in/out
·Micro SD memory, IP67, IK10

ePoE technology
The ePoE technology of Dahua, designed internally, adopts advanced
2D-PAM3 coding modulation from physical layer, and realizes full duplex
transmission over 800 meters at the speed of 10Mbps, or 300 meters at
the speed of 100Mbps via Cat 5 or coaxial cable media. Besides, it sup -
ports PoE and PoC power supply technology which has greatly simpli-
fied construction and wiring. Dahua ePoE technology offer a new way to
accomplish long distance transmission between IP camera and network
switch. It allows more flexible surveillance system design, improves reli-
ability and saves construction and wiring cost.
Protection(IP67, IK10, wide voltage)
The camera allows for ±30% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning rat-
ing provides effective protection for both the camera and its structure
against lightning. Subjected and certified to rigorous dust and immer-
sion tests (IP67) and impact tests (IK10), the camera is the choice for
installation in even the most unforgiving environments.
Full-color Starlight
The camera adopts F1.0 large aperture lens and 1/1.8" high perfor-
mance sensor. With higher amount of absorbed light and advanced im-
age processing algorithm, the camera presents an impressive low light
performance with an exceptional balance between noise reduction and
the blur of moving object.

Perimeter Protection
People Counting
Face Detection
Full-color

Technical Specification
Camera
Image Sensor1/1.8” 4Megapixel progressive scan CMOS
Effective Pixels
2688 (H) x 1520 (V)
RAM/ROM
1 GB/128 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3 s–1/100000 s
Minimum Illumination
0.001 Lux @F1.0
Lens
Lens TypeFixed-focal
Mount TypeBoard-in
Focal Length3.6 mm
Max. ApertureF1.0
Angle of ViewH: 93°, V: 50°
Aperture TypeFixed
Close Focus Distance2.0 m (6.56 ft)
DORI Distance
LensDetectObserveRecognizeIdentify
3.6mm70 m (230 ft) 28 m (91 ft)14m(46ft)7m(23ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation RangePan: 0˚–355˚; Tilt: 0˚–75˚; Rotation: 0˚–355˚
Artificial Intelligence
Face Detection Support face image capture
Perimeter Protection
Tripwire; intrusion (Recognition of vehicle and
people); fast moving; loitering detection; parking
detection and people gathering
People Counting
Support Line crossing/Region/Queueing people
counting; Support 4 accesses independent
detection, 4 areas independent detection
General Intelligence
Event Trigger
Motion detection, Video tampering , Scene
changing, Network disconnection , IP address
conflict, Illegal Access,Storage anomaly
General IntelligenceObject Abandoned/Missing
Heat Map Yes
Video
Compression
H.265, H.264, H.264B, H.264H,
MJPEG(sub stream)
Smart CodecYes
Streaming Capability3 Streams
Resolution
2688 x 1520/2560 x 1440/2304 x 1296/1080P
(1920 x 1080)/1.3M (1280 x 960)/720P (1280 x
720)/D1 (704 x 576/704 x 480)/VGA (640 x 480)/
CIF (352 x 288/352 x 240)

Frame Rate
Main Stream: 2688 x 1520 (1 fps–25/30 fps)
2560 x 1440 (1 fps–25/30 fps)
1920 x 1080 (1 fps–50/60 fps)
Sub Stream: D1 (1 fps–25/30 fps)
D1 (1 fps–50/60 fps)
Third Stream: 1080P (1 fps–16 fps)
Bit Rate ControlCBR/VBR
Bit Rate
H.264: 32 Kbps–8192 Kbps
H.265: 19 Kbps–8192 Kbps
Day/Night
Day/Night: Electronic
Color/B/W
BLC ModeBLC/HLC/WDR (140 dB)
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff/On (4 Zone, Rectangle)
Region of InterestOff/On (4 Zone)
DefogYes
Flip0°/90°/180°/270°
MirrorOff/On
Privacy MaskingOff/On (4 Area, Rectangle)
Audio
CompressionG.711a, G.711Mu, G.726, AAC, G.723
Network
EthernetRJ-45 (10/100 Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP;
RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS;
QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS;
PPPoE; 802.1x; SNMP
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; Milstone,
Genetec; P2P
Streaming MethodUnicast/Multicast
Max. User Access20 Users
Edge Storage
NAS; FTP; SFTP
Micro SD card 256 GB
Web Viewer
IE (versions newer than IE8), Chrome,
Firefox, Safari (versions newer than Safari 12)
Management SoftwareSmart PSS, DSS, P2P
Smart PhoneiOS, Android
Certifications
Certifications
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Interface
Audio Interface1/1 channel In/Out
Alarm
1 channel In: 5mA 5V DC
1 channel Out: 300mA 12V DC
www.dahuasecurity.com
Pro AI Series | DH-IPC-HDBW5449R-ASE-NI

Ordering Information
TypePart NumberDescription
4MP camera
DH-IPC-
HDBW5449RP-
ASE-NI
4MP Pro AI Full-color Fixed-focal Dome
Network Camera, WDR, PAL
DH-IPC-
HDBW5449RN-
ASE-NI
4MP Pro AI Full-color Fixed-focal Dome
Network Camera, WDR, NTSC
IPC-HDBW5449RP-
ASE-NI
4MP Pro AI Full-color Fixed-focal Dome
Network Camera, WDR, PAL
IPC-HDBW5449RN-
ASE-NI
4MP Pro AI Full-color Fixed-focal Dome
Network Camera, WDR, NTSC
Accessories
(optional)
PFA137 Junction box
PFB200CInceiling Mount
PFA200WRain Shade
PFA123Junction box
PFB203WWall Mount
PFA152-EPole Mount
PFA106Mount Adapter
PFB220CCeiling Mount

Electrical
Power SupplyDC 12V (±30%), PoE (802.3af) (Class 0)
Power Consumption<4.4W
Environmental
Operating Conditions-30° C to +60° C (-22° F to +140° F)/Less than 95% RH
Storage Conditions-30° C to +60° C (-22° F to +140° F)
Ingress Protection IP67
Vandal ResistanceIK10
Construction
CasingMetal
DimensionsΦ122.0 mm x 88.9 mm (4.80” x 3.50”)
Net Weight0.46 kg (1.01 lb)
Gross Weight0.62 kg (1.37 lb)
Accessories
Optional:
Dimensions (mm[inch])
Pro AI Series | DH-IPC-HDBW5449R-ASE-NI

PFA137
Junction box
PFB200C
Inceiling Mount
PFA200W
Rain Shade
PFA123
Junction box

PFB203W
Wall Mount
PFA152-E
Pole Mount
PFA106
Mount Adapter
PFB220C
Ceiling Mount

Junction Mount
Inceiling Mount
Wall Mount
Pole Mount
PFB2W PFA52-EPFB2W
PFA
PFB2C
Wall Mount with Rain Shade
PFA2 PFA2W

PFA PFB22C

Ceiling Mount

Junction Mount

R
ePo e Coa
Conete

Re ahua ll ight eeed eign and eciication ae uect to change without notice
Pictue in the docuent ae o eeence onl and the actual oduct hall eail
