IPC-HDBW3841R-ZAS-27135

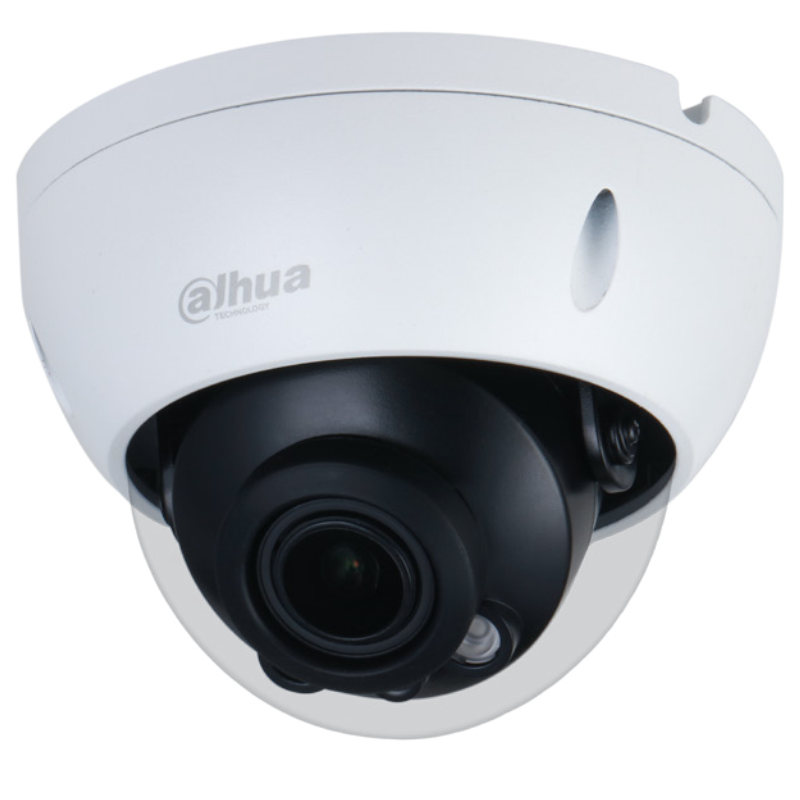

Kamera IP kopułkowa typu dome wandaloodporna z serii AI, przetwornik 1/2,8" 8 Mpx CMOS, Smart H.265/H.264, 20 kl./s @ 8Mpx, WDR (120dB), mirco SD (max 256 GB), obiektyw 1,7-13,5 mm, IR 40 m, alarm (1/1), wsparcie audio (1/1), IP67, IK10, DC 12V/PoE, IVS (przekroczenie linii, intruz w strefie)...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

| DH-IPC-HDBW3841R-Z(A)S
www.dahuasecurity.com





DH-IPC-HDBW3841R-Z(A)S
8MP IR Vari-focal Dome WizSense Network Camera




















Launched by Dahua Technology, WizSense is a series of AI products and
solutions that adopt independent AI chip and deep learning algorithm.
It focuses on human and vehicle with high accuracy, enabling users to
fast act on defined targets. Based on Dahua's advanced technologies,
WizSense provides intelligent, simple and inclusive products and
solutions.

Series Overview
With advanced deep learning algorithm, Dahua WizSense 3 Series
network camera supports intelligent functions, such as perimeter
protection and smart motion detection. With starlight technology, this
series camera provides a better image effect in the condition of low
illuminance.

Functions
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology
can categorize the targets that trigger motion detection and filter the
motion detection alarm triggered by non-concerned targets to realize
effective and accurate alarm, by working with AI NVR.

Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.

Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology
can recognize human and vehicle accurately. In restricted area (such
as pedestrian area and vehicle area), the false alarms of intelligent
detection based on target type (such as tripwire, intrusion, fast moving,
parking detection, loitering detection and gathering detection) are
largely reduced, by working with AI NVR.
· 8MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
· Outputs max. 8MP (3840 x 2160) @20 fps (AI function enabled by
default) and supports 8MP (3840 x 2160) @25/30 fps (when AI function
disabled)
· H.265 codec, high compression rate, low bit rate
· Built-in IR LED, max. IR distance: 40 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments.
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire (support the classification and
accurate detection of vehicle and human, by working with AI NVR)
· Abnormality detection: Motion detection, video tampering, scene
changing, audio detection (Only - ZAS supports), no SD card, SD card
full, SD card error, network disconnection, IP conflict, illegal access, and
voltage detection
· Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out
(Only - ZAS supports)
· Supports max. 256 G Micro SD card
· 12V DC/PoE power supply
· IP67, IK10 protection
· SMD Plus


Starlight
Dahua Starlight technology mainly applies to the environment of
low illumination, and it can provide clear colorful video. Even in the
environment of min. illumination, the technology can guarantee the
good image effect.

WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network
camera provides clear details in the environment of strong brightness
contrast. The bright and dark area can get clear video even in high
brightness environment or with backlight shadow.

Protection (IP67, IK10, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg
hammer falling from a height of 40 cm (Impact energy is 20J).
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.

Smart Codec Starlight Perimeter Protection


www.dahuasecurity.com

| DH-IPC-HDBW3841R-Z(A)S



Camera
Image Sensor 1/2.8”8Megapixel progressive CMOS
Max. Resolution 3840 (H) x 2160 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.007 Lux @F1.5
S/N Ratio ＞56 dB
Illumination Distance 40 m (131.2 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED)

Pan/Tilt/Rotation Range
Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355°
Lens
Lens Type Motorized vari-focal
Mount Type φ14
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.5


Field of View

Horizontal: 113°–31°
Vertical: 58°–17°
Diagonal: 138°–36°
Iris Type Fixed
Close Focus Distance 0.8 m (2.6 ft)
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s



DORI Distance
Lens Detect Observe Recognize Identify
W
85.3 m
(279.9 ft)
34.1 m
(111.9 ft)
17.0 m
(55.8 ft)
8.5 m
(27.9 ft)
T
280.0 m
(918.6 ft)
112.0 m
(367.5 ft)
56.0 m
(183.7 ft)
28.0 m
(91.9 ft)
Professional, intelligent


Perimeter Protection

Tripwire; intrusion (support the classification and
accurate detection of vehicle and human)


Intelligent Search

Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to event
videos.
Video





































Audio

Audio Compression G.711a; G.711Mu; G726; AAC (Only- ZAS supports)
Alarm








Alarm Event

- ZAS:
No SD card; SD card full; SD card error; service life
warning (only supported by Dahua card); network
disconnection; IP conflict; illegal access; motion
detection; video tampering; intrusion; tripwire; scene
changing; audio detection; voltage detection; defocus
detection; external alarm; SMD; safety exception
-ZS:
No SD card; SD card full; SD card error; service life
warning (only supported by Dahua card); network
disconnection; IP conflict; illegal access; motion
detection; video tampering; intrusion; tripwire; scene
changing; voltage detection; defocus detection; SMD;
safety exception
Network

Network RJ-45 (10/100 Base-T)
Technical Specification



Video Frame Rate
Main stream:
3840 x 2160 (1 fps–15 fps)
2688 x 1520 (1 fps–25/30 fps)
Sub stream:
704 x 576 (1 fps–25 fps)
704 x 480 (1 fps–30 fps)
Stream Capability 2 streams




Resolution


8M (3840 x 2160); 6M (3072 x 2048); 5M (3072 x
1728/2592 x 1944); 4M (2688 x 1520); 3M (2048 x
1536/2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x
960); 720p (1280 x 720); D1(704 x 576/704 x 480); VGA
(640 x 480); CIF (352 x 288/352 x 240)
Bit Rate Control CBR/VBR

Video Bit Rate
H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes

White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes

Image Rotation
0°/90°/180°/270° (Support 90°/270° with 1080p
resolution and lower.)
Mirror Yes
Privacy Masking 4 areas


Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported
by the sub stream)
Smart Codec Smart H.265+/ Smart H.264+


www.dahuasecurity.com

| DH-IPC-HDBW3841R-Z(A)S




DH-IPC-HDBW3841RN-ZS
8MP IR Vari-focal Dome WizSense
Network Camera, NTSC

IPC-HDBW3841RP-ZAS
8MP IR Vari-focal Dome WizSense
Network Camera, PAL

IPC-HDBW3841RN-ZAS
8MP IR Vari-focal Dome WizSense
Network Camera, NTSC

IPC-HDBW3841RP-ZS
8MP IR Vari-focal Dome WizSense
Network Camera, PAL

IPC-HDBW3841RN-ZS
8MP IR Vari-focal Dome WizSense
Network Camera, NTSC











Accessories
(optional)
PFA137 Junction Box
PFA200W Rain Shade
PFB203W Wall Mount
PFA152-E Pole Mount
PFA106 Mount Adapter
PFB220C Celling Mount
PFB200C In-Celling Mount
PFM321D DC12V1A Power Adapter

LR1002-1ET/1EC
Single-port Long Reach Ethernet
over Coax Extender
PFM900-E Integrated Mount Tester
PFM114 TLC SD Card

Accessories
Optional:


PFA137
Junction Box

PFA152-E
Pole Mount


PFB200C
In-Celling Mount


PFM900-E
Integrated Mount
Tester
PFA200W
Rain Shade

PFA106
Mount Adapter

PFM321D
DC12V1A Power
Adapter

PFM114
TLC SD Card
PFB203W
Wall Mount


PFB220C
Celling Mount

LR1002-1ET/1EC
Single-port Long
Reach Ethernet over
Coax Extender

Ordering Information
Type Model Description



8MP
Camera

DH-IPC-HDBW3841RP-ZAS
8MP IR Vari-focal Dome WizSense
Network Camera, PAL

DH-IPC-HDBW3841RN-ZAS
8MP IR Vari-focal Dome WizSense
Network Camera, NTSC

DH-IPC-HDBW3841RP-ZS
8MP IR Vari-focal Dome WizSense
Network Camera, PAL

SDK and API Yes


Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP;
RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS;
UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE;
802.1x; SNMP

Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone;
Genetec
User/Host 20 (Total bandwidth: 72 M)

Storage
Dahua Cloud (only supported by Dahua version); FTP;
SFTP; Micro SD card (support max. 256 G); NAS


Browser

IE: IE8; IE9; IE11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certification


Certifications
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input 1 channel (RCA port) (Only- ZAS supports)
Audio Output 1 channel (RCA port) (Only- ZAS supports)
Alarm Input 1 channel in: 5mA 3V–M
Alarm Output 1 channel out: 300mA 12V DC (Only- ZAS supports)
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption <8.2W
Environment
Operating Conditions ––
Storage Conditions ––
Protection Grade IP67; IK10
Structure
Casing Metal
Dimensions 88.9 mm x Φ122 mm (3.5" x Φ4.8")
Net Weight 492 g (1.1 lb)
Gross Weight 663 g (1.5 lb)


www.dahuasecurity.com

| DH-IPC-HDBW3841R-Z(A)S



Ceiling Mount
PFA106+PFB220C
In-Ceiling Mount
PFB200C


Junction Mount Wall Mount Wall Mount Pole Mount
PFA137 PFA137+PFA200W PFB203W PFB203W+PFA152-E














































Rev 001.001 © 2020 Dahua . All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

Dimensions (mm[inch])
