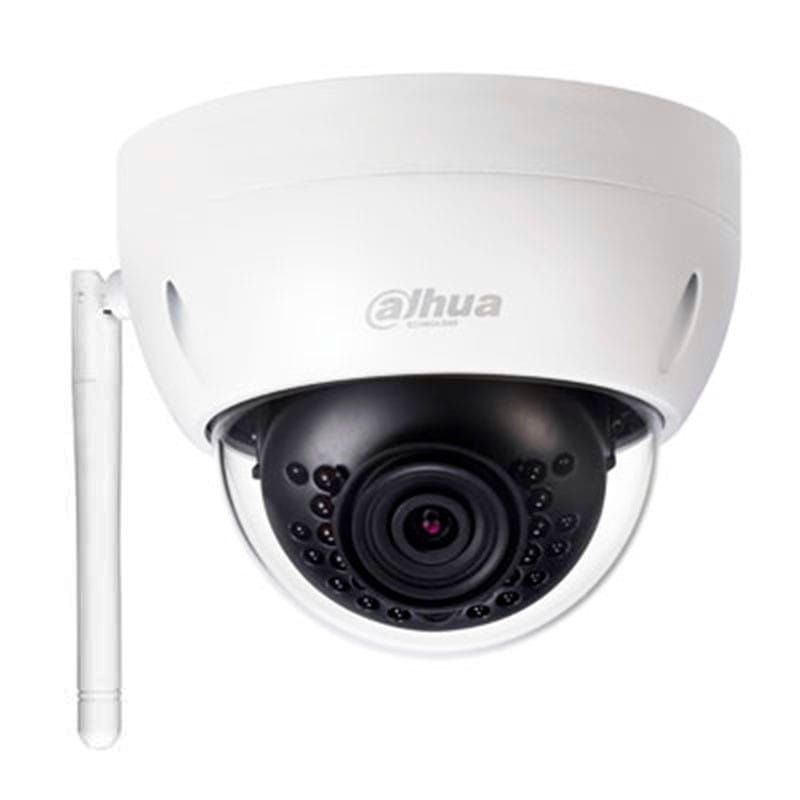

IPC-HDBW1320E-W-0360B

Kamera IP kopułkowa typu dome wandaloodporna z serii WIFI, 1/3" 3 Mpx CMOS, 3 Mpx@20kl./s, IR 30m, obiektyw stałoogniskowy 3,6mm, H.264/H.264H, 16 x zoom, slot na kartę microSD (do 128GB), detekcja ruchu, IP67, IK10, DC 12V, Wi-Fi 50 m w otwartej przestrzeni...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Wi-Fi Series | DH-IPC-HDBW1320E-W

System Overview
The IR Megapixel Fixed MiniDome camera delivers 3MP resolution with
a choice of 2.8mm or 3.6mm wide angle lens options. The camera's
elegant blend of aesthetics combined with a range of easy mounting
solutions provides an excellent choice for a variety of small to mid-size
applications at an affordable price.

Functions
True Day/Night
A day/night mechanical IR cut filter makes this camera ideal for
applications with fluctuating lighting conditions, delivering color images
during the day and automatically switching to monochrome as the scene
darkens
Regions of interest
Regions of Interest (ROI) is a user defined feature that allows the
operator to monitor specific areas of a scene while still maintaining
overall situational awareness of less important areas
Smart IR
With IR illumination, detailed images can be captured in low light or
total darkness. The camera's Smart IR technology adjusts to the intensity
of camera's infrared LEDs to compensate for the distance of an object.
Smart IR technology prevents IR LEDS from whiting out images as they
come closer to the camera. The camera's integrated infrared illumination
provides high performance in extreme low-light environments up to 30m
(98ft).
Image flip
Capturing unnecessary data such as surrounding hallway walls can
increase storage requirements without any added value. The image flip
feature allows the camera's image to be rotated in 90° increments for
better video optimization.
Environmental
With a temperature range of -30 °C to +60 °C (-22°F to +140 °F), the
camera is designed for extreme temperature environments. The camera
complies to an IK10 impact rating making it capable of withstanding the
equivalent of 55 kg (120 lbs) of force. Subjected and certified to rigorous
dust and water immersion tests, the IP67 rating makes it suitable for
demanding outdoor applications. For enviorments with rain, sleet, snow
and fog, an integrated wiper provides users with clear visibility at all
times.
Protection
Supporting ±10% input voltage tolerance, this camera suits even the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides protectection against the camera and its structure from
the effects of lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer
www.dahuasecurity.com
· 1/3” 3Megapixel progressive CMOS
· H.264 & MJPEG dual-stream encoding
· 20fps@(2304x1296)&25/30fps@2M(1920x1080)
· DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
· Wi-Fi support
· 2.8 mm fixed lens (3.6 mm optional)
· Max IR LEDs Length 30m
· IP67, IK10
DH-IPC-HDBW1320E-W
3MP IR Mini-Dome Wi-Fi Network Camera

IP67
Vandal-proof

30
m IR
3Mp

www.dahuasecurity.com
Wi-Fi Series | DH-IPC-HDBW1320E-W

Technical Specification
Camera
Image Sensor1/3” 3Megapixel progresive CMOS
Effective Pixels
2304(H)x1536(V)
RAM/ROM
256MB/16MB
Scanning System
Progressive
Minimum Illumination
0.1Lux/F2.0(Color), 0Lux/F2.0(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 30m(98ft)
IR On/Off Control
Auto/ Manual
IR LEDs
24
Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length2.8 mm (3.6 mm optional)
Max. ApertureF2.5/F2.5
Angle of ViewH:100°/77°, V:55°/42°
Focus ControlFixed
Close Focus DistanceN/A
PTZ
Pan/Tilt RangePan:0° ~355° ;Tilt:0° ~55° ;Rotation:0° ~355°
Video
CompressionH.264/H.264B/H.264H/MJPEG
Streaming Capability2 Streams
Resolution
3M(2304x1296)/1080P(1920x1080)/ 1.3M(1
280x960)/720P(1280x720)/720P(1280x720)/
VGA(640x480)/QVGA(320x240)
Frame Rate
3M(1 ~ 20fps)/2M (1 ~ 25/30fps)
VGA(1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit RateH264:32K ~ 10240Kbps
Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / DWDR


White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic ImageSupport
Smart IRSupport
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionN/A
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHC
P;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour
;802.1x;Multicast;ICMP;IGMP;
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users/20 Users
Edge Storage
NAS(Network Attached Storage),Local PC for instant
recording, 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS,Easy4ip
Smart PhoneiPhone, iPad, Android Phone
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video InterfaceN/A
Audio InterfaceN/A
RS485N/A
AlarmN/A
Electrical
Power SupplyDC12V
Power Consumption<5.5W

Wi-Fi Series | DH-IPC-HDBW1320E-W

Ordering Information
TypePart NumberDescription
3MP camera
DH-IPC-HDBW1320EP
-W-0280B
3MP IR Mini-Dome Wi-Fi Network
Camera,2.8mm,PAL
DH-IPC-
HDBW1320EN
-W-0280B
3MP IR Mini-Dome Wi-Fi Network
Camera,2.8mm,NTSC
IPC-HDBW1320EP
-W-0280B
3MP IR Mini-Dome Wi-Fi Network
Camera,2.8mm,PAL
IPC-HDBW1320EN
-W-0280B
3MP IR Mini-Dome Wi-Fi Network
Camera,2.8mm,NTSC
DH-IPC-HDBW1320EP
-W-0360B
3MP IR Mini-Dome Wi-Fi Network
Camera,3.6mm,PAL
DH-IPC-
HDBW1320EN
-W-0360B
3MP IR Mini-Dome Wi-Fi Network
Camera,3.6mm,NTSC
IPC-HDBW1320EP
-W-0360B
3MP IR Mini-Dome Wi-Fi Network
Camera,3.6mm,PAL
IPC-HDBW1320EN
-W-0360B
3MP IR Mini-Dome Wi-Fi Network
Camera,3.6mm,NTSC
Accessories
(optional)
PFA136Junction box
PFB203W Wall mount
PFA152Pole mount
www.dahuasecurity.com

Environmental
Operating Conditions-10° C ~ +50° C (-14° F ~ +122° F) / Less than 95% RH
Strorage Conditions-10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH
Ingress Protection IP67
Vandal ResistanceIK10
Construction
CasingMetal
DimensionsΦ109.9mm x 81mm (4.33" x 3.19")
Net Weight0.34Kg (0.75lb)
Gross Weight0.47Kg (1.04lb)
Dimensions (mm/inch)

Junction Mount

Wall Mount

Pole Mount

PFB203W + PFA152

PFB203W

PFA136
