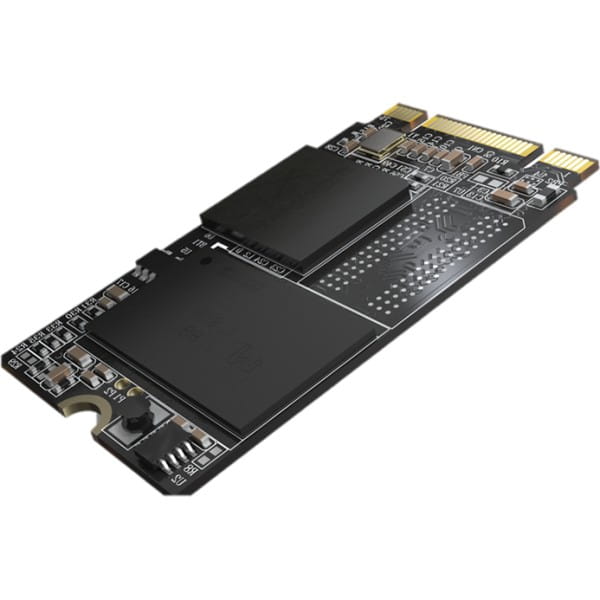

HS-SSD-E100NI/512G
Opis
Nośnik pamięci SSD M.2 interface (22mm * 80mm) /128GB/3D TLC/SATA III 6 Gb/s SATA II 3 Gb/s Up to 550MB/s read speed,500MB/s write speed...
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
Introduction
Customer SSD E100NI series, SSD mounted with the
M.2 interface, is specially designed for optimizing
customer computer operating system.
E100NI series applies the 3D NAND flash memory that
can effectively improve write/read efficient and data
security.
Available Models
HS-SSD-E100NI
Typical Application
● Notebooks and desktops
● Small-size proxy servers
Features and Functions
● High-speed write/read
M.2 interface.
SATA III protocol.
Read speed is up to 550 MB/s.
● 3D NAND flash
3D NAND flash optimizes the capacity, performance, and stability.
● Anti-vibration
Without mechanical structure.
Electronic chip control.
High data security.
● M.2 interface
Light weight and small size.
Customer SSD E100NI Series
Model HS-SSD-E100NI
Capacity 128 GB 256 GB 512 GB
Dimensions (mm)
22 x 80
22 x 42
22 x 80 22 x 80
Max. read speed 500 MB/s 500 MB/s 550 MB/s
Max. write speed 347 MB/s 450 MB/s 500 MB/s
Max. random 4K read speed 50K IOPS 70K IOPS 75K IOPS
Max. random 4K write speed 20K IOPS 32K IOPS 55K IOPS
Max. idle power consumption 0.055 W 0.055 W 0.055 W
Max. read power consumption 2.25 W 2.07 W 2.21 W
Max. write power consumption 2.51 W 2.51 W 2.95 W
Endurance 44 (TBW) TB 88 (TBW) TB 176 (TBW) TB
NAND flash memory 3D TLC ( Tri-Level Cell)
Interface M.2 (SATA III 6 Gb/s, SATA II 3 Gb/s)
Driver
ATA-8 ACS2
Serial ATA 2.6
Weight ≤ 5.4 g (0.01 lb)
MTBF (Mean Time between
Failures)
1,500,000 hours
Operating temperature 0 °C to 70 °C (32 °F to 158 °F)
Operating humidity 5% to 95% (no condensing)
Warranty period 3 years
Specifications
010000170420
