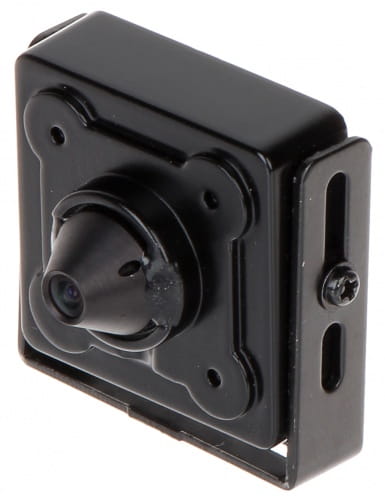

HAC-HUM3201B-0360P

Kamera specjalna pinhole 1/2,8" 2 Mpx CMOS, 25/30 kl./s @ 1080P, WDR (120dB), obiektyw pinhole 3,6 mm, DC 12 V, wyjście HD/SD przełączalne...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: HAC-HUM3201B-0280P

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Pinhole Camera | HAC-HUM3201B

System Overview
Experience full HD 1080P video with the simplicity of using existing
cabling infrastructure. The starlight HDCVI pinhole camera presents high
quality image with rich details even under extreme lowlight environment
and supports 120dB true WDR. It offers multi-language OSD and HD/SD
switchable output. The compact design and high image performance
makes the pinhole camera an ideal choice for invisible monitoring
applications such as ATM.
Functions
Elaborate Design
For better adapting the applications for invisible monitoring, the pinhole
camera is designed with micro-sized compact case, which minimizes the
interference against on-going activities. Taking aesthetics requirements
into consideration, the body of the camera is all-black.
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the HCVR, such as
sending control signal or triggering alarm. Moreover, HDCVI technology
supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional ana-
log system without replacing existing coaxial cabling. The plug and
play approach enables full HD video surveillance without the hassle of
configuring a network.
Starlight
With the adoption of high performance sensor, the camera is able
to provide incomparable performance even under extreme lowlight
environment. The starlight feature allows more details to be captured
and accurate color to be recognized at night or in scenes with limited
illumination.
Wide Dynamic Range
Embedded with industry leading wide dynamic range (WDR) technology,
vivid pictures are achieved even in the most intense contrast lighting con-
ditions. True WDR (120dB) optimizes both the bright and dark areas of a
scene at the same time to provide amazing usable video.
Multi-formats
The camera supports multiple video formats including HDCVI, CVBS and
other two common HD analog formats in the market. The four formats can
be switched over through OSD menu or by PFM820(UTC controller). This
feature makes the camera to be compatible with not only HCVRs but also
most end users’ existing HD/SD DVRs.
Multi-language OSD
OSD menu provides multiple image adjustments and function settings
to meet the requirements of different monitoring scenes. The OSD menu
includes configurations such as backlight mode, day/night, white balance
and privacy mask. The camera supports 11 languages for OSD menu, namely,
Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese,
Korean, Russian and Polish.
Protection
Supporting ±25% input voltage tolerance, this camera suits the unstable
power supply conditions. Its 4KV lightning rating provides protection against
the camera and its structure from the effects of lightning.
www.dahuasecurity.com
· Starlight, 120dB true WDR, 3DNR
· Max 30fp@1080P
· HD and SD output switchable
· 3.6mm fixed lens (2.8mm optional)
· DC12V
HAC-HUM3201B
2MP Starlight HDCVI Pinhole Camera

Pinhole
DC 12V

1080p

Starlight


www.dahuasecurity.com
Pinhole Camera | HAC-HUM3201B

Technical Specification
Camera
Image Sensor1/2.8" CMOS
Effective Pixels
1937(H)x1097(V), 2MP
Scanning SystemProgressive
Electronic Shutter Speed
PAL: 1/4s~1/100,000s
NTSC: 1/3s~1/100,000s
Minimum Illumination0.05Lux/F2.4 (Color), 0.005Lux/F2.4 (B/W), 30IRE
S/N RatioMore than 65dB
IR DistanceN/A
IR On/Off ControlN/A
IR LEDsN/A
Lens
Lens TypeFixed lens / Fixed iris
Mount TypeBoard-in
Focal Length3.6mm (2.8mm Optional)
Max ApertureF2.4
Angle of ViewH: 92°(103° )
Focus ControlN/A
Close Focus Distance
600mm (500mm)
23.6'' (19.7'')
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Definition
Distance
Detect
25px/m
(8px/ft)
2.8mm: 42m(138ft)
3.6mm: 51m(167ft)
Observe
63px/m
(19px/ft)
2.8mm: 17m(55ft)
3.6mm: 20m(67ft)
Recognize
125px/m
(38px/ft)
2.8mm: 8m(28ft)
3.6mm: 10m(33ft)
Identify
250ppm
(76px/ft)
2.8mm: 4m(14ft)
3.6mm: 5m(17ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 360°
Tilt: 0° ~ 180°
Rotation: N/A
Video
Resolution1080P (1920x1080)
Frame Rate25/30fps@1080P, 25/30fps@720P
Video Output
1-channel BNC high definition video output / CVBS
video output (Can switch)

Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
Interface
Audio InterfaceN/A
Eelectrical
Power Supply12V DC ±25%
Power ConsumptionMax 1.2W (12V DC)
Environmental
Operating Conditions
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -30°C (-22°F)
Storage Conditions-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal
Resistance
N/A
Construction
CasingAluminium
Dimensions35.5mmx29.9mmx22.1mm (1.40"x1.18"x0.87")
Net Weight0.09kg (0.20lb)
Gross Weight0.12kg (0.27lb)

Day/NightAuto (Electronic) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / WDR
WDR120dB
Gain ControlAGC
Noise Reduction2D / 3D
White BalanceAuto / Manual
Smart IRN/A


Pinhole Camera | HAC-HUM3201B
Rev 001.001© 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
2MP Camera
HAC-HUM3201BP 2.8mm
2MP Starlight HDCVI Pinhole
Camera, PAL
HAC-HUM3201BP 3.6mm
HAC-HUM3201BN 2.8mm
2MP Starlight HDCVI Pinhole
Camera, NTSC
HAC-HUM3201BN 3.6mm
Accessories
PFM321 12V 1A Power Adapter
PFM320D-015 12V 1.5A Power Adapter
PFM320 12V 2A Power Adapter

Dimensions (mm/inch)
Ceiling Moun t
Plane Moun t

Accessories
Optional:

PFM321
12V 1A Power Adapter
PFM320
12V 2A Power Adapter
PFM320D-015
Power Adapter
