HAC-HFW1239TLM-A-LED-0360B

Dostępność: 0
Cena: 340,00 zł 340.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: DAHUA
Kod produktu: HAC-HFW1239TLM-A-LED-0360B

Opis

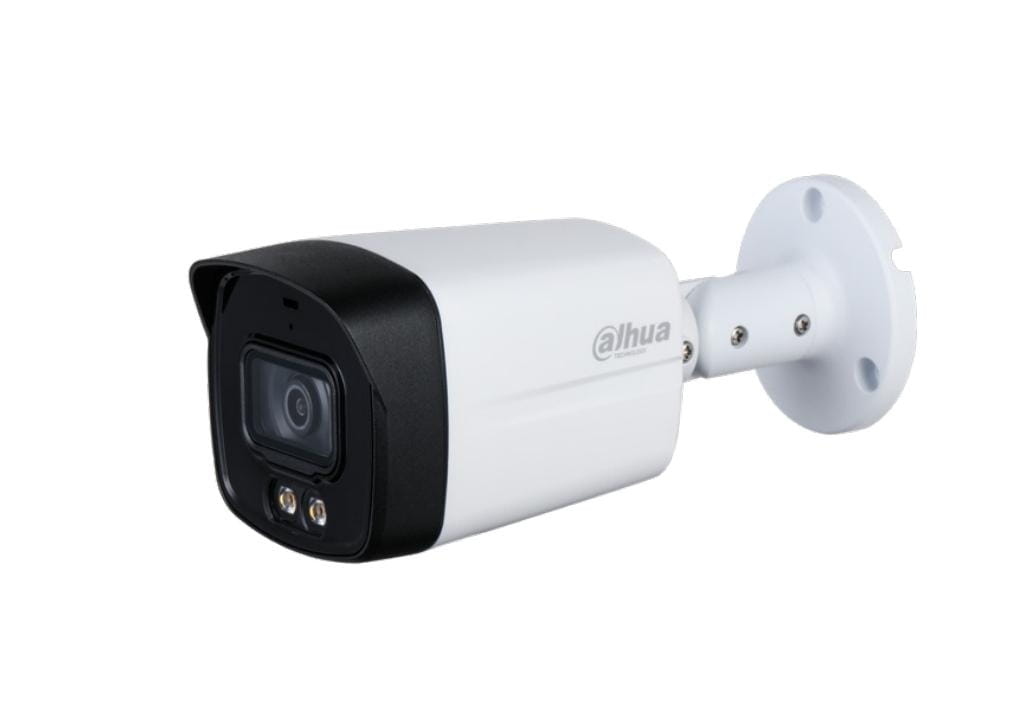

Kamera analogowa bullet z serii HDCVI 1, 1/2,8" 2.16 Mpx CMOS Full-color Starlight, 25/30 kl./s@1080P, 25/30/50/60fps@720P, DWDR, AGC, 2DNR, BLC, HLC, obiektyw stałoogniskowy 3.6mm, LED do 40 m, HD/SD przełączalne wyjście, IP67, DC 12 V, wbudowany mikrofon...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DC 12V

1080p

IP67
Audio
Series
Lite
Lite Plus Series | DH-HAC-HFW1239TLM(-A)-LED

www.dahuasecurity.com
DH-HAC-HFW1239TLM(-A)-LED
2M Full-color Starlight HDCVI Bullet Camera

System Overview
Experience 1080P full HD color video and the simplicity of reusing
existing coaxial infrastructure with HDCVI. The full-color starlight HDCVI
camera presents a high quality color image with rich details even in total
darkness conditions. It offers various fixed lens models with a multi-lan-
guage OSD and HD/SD switchable output. It adopts two powerful warm
white LED illuminators, covering an effective range up to 40m(131.23ft).
The LEDs switch on automatically in darkness to capture detail-packed
full-color images 24/7, ensuring anthentic identificaiton of objects. It is
an ideal choice for applications such as schools, retail centers and park-
ing lots.

Functions
Full-color Starlight
The camera adopts F1.6 large aperture lens and 1/2.8" high perfor-
mance sensor. With higher amount of absorbed light and advanced
image processing algorithm, the camera presents an impressive lowlight
performance with an exceptional balance between noise reduction and
the blur of moving object.
Warm Supplemental lights
With two warm supplemental LED lights, the camera is able to provide
a coloful and vivid image even in total darkness. It also provides visible
By default, the camera is set to smart light mode, in which the camera
can automatically adjust the exposure time and light sensitivity simul-
taneously to avoid overexposureing of the objects in the image center.
Also, the sensitivity and intensity of the LED lights can be remotely
controlled by OSD menu.
Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveil-
lance applications.The HDCVI camera supports audio signal transmission
over coaxial cable.In addition,it adopts unique audio processing and
transmission technology that best restores source audio and eliminates
noise,guaranteeing the quality and effectiveness of collected audio
information.
*Broadcast-quality audio is available for some models of HDCVI cameras.
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the HCVR,such as
sending control signal or triggering alarm. Moreover, HDCVI technology
supports PoC for construction flexibility.
*Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees long-distance and real-time transmission
without any loss.It supports up to 800m for 1080P Full HD video via
coaxial cable, and up to 300m via UTP cable
*Actual results verified by real-scene testing in Dahua's test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system,making itself a best choice for investment
protection.HDCVI system can seamlessly upgrade the traditional analog
system without replacing existing coaxial cabling.The plug and play ap-
proach enables full HD video surveillance without the hassle of configur-
ing a network.
Multiple-formats
The camera supports multiple video formats including HDCVI, CVBS and
other two common HD analog formats in the market. The four formats
can be switched over through OSD menu or by PFM820(UTC controller).
This feature makes the camera to be compatible with most end users’
existing HD/SD DVRs.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged de-
sign. The camera is protected against water and dust with IP67 ranking,
making it suitable for indoor or outdoor environments.
·Full-color starlight
·40m LED distance
·Max. 30fps@1080P
·CVI/CVBS/AHD/TVI Switchable
·Built-in mic(-A)
·3.6mm fixed lens
·IP67, 12V±30% DC

Lite Plus Series | DH-HAC-HFW1239TLM(-A)-LED

Technical Specification
Camera
Image Sensor1/2.8 inch 2.16 Mega Pixels CMOS
Effective Pixels
1920 (H)x1080 (V), 2MP
Electronic Shutter Speed
PAL:1/25s–1/100000s
NTSC:1/30s–1/100000s
Minimum Illumination
0.005Lux/F1.6, 30IRE, 0Lux white Light on
Fill Light (White Light)
Distance
Distance up to 40m (131.23ft)
Fill Light On/Off Control
Auto; Manual
Fill Light Number
2
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–180°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length3.6mm
Max. ApertureF1.6
Angle of View103.6°x86.9°x46.3° (diagonalxhorizontalxvertical)
Iris TypeFixed iris
Close Focus Distance1.2m (3.94ft)
DORI Distance
DetectObserveRecognizeIdentify
55.2m
(181.1ft)
22.1m
(72.5ft)
11.0m
(36.0ft)
5.5m
(18.0ft)
Video
Video Frame Rate
CVI:
PAL: 1080@25fps, 720@25fps, 720@50fps;
NTSC: 1080@30fps, 720@30fps, 720@60fps
AHD:
PAL: 1080@25fps,720@25fps;
NTSC: 1080@30fps,720@30fps
TVI:
PAL: 1080@25fps,720@25fps,720@50fps;
NTSC: 1080@30fps,720@30fps,720@60fps
CVBS:
PAL: 960x576H;
NTSC: 960x480H
Resolution
1080P (1920x1080); 720P (1280x720); 960H (704x
576/704x480)
BLCBLC/HLC/WDR
WDRDWDR
White BalanceAuto; Manual
Gain ControlAuto; Manual
Noise Reduction2D NR
Smart LightYes
Electronic DefogYes


Digital Zoom16X
MirrorOff/On
Privacy MaskingOff/On (4 area, rectangle)
Certification
Certifications
CE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio InterfaceBuilt-in mic(-A)
Port
Video Port
Video output choices of CVI/TVI/AHD/CVBS by one
BNC port
Power
Power Supply12V ±30% DC
Power ConsumptionMax 5W (12V DC, white light on)
Environment
Operating Temperature
-40°C to +60°C (-40°F to 140°F);
<95% (non-condensation)
Storage Temperature
-40°C to +60°C (-40°F to 140°F);
<95% (non-condensation)
Protection GradeIP67
Structure
CasingMetal front cover+plastic main body+metal bracket
Dimensions198.4mmx80.2mmx76.2mm (7.81"x3.16"x3.00")
Net Weight0.3Kg(0.66lb)
Gross Weight0.45Kg(0.99lb)
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
2M Camera
DH-HAC-
HFW1239TLMP-A-
LED-0360B
2M Full-color Starlight HDCVI Bullet Camera,
PAL
DH-HAC-
HFW1239TLMP-
LED-0360B
DH-HAC-
HFW1239TLMN-A-
LED-0360B
2M Full-color Starlight HDCVI Bullet
Camera,NTSC
DH-HAC-
HFW1239TLMN-
LED-0360B

Lite Plus Series | DH-HAC-HFW1239TLM(-A)-LED
www.dahuasecurity.com

Rev 001.001© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Dimensions (mm[inch])

Poe ount

PFA12A+PFA152-E

a ount

PFA12A

Poe ount

PFA13+PFA152-E

a ount

PFA13


KvoW
PFM300
12V 2A Power Adapter
PFM320D-015
12V 1.5A Power Adapter

PFM321
12V 1A Power Adapter
PFM800-4K
Passive Video Balun
PFM800B-4K
Passive Video Balun

PFM820
UTC Controller
PFM800-E
Passive HDCVI Balun

PFA12A+PFA152-E
Plastic Junction Box+
Pole Mount Bracket
PFA134
Water-proof
Junction Box

Accessories
PFA134+PFA152-E
Water-proof Junction Box+Pole Mount Bracket
PFA134
Water-proof Junction Box
PFA12A+PFA152-E
Plastic Junction Box+Pole Mount Bracket
PFA12A
Plastic Junction Box
PFM820
UTC Controller
PFM800-E
Passive HDCVI Balun
PFM800-4K
Passive Video Balun
PFM800B-4K
Passive Video Balun
PFM321
12V 1A Power Adapter
PFM300
12V 2A Power Adapter
PFM320D-015
12V 1.5A Power Adapter
PFA134+PFA152-E
Water-proof Junction
Box+Pole Mount Bracket

PFA12A
Plastic Junction Box
