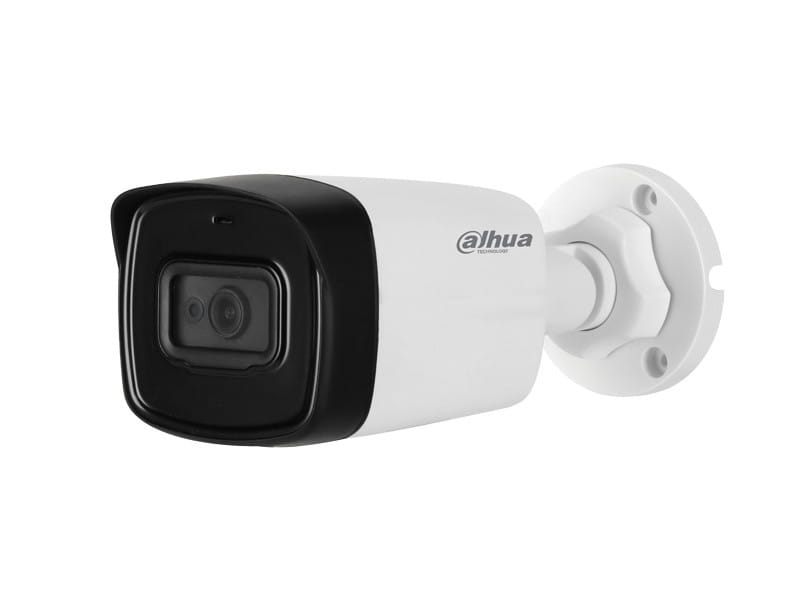

HAC-HFW1230TL-0360B

Kamera analogowa bullet z serii HDCVI 1, 1/2,8" 2 Mpx CMOS Starlight, 25/30 kl./s@1080P, 25/30/50/60fps@720P, DWDR, dzień/noc (ICR), AGC, 2DNR, BLC, HLC, obiektyw stałoogniskowy 3.6mm, IR do 40 m, CVI/TVI/AHD/CVBS, IP67, DC 12 V,...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Lite Series | DH-HAC-HFW1230TL-A

System Overview
Experience 1080P full HD video and the simplicity of using existing cabling
infrastructure with HDCVI. The 1080P starlight HDCVI camera presents
a high quality image with rich details even under extreme low-light
conditions. Also, the Lite series features compact design and friendly
price. It offers various motorized vari-focal/fixed lens models with a
multi-language OSD and HD/SD switchable output. Its structural flexibility
and high cost-performance makes the camera an ideal choice for SMB
solutions.
Functions
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the XVR, such as
sending control signal or triggering alarm. Moreover, HDCVI technology
supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance
without any loss. It supports up to 800m(1080P)/1200m(720P) trans-
mission via coaxial cable, and up to 300m(1080P)/450m(720P) via UTP
cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional ana-
log system without replacing existing coaxial cabling. The plug and
play approach enables full HD video surveillance without the hassle of
configuring a network.
Starlight
With the adoption of high performance sensor, the camera is able
to provide incomparable performance even under extreme lowlight
environment. The starlight feature allows more details to be captured
and accurate color to be recognized at night or in scenes with limited
illumination.
Smart IR
The camera is designed with IR LED illumination for best lowlight
performance. Smart IR is a technology to ensure brightness uniformity in
B/W image under low illumination. Dahua’s unique Smart IR adjusts to the
intensity of camera's infrared LEDs to compensate for the distance of an
object, and prevents IR LEDs from overexposing images as the object come
closer to the camera.
Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveillance
applications. The HDCVI camera supports audio signal transmission over
coaxial cable. In addition, it adopts unique audio processing and transmission
technology that best restores source audio and eliminates noise, guaran-
teeing the quality and effectiveness of collected audio information.
Multi-formats
The camera supports multiple video formats including HDCVI, CVBS and
other two common HD analog formats in the market. The four formats can
be switched over through OSD menu or by PFM820(UTC controller). This
feature makes the camera to be compatible with most end users’ existing
HD/SD DVRs.
Multi-language OSD
OSD menu provides multiple image adjustments and function settings
to meet the requirements of different monitoring scenes. The OSD menu
includes configurations such as backlight mode, day/night, white balance,
privacy mask and motion detect. The camera supports 11 languages for
OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese,
Italian, Japanese, Korean, Russian and Polish.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged design.
The camera is protected against water and dust with IP67 ranking, making it
suitable for indoor or outdoor environments.
With working temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the
camera is designed for extreme temperature environments.
Supporting ±30% input voltage tolerance, this camera suits even the most
unstable power supply conditions. Its 4KV lightning rating provides pro-
tection against the camera and its structure from the effects of lightning.
www.dahuasecurity.com
· Starlight
· Max. 30fps@1080P
· HD and SD output switchable
· Built-in mic
· 3.6mm fixed lens (2.8mm, 6mm optional)
· Max. IR length 80m, Smart IR
· IP67, DC12V
DH-HAC-HFW1230TL-A
2MP Starlight HDCVI IR Bullet Camera

Series
Lite
80m IR
DC 12V
IP67

1080p

Starlight

Audio
Temperature


www.dahuasecurity.com
Lite Series | DH-HAC-HFW1230TL-A

Technical Specification
Camera
Image Sensor1/2.8" CMOS
Effective Pixels
1920(H)x1080(V), 2MP
Scanning SystemProgressive
Electronic Shutter Speed
PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination0.005Lux/F1.6, 30IRE, 0Lux IR on
S/N RatioMore than 65dB
IR DistanceUp to 80m (262feet)
IR On/Off ControlAuto / Manual
IR LEDs2
Lens
Lens TypeFixed lens / Fixed iris
Mount TypeBoard-in
Focal Length3.6mm (2.8mm, 6mm Optional)
Max ApertureF1.6
Angle of ViewH: 86.9° (106.0°/52.9°)
Focus ControlN/A
Close Focus Distance
1200mm (600mm/2400mm)
47.2'' (23.6''/94.5'')

Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio InterfaceBuilt-in mic
Eelectrical
Power Supply12V DC ±30%
Power ConsumptionMax 5.3W (12V DC, IR on)
Environmental
Operating Conditions
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal
Resistance
IP67
Construction
CasingAluminium (front cover) + Plastic (body)
Dimensions198.9mmx80.2mmx76.2mm (7.83"x3.16"x3.00")
Net Weight0.27kg (0.60lb)
Gross Weight0.42kg (0.93lb)

DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Definition
Distance
Detect
25px/m
(8px/ft)
2.8mm: 39m(127ft)
3.6mm: 55m(181ft)
6mm: 83m(272ft)
Observe
63px/m
(19px/ft)
2.8mm: 15m(51ft)
3.6mm: 22m(73ft)
6mm:33m(109ft)
Recognize
125px/m
(38px/ft)
2.8mm: 8m(25ft)
3.6mm: 11m(36ft)
6mm: 17m(54ft)
Identify
250ppm
(76px/ft)
2.8mm: 4m(13ft)
3.6mm: 6m(18ft)
6mm: 8m(27ft)

Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotation: 0° ~ 360°
Video
Resolution1080P (1920x1080)
Frame Rate25/30fps@1080P, 25/30/50/60fps@720P

Video Output
1-channel BNC high definition video output / CVBS
video output (Can switch)
Day/NightAuto (ICR) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / DWDR
WDRDWDR
Gain ControlAGC
Noise Reduction2D
White BalanceAuto / Manual
Smart IRAuto / Manual


Lite Series | DH-HAC-HFW1230TL-A
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
2MP Camera
DH-HAC-HFW1230TLP-A 2.8mm
2MP Starlight HDCVI IR Bullet
Camera, PAL
DH-HAC-HFW1230TLP-A 3.6mm
DH-HAC-HFW1230TLP-A 6mm
DH-HAC-HFW1230TLN-A
2.8mm
2MP Starlight HDCVI IR Bullet
Camera, NTSC
DH-HAC-HFW1230TLN-A
3.6mm
DH-HAC-HFW1230TLN-A 6mm
Accessories
PFA134
Junction box (For use alone or
with PFA152-E pole mount)
PFA12A
Junction box (For use alone or
with PFA152-E pole mount)
PFA152-E
Pole mount (For use with PFA134
junction box or PFA12A junction
box)
PFM820 UTC Controller
PFM800-E Passive HDCVI Balun
PFM800-4K Passive Video Balun
PFM800B-4K Passive Video Balun
PFM321 12V 1A Power Adapter
PFM320D-015 12V 1.5A Power Adapter
PFM300 12V 2A Power Adapter

Dimensions (mm/inch)
Accessories
Optional:
t
Po t
PFB134 + PF A152-E
PF A134
PF A12A + PF A152-E
PF A12A

PFA134
Junction box
PFA152-E
Pole mount

PFM820
UTC Controller
PFM300
Power Adapter

PFM321
12V 1A Power
Adapter

PFM800-E
Passive HDCVI Balun
PFM800-4K
Passive Video Balun
PFM800B-4K
Passive Video Balun

PFM320D-015
Power Adapter
PFA12A
Pole mount
