HAC-HDW2241T-A-0280B

Dostępność: 0
Cena: 436,00 zł 436.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: DAHUA
Kod produktu: HAC-HDW2241T-A-0280B

Opis

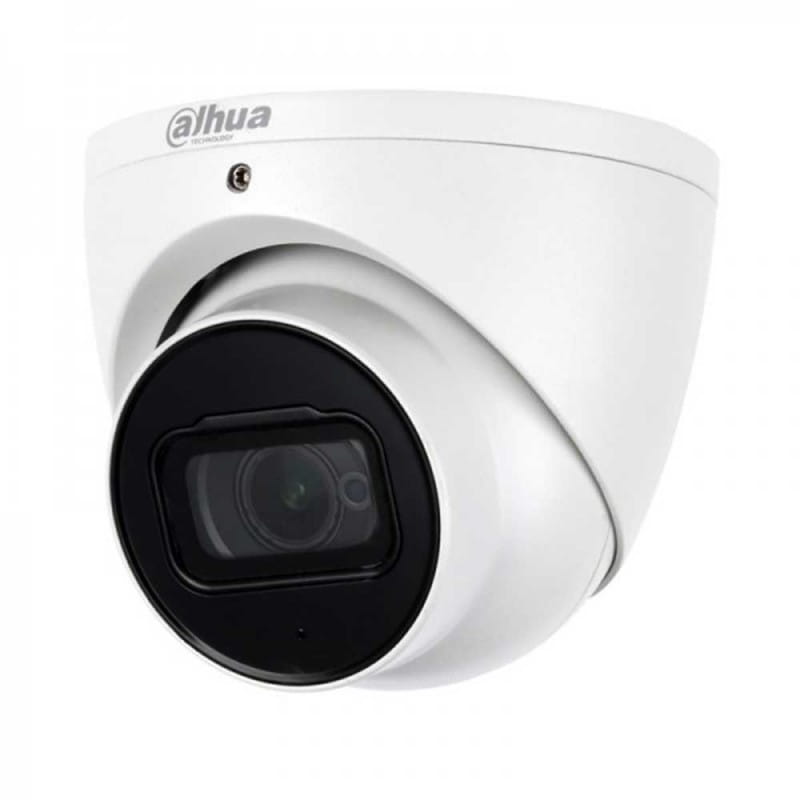

Kamera analogowa kopułkowa typu dome z serii HDCVI 2, 1/2,8" 2 Mpx Sony CMOS, 25/30 kl./s @ 1080P, Starlight, 120 dB true WDR, ICR, OSD, obiektyw stałoogniskowy 2,8 mm, IR do 50 m, Smart IR, CVI/TVI/AHD/CVBS, DC 12 V, IP67, audio we.,wbudowany mikrofon...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

Pro Series | DH-HAC-HDW2241T-A

System Overview
Experience 1080P full HD video and the simplicity of reusing existing
coaxial infrastructure with HDCVI. The Starlight HDCVI camera with 120dB
true WDR presents a high quality image with rich details even in extreme
low-light conditions. It offers various motorized/fixed lens models with
a multi-language OSD and HD/SD switchable output. Its superior image
performance and starlight feature makes the camera an ideal choice
for mid to large-size businesses and projects where both highly reliable
surveillance and construction flexibility are needed.
Functions
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the HCVR, such as
sending control signal or triggering alarm. Moreover, HDCVI technology
supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees long-distance and real-time transmission
without any loss. It supports up to 800m for 1080P Full HD video via
coaxial cable, and up to 300m via UTP cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional ana-
log system without replacing existing coaxial cabling. The plug and
play approach enables full HD video surveillance without the hassle of
configuring a network.
Starlight
With the adoption of high performance sensor, the camera is able
to provide incomparable performance even under extreme lowlight
environment. The starlight feature allows more details to be captured
and accurate color to be recognized at night or in scenes with limited
illumination.
Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveillance
applications. The HDCVI camera supports audio signal transmission over
coaxial cable. In addition, it adopts unique audio processing and transmission
technology that best restores source audio and eliminates noise,
guaranteeing the quality and effectiveness of collected audio information.
Multiple-formats
The camera supports multiple video formats including HDCVI, CVBS, and
other two common HD analog formats in the market. A DIP switch located on
the cable allows you to quickly toggle formats, further simplifying installation
and debugging. This feature makes the camera compatible with not only
XVRs, but also most existing HD/SD DVRs.
Wide Dynamic Range
Embedded with industry leading wide dynamic range (WDR) technology,
vivid pictures are achieved even in the most intense contrast lighting
conditions. True WDR (120dB) optimizes both the bright and dark areas of a
scene at the same time to provide usable video.
Advanced 3DNR
3DNR is noise reduction technology that detects and eliminates random
noises by comparing two sequential frames. Dahua’s advanced 3DNR tech-
nology allows remarkable noise reduction with little impact to sharpness,
especially under limited lighting condition. Besides, the advanced 3DNR
effectively decreases the band width and saves the storage space.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged design.
The camera is protected against water and dust with IP67 ranking, making it
suitable for indoor or outdoor environments.
Supporting ±30% input voltage tolerance, this camera suits even the most
unstable power supply conditions. Its 4KV lightning rating provides pro-
tection against the camera and its structure from the effects of lightning.
www.dahuasecurity.com
· Starlight, 120dB true WDR, 3DNR
· Max. 30fps@1080P
· HD/SD output switchable
· Audio in interface, built-in mic
· 3.6mm fixed lens (2.8mm, 6mm optional)
· Max. IR length 50m, Smart IR
· IP67, DC12V±30%
DH-HAC-HDW2241T-A
2MP Starlight HDCVI IR Eyeball Camera

Series
50m IRIP6 7
Pro

DC 12V

Audio

Starlight

1080p


www.dahuasecurity.com
Pro Series | DH-HAC-HDW22411T-A

Technical Specification
Camera
Image Sensor1/2.8" CMOS
Effective Pixels
1920(H)x1080(V), 2MP
Scanning SystemProgressive
Electronic Shutter Speed
PAL: 1/4s~1/100,000s
NTSC: 1/3s~1/100,000s
Minimum Illumination0.004Lux/F1.6, 30IRE, 0Lux IR on
S/N RatioMore than 65dB
IR DistanceUp to 50m (164feet)
IR On/Off ControlAuto / Manual
IR LEDs2
Lens
Lens TypeFixed lens / Fixed iris
Mount TypeBoard-in
Focal Length3.6mm (2.8mm, 6mm Optional)
Max ApertureF1.6
Angle of ViewH: 86.9° (110°/52.8°)
Focus ControlAuto / Manual
Close Focus Distance
1200mm (500mm, 2200mm)
47.2'' (19.7"/ 86.6")

Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface1ch in & Built-in Mic
Eelectrical
Power Supply12V DC ±30%
Power ConsumptionMax. 5.3W (12V DC, IR on)
Environmental
Operating Conditions
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal
Resistance
IP67
Construction
CasingAluminium
DimensionsΦ106mmx99.2mm (Φ4.17"x3.9")
Net Weight0.50kg (1.10lb)
Gross Weight0.62kg (1.34lb)

Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 360°
Tilt: 0° ~ 78°
Rotation: 0° ~ 360°
Video
Resolution1080P (1920x1080)
Frame Rate25/30fps@1080P, 25/30/50/60fps@720P

Video Output
1-channel BNC high definition video output / CVBS
video output (DIP switch)
Day/NightAuto (ICR) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / WDR
WDR120dB
Gain ControlAGC
Noise Reduction2D/3D
White BalanceAuto / Manual
Smart IRAuto / Manual


DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Definition
Distance
Detect25px/m (8px/ft)
2.8mm: 39m(128ft)
3.6mm: 55m(180ft)
6mm:83m(272ft)
Observe63px/m (19px/ft)
2.8mm: 15m(49ft)
3.6mm:22m(27ft)
6mm:33m(108ft)
Recognize125px/m (38px/ft)
2.8mm: 8m(26ft)
3.6mm: 11m(36ft)
6mm: 17m(56ft)
Identify250px/m (76px/ft)
2.8mm: 4m(13ft)
3.6mm: 6m(20ft)
6mm: 8m(26ft)

Pro Series | DH-HAC-HDW2241T-A
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Dimensions (mm/inch)

Accessories

Ordering Information
TypePart NumberDescription
2MP Camera
DH-HAC-HDW2241TP-A 2.8mm
2MP Starlight HDCVI IR Eyeball
Camera, PAL
DH-HAC-HDW2241TP-A 3.6mm
DH-HAC-HDW2241TP-A 6mm
DH-HAC-HDW2241TN-A 2.8mm
2MP Starlight HDCVI IR Eyeball
Camera, NTSC
DH-HAC-HDW2241TN-A 3.6mm
DH-HAC-HDW2241TN-A 6mm
Accessories
PFA130-EJunction box (For use alone)
PFB204W
Wall mount (For use alone or with
PFA152-E pole mount)
PFA152-E
Pole mount (For use with PFB204W
wall mount)
PFM800-E Passive HDCVI Balun
FM321 12V 1A Power Adapter
FM320 12V 2A Power Adapter
PFM300 12V 2A Power Adapter

PFB204W
Wall mount
PFA152-E
Pole mount

PFM321
12V 1A Power Adapter
PFM320
12V 2A Power Adapter

PFA130-E
Junction box

PFM800-E
Passive HDCVI Balun
Optional:

t

Wa t

Po t

PFB204W + PF A152-E

PFB204W

PF A130-E

PFM300
12V 2A Power Adapter
