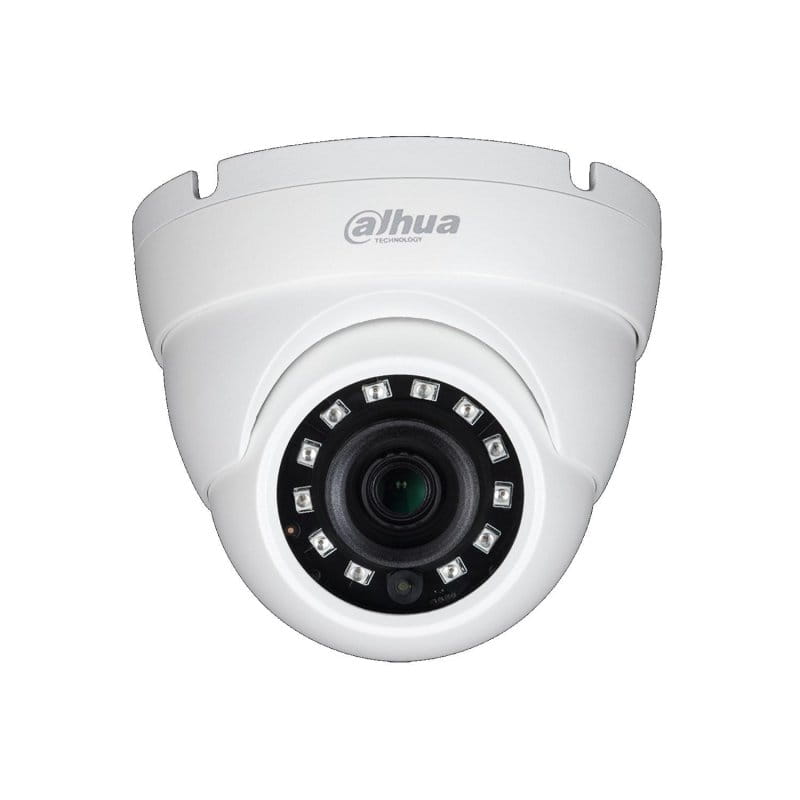

HAC-HDW1801M-0280B

Dostępność: 0
Cena: 393,00 zł 393.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: DAHUA
Kod produktu: HAC-HDW1801M-0280B

Opis

Kamera analogowa kopułkowa typu dome z serii HDCVI 1, 1/2,7" 8 Mpx CMOS, 15 kl./s @4K, 25/30 kl./s @4Mpx, WDR(120dB), dzień/noc (ICR) , BLC, HLC, OSD, obiektyw stałoogniskowy 2.8mm, IR 30m, Smart IR, CVI/TVI/AHD/CVBS, DC 12V, IP67...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: HAC-HDW1800M-0280B

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

Lite Plus Series | DH-HAC-HDW1801M

www.dahuasecurity.com
DH-HAC-HDW1801M
4K HDCVI IR Eyeball Camera

System Overview
Experience 4K video surveillance with the simplicity of reusing existing
coaxial infrastructure. The 4K HDCVI camera adopts a powerful Dahua
ISP and advanced 1/2.7" CMOS sensor, which provides superior high
quality images. In addition, the camera features broadcastquality audio
to provide enhanced supplementary evidence collection. Ultra-high
definition and a complete set of features makes the 4K HDCVI camera
an ideal choice for mid to large-size businesses and projects where both
highly reliable surveillance and construction flexibility are demanded.

Functions
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the HCVR, such
as sending control signal or triggering alarm. Moreover, HDCVI technol-
ogy supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance
without any loss. It supports up to 700m transmission for 4K and 4MP
HD video via coaxial cable, and up to 300m via UTP cable.
*Actual results verified by real-scene testing in Dahua's test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional analog
system without replacing existing coaxial cabling. The plug and play
approach enables full HD video surveillance without the hassle of con-
figuring a network.
Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveil-
lance applications. The HDCVI camera supports audio signal transmis-
sion over coaxial cable. In addition, it adopts unique audio processing
and transmission technology that best restores source audio and
eliminates noise, guaranteeing the quality and effectiveness of collected
audio information.
Multiple-formats
The camera supports multiple video formats including HDCVI, CVBS, and
other two common HD analog formats in the market. This feature makes
the camera compatible with not only XVRs, but also most existing HD/
SD DVRs.
*Use OSD menu to switch HDCVI to other video formats. Use PFM820 UTC Controller to switch CVBS to
HDCVI video format.
Wide Dynamic Range
Embedded with industry leading wide dynamic range (WDR) technology,
vivid pictures are achieved even in the most intense contrast lighting
conditions. True WDR (120dB) optimizes both the bright and dark areas
of a scene at the same time to provide usable video.
Advanced 3DNR
3DNR is noise reduction technology that detects and eliminates random
noises by comparing two sequential frames. Dahua’s advanced 3DNR
technology allows remarkable noise reduction with little impact to
sharpness, especially under limited lighting condition. Besides, the
advanced 3DNR effectively decreases the band width and saves the
storage space.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged de-
sign. The camera is protected against water and dust with IP67 ranking,
making it suitable for indoor or outdoor environments.
Supporting ±30% input voltage tolerance, this camera suits even the
most unstable power supply conditions. Its 4KV lightning rating provides
protectionagainst the camera and its structure from the effects of
lightning.
· 120dB True WDR, 3DNR
· Max. 4K resolution
· CVI/CVBS/AHD/TVI switchable
· Fixed lens (2.8mm; 3.6mm optional)
· Max. IR length 30m, Smart IR
· IP67, 12V±30%DC

Series
30m IR

IP67
Lite

DC 12V


Lite Plus Series | DH-HAC-HDW1801M

Technical Specification
Camera
Image Sensor1/2.7 inch CMOS
Effective Pixels
3840 (H)x2160 (V), 4K
Electronic Shutter Speed
PAL: 1/3s-1/100000s
NTSC: 1/4s-1/100000s
Minimum Illumination
0.03Lux/F2.0, 30IRE, 0Lux IR on
IR Distance
Distance up to 30m (98.43ft)
IR On/Off Control
Auto/Manual
IR LEDs
12
Pan/Tilt/Rotation Range
Pan : 0°-360°
Tilt: 0°-78°
Rotation: 0°-360°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8mm; 3.6mm
Max. Aperture F2 .0
Angle of View
2.8mm: 125°x105°x56° (diagonalxhorizontalxvertical)
3.6mm: 104°x87°x47° (diagonalxhorizontalxvertical)
Iris typeFixed Iris
Close Focus Distance1m/1.8m (3.28ft/5.91ft)
DORI Distance
LensDetectObserveRecognizeIdentify
2.8mm75m (246ft)30m (98ft)15m (49ft)8m (26ft)
3.6mm146m (351ft)58m (141ft)29m (69ft)15m (36ft)
Video
Video Frame Rate
CVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps
CVBS: PAL/NTSC
AHD: 5M@20fps; 4M@25fps/30fps
TVI: 5M@20fps; 4M@25fps/30fps
Resolution
4K (3840x2160); 5M (2592x1944); 4M (2560x1440);
960H (960x 576/960x480)
Day/NightAuto switch by ICR
BLCBLC/HLC/WDR
WDR120dB/WDR
White BalanceAuto; manual
Gain ControlAuto; manual
Noise Reduction2D&3D NR
Smart IRYes
Electronic DefogYes
Digital Zoom4X
MirrorOff/On
Privacy MaskingOff/On (8 Area, Rectangle)


Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Port
Video output choices of CVI/TVI/AHD/CVBS by one
BNC port
Power
Power Supply12V±30% DC
Power ConsumptionMax 4.9W (12V DC, IR on)
Environment
Operating Temperature-40°C to +60°C (-40°F to 140°F); <95%
(non-condensation)
Storage Temperature
-40°C to +60°C (-40°F to 140°F); <95%
(non-condensation)
Protection GradeIP67
Structure
CasingMetal throughout the whole casing
DimensionsΦ93.4mmx79.4mm (3.68”x3.13”)
Net Weight300g (0.66lb)
Gross Weight380g (0.84lb)
www.dahuasecurity.com

Lite Plus Series | DH-HAC-HDW1801M

Ordering Information
TypePart NumberDescription
4K Camera
DH-HAC-
HDW1801MP-
0280B
4K HDCVI IR Eyeball Camera
DH-HAC-
HDW1801MN-
0280B
DH-HAC-
HDW1801MP-
0360B
DH-HAC-
HDW1801MN-
0360B
Accessories
PFA13AWater-proof Junction Box(ceiling mount)
PFB204W+
PFA152-E
Water-proof Wall Mount Bracket+Pole Mount
Bracket (pole mount)
PFB204WWater-proof Wall Mount Bracket (wall mount)
PFM800-EPassive HDCVI Balun
PFM32112V 1A Power Adapter
PFM32012V 2A Power Adapter
PFM320D-01512V 1.5A Power Adapter
www.dahuasecurity.com

Rev 001.001© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Dimensions (mm/inch)

Junction Mount
Wall Mount

PA13A
P204W

Pole Mount

P204WPA152-E


KvoW

PFA13A
Water-proof Junction
Box (ceiling mount)
PFB204W+PFA152-E
Water-proof Wall Mount Bracket
+Pole Mount Bracket
(pole mount)
PFB204W
Water-proof
Wall Mount Bracket
(wall mount)

PFM800-E
Passive HDCVI Balun
PFM320
12V 2A
Power Adapter
PFM321
12V 1A
Power Adapter

PFM320D-015
12V 1.5A
Power Adapter
