HAC-HDW1500EM-A-0360B

Dostępność: 0
Cena: 308,00 zł 308.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: DAHUA
Kod produktu: HAC-HDW1500EM-A-0360B

Opis

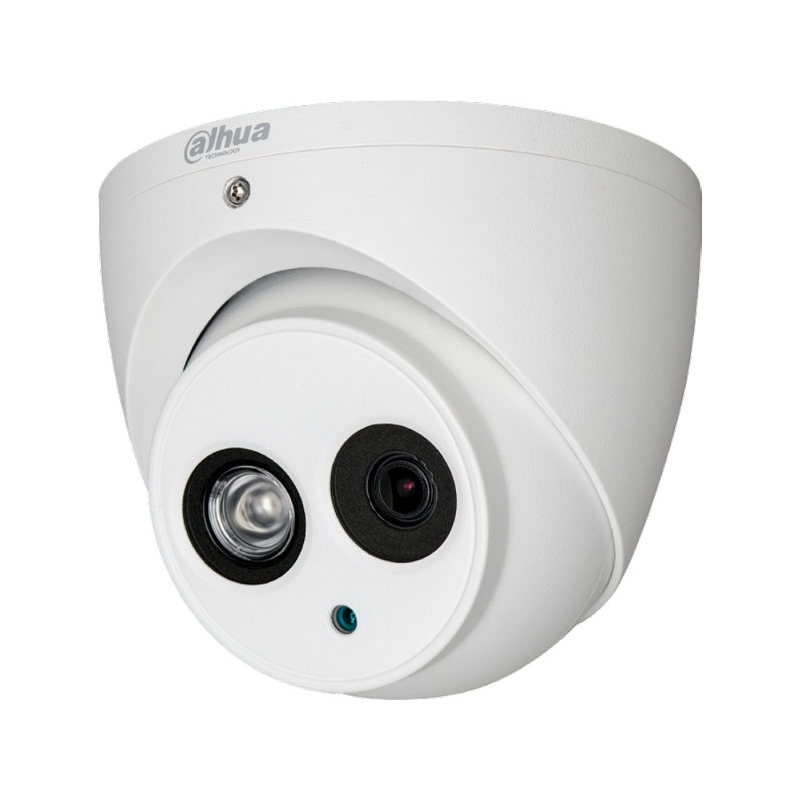

Kamera analogowa kopułkowa typu dome z serii HDCVI 1, 1/2,7" 5 Mpx CMOS, 20 kl./s @ 5 Mpx, 25/30 kl./s @ 4 Mpx, 25/30 kl./s @ 1080P, ICR, OSD, obiektyw stałoogniskowy 3,6 mm, IR 50 m, Smart IR, CVI/TVI/AHD/CVBS, DC 12V, IP67, obudowa metalowa, wbudowany mikrofon...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

Lite Series | DH-HAC-HDW1500EM-A

System Overview
Experience superior 5MP video and the simplicity of reusing existing
coaxial infrastructure with HDCVI. The Lite series 5MP HDCVI camera
features a compact design and offers a high quality image with rich details
at a friendly price. It offers various vari-focal/fixed lens models with a
multi-language OSD and HD/SD switchable output. Its structural flexibility
and high cost-performance makes the camera an ideal choice for SMB
solutions.
Functions
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the HCVR, such as
sending control signal or triggering alarm. Moreover, HDCVI technology
supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees long-distance and real-time transmission
without any loss. It supports up to 700m for 5MP HD video via coaxial
cable, and up to 300m via UTP cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional ana-
log system without replacing existing coaxial cabling. The plug and
play approach enables full HD video surveillance without the hassle of
configuring a network.
Smart IR
The camera is designed with array LED IR illumination for best lowlight
performance. Smart IR is a technology to ensure brightness uniformity
in B/W image under low illumination. Dahua’s unique Smart IR adjusts to
the intensity of camera's infrared LEDs to compensate for the distance of
an object, and prevents IR LEDs from overexposing images as the object
come closer to the camera.
Multi-formats
The camera supports multiple video formats including HDCVI, CVBS and
other two common HD analog formats in the market. The four formats can
be switched over through OSD menu or by PFM820 (UTC controller). This
feature makes the camera to be compatible with not only HCVRs but also
most end users’ existing HD/SD DVRs.
Multi-language OSD
OSD menu provides multiple image adjustments and function settings
to meet the requirements of different monitoring scenes. The OSD menu
includes configurations such as backlight mode, day/night, white balance,
privacy mask and motion detect. The camera supports 11 languages for
OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese,
Italian, Japanese, Korean, Russian and Polish.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged design.
The camera is protected against water and dust with IP67 ranking, making it
suitable for indoor or outdoor environments.
With working temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the
camera is designed for extreme temperature environments.
Supporting ±30% input voltage tolerance, this camera suits even the
most unstable power supply conditions. Its 4KV lightning rating provides
protection against the camera and its structure from the effects of lightning.
www.dahuasecurity.com
· Max. 20fps@5MP
· Built-in mic
· HD and SD output switchable
· 3.6mm fixed lens (2.8mm, 6mm optional)
· Max. IR length 50m, Smart IR
· IP67, DC12V
DH-HAC-HDW1500EM-A
5MP HDCVI IR Eyeball Camera

Series
Lite
50m IR
DC 12V
IP6 7

Temperature

5Mp

Audio


www.dahuasecurity.com
Lite Series | DH-HAC-HDW1500EM-A

Technical Specification
Camera
Image Sensor1/2.7" CMOS
Effective Pixels
2592(H)x1944(V), 5MP
Scanning SystemProgressive
Electronic Shutter Speed
PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination0.02Lux/F1.85, 30IRE, 0Lux IR on
S/N RatioMore than 65dB
IR DistanceUp to 50m (164feet)
IR On/Off ControlAuto / Manual
IR LEDs1
Lens
Lens TypeFixed lens / Fixed iris
Mount TypeBoard-in
Focal Length3.6mm (2.8mm, 6mm Optional)
Max ApertureF1.85
Angle of ViewH: 77.5° (98°/49°)
Focus ControlN/A
Close Focus Distance
1400mm (800mm /2800mm)
55" (32''/110'')
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Definition
Distance
Detect
25px/m
(8px/ft)
2.8mm: 63m(207ft)
3.6mm: 80m(262ft)
6mm: 120m(394ft)
Observe
63px/m
(19px/ft)
2.8mm: 25m(82ft)
3.6mm: 32m(105ft)
6mm: 48m(157ft)
Recognize
125px/m
(38px/ft)
2.8mm: 13m(43ft)
3.6mm: 16m(53ft)
6mm: 24m(79ft)
Identify
250ppm
(76px/ft)
2.8mm: 6m(21ft)
3.6mm: 8m(26ft)
6mm: 12m(39ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 360°
Tilt: 0° ~ 78°
Rotation: 0° ~ 360°
Video
Resolution5MP (2592x1944)
Frame Rate20fps@5MP, 25/30fps@4MP, 25/30fps@1080P

Video Output
1-channel BNC high definition video output / CVBS
video output (Can switch)
Day/NightAuto (ICR) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / DWDR
WDRDWDR
Gain ControlA GC
Noise Reduction2D
White BalanceAuto / Manual
Smart IRAuto / Manual

Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio InterfaceBuilt-in mic
Eelectrical
Power Supply12V DC ±30%
Power ConsumptionMax. 4.2W (12V DC, IR on)
Environmental
Operating Conditions
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal
Resistance
IP67
Construction
CasingAluminium
DimensionsΦ106mmx93.7mm (Φ4.17"x3.69")
Net Weight0.41kg (0.90lb)
Gross Weight0.51kg (1.12lb)

Lite Series | DH-HAC-HDW1500EM-A
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
5MP Camera
DH-HAC-HDW1500EMP-A 2.8mm
5MP HDCVI IR Eyeball Camera,
PAL
DH-HAC-HDW1500EMP-A 3.6mm
DH-HAC-HDW1500EMP-A 6mm
DH-HAC-HDW1500EMN-A 2.8mm
5MP HDCVI IR Eyeball Camera,
NTSC
DH-HAC-HDW1500EMN-A 3.6mm
DH-HAC-HDW1500EMN-A 6mm
Accessories
PFA130-EJunction box (For use alone)
PFB204W
Wall mount (For use alone or with
PFA152-E pole mount)
PFA152-E
Pole mount (For use with
PFB204W wall mount)
PFM800-E Passive HDCVI Balun
PFM800-4K Passive Video Balun
PFM800B-4K Passive Video Balun
PFM321 12V 1A Power Adapter
PFM320D-015 12V 1.5A Power Adapter
PFM300 12V 2A Power Adapter
PFM820 UTC Controller

Dimensions (mm/inch)
Accessories
Optional:
t

Wa t

Po t

PFB204W + PF A152-E

PFB204W

PF A130-E

PFB204W
Wall mount

PFA130-E
Junction box
PFM800-E
Passive HDCVI Balun

PFM321
12V 1A Power Adapter

PFM800-4K
Passive Video Balun
PFM800B-4K
Passive Video Balun
PFM320D-015
Power Adapter

PFM300
12V 2A Power Adapter

PFM820
UTC Controller
