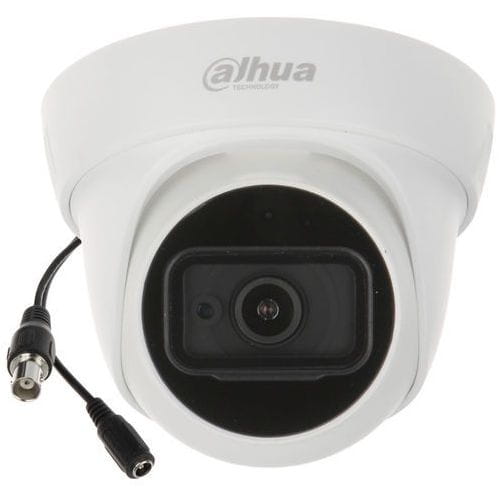

HAC-HDW1400TL-A-0280B

Dostępność: 0
Cena: 228,00 zł 228.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: DAHUA
Kod produktu: HAC-HDW1400TL-A-0280B

Opis

Kamera analogowa kopułkowa typu dome z serii HDCVI 1, 1/2,7" 4 Mpx CMOS, 25/30 kl./s @ 4MPx, 25/30kl./s @ 1080P, DWDR, BLC, HLC, OSD, obiektyw stałoogniskowy 2.8mm, IR 30m, Smart IR, CVI/TVI/AHD/CVBS, DC 12V, IP67, wbudowany mikrofon...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

Lite Series | DH-HAC-HDW1400TL/TL-A

www.dahuasecurity.com
DH-HAC-HDW1400TL/TL-A
4MP HDCVI IR Eyeball Camera

System Overview
Experience superior 4MP video and the simplicity of reusing existing
coaxial infrastructure with HDCVI. The Lite series 4MP HDCVI camera
features a compact design and offers a high quality image with rich
details at a friendly price. It offers various vari-focal/fixed lens models
with a multi-language OSD and HD/SD switchable output. Its structural
flexibility and high cost-performance makes the camera an ideal choice
for SMB solutions.
Functions
Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveil-
lance applications. The HDCVI camera supports audio signal transmis-
sion over coaxial cable. In addition, it adopts unique audio processing
and transmission technology that best restores source audio and
eliminates noise, guaranteeing the quality and effectiveness of collected
audio information.
* Broadcast-quality audio is available for some models of HDCVI cameras.
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the HCVR, such
as sending control signal or triggering alarm.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees long-distance and real-time transmission
without any loss. It supports up to 700m for 4MP HD video via coaxial
cable, and up to 300m via UTP cable.
*Actual results verified by real-scene testing in Dahua's test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional analog
system without replacing existing coaxial cabling. The plug and play
approach enables full HD video surveillance without the hassle of con-
figuring a network.
Smart IR
The camera is designed with LED IR illumination for best lowlight perfor-
mance. Smart IR is a technology to ensure brightness uniformity in B/W
image under low illumination. Dahua’s unique Smart IR adjusts to the
intensity of camera's infrared LEDs to compensate for the distance of
an object, and prevents IR LEDs from overexposing images as the object
come closer to the camera.
Multi-formats
The camera supports multiple video formats including HDCVI, CVBS,
and other two common HD analog formats in the market. This feature
makes the camera compatible with not only XVRs, but also most existing
HD/SD DVRs.
*Use OSD menu to switch HDCVI to other video formats. Use PFM820 UTC Controller to switch CVBS to
HDCVI video format.
Multi-language OSD
OSD menu provides multiple image adjustments and function settings
to meet the requirements of different monitoring scenes. The OSD
menu includes configurations such as backlight mode, day/night, white
balance, privacy mask and motion detect. The camera supports 11
languages for OSD menu, namely, Chinese, English, French, German,
Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged de-
sign. The camera is protected against water and dust with IP67 ranking,
making it suitable for indoor or outdoor environments.
With working temperature range of -40 °C to +60 °C (-40 °F to +140 °F),
the camera is designed for extreme temperature environments.
Supporting ±30% input voltage tolerance, this camera suits even the
most unstable power supply conditions. Its 4KV lightning rating provides
protection against the camera and its structure from the effects of
lightning.
Elaborate Design
In order to minimize the interference against on-going business activi-
ties, as well as meeting aesthetics requirements, the camera is designed
with dark front face.
· Max. 30pfs@4MP
· CVI/CVBS/AHD/TVI switchable
· 3.6mm fixed lens (2.8mm optional)
· Max. IR length 30m, Smart IR
· IP67, DC12V

DC 12V

IP67
Audio

30m IR

Series
Lite

4Mp

Temperature

Lite Series | DH-HAC-HDW1400TL/TL-A

Technical Specification
Camera
Image Sensor
1/2.7 inch CMOS
Effective Pixels
2560 (H)x1440 (V), 4MP
Electronic Shutter Speed
PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s
Minimum Illumination
0.03Lux/F2.0, 30IRE, 0Lux IR on
IR Distance
30m (98.42ft)
IR On/Off Control
Auto; manual
IR LEDs Number
1
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8mm; 3.6mm
Max. ApertureF2.0/F2.0
Angle of View
2.8mm: 115.0°x97.0°x52.0°
(diagonalxhorizontalxvertical)
3.6mm: 89.5°x76.4°x41.6°
(diagonalxhorizontalxvertical)
Iris TypeFixed iris
Close Focus Distance0.8m (2.62ft)/1.4m (4.59ft)
DORI Distance
2.8mm:D:56m(184ft);O:22m(72ft);R:11m(36ft),I:6
m(20ft);
3.6mm:D:80m(262ft),O:32m(105ft),R:16m(52ft),I:8
m(26ft);
Video
Video Frame Rate
CVI:
PAL: 4M@25fp; 1080P@25fp
NTSC: 4M@30fp; 1080P@30fp
AHD:
PAL: 4M@25fp
NTSC: 4M@30fp
TVI:
PAL: 4M@25fp
NTSC: 4M@30fp
CVBS:
PAL: 960H
NTSC: 960H
Resolution
4M (2560x1440); 1080P (1920x1080); 960H (960x
576/960x480)
Day/NightAuto switch by ICR
BLCBLC/HLC/DWDR
WDRDWDR
White BalanceAuto; manual
Gain ControlAuto; manual
Noise Reduction2D NR
Smart IRYes

Certification
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Port
Video output choices of CVI/TVI/AHD/CVBS by one
BNC port
Audio PortBuilt-in mic (-A)
Power
Power Supply12V±30% DC
Power ConsumptionMax 4W (12V DC, IR on)
Environment
Operating Temperature
-40°C to +60°C (-40°F to +140°F); <95% (non-
condensation)
Storage Temperature
-40°C to +60°C (-40°F to +140°F); <95% (non-
condensation)
Protection GradeIP67
Structure
CasingInner core: metal+plastic; cover: plastic
DimensionsΦ97.0mmx85.8mm (Φ3.82"x3.38")
Net Weight0.22kg (0.49lb)
Gross Weight0.28kg (0.62lb)
www.dahuasecurity.com

MirrorOff/On
Privacy MaskingOff/On (8 Area, Rectangle)


Lite Series | DH-HAC-HDW1400TL/TL-A

Ordering Information
TypePart Number
Description
4MP Camera
DH-HAC-
HDW1400TLP-A
2.8mm
4MP HDCVI IR Eyeball Camera, PAL
DH-HAC-
HDW1400TLP-A
3.6mm
DH-HAC-
HDW1400TLN-A
2.8mm
4MP HDCVI IR Eyeball Camera, NTSC
DH-HAC-
HDW1400TLN-A
3.6mm
DH-HAC-HDW1400TLP
2.8mm
4MP HDCVI IR Eyeball Camera, PAL
DH-HAC-HDW1400TLP
3.6mm
DH-HAC-HDW1400TLN
2.8mm
4MP HDCVI IR Eyeball Camera, NTSC
DH-HAC-HDW1400TLN
3.6mm
Accessories
PFA130-E
Junction box (For use alone or with PFA152-E
pole mount)
PFA12A
Plastic Junction box (For use alone)
PFA152-E
Pole box (For usewith PFA130-E junction
mount)
PFM820
UTC Controller
PFM800-E
Passive HDCVI Balun
PFM800-4K
Passive Video Balun
PFM800B-4K
Passive Video Balun
PFM320D-015
12V 1.5A Power Adapter
PFM300
12V 2A Power Adapter


www.dahuasecurity.com

Junction Mount
Pole Mount

PA10-EPA1-E
PA10-E

Wall Mount

PA1A

Dimensions (mm/inch)

Accessories
Optional:

PFA130-E
Junction box
(For use alone or with
PFA152-E pole mount)

PFA12A
Plastic Junction box
(For use alone)

PFA152-E
Pole box
(For usewith PFA130-E
junction mount)

PFM820
UTC Controller
PFM800-E
Passive HDCVI Balun
PFM800-4K
Passive Video Balun

PFM800B-4K
Passive Video Balun
PFM320D-015
12V 1.5A Power
Adapter
PFM300
12V 2A Power
Adapter

Rev 001.001© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
