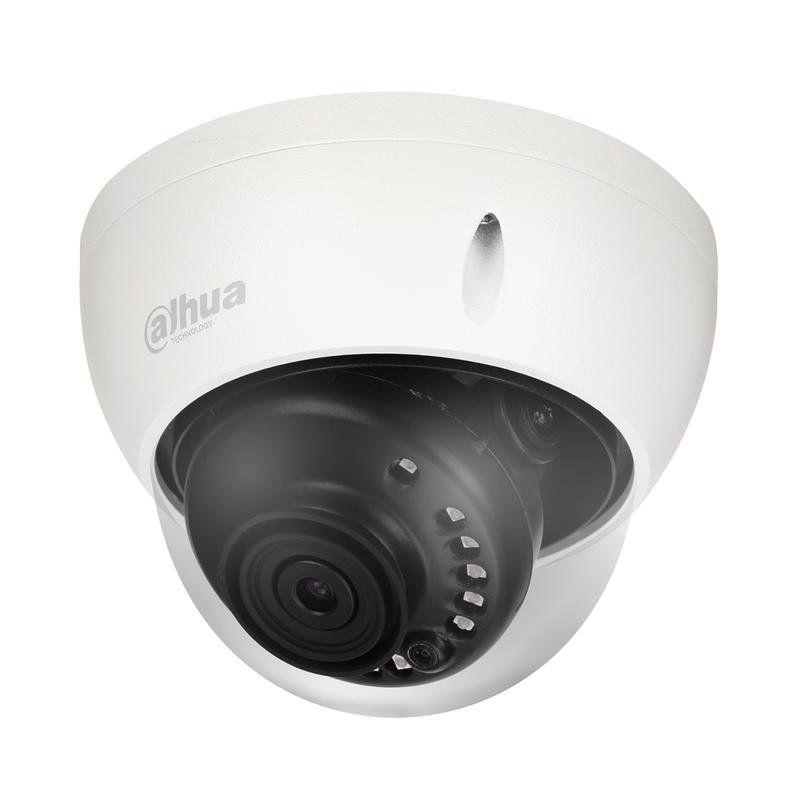

HAC-HDBW1400E-0280B

Kamera analogowa kopułkowa typu dome wandaloodporna z serii HDCVI 1, 1/3" 4 Mpx CMOS, 25/30 kl./s @ 4 Mpx, IP67, IK10, Max. IR 30 m, Smart IR, obiektyw stałoogniskowy 2,8 mm...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: HAC-HDBW1500E-0280B

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Lite Series | DH-HAC-HDBW1400E

System Overview
Experience superior 4MP video and the simplicity of reusing existing
coaxial infrastructure with HDCVI. The Lite series 4MP HDCVI camera
features a compact design and offers a high quality image with rich details
at a friendly price. It offers various vari-focal/fixed lens models with a
multi-language OSD and HD/SD switchable output. Its structural flexibility
and high cost-performance makes the camera an ideal choice for SMB
solutions.
Functions
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the HCVR, such as
sending control signal or triggering alarm. Moreover, HDCVI technology
supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees long-distance and real-time transmission
without any loss. It supports up to 700m for 4MP HD video via coaxial
cable, and up to 300m via UTP cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional ana-
log system without replacing existing coaxial cabling. The plug and
play approach enables full HD video surveillance without the hassle of
configuring a network.
Smart IR
The camera is designed with microcrystalline LED IR illumination for best
lowlight performance. Smart IR is a technology to ensure brightness
uniformity in B/W image under low illumination. Dahua’s unique Smart IR
adjusts to the intensity of camera's infrared LEDs to compensate for the
distance of an object, and prevents IR LEDs from overexposing images as
the object come closer to the camera.
HD/SD Switchable
The camera supports switchable HDCVI high definition video output and
CVBS standard definition video output. The two formats can be switched
over through OSD menu or by PFM820(UTC controller). This feature makes
the camera to be compatible with both HCVRs and existing analog DVRs and
also facilitates debugging through analog testers.
Multi-language OSD
OSD menu provides multiple image adjustments and function settings
to meet the requirements of different monitoring scenes. The OSD menu
includes configurations such as backlight mode, day/night, white balance,
privacy mask and motion detect. The camera supports 11 languages for
OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese,
Italian, Japanese, Korean, Russian and Polish.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged design.
The camera is protected against water and dust with IP67 ranking, making it
suitable for indoor or outdoor environments.
The camera complies with IK10 impact resistant rating to provide maximum
durability against vandals, making it capable of withstanding the equivalent
of 55kg (120lbs) of force.
With working temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the
camera is designed for extreme temperature environments.
Supporting ±25% input voltage tolerance, this camera suits even the
most unstable power supply conditions. Its 4KV lightning rating provides
protection against the camera and its structure from the effects of lightning.
www.dahuasecurity.com
· Max 30fps@4MP
· HD and SD output switchable
· 3.6mm fixed lens (2.8mm, 6mm optional)
· Max. IR length 30m, Smart IR
· IP67, IK10, DC12V
DH-HAC-HDBW1400E
4MP HDCVI IR Dome Camera

Series
Lite
30m IR
DC 12V
IP67

Temperature
Vandal-proof

4Mp


www.dahuasecurity.com
Lite Series | DH-HAC-HDBW1400E

Technical Specification
Camera
Image Sensor1/3" CMOS
Effective Pixels
2688(H)x1520(V), 4.1MP
Scanning SystemProgressive
Electronic Shutter Speed
PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination0.03Lux/F2.0, 30IRE, 0Lux IR on
S/N RatioMore than 65dB
IR DistanceUp to 30m (98feet)
IR On/Off ControlAuto / Manual
IR LEDs12
Lens
Lens TypeFixed lens / Fixed iris
Mount TypeBoard-in
Focal Length3.6mm (2.8mm, 6mm Optional)
Max ApertureF2.0
Angle of ViewH: 84.8° (99.7°/52.5°)
Focus ControlN/A
Close Focus Distance
1100mm (800mm /2200mm)
43.3'' (31.5''/86.6'')
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Definition
Distance
Detect
25px/m
(8px/ft)
2.8mm: 63m(208ft)
3.6mm: 80m(262ft)
6mm: 117m(385ft)
Observe
63px/m
(19px/ft)
2.8mm: 25m(83ft)
3.6mm: 32m(105ft)
6mm: 47m(154ft)
Recognize
125px/m
(38px/ft)
2.8mm: 13m(42ft)
3.6mm: 16m(53ft)
6mm: 23m(77ft)
Identify
250ppm
(76px/ft)
2.8mm: 6m(21ft)
3.6mm: 8m(26ft)
6mm: 12m(39ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 355°
Tilt: 0° ~ 65°
Rotation: 0° ~ 355°
Video
Resolution4MP (2560x1440)
Frame Rate25/30fps@4MP, 25/30fps@1080P, 25/30fps@720P
Video Output
1-channel BNC high definition video output / CVBS
video output (Can switch)

Day/NightAuto (ICR) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / DWDR
WDRDWDR
Gain ControlAGC
Noise Reduction2D
White BalanceAuto / Manual
Smart IRAuto / Manual

Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio InterfaceN/A
Eelectrical
Power Supply12V DC ±25%
Power ConsumptionMax 3.6W (12V DC, IR on)
Environmental
Operating Conditions
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal
Resistance
IP67, IK10
Construction
CasingAluminium
DimensionsΦ109.9mmx81.0mm (Φ4.33"x3.19")
Net Weight0.21kg (0.46lb)
Gross Weight0.31kg (0.68lb)

Lite Series | DH-HAC-HDBW1400E
Rev 001.001© 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
4MP Camera
DH-HAC-HDBW1400EP 2.8mm
4MP HDCVI IR Dome Camera, PALDH-HAC-HDBW1400EP 3.6mm
DH-HAC-HDBW1400EP 6mm
DH-HAC-HDBW1400EN 2.8mm
4MP HDCVI IR Dome Camera, NTSCDH-HAC-HDBW1400EN 3.6mm
DH-HAC-HDBW1400EN 6mm
Accessories
PFA136Junction box (For use alone)
PFB203W
Wall mount (For use alone or with
PFA152 pole mount)
PFA152-E
Pole mount (For use with PFB203W
wall mount)
PFA200W
Rain Shade (For use with PFB203W
wall mount or with PFB203W wall
mount and PFA152-E pole mount)
PFM800-E Passive HDCVI Balun
PFM800-4MP Passive HDCVI Balun
PFM801-4MP Passive HDCVI Balun with Power
PFM321 12V 1A Power Adapter
PFM320D-015 12V 1.5A Power Adapter

Dimensions (mm/inch)
Accessories
Optional:

t
Wa t

Po t

PFB203W + PF A152-E

PFB203W

PF A136

Wa e

PFB203W+P FA 200W

Po e

PFB203W + PF A152-E+PFA 200W

PFA136
Junction box
PFB203W
Wall mount
PFA152-E
Pole mount
PFA200W
Rain shade

PFM321
12V 1A Power
Adapter
PFM801-4MP
Passive HDCVI Balun
With Power
PFM800-4MP
Passive HDCVI Balun
PFM800-E
Passive HDCVI Balun

PFM320D-015
Power Adapter
