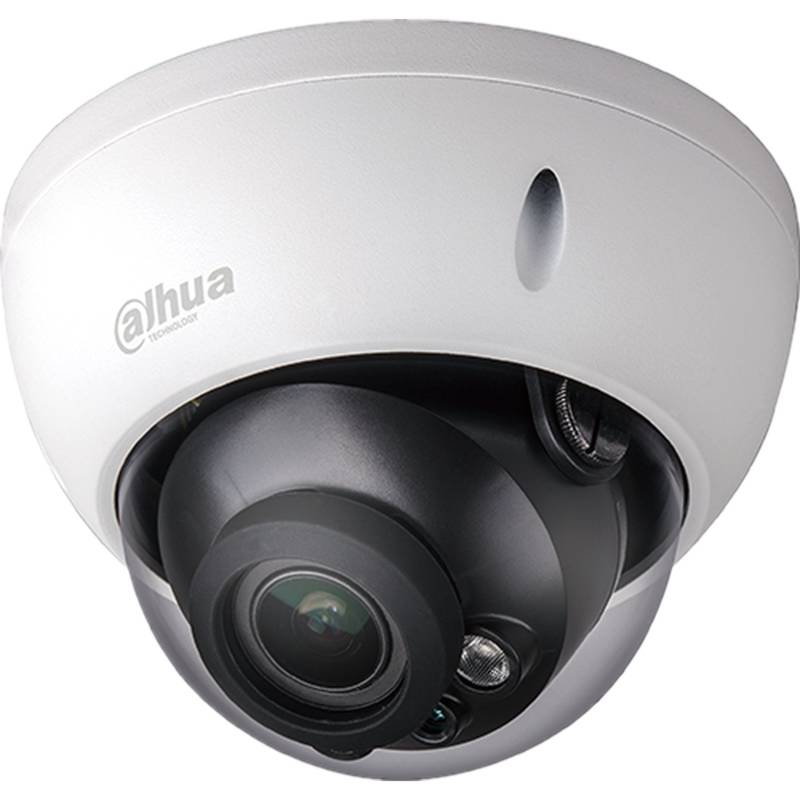

HAC-HDBW1200R-Z-2712

Kamera analogowa kopułkowa typu dome wandaloodporna z serii HDCVI 1, 1/2,7" 2 Mpx CMOS, 1~25/30 kl./s @ 2 Mpx, DWDR, dzień/noc (ICR), AGC, BLC, HLC, obiektyw motozoom 2,7-12 mm, IR do 30 m, HD/SD przełączalne wyjście, IP67, IK10, DC 12 V...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Lite Series | DH-HAC-HDBW1200R-VF

System Overview
Experience full HD 1080P/ HD 720P video with the simplicity of using
existing cabling infrastructure. The Lite series features compact design
and high quality image at friendly price. It offers various vari-focal/fixed
lens models with multi-language OSD and HD/SD switchable output. The
structure flexibility and best cost-performance makes lite series camera
an ideal choice for SMB solutions.
Functions
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the HCVR, such as
sending control signal or triggering alarm. Moreover, HDCVI technology
supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance
without any loss. It supports up to 800m(1080P)/1200m(720P)
transmission via coaxial cable, and up to 300m(1080P)/450m(720P) via
UTP cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional
analog system without replacing existing coaxial cabling. The plug and
play approach enables full HD video surveillance without the hassle of
configuring a network.
Smart IR
The camera is designed with array LED IR illumination for best lowlight
performance. Smart IR is a technology to ensure brightness uniformity
in B/W image under low illumination. Dahua’s unique Smart IR adjusts to
the intensity of camera's infrared LEDs to compensate for the distance of
an object, and prevents IR LEDs from overexposing images as the object
come closer to the camera.
Multi-formats
The camera supports multiple video formats including HDCVI, CVBS and
other two common HD analog formats in the market. The four formats can
be switched over through OSD menu or by PFM820(UTC controller). This
feature makes the camera to be compatible with not only HCVRs but also
most end users’ existing HD/SD DVRs.
Multi-language OSD
OSD menu provides multiple image adjustments and function settings to
meet the requirements of different monitoring scenes. The OSD menu
includes configurations such as backlight mode, day/night, white balance,
privacy mask and motion detect. The camera supports 11 languages for
OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese,
Italian, Japanese, Korean, Russian and Polish.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged
design. The camera is protected against water and dust with IP67 ranking,
making it suitable for indoor or outdoor environments.
The camera complies with IK10 impact resistant rating to provide maximum
durability against vandals, making it capable of withstanding the equivalent
of 55kg (120lbs) of force.
With working temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the
camera is designed for extreme temperature environments.
Supporting ±25% input voltage tolerance, this camera suits even the
most unstable power supply conditions. Its 4KV lightning rating provides
protection against the camera and its structure from the effects of
lightning.
www.dahuasecurity.com
· Max 30fps@1080P
· HD and SD output switchable
· 2.7-12mm vari-focal lens
· Max. IR length 30m, Smart IR
· IP67, IK10, DC12V
DH-HAC-HDBW1200R-VF
2MP HDCVI IR Dome Camera

Series
Lite
30m IR
DC 12V
IP67

Temperature
Vandal-proof

1080p


www.dahuasecurity.com
Lite Series | DH-HAC-HDBW1200R-VF

Technical Specification
Camera
Image Sensor1/2.7" CMOS
Effective Pixels
1920(H)x1080(V), 2MP
Scanning SystemProgressive
Electronic Shutter Speed
PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination0.02Lux/F1.4, 0Lux IR on
S/N RatioMore than 65dB
IR DistanceUp to 30m (98feet)
IR On/Off ControlAuto / Manual
IR LEDs2
Lens
Lens TypeVari-focal lens / Fixed iris
Mount TypeBoard-in
Focal Length2.7-12mm
Max ApertureF1.4
Angle of ViewH: 99°~37°
Focus ControlManual
Close Focus Distance
300mm
11.81''
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 355°
Tilt: 0° ~ 75°
Rotation: 0° ~ 355°
Video
Resolution1080P (1920x1080)
Frame Rate25/30fps@1080P, 25/30/50/60fps@720P
Video Output
1-channel BNC high definition video output / CVBS
video output (Can switch)
Day/NightAuto (ICR) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / DWDR
WDRDWDR
Gain ControlAGC
Noise Reduction2D
White BalanceAuto / Manual
Smart IRAuto / Manual


Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio InterfaceN/A
Eelectrical
Power Supply12V DC ±25%
Power ConsumptionMax 3.5W (12V DC, IR on)
Environmental
Operating Conditions
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection &Vandal
Resistance
IP67 & IK10
Construction
CasingAluminium
DimensionsΦ122mmx88.9mm (Φ4.8"x3.5")
Net Weight0.40kg (0.88lb)
Gross Weight0.55kg (1.21lb)

Lite Series | DH-HAC-HDBW1200R-VF
Rev 001.001© 2016 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
2MP Camera
DH-HAC-HDBW1200RP-VF
2MP HDCVI IR Dome Camera,
PAL
DH-HAC-HDBW1200RN-VF
2MP HDCVI IR Dome Camera,
NTSC
Accessories
PFA137Junction box (For use alone)
PFB203W
Wall mount (For use alone or
with PFA152 pole mount)
PFA152
Pole mount (For use with
PFB203W wall mount)
PFB200C In-ceiling mount (For use alone)
PFM820 UTC Controller

Dimensions (mm/inch)
Accessories
Optional:
PFA137
Junction box
PFB203W
Wall mount

PFA152
Pole mount

PFM820
UTC Controller

PFB200C
In-ceiling mount

t t
Wa t
Po t
PFB203W + PF A152PFB203W
PF A136
PFB200C
