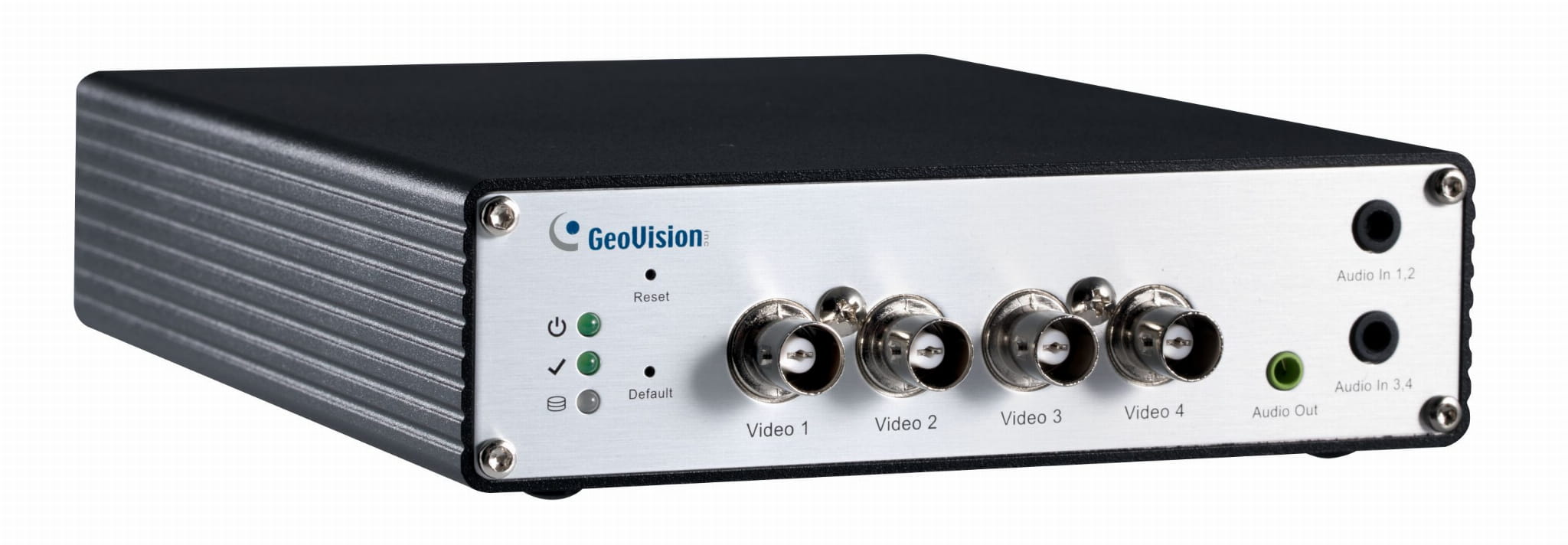

GV-VS2401

Wideoserwer dla 4 kamer analogowych HD-AHD lub HD-TVI (TurboHD), 5.0M-48 kl./s, 2.0M-100 kl./s, H.264, USB, RTSP, ONVIF S...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: GV-VS21600

Kod produktu zamiennego: 84-VS21600-001D

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-VS2401 May 7, 2021
-1-
GV-VS2401 4CH H.264 Combo 1080p Video Server




* H.264
* 4 ‐channel combo 18 fps at 3 MP, 15 fps at 4 MP, 12 fps
at 5 MP
* 4 ‐channel combo 1080p / 720p and analog 960H / D1
real ‐time video
* 12V DC
* Tampering Alarm
* USB HDD Storage
* UMTS / 3G / 3. 5G / 4G
* Automatic switch between WiFi and 3G / 4G
* Supports over 50 PTZ models
* 29 languages on web interface
* HD ‐TVI (1.0 / 2.0 standard) / HD ‐ AHD
* ONVIF (Profile S) conformant


GV ‐VS2401 is a powerful H.264 Video Server with compact size. It supports 4 ‐channel 3 MP, 5 MP, 1080p / 720p or analog 960H / D1
real ‐time video. It can be fully integrated with GV ‐DVR / NVR / VMS to form the most powerful IP surveillance solution. Th e video
server converts analog signals into high ‐resolution digitized images of up to 5 megapixels and supports over 50 PTZ models to fulfill
various project demands. GV ‐VS2401 can record videos to a local USB storage, performing as a compact video recorder. It is also able
to trigger Tampering Alarm al erts when the cameras are tampered with, which can be used to prevent criminal activities.






GV-VS2401 May 7, 2021
-2-
Specifications
Video
Video Standard NTSC, PAL

Video Input 4 channels

Compression H.264

Signal Type Combo / CVBS

NTSC
18 fps per channel at 3 MP; 72 fps in total for 4 channels
15 fps per channel at 4 MP, 60 fps in total for 4 channels
12 fps per channel at 5 MP; 60 fps in total for 4 channels
30 fps per channel at 1080p; 120 fps in total fo r 4 channels

Frame Rate

PAL
18 fps per channel at 3 MP; 72 fps in total for 4 channels
15 fps per channel at 4 MP, 60 fps in total for 4 channels
12 fps per channel at 5 MP; 60 fps in total for 4 channels
25 fps per channel at 1080p; 100 fps in total fo r 4 channels

Note:
1. More than 32 connections from clients may reduce system performance. In that case, lower frame rates can maintain smooth
video stream.
2. The frame rate of the 3/4/5 MP cameras must also support the specified frame rate in order to display the video stream.
Main Stream
2592 x 1944, 2560 x 1440, 2048 x 1536, 1920 x 1080, 1280 x 720, 640 x 360,
448 x 252 for Combo Signal

NTSC
HD
Sub Stream 640 x 360, 448 x 252 for Combo Signal

Main Stream 960 x 480, 720 x 480, 480 x 240, 360 x 240 for Analog Signal

NTSC
SD
Sub Stream 480 x 240, 360 x 240 for Analog Signal

Main Stream
2592 x 1944, 2560 x 1440, 2048 x 1536, 1920 x 1080, 1280 x 720, 640 x 360,
448 x 252 for Combo Signal

PAL
HD
Sub Stream 640 x 360, 448 x 252 for Combo Signal

Main Stream 960 x 576, 720 x 576, 480 x 288, 360 x 288 for Analog Signal

Resolution
PAL
SD
Sub Stream 480 x 288, 360 x 288 for Analog Signal

Video Streaming Configurable frame rate and bandwidth, Constant and variable bitrate

Video Adjustment Brightness, Contrast, Saturation, Hue, Sharpness

Dual Streams Yes

Recommended Type 5C ‐ FB or above

Coaxial Cable
Maximum Length 300 m (984 ft)

Audio

Audio Input 2 ports, 4 channels

Compression G.711

Audio Support Two ‐way

Management

Trigger
Schedule, Sensor Input, Motion Detection, Tampering Alarm
Event Management
Action
 Store Video (AVI format)
 Send e ‐ mails with captured images
 Upload captured images to FTP Server
 Monitor through Center V2 and Vital Sign Monitor
 Activate relay outputs to control external devices

Firmware Upgrade Remote upgrade by HTTP, Firmware upgrade utility

Storage USB HDD Storage

Client PC Requirements Microsoft Internet Explorer 8.x or later

Security IP address filtering

Language
Bulgarian / Czech / Danish / Dutch / English / French / German / Greek /
Hebrew / Hindi / Hungarian / Italian / Indonesian / Japanese / Norwegian /
Lithuanian / Persian / Polish / Portuguese / Romanian / Russian / Serbian /
Simplified Chinese / Slovakian / Slovenian / Sp anish / Thai / Traditional Chinese
/ Turkish


GV-VS2401 May 7, 2021
-3-
Max Number of Live Streams 16

Max Number of RTSP Streams 25

Network

Interface
10/100/1000 Base ‐ T Ethernet,
802.11b/g/n Wireless LAN (optional),
Mobile broadband: UMTS, EDGE, etc. (optional)

Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, 3GPP/ISMA, NTP, ONVIF (Profile S), RTSP,
SMTP, SNMP, TCP, UDP, UPnP, QoS (DSCP)

Security Feature
‐ No default ID and Password
‐802.1x authentication
‐HTTPS with an SSL certificate stored within the video server

External Interface

Video Input 4 BNC ports

Audio Input 2 port stereo phone jack, 3.5 mm/0.14’’

Audio Output 1 port stereo phone jack, 3.5 mm/0.14’’

Sensor Input 4 inputs

Alarm Output 4 outputs

PTZ RS‐485 +/ ‐

Ethernet RJ ‐ 45, 10/100/1000 Mbps

USB 2 ports (USB 2.0)

Input 12V, 3.0A

Power
Output 12V, 1.6A, (19.2 W Max.)

Environment

Operation Temperature ‐ 20 °C ~ 50 °C / ‐ 4 °F ~ 122 °F

Humidity 0 ~ 90% RH (no condensation)

Weather Resistance Indoor use

Physical

Dimensions (L x W x H) 174 x 145 x 40 mm / 6.85 x 5.7 x 1.57 in

Weight 0.73 kg / 1.61 lb

Regulatory CE, FCC, RCM, RoHS compliant

Applications

Software Supported
GV ‐ VMS (V16.11.0.0), GV ‐DVR / NVR (V8.7.4.0), GV ‐Control Center (V3.4.0.0),
GV ‐Backup Center (V1.2.0.0), GV ‐Edge Recording Manager (V1.3.0.0),
GV ‐Center V2 (V16.11.0.0), GV ‐Recording Server / Video Gateway (V1.3.0.0),
GV ‐Redundant / Failover Server (V1.1.0.0), GV ‐Remote ViewLog (V16.11.0.0)

Mobile Phone Support GV ‐ Eye for iOS and Android

Live Viewing IE, Firefox, Chrome, Safari, Edge

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor


Note:
1. GV ­Video Server cannot work with microphones that acquire power from the unit. Use microphones that have external
power supply.
2. GV ‐VS2401 supports 1 external hard disk (2.5"or 3.5") with up to 8 TB capacities.
3. It is not recommended to use the flash USB drive with GV ‐ V S2401 because of its slow read and write speed.
4. When transmitting video signals over a long distance, it is highly recommended to use 5C ‐ FB coaxial cables or above to
minimize the degradation of image quality. The transmission distance should be within 300 m (984 ft).
5. Product de sign and specifications are subject to change without notice.



Packing List
1. GV ‐VS2401
2. AC Power Cord
3. Power Adaptor
4. Download Guide
5. Warranty Card


GV-VS2401 May 7, 2021
-4-
Options
Optional devices can expand your GV ‐Video Server's capabilities and versatility. Contact our dealer for more information .
DC Male ‐ to ‐ Male Cable

DC 1 ‐ Male to 4 ‐Female Cable
DC Male ‐ to ‐Male Cable and DC 1 ‐Male to 4 ‐Female Cable are both used to power the

cameras through the GV ‐Video Server.

For instance, you can purchase four DC Male ‐ to ‐ Male Cables and one DC 1 ‐Male to 4 ‐Female

Cable to power four cameras through the GV ‐Video Server.


GV ‐ Relay V2
Working with a GV ‐ Relay V2, the GV ‐Video Server can drive the loads of relay outputs over 5

volts.

GV ‐ WiFi Adaptor V2

GV ‐ WiFi Adaptor V2 is designed to connect the GV IP devices, such as GV ‐Video Server, to

the wireless network.

3.5 mm Stereo to RCA Cable

3.5 mm Stereo to RCA Cable is served as an audio adapter for microphones with RCA

connectors.

Wall Hook

Wall Hook is used to mount GV ‐VS2401 to the wall.



DIN ‐rail Hook

DIN ‐rail Hook is used to mount GV ‐VS2401 to a 35‐ mm (1.38 ‐in) DIN rail.



Rack Mount

Rack Mount is used to mount up to 3 video servers to a 19‐ in (482.6‐mm) rack.





GV-VS2401 May 7, 2021
-5-
Supported Wireless LAN USB Adaptor
Vendors
Model
D ‐ Link DWA ‐140 (H/W version B1), DWL ‐G122 (version C1)

EDIMAX EW ‐7318Ug, EW ‐7718Un, EW ‐7711UAn

Linksys WUSB54GC, WUSB600 (version 1)

Pegatron WL ‐166N11

Note: Linksys WUSB54GC ver. 3 is not supported.



Supported Mobile Broadband Device
Vendors
Model
Bandluxe C320, C501

HUAWEI
E156, E156B, E169, E220, E1692, E1750, E1752, E1756, E1756C, EC169C, EC189 USB Modem
(HSDPA/UMTS/EDGE/GPRS/GSM)

Novatel MC950D, MC996D, MC998D (HSDPA/UMTS/EDGE/GPRS/GSM)

Onda MSA523HS

Sierra 250U

Verizon USB727, USB728, USB760 Modem (EVDO)

Vodafone K3565 (Rev 2)

ZTE MF100
