GV-VD5700

Dostępność: 6-10
Cena: 1 591,55 zł 1591.55 (368,03 €)
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: GEOVISION
Kod produktu: 88-VD57000-0020

Opis

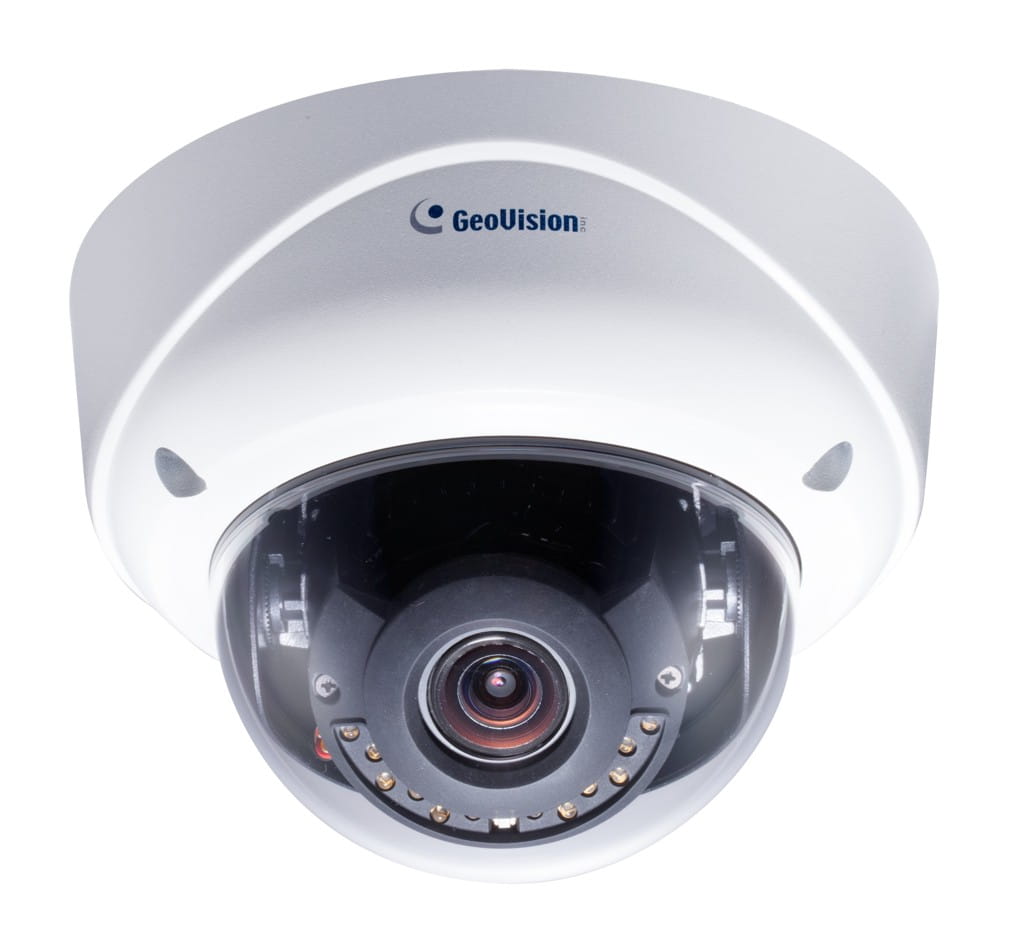

Kamera IP kopułkowa IP67 wandaloodporna IK10, oświetlacz 30m, 5.0M-30 kl./s, H.265, WDR, PoE, SDXC, 4~8mm P-iris, 3-axis...

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

GV-VD5700 May 6, 2018
- 1 -
GV-VD5700 5MP H.265 Low Lux WDR IR Vandal Proof IP Dome


* 1/1.8” progressive Low Lux CMOS
* Dual streams from H.265, H.264 or MJPEG
* Up to 30 fps at 2592 x 1944
* P ‐ Iris for auto iris adjustment
* Vandal resistance (IK10 for metal casting)
* Ingress protection (IP67)
* Varifocal megapixel lens
* 3 ‐ axis mechanism (pan / tilt / rotate)
* Intelligent IR
* Day/Night function (Removable IR ‐cut filter)
* External microphone
* IR distance up to 30 m (98.4 ft)
* Two ‐way audio
* One sensor input and digital output
* Built ‐ in micro SD card slot (SD/SDHC/SDXC/UHS ‐ I) for local
storage
* DC 12V / PoE ( IEEE 802.3af)
* Wide Dynamic Range (WDR)
* Smart streaming
* Defog
* Text overlay
* Tampering alarm
* 3D noise reduction
* IP address filtering
* Recording assigned by GV ‐Edge Recording Manager
(Windows & Mac )
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* No Memory card slot & local storage function for Argentina.
* Smart streaming requires either GV ‐ DVR / NVR V8.7.0 or
GV ‐ VMS V16.10.3.0

Introduction
GV ‐VD5700 is an outdoor camera for optimal day and night surveillance. The camera can support H.265 video codec to achieve better
compression ratio while maintaining high picture quality at reduced network bandwidths. For night operations, the camera allows up
to 30 m (98.4 ft) IR effective distance. GV ‐VD5700 also uses P ‐ iris to produce images with better clarify and contrast. It is adjustable in
3 axis (pan, tilt and rotate).

Active Tampering Alarm
Tampered Focus Change Camera Shift




GV-VD5700 May 6, 2018
- 2 -
Dimensions






Specifications
Camera
Image Sensor 1/1.8” progressive scan CMOS
Picture Elements 2592 (H) x 1944 (V)
Color 0.04 Lux
B/W 0.03 Lux
Minimum
Illumination
IR ON 0 Lux
Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec)
White Balance Automatic, Manual (2800K ~ 8500K)
Gain Control Automatic
S/N Ratio 50 dB
WDR Yes
Dynamic Range 72 dB
BLC Yes
Lens
Megapixel Yes
Day / Night Yes (with removable IR ‐cut filter)
Lens Type Varifocal
Focal Length 4 ~ 8 mm
Maximum Aperture F/1.65
Mount Ø 14 mm
Image Format 1/1.8
Horizontal FOV 88° ~ 51°


GV-VD5700 May 6, 2018
- 3 -
Focus Manual (w / lock)
Zoom Manual (w / lock)
Operation
Iris P ‐ Iris
Max. Torque (Focus/ Zoom Screws) 0.049 N.m
IR LED Quantity 12 IR LEDs
Max. IR Distance 30 m (98.4 ft)
Operation
Video Compression H.265, H.264, MJPEG
Stream 1 H.265 or H.264
Video Stream
Stream 2 H.265, H.264 or MJPEG
Frame Rate
30 fps at 2592 x 1944 (60/50 Hz)
* The frame rate and the performance may vary depending on the number of
connections and data bitrates (different scenes).
Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR, Defog, Low
Lux Enhancement, Denoise, Metering
Audio Compression G.711, AAC (Optional)
Audio Support Two ‐way audio
Sensor Input 1 Input (dry contact)
Alarm Output 1 Output (200 mA 5V DC)
Video Resolution
4:3 2592 x 1944 (Default), 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480
16:9 2592 x 1520, 2304 x 1296, 1920 x 1080, 1280 x 720, 640 x 360
Main Stream
5:4 1280 x 1024, 640 x 512
4:3 1024 x 768, 640 x 480 (Default), 320 x 240
16:9 1280 x 720, 640 x 360, 448 x 256
Sub Stream
5:4 1280 x 1024, 640 x 512, 320 x 256
Network
Interface 10/100 Ethernet
Ethernet Protocol
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, NTP, ONVIF (Profile S), QoS (DSCP),
RTSP, RTP, RTCP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA
Mechanical
Temperature Detector Yes
Pan 0° ~ 360°
Tilt 90° ~ 180°
Camera Angle
Adjustment
Rotate 0° ~ 355°
Power 2 ‐pin terminal block (DC 12V, 1.25A), PoE
Ethernet Ethernet (10/100 Base – T), RJ ‐ 45
Audio
1 In (terminal block for passive microphone)
1 Out (terminal block for speaker)
Digital I/O 4 ‐pin terminal block
Connectors
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
*UHS ‐ II card type is not supported.
LED Indicator N/A
General
Start ‐ up ‐20°C ~ 50°C ( ‐ 4°F ~ 122°F) Environment
Temperature
Operation ‐30°C ~ 50°C ( ‐22°F ~ 122°F)
Humidity 10% to 90% (no condensation)
Power Source 12V DC / PoE (IEEE 802.3af)
Max. Power Consumption 12.6 W
Dimensions Ø 150.3 x 105.5 mm (5.92’’ x 4.15’’)
Weight 800 g (1.76 lb)
Ingress Protection IP67
Vandal Resistance IK10 for metal casing
Regulatory CE, FCC, RCM, LVD, RoHS compliant




GV-VD5700 May 6, 2018
- 4 -
Power over Ethernet
PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)
PoE Power Supply Type End ‐Span
PoE Power Output Per Port 48V DC, 350 mA. Max. 15.4 watts
Web Interface
Installation Management Web ‐based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay,
Visual Automation, Tampering Alarm, Digital PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German /
Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian /
Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese /
Slovakian / Slo venian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

Software Supported
GV ‐ DVR / NVR (V8.7.0.0), GV ‐ VMS (V15.10.1.0), GV ‐Edge Recording Manager (V1.2.0.0),
GV ‐Center V2 (V15.10.0.0), GV ‐Recording Server (V1.3.0.0), GV ‐Redundant / Failover
Server (V1.1.0.0)

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing Brower (IE, Chrome, Firefox, Safari), Mobile app

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

Note:
1. It is required to apply patch files to all the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Mind the following when using a memory card for recording:
* Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock,
power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No guarantee is
provided for such causes.
* The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if you
seldom access the memory card.
* Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
* To avoid power outage, it is highly suggested to apply a battery backup (UPS).
* For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
* Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently undetected
by the camera.
4. Specifications are subject to change without notice.


Packing List
1. H.265 Vandal Proof IP Dome
2. Torx Wrench
3. Silica Gel Bag x 2
4. Sticker (for Silica Gel Bag) x 2
5. Screw Anchor x 4
6. Long Screw x 4
7. Back Plate
8. Short Screw for Back Plate x 3
9. Cable Stopper
10. Anti ‐ Drop Wire
11. Screw for Anti ‐ Drop Wire
12. Pan Angle Notification Card
13. Installation Sticker
14. RJ45 Connector x 2
15. Download Guide
16. Warranty Card


GV-VD5700 May 6, 2018
- 5 -
Accessories
Model No. Name Details

GV ‐Mount100 Straight Tube and Junction
Box Kit


Dimensions: 200 x 170 x 257.5 mm
(7.9’’ x 6.7’’ x 10.1’’)
Weight: 3.17 kg (6.99 lb)

GV ‐Mount101 Straight Tube Kit


Dimensions: 219 x 125 x 332 mm
(8.6’’ x 4.9’’ x 13.1’’)
Weight: 1.8 kg (3.97 lb)

GV ‐Mount200 Wall Pendant Tube
Dimensions: 225 x 140 x 250 mm
(8.9’’ x 5.5’’ x 9.8’’)
Weight: 900 g (1.98 lb)

GV ‐Mount203 Wall Pendant Tube and
Junction Box Kit


Dimensions: 315 x 195.5 x 225 mm
(12.4’’ x 7.7’’ x 8.9’’)
Weight: 2.95 kg (6.5 lb)

GV ‐Mount206 Wall Mount Bracket Kit


Dimensions: 126.5 x 211.3 x Ø 176.85 mm (5’’ x
8.3’’ x Ø 6.96’’)
Weight: 0.93 kg (2.06 lb)

GV ‐Mount300 Convex Corner Adapter Kit


Dimensions: 238.6 x 409.5 mm
(9.4’’ x 16.1’’)
Weight: 4.27 kg (9.41 lb)

GV ‐Mount310 Concave Corner Adapter Kit


Dimensions: 123.3 x 393.1 mm (4.9’’ x 15.5’’)
Weight: 2.96 kg (6.53 lb)

GV ‐Mount400 Pole Mount Bracket Kit
(Ø 4’’ ~ 6’’)


Bracket: 241 x 161 mm (9.5’’ x 6.3’’)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4’’ ~ 6’’


GV-VD5700 May 6, 2018
- 6 -

Model No. Name Details

GV ‐Mount410 Pole Mount Bracket Kit
(Ø 6’’ ~ 7.5’’)


Bracket: 241 x 161 mm (9.5’’ x 6.3’’)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6’’ ~ 7.5’’

GV ‐Mount702 Extension Tube


Four options are available.
Dimensions:
Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1’’ x 3.9’’ or 7.9’’ or 11.8’’ or 19.7’’)
Weight:
180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)

GV ‐Mount903 GV ‐ VD Series Dome
Housing




Dimensions: Ø 186 x 97.5 mm (Ø 7.3’’ x 3.8”)
Weight: 600 g (1.32 lb)

GV ‐PA191 PoE Adapter


The GV ‐PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP device
through a single Ethernet cable.

GV ‐Relay V2 GV ‐Relay V2


The GV ‐Relay V2 is designed to expand the voltage
load of GV IP devices. It provides 4 relay outputs,
and each can be set as normally open (NO) or
normally closed (NC) independently as per your
requirement.

GV ‐PoE Switch
The GV ‐PoE Switch is designed to provide power along with network

connection for IP devices. The GV ‐PoE Switch is available in various models with

different numbers and types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.

Dane techniczne

Wejścia alarmowe 1
Wyjścia alarmowe 1
Rozmiar przetwornika 1/1.8
Zasilanie PoE PoE 802.3af 15.4W
Zasilanie DC 12VDC
Szczelność IP67
Odporność mechaniczna IK10
Rozdzielczość wizyjna 5MPIX
Typ kamery Dome, Kopułkowa
Oświetlacz podczerwieni ± 30 m
Zakres dynamiki (WDR) WDR 72dB
Typ obiektywu Zmiennoogniskowy
Zmienna ogniskowa (od) ± 3.8 mm
Zmienna ogniskowa (do) ± 8 mm
Slot na karty Tak
