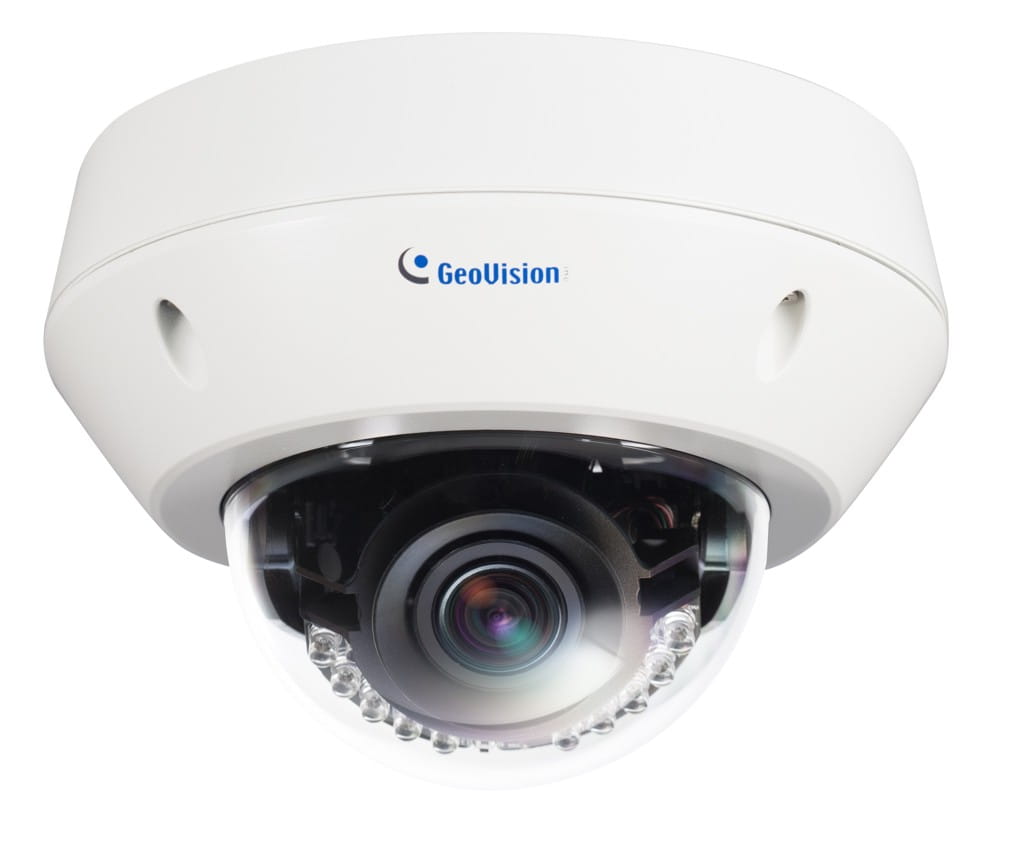

GV-VD4712

Dostępność: 0
Cena: 2 069,11 zł 2069.11 (478,46 €)
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: GEOVISION
Kod produktu: 84-VD47120-0010

Opis

Kamera IP kopułkowa IP67 wandaloodporna IK10, oświetlacz 30m, 4.0M-20 kl./s, H.265, WDR PRO, PoE, SDXC, BNC, 2.8~12mm P-iris, 3-axis, super-czuła 0.02lx, moto-zoom 4x...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

GV-VD4712 August 11, 2018
- 1 -
GV-VD4712 4MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Vandal Proof IP
Dome

* 1/3” progressive scan super low lux CMOS
* Min. illumination at 0.02 lux
* Triple streams from H.265, H.264 and MJPEG
* 20 fps at 2592 x 1520, 24 fps at 2560 x 1440,
30 fps at 2048 x 1520
* Vandal resistance (IK10 for metal casing)
* Ingress protection (IP67 )
* Motorized varifocal lens for remote focus/zoom adjustment
* P ‐ iris lens for auto iris control
* Intelligent IR
* IR distance up to 30 m (98.42 ft)
* Day and Night function (with removable IR ‐cut filter)
* 3 ‐axis mechanism (pan / tilt / rotate)
* DC 12V / PoE ( IEEE 802.3af)
* Two ‐way audio
* Wide Dynamic Range Pro (WDR Pro)
* 3D noise reduction
* Smart streaming
* Defog
* Motion detection
* Tampering alarm
* Text overlay
* Privacy mask
* IP address filtering
* Recording assigned by GV ‐Edge Recording Manager (Windows
& Mac )
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* Smart streaming requires either GV ‐DVR / NVR V8.7.0.0 or
GV ‐VMS V16.10.3

Introduction
The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. With its motorized
varifocal lens, the user can zoom and focus the camera from the Web interface. The camera can support H.265 video codec to
achieve better compression ratio while maintaining high quality pi ctures at reduced network bandwidths. For night operations, the
camera allows up to 30 m (98.42 ft) IR effective distance. GV ‐VD4712 is capable of not only providing a color live view in near
darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR Pro.

Active Tampering Alarm
Tampered Focus Change Camera Shift





GV-VD4712 August 11, 2018
- 2 -
Dimensions



Specifications
Camera

Image Sensor 1/3” progressive scan super low lux CMOS

Picture Elements 2592 (H) x 1520 (V)

Color 0.03 Lux

B/W 0.02 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Automatic, Manual (1/5 ~ 1/16000 sec)

White Balance Automatic, Manual (2800K ~ 8500K)

Gain Control Automatic

S/N Ratio 50 dB

WDR Pro Yes

Dynamic Range Up to 120 dB

Lens

Megapixel Yes

Day/Night Yes (with removable IR ‐cut filter)

Focal Length 2.8 ~ 12 mm

Lens Type Motorized varifocal lens

Maximum Aperture F/1.4

Mount Ø14 mm

Horizontal FOV 90° ~ 35°

Image Format 1/2.7”

Focus Auto focus

Zoom 4.3x optical zoom

Operation
Iris P ‐ iris

IR LED Quantity 4 IR LEDs

Max. IR Distance 30 m (98.42 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming
Stream 1 from H.265 or H.264
Stream 2 from H.265, H.264 or MJPEG
Stream 3 from H.265, H.264 or MJPEG

Frame Rate
50 Hz: 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 25 fps at 2048 x 1520
60 Hz: 20 fps at 2592 x 1520, 24 fps at 2560 x 1440, 30 fps at 2048 x 1520
* The frame rate and the performance may vary de pending on the number of connections
and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR Pro, Defog, Low
Lux Enhancement, Denoise, Metering

Audio Compression G.711, AAC (Optional)

Audio Support Two ‐way Audio

Sensor Input 1 input (dry contact)

Alarm Output 1 digital output (200 mA 5V DC)


GV-VD4712 August 11, 2018
- 3 -

Video Resolution
4:3 2048 x 1520, 1600 x 1200, 1280 x 960, 640 x 480

16:9 2592 x 1520, 2560 x 1440 (Default), 2304 x 1296, 1920 x 1080, 1280 x 720, 640 x 360

Main Stream
5:4 1280 x 1024, 640 x 512

4:3 1024 x 768, 640 x 480, 320 x 240

16:9 1280 x 720, 640 x 360 (Default), 448 x 256

Sub Stream
5:4 1280 x 1024, 640 x 512, 320 x 256

4:3 640 x 480, 320 x 240

16:9 640 x 360, 448 x 256

Third Stream
(Closed by Default)
5:4 640 x 512, 320 x 256

Network

Interface 10/100 Ethernet

Ethernet Protocol
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, ONVIF (Profile S),
QoS (DSCP), RTP, RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA

Mechanical

Temperature Detector Yes

Pan 0° ~ 350°

Tilt 0° ~ 75°

Camera Angle
Adjustment
Rotate 0° ~ 340°

Power 2 ‐pin terminal block, PoE

Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 cable

Audio
1 In (microphone jack, 3.5 mm / 0.14”)
1 Out (stereo phone jack, 3.5 mm / 0.14”)

Digital I/O I/O wires

Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
*UHS‐ II card type is not supported.

Connectors
TV ‐ Out BNC connector

LED Indicator 2 LEDs: Power, Status

General

Start ‐ up
Environment
Temperature
Operation
‐20°C ~ 50°C ( ‐ 4°F ~ 122°F)
Humidity 10% to 90% (no condensation)

Power Source 12V DC / PoE (IEEE 802.3af)

Max. Power Consumption 8.16 W

Dimension Ø160 x 108.4 mm (6.2" x 4.27")

Weight 1.15 kg (2.54 lb)

Ingress Protection IP67

Vandal Resistance IK10 for metal casing

Regulatory CE, FCC, RCM, LVD, RoHS compliant

Power over Ethernet

PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)

PoE Power Supply Type End ‐Span, Mid ‐Span

PoE Power Output Per Port 48V DC, 350 mA. Max. 15.4 watts

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital
PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian /
Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish






GV-VD4712 August 11, 2018
- 4 -
Applications
Software Supported
GV ‐ DVR / NVR (V8.7.4.0), GV ‐ VMS (V16.11.0.0), GV ‐Control Center (V3.4.0.0), GV ‐Edge
Recording Manager (V1.3.0.0), GV ‐Center V2 (V16.11.0.0), GV ‐Recording Server / Video
Gateway (V1.3.0.0), GV ‐Redundant / Failover Server (V1.1.0.0)

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing Browser (IE, Chrome, Firefox, Safari), Mobile app

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor


Note:
1. It is required to apply patch files to all the supported software mentioned above.
2. The signal range and data throughput may vary depending on the network conditions and environmental factors.
3. Specifications are subject to change without prior notice.

Packing List
1. H.265 Vandal Proof Dome
2. Screw x 4
3. Screw Anchor x 4
4. TV ‐ Out Wire
5. Audio Wire x 2
6. I/O Cable
7. Installation Sticker
8. Conduit Converter
9. PG21 Conduit Connector
10. RJ ‐ 45 Connector
11. Waterproof Rubber Sets
(for RJ ‐ 45 Cat.5 and DC 12V / fo r RJ ‐ 45 Cat.6)
12. Torx Wrench
13. Big Concave Hexagon Wrench
14. Small Concave Hexagon Wrench
15. Silica Gel Bag
16. Sticker (for Silica Gel Bag)
17. Ruler
18. Download Guide
19. Warranty Card
Note: Power adapters can be purchased upon request.

Accessories
Model No. Name Details

GV ‐Mount100 Straight Tube and
Junction Box Kit


Dimensions: 200 x 170 x 257.5 mm
(7.9” x 6.7” x 10.1”)
Weight: 3.17 kg (6.99 lb)

GV ‐Mount101 Straight Tube Kit


Dimensions: 219 x 125 x 332 mm
(8.6” x 4.9” x 13.1”)
Weight: 1.8 kg (3.97 lb)

GV ‐Mount200 Wall Pendant Tube


Dimensions: 200 x 140 x 249 mm
(7.9” x 5.5” x 9.8”)
Weight: 0.93 kg (2.05 lb)

GV ‐Mount203 Wall Pendant Tube and
Junction Box Kit


Dimensions: 315 x 195.5 x 225 mm
(12.4” x 7.7” x 8.9”)
Weight: 2.95 kg (6.5 lb)





GV-VD4712 August 11, 2018
- 5 -
Model No. Name
Details

GV ‐Mount206 Wall Mount Bracket Kit



Dimensions: 126.5 x 211.3 x 176.85 mm

(5” x 8.3” x 6.96’’)

Weight: 0.93 kg (2.06 lb)

GV ‐Mount300 ‐ 1 Convex Corner Adapter Kit



Dimensions: 238.6 x 395.2 x 210 mm

(9.4’’ x 15.5” x 8.2”)

Weight: 4.27 kg (9.41 lb)

GV ‐Mount310 ‐ 1 Concave Corner Adapter Kit



Dimensions: 111.2 x 369.9 x 210 mm

(4.37’’ x 14.5” x 8.2”)

Weight: 2.96 kg (6.53 lb)

GV ‐Mount400 ‐ 1 Pole Mount Bracket Kit
(Ø 4 ~ 6")



Dimensions:

Bracket: 68.4 x 240 x 163 mm

(2.69” x 9.44’’ x 6.41”)

Weight: 1.70 kg (3.75 lb)

Steel Strap Diameter: Ø 4" ~ 6"

GV ‐Mount410 ‐ 1 Pole Mount Bracket Kit
(Ø 6 ~ 7.5")



Dimensions:

Bracket: 68.4 x 240 x 163 mm

(2.69” x 9.44’’ x 6.41”)

Weight: 1.70 kg (3.75 lb)

Steel Strap Diameter: Ø 6" ~ 7.5"

GV ‐Mount702 Extension Tube



Four options are available.

Dimensions:

Ø 5.4 x 10 or 20 or 30 or 50 cm

(Ø 2.1” x 3.9” or 7.9” or 11.8” or 19.7”)

Weight:

180 g or 390 g or 550 g or 800 g

(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)

GV ‐Mount903 GV ‐ VD Series Dome Housing





Dimensions: Ø 185.51 x 165.35 mm (Ø 7.3” x

6.51”)

Weight: 714 g (1.57 lb)



GV-VD4712 August 11, 2018
- 6 -

Model No. Name Details

GV ‐Mount916 In ‐Ceiling Mount


Dimensions: Ø 205 x 63.8 mm (Ø 8” x 2.5")
Weight: 645 g (1.42 lb)


Metal PG21 Conduit Connector


The metal PG21 conduit connector allows you to
run the wires through a 3/4” conduit pipe.

GV ‐PA191 PoE Adapter


Dimensions (H x W x D): 43 x 69 x 40 mm (1.69 x
2.72 x 1.57”)
Weight: 130 g (0.29 lb)

GV ‐Relay V2

The GV ‐Relay V2 is designed to expand the
voltage load of GV IP devices. It provides 4 relay
outputs, and each can be set as normally open
(NO) or normally closed (NC) independently as
per your requirement.

GV ‐ POE Switch
The GV ‐ POE Switch is designed to provide power along with network connection for

IP devices. The GV ‐ POE Switch is available in various models with different numbers

and types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.
