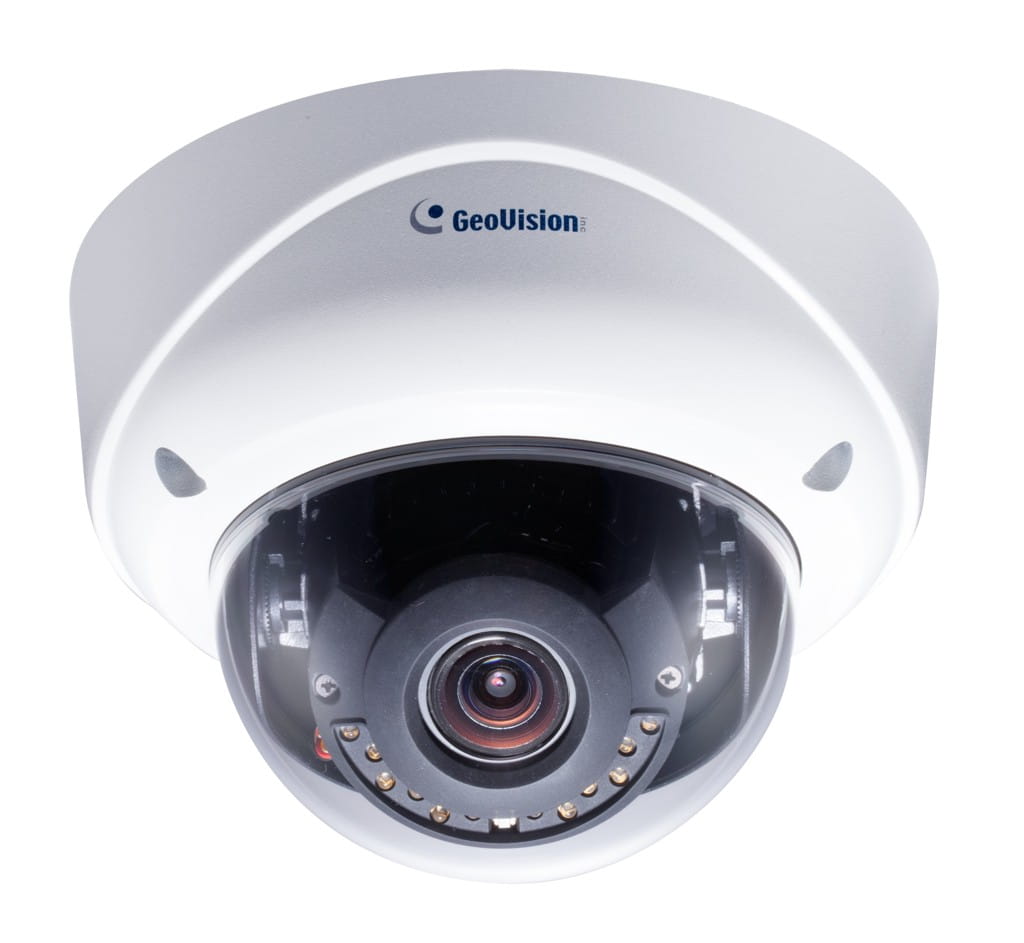

GV-VD3700

Dostępność: 0
Cena: 1 503,17 zł 1503.17 (347,59 €)
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: GEOVISION
Kod produktu: 88-VD37000-1020

Opis

Kamera IP kopułkowa IP67 wandaloodporna IK10, oświetlacz 30m, 3.0M-30 kl./s, H.265, WDR PRO, PoE, SDXC, 2.8~12mm P-iris, 3-axis, super-czuła 0.01lx...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

GV-VD3700 May 6, 2018
- 1 -
GV-VD3700 3MP H.265 Super Low Lux WDR Pro IR Vandal Proof IP Dome


* 1/2.8” progressive scan super low lux CMOS
* Min. illumination at 0.01 lux
* Dual streams from H.264, H.265 and MJPEG
* Up to 30 fps at 2048 x 1536
* P ‐ Iris for auto iris adjustment
* Vandal resistance (IK10 for metal casing)
* Ingress protection (IP67)
* Varifocal megapixel lens
* 3 ‐ axis mechanism (pan / tilt / rotate)
* Intelligent IR
* Day/Night function (with removable IR ‐cut filter)
* External microphone
* IR distance up to 30 m (98.4 ft)
* Two ‐way audio
* One sensor input and di gital output
* Built ‐ in micro SD card slot (SD/SDHC/SDXC/UHS ‐ I) for local
storage
* DC 12V / PoE (IEEE 802.3af)
* Wide Dynamic Range Pro (WDR Pro)
* Smart streaming
* Defog
* Text overlay
* Tampering alarm
* 3D noise reduction
* IP address filtering
* Recording assigned by GV ‐ Edge Recording Manager
(Windows & Mac )
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
*No Memory card slot & local storage function for Argentina.
*Smart streaming requires either GV ‐ DVR / NVR V8.7.0 or
GV ‐VMS V16.10.3.0

Introduction
GV ‐VD3700 is an outdoor camera for optimal day and night surveillance. The camera can support H.265 video codec to achieve better
compression ratio while maintaining high quality pictures at reduced network bandwidths. For night operations, the camera allows
up to 30 m (98.4 ft) IR effective distance. GV ‐VD3700 is c apable of not only providing a color live view in near darkness but also under
contrasting light intensities using its super low lux CMOS image sensor and WDR Pro. It is adjustable in 3 axis (pan, tilt and rotate).

Active Tampering Alarm
Tampered Focus Change Camera Shift




GV-VD3700 May 6, 2018
- 2 -
Dimensions





Specifications
Camera
Image Sensor 1/2.8” progressive scan super low lux CMOS

Picture Elements 2048 (H) x 1536 (V)

Color

B/W
0.01 Lux
Minimum
Illumination
IR ON 0 Lux

Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec)

White Balance Automatic, Manual (2800K ~ 8500K)

Gain Control Automatic

S/N Ratio 54 dB

WDR Pro Yes

Dynamic Range 120 dB

BLC Yes

Lens

Megapixel Yes

Day / Night Yes (with removable IR ‐cut filter)

Lens Type Varifocal

Focal Length 2.8 ~ 12 mm

Maximum Aperture F/1.7

Mount Ø 14 mm

Image Format 1/2.7’’

Horizontal FOV 98° ~ 35°

Focus Manual (w / lock)

Zoom Manual (w / lock)
Operation
Iris P ‐ Iris

Max. Torque (Focus/ Zoom Screws) 0.049 N.m

IR LED Quantity 12 IR LEDs

Max. IR Distance 30 m (98.4 ft)


GV-VD3700 May 6, 2018
- 3 -
Operation
Video Compression H.265, H.264, MJPEG

Stream 1 H.265 or H.264

Video Stream
Stream 2 H.265, H.264 or MJEG

Frame Rate
30 fps at 2048 x 1536 (60/50 Hz)
* The frame rate and the performance may vary depending on the number of
connections and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR, Defog, Low
Lux Enhancement, Denoise, Metering

Audio Compression G.711, AAC (Optional)

Audio Support Two ‐way audio

Sensor Input 1 Input (dry contact)

Alarm Output 1 Output (200 mA 5V DC)

Video Resolution

4:3 2048 x 1536 (Default), 1600 x 1200, 1280 x 960, 640 x 480

16:9 1920 x 1080, 1280 x 720, 640 x 360

Main Stream
5:4 1280 x 1024, 640 x 512

4:3 1024 x 768, 640 x 480 (Default), 320 x 240

16:9 1280 x 720, 640 x 360, 448 x 256

Sub Stream
5:4 1280 x 1024, 640 x 512, 320 x 256

Network

Interface 10/100 Ethernet

Ethernet Protocol
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, NTP, ONVIF (Profile S), QoS (DSCP),
RTSP, RTP, RTCP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA

Mechanical

Temperature Detector Yes

Pan 0° ~ 360°

Tilt 90° ~ 180°

Camera Angle
Adjustment
Rotate 0° ~ 355°

Power 2 ‐pin terminal block (DC 12V, 1.25A), PoE

Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45

Audio
1 In (terminal block for passive microphone)
1 Out (terminal block for speaker)

Digital I/O 4 ‐pin terminal block

Connectors
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
* UHS ‐ II card type is not supported.

LED Indicator N/A

General

Start ‐ up ‐20°C ~ 50°C ( ‐ 4°F ~ 122°F)
Environment
Temperature
Operation ‐30°C ~ 50°C ( ‐22°F ~ 122°F)

Humidity 10% to 90% (no condensation)

Power Source 12V DC / PoE (IEEE 802.3af)

Max. Power Consumption 12.6 W

Dimensions Ø 150.3 x 105.5 mm (5.92” x 4.15‘’)

Weight 800 g (1.76 lb)

Ingress Protection IP67

Vandal Resistance IK10 for metal casing

Regulatory CE, FCC, RCM, LVD, RoHS compliant

Power over Ethernet

PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)

PoE Power Supply Type End ‐Span

PoE Power Output Per Port 48V DC, 350 mA, Max. 15.4 watts

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility


GV-VD3700 May 6, 2018
- 4 -

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay,
Visual Automation, Tampering Alarm, Digital PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek
/ Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian
/ Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

Software Supported
GV ‐ DVR / NVR (V8.7.0.0), GV ‐ VMS (V15.10.1.0), GV ‐Edge Recording Manager (V1.2.0.0),
GV ‐Center V2 (V15.10.0.0), GV ‐Recording Server (V1.3.0.0), GV ‐Redundant / Failover
Server (V1.1.0.0)

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing Brower (IE, Chrome, Firefox, Safari), Mobile app

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

Note:
1. It is required to apply patch files to all the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Mind the following when using a memory card for recording:
* Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock,
power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No guarantee is
provided for such causes.
* The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if you
seldom access the memory card.
* Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
* To avoid power outage, it is highly suggested to apply a battery backup (UPS).
* For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
* Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently undetected
by the camera.
4. Specifications are subject to change without notice.


Packing List
1. H.265 Vandal Proof IP Dome
2. Torx Wrench
3. Silica Gel Bag x 2
4. Sticker (for Silica Gel Bag) x 2
5. Screw Anchor x 4
6. Long Screw x 3
7. Back Plate
8. Short Screw for Back Plate x 3
9. Cable Stopper
10. Anti ‐ Drop Wire
11. Screw for Anti ‐ Drop Wire
12. Pan Angle Notification Card
13. Installation Sticker
14. RJ45 Connector x 2
15. Download Guide
16. Warranty Card

GV-VD3700 May 6, 2018
- 5 -
Accessories
Model No. Name Details

GV ‐Mount100 Straight Tube and
Junction Box Kit



Dimensions: 200 x 170 x 257.5 mm (7.9’’ x 6.7’’
x 10.1”)
Weight: 3.17 kg (6.99 lb)
GV ‐Mount101 Straight Tube Kit



Dimensions: 219 x 125 x 332 mm (8.6’’ x 4.9’’ x
13.1”)
Weight: 1.8 kg (3.97 lb)
GV ‐Mount200 Wall Pendant Tube



Dimensions: 225 x 140 x 250 mm (8.9’’ x 5.5’’ x
9.8”)
Weight: 900 g (1.98 lb)
GV ‐Mount203 Wall Pendant Tube and
Junction Box Kit



Dimensions: 315 x 195.5 x 225 mm (12.4’’ x 7.7’’ x
8.9”)
Weight: 2.95 kg (6.5 lb)
GV ‐Mount206 Wall Mount Bracket Kit



Dimensions: 126.5 x 211.3 x Ø 176.85 mm (5’’ x
8.3’’ x Ø 6.96’’)
Weight: 0.93 kg (2.06 lb)
GV ‐Mount300 Convex Corner Adapter
Kit



Dimensions: 238.6 x 409.5 mm (9.4’’ x 16.1”)
Weight: 4.27 kg (9.41 lb)
GV ‐Mount310 Concave Corner
Adapter Kit



Dimensions: 123.3 x 393.1 mm (4.9’’ x 15.5’’)
Weight: 2.96 kg (6.53 lb)
GV ‐Mount400 Pole Mount Bracket
Kit
(Ø 4’’ ~ 6’’)



Dimensions:
Bracket: 241 x 161 mm (9.5’’ x 6.3”)
Weight: 1.70 kg ( 3.75 lb)
Steel Strap Diameter: Ø 4’’ ~ 6’’

GV-VD3700 May 6, 2018
- 6 -

Model No. Name Details

GV ‐Mount410 Pole Mount Bracket Kit
(Ø 6’’ ~ 7.5’’)



Dimensions:
Bracket: 241 x 161 mm (9.5’’ x 6.3”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6’’ ~ 7.5’’
GV ‐Mount702 Extension Tube



Four options are available.
Dimensions:
Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1’’ x 3.9’’ or 7.9’’ or 11.8’’ or 19.7”)
Weight:
180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV ‐Mount903 GV ‐ VD Series Dome
Housing



Dimensions: Ø 186 x 97.5 mm (Ø 7.3’’ x 3.8”)
Weight: 600 g (1.32 lb)
GV ‐PA191 PoE Adapter



The GV ‐PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP
device through a single Ethernet cable.
GV ‐Relay V2 GV ‐Relay V2



The GV ‐Relay V2 is designed to expand the
voltage load of GV IP devices. It provides 4 relay
outputs, and each can be set as normally open
(NO) or normally closed (NC) independently as
per your requirement.
GV ‐PoE Switch
The GV ‐PoE Switch is designed to provide power along with network connection for

IP devices. The GV ‐PoE Switch is available in various models with different numbers

and types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.
