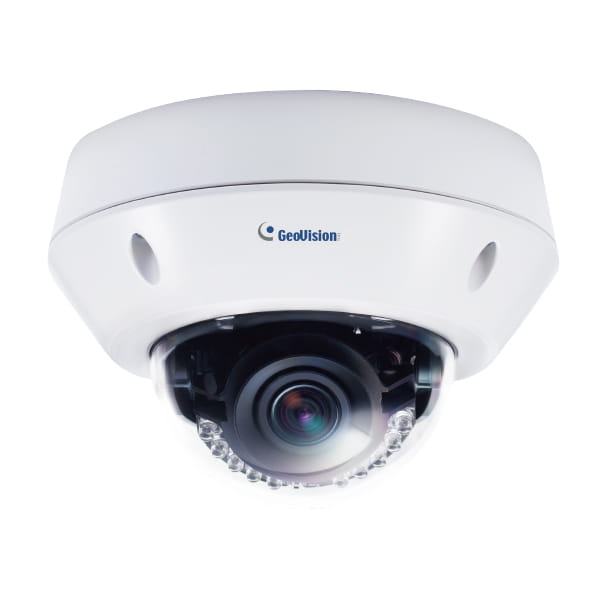

GV-VD2712

Kamera IP kopułkowa IP67 wandaloodporna IK10, oświetlacz 30m, 2.0M-30 kl./s, H.265, WDR PRO, PoE, SDXC, BNC, 2.8~12mm P-iris, 3-axis, super-czuła 0.005lx, moto-zoom 4x...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-VD2712 2MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Vandal Proof IP
Dome

• 1/2.8” progressive scan super low lux CMOS
• Min. illumination at 0.004 lux
• Dual streams from H.265, H.264 and MJPEG
• Up to 30 fps at 1920 x 1080
• Vandal resistance (IK10 for metal casing)
• Ingress protection (IP67)
• Motorized varifocal lens for remote focus/zoom
adjustment
• P-iris lens for auto iris control
• Intelligent IR
• IR distance up to 30 m (98.42 ft)
• Day and Night function (with removable IR-cut filter)
• 3-axis mechanism (pan / tilt / rotate)
• DC 12V / PoE (IEEE 802.3af)
• Two-way audio
• Wide Dynamic Range Pro (WDR Pro)
• 3D noise reduction
• Smart streaming
• Defog
• Motion detection
• Tampering alarm
• Text overlay
• Privacy mask
• IP address filtering
• Recording assigned by GV-Edge Recording Manager
(Windows & Mac )
• Supports iPhone, iPad, Android & 3GPP
• 31 languages on Web interface
• ONVIF (Profile S) conformant
* Smart streaming requires either GV-DVR / NVR V8.7.0.0 or
GV-VMS V16.10.3.0

Introduction
The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. With its
motorized varifocal lens, the user can zoom and focus the camera from the Web interface. The camera can support H.265
video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. For
night operations, the camera allows up to 30 m (98.42 ft) IR effective distance. GV-VD2712 is capable of not only providing
a color live view in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and
WDR Pro.

Active Tampering Alarm
Tampered Focus Change Camera Shift




GV-VD2712 May 3, 2018
- 1 -

Dimensions



Specifications
Camera

Image Sensor 1/2.8” progressive scan super low lux CMOS

Picture Elements 1920 (H) x 1080 (V)

Color 0.005 Lux

B/W 0.004 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Automatic, Manual (1/5 ~ 1/16000 sec)

White Balance Automatic, Manual (2800K ~ 8500K)

Gain Control Automatic

S/N Ratio 56 dB

WDR Pro Yes

Dynamic Range Up to 130 dB

Lens

Megapixel Yes

Day/Night Yes (with removable IR-cut filter)

Focal Length 2.8 ~ 12 mm

Lens Type Motorized varifocal lens

Maximum Aperture F/1.2

Mount Ø14 mm

Horizontal FOV 110° ~ 38°

Image Format 1/2.7”

Focus Auto focus

Zoom 4.3x optical zoom

Operation
Iris P-iris

IR LED Quantity 4 IR LEDs

Max. IR Distance 30 m (98.42 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming
Stream 1 from H.265 or H.264
Stream 2 from H.265, H.264 or MJPEG

Frame Rate
50 Hz: 25 fps at 1920 x 1080
60 Hz: 30 fps at 1920 x 1080
* The frame rate and the performance may vary depending on the number of
connections and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less,
Image Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR
Pro, Defog, Low Lux Enhancement, Denoise, Metering

Audio Compression G.711, AAC (Optional)

Audio Support Two-way Audio

Sensor Input 1 input (dry contact)

Alarm Output 1 digital output (200 mA 5V DC)

GV-VD2712 May 3, 2018
- 2 -


Video Resolution
4:3 1280 x 960, 640 x 480

16:9 1920 x 1080 (Default), 1280 x 720, 640 x 360

Main Stream
5:4 1280 x 1024, 640 x 512

4:3 1024 x 768, 640 x 480, 320 x 240

16:9 1280 x 720, 640 x 360 (Default), 448 x 256

Sub Stream
5:4 1280 x 1024, 640 x 512, 320 x 256

Network

Interface 10/100 Ethernet

Ethernet Protocol
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, NTP, ONVIF (Profile S),
QoS (DSCP), RTSP, RTP, RTCP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP,
3GPP/ISMA

Mechanical

Temperature Detector Yes

Pan 0° ~ 350°

Tilt 0° ~ 75°

Camera Angle
Adjustment
Rotate 0° ~ 340°

Power 2-pin terminal block (DC 12V, 1.25A), PoE

Ethernet Ethernet (10/100 Base-T), RJ-45 cable

Audio
1 In (microphone jack, 3.5 mm / 0.14”)
1 Out (stereo phone jack, 3.5 mm / 0.14”)

Digital I/O I/O wires

Local
Storage
Micro SD card slot (SD/SDHC/SDXC/UHS I, Class 10) ­
*UHS II card type is not supported.­

Connectors
TV-Out BNC connector

LED Indicator 2 LEDs: Power, Status

General

Start-up
Environment
Temperature
Operation
-20°C ~ 60°C (-4°F ~ 140°F)
Humidity 10% to 90% (no condensation)

Power Source 12V DC / PoE (IEEE 802.3af)

Max. Power Consumption 8.64 W

Dimension Ø160 x 108.4 mm (6.2” x 4.27”)

Weight 1.15 kg (2.54 lb)

Ingress Protection IP67

Vandal Resistance IK10 for metal casing

Regulatory CE, FCC, RCM, LVD, RoHS compliant

Power over Ethernet

PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)

PoE Power Supply Type End-Span, Mid-Span

PoE Power Output Per Port 48V DC, 350 mA. Max. 15.4 watts

Web Interface

Installation Management Web-based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control,
Image Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text
Overlay, Digital PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German /
Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian
/ Persian / Polish/ Portuguese / Romanian / Russian / Serbian / Simplified Chinese /
Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

Software Supported
GV-DVR / NVR (V8.7.1.0), GV-VMS (V15.11.3.0), GV-Control Center (V3.4.0.0),
GV-Edge Recording Manager (V1.2.0.0), GV-Center V2 (V15.10.0.0), GV-Recording
Server / Video Gateway (V1.3.0.0), GV-Redundant / Failover Server (V1.1.0.0)

Smart Device Access GV-Eye for iOS and Android

Live Viewing Browser (IE, Chrome, Firefox, Safari), Mobile app

CMS Server support GV-Control Center , GV-Center V2, GV-Vital Sign Monitor

GV-VD2712 May 3, 2018
- 3 -


Note:
1. It is required to apply patch files to all the supported software mentioned above.
2. The signal range and data throughput may vary depending on the network conditions and environmental factors.
3. Specifications are subject to change without prior notice.

Packing List
1. H.265 Vandal Proof Dome
2. Screw x 4
3. Screw Anchor x 4
4. TV Out Wire­
5. Audio Wire x 2
6. I/O Cable
7. Installation Sticker
8. Conduit Converter
9. PG21 Conduit Connector
10. RJ45 Connector­
11. Waterproof Rubber Sets
(for RJ-45 Cat.5 and DC 12V / for RJ-45 Cat.6)
12. Torx Wrench
13. Big Concave Hexagon Wrench
14. Small Concave Hexagon Wrench
15. Silica Gel Bag
16. Sticker (for Silica Gel Bag)
17. Ruler
18. Download Guide
19. Warranty Card
Note: Power adapters can be purchased upon request.

Accessories
Model No. Name Details

GV-Mount100 Straight Tube and
Junction Box Kit


Dimensions: 200 x 170 x 257.5 mm (7.9” x 6.7” x
10.1”)
Weight: 3.17 kg (6.99 lb)

GV-Mount101 Straight Tube Kit


Dimensions: 219 x 125 x 332 mm (8.6” x 4.9” x
13.1”)
Weight: 1.8 kg (3.97 lb)

GV-Mount200 Wall Pendant Tube


Dimensions: 200 x 140 x 249 mm (7.9” x 5.5” x
9.8”)
Weight: 0.93 kg (2.05 lb)

GV-Mount203 Wall Pendant Tube and
Junction Box Kit


Dimensions: 315 x 195.5 x 225 mm (12.4” x 7.7” x
8.9”)
Weight: 2.95 kg (6.5 lb)

GV-Mount206 Wall Mount Bracket Kit


Dimensions: 126.5 x 211.3 x Ø 176.85 mm (5” x
8.3” x Ø 6.96’’)
Weight: 0.93 kg (2.06 lb)

GV-VD2712 May 3, 2018
- 4 -


Model No. Name Details

GV-Mount300 Convex Corner
Adapter Kit

Dimensions: 238.6 x 409.5 mm (9.4” x 16.1”)
Weight: 4.27 kg (9.41 lb)

GV-Mount310 Concave Corner
Adapter Kit

Dimensions: 123.3 x 393.1 mm (4.9” x 15.5”)
Weight: 2.96 kg (6.53 lb)

GV-Mount400 Pole Mount Bracket
Kit (Ø 4” ~ 6”)


Bracket: 241 x 161 mm (9.5” x 6.3”)
Weight: 1.70 kg ( 3.75 lb)
Steel Strap Diameter: Ø 4” ~ 6”

GV-Mount410 Pole Mount Bracket Kit
(Ø 6” ~ 7.5”)


Bracket: 241 x 161 mm (9.5” x 6.3”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6” ~ 7.5”

GV-Mount702 Extension Tube
Four options are available.
Dimensions:
Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1” x 3.9” or 7.9” or 11.8” or 19.7”)
Weight:
180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)

GV-Mount903 GV-VD Series Dome
Housing




Dimensions: Ø 185.51 x 165.35 mm (Ø 7.3” x
6.51”)
Weight: 714 g (1.57 lb)

GV-Mount916 In-Ceiling Mount


Dimensions: Ø 205 x 63.8 mm (Ø 8” x 2.5”)
Weight: 645 g (1.42 lb)


Metal PG21 Conduit Connector


The metal PG21 conduit connector allows you to
run the wires through a 3/4” conduit pipe.

GV-VD2712 May 3, 2018
- 5 -


Model No. Name Details

GV-PA191 PoE Adapter


Dimensions (H x W x D): 43 x 69 x 40 mm (1.69” x
2.72” x 1.57”)
Weight: 130 g (0.29 lb)

GV-Relay V2 GV-Relay V2

The GV-Relay V2 is designed to expand the
voltage load of GV IP devices. It provides 4 relay
outputs, and each can be set as normally open
(NO) or normally closed (NC) independently as
per your requirement.

GV-PoE Switch
The GV-PoE Switch is designed to provide power along with network

connection for IP devices. The GV-PoE Switch is available in various models

with different numbers and types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.
