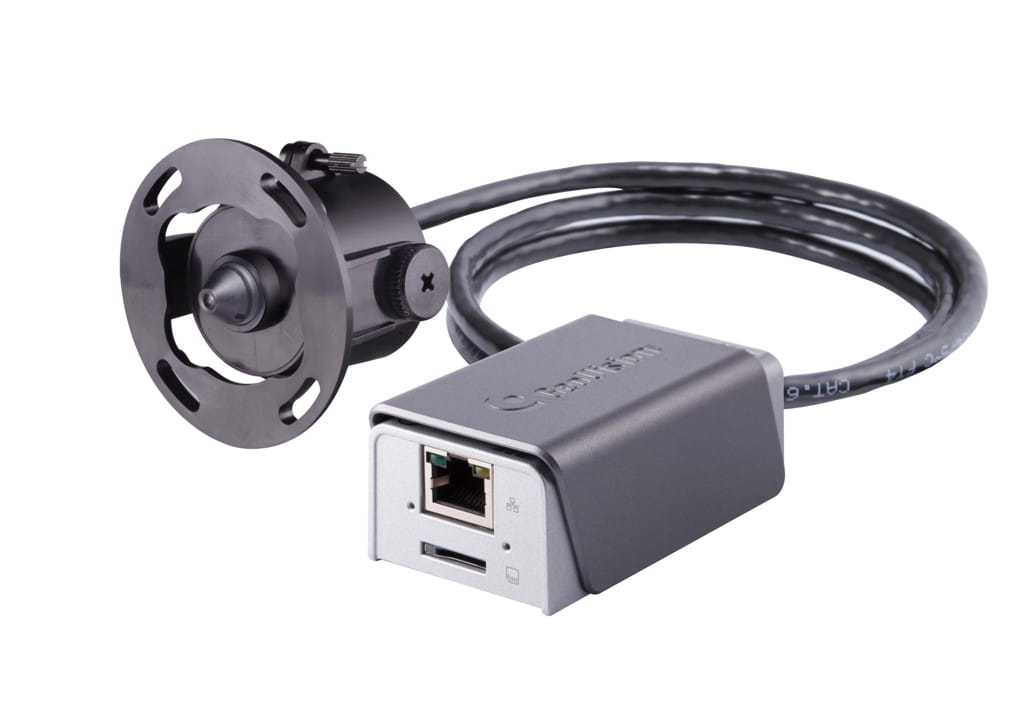

GV-UNP2500

Kamera IP dyskretna typu pinhole, 2.0M-30 kl./s, H.264, WDR, PoE, SDXC, 3.7mm, super-czuła 0.02lx, produkt wyprzedawany...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: GV-UNFE2503

Kod produktu zamiennego: 84-UNFE250-3010

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-UNP2500 January 4, 2018
- 1 -
GV-UNP2500 2MP H.264 Super Low Lux WDR Pinhole Camera



• 1/2.8" progressive scan super low lux CMOS
• Minimum illumination at 0.02 lux
• Dual streams from H.264 and MJPEG
• Up to 3 0 fps at 192 0 x 1 080
• Megapixel lens
• Day and night function (electronic)
• Built -in micro SD card slot (SD/SDHC) for local storage
• Recording assigned by GV -Edge Recording Manager (Windows &
Mac)
• One -way audio
• 3D DNR (Digital Noise Reduction )
• Wide Dynamic Range (WDR)
• Defog
• Motion detection
• Tampering alarm
• Privacy mask
• Text overlay
• IP address filtering
• PoE (IEEE 802.3af)
• Supports iPhone, iPad, Android & 3GPP
• 31 languages on Web interface
• ONVIF (Profile S) conformant
• More storage option - NAS
* No Memory card slot & local storage function for Argentina.

Introduction
The GV-UNP250 0 pinhole camera offers a n option for clandestine surveillance . The compact camera lens can be installed in
surveillance sites with limited space such as behind the panel of ATM machine s The camera is also ideal for locations where discreet
surveillance is desirable, such as at the banks, hotels, museums, stores, and offices . The camera is equipped with 1/2.8" progressive
scan super low lux CMOS, with a day and night electronic lens to provide a clear view anytime of a day.

Active Tampering Alarm
Tampered Focus Change Camera Shift





GV-UNP2500 January 4, 2018
- 2 -
Dimensions
 Main Body



 Camera Lens



















GV-UNP2500 January 4, 2018
- 3 -
Specifications
Camera
Image Sensor 1/2.8" progressive scan super low lux CMOS
Picture Elements 1920 (H) x 1080 (V)
Minimum
Illumination
Color
0.02 Lux
B/W
Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec.)
White Balance Automatic, Manual (2800K ~ 8500K)
Gain Control Automatic
S/N Ratio 52 dB
WDR Yes
Lens
Megapixel Yes
Day/Night Yes (Electronic)
Iris Fixed
Focal Length 3.7 mm
Maximum Aperture F/2.8
Mount M12
Image Format 1/2.7"
Horizontal FOV 84°
Operation
Focus Fixed
Zoom Fixed
Iris Fixed
Operation
Video Compression H.264, MJPEG
Video Streaming Dual streams from H.264 and MJPEG
Frame Rate
30 fps at 1920 x 1080 (60/50 Hz)
* The frame rate and the performance may vary depending on the number of connections
and data bitrates (different scenes).
Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image
Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR, Defog,
Denoise, Metering
Audio Compression AAC 32K
Audio Support One-Way Audio
Sensor Input No
Alarm Output No
Video Resolution
Main Stream
4:3 1600 x 1200, 1280 x 960
16:9 1920 x 1080 (Default), 1280 x 720
5:4 1280 x 1024
Sub Stream
4:3 640 x 480, 320 x 240
16:9 640 x 360, 448 x 252 (Default)
5:4 640 x 512, 320 x 256
Network
Interface 10/100M Ethernet
Ethernet Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), QoS (DSCP), RTSP, SNMP, SMTP,
TCP, UDP, UPnP, 3GPP/ISMA
Mechanical
Temperature Detector Yes
Camera Angle
Adjustment
Rotate 0° ~ 360°



GV-UNP2500 January 4, 2018
- 4 -

Connectors
Power PoE (IEEE 802.3af)
Ethernet RJ-45
Audio 1 In (built-in microphone)
Local Storage
Micro SD card slot (SD/SDHC, SD version 2.0 only, Class 10)
* SDXC and UHS-I card types are not supported.
Camera Unit
Connect
RJ - 12
LED Indicator 4 LEDs: Link, ACT, Camera Status, RJ-12 Status
General
Environment Temperature -5 °C ~50 °C (23 °F ~ 122 °F)
Humidity 10% to 90% (no condensation)
Power Source PoE (IEEE 802.3af)
Max. Power Consumption 4.8 W
Dimension
Main Body 78.5 x 47.36 x 32.5 mm (3.09" x 1.86" x 1.28")
Camera Lens Ø 59.93 x 50.14 mm (2.36" x 1.97")
Cable Length 1 m (3.28 ft), 10 m (32.8 ft, optional)
Weight (with main body mount) 210 g (0.46 lb)
Regulatory CE, FCC, RCM, RoHS compliant
Power over Ethernet
PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)
PoE Power Supply Type End-Span and Mid-Span
PoE Power Output Per Port 48V DC, 350mA. Max. 15.4 watts
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm,
Text Overlay, Digital PTZ
Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian /
Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
Applications
Network Storage GV-VMS / DVR / NVR, GV-Backup Center, GV-Recording Server, and GV-VMS
Smart Device Access GV-Eye for iOS and Android
Live Viewing IE, mobile phone
CMS Server support GV-Control Center, GV-Center V2, GV-Vital Sign Monitor
Note:
1. Mind the following when using an inserted memory card for recording:
• Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock,
power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No guarantee is
provided for such causes.
• The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if you
seldom access the memory card.
• Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
• To avoid power outage, it is highly suggested to apply a battery backup (UPS).
• For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
• Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
2. Specifications are subject to change without notice.



GV-UNP2500 January 4, 2018
- 5 -

Packing List
1. Pinhole Camera
2. 1 m (3.28 ft) RJ-12 Cable
3. RJ12 connector
4. Camera Adhesive Tape x 2
5. Installation Sticker
6. Main Body Mount
7. Main Body Adhesive Tape
8. M3 Screw x 2
9. M2 Screw
10. GV-IPCAM Quick Start Guide
11. GV-NVR Quick Start Guide
12. Download Guide
13. Warranty Card

Accessories
Model No. Details
GV-PA191 PoE Adapter
The GV -PA191 PoE adapter is designed to provide power and network connection to the
cameras over a single Ethernet cable.
GV-PoE Switch

The GV - P oE Switch is designed to provide power along with network connection for IP
devices. The GV - P oE Switch is available in various models with different numbers and
types of ports.
1 0 m (32 .8 ft) RJ - 12 Cable
A 1 0 m (32.8 ft) RJ -12 Cable can be purchased to connect the camera lens and the main
body.
