GV-TDR4803-2F
towar niedostępny
dodaj do przechowalniOpis

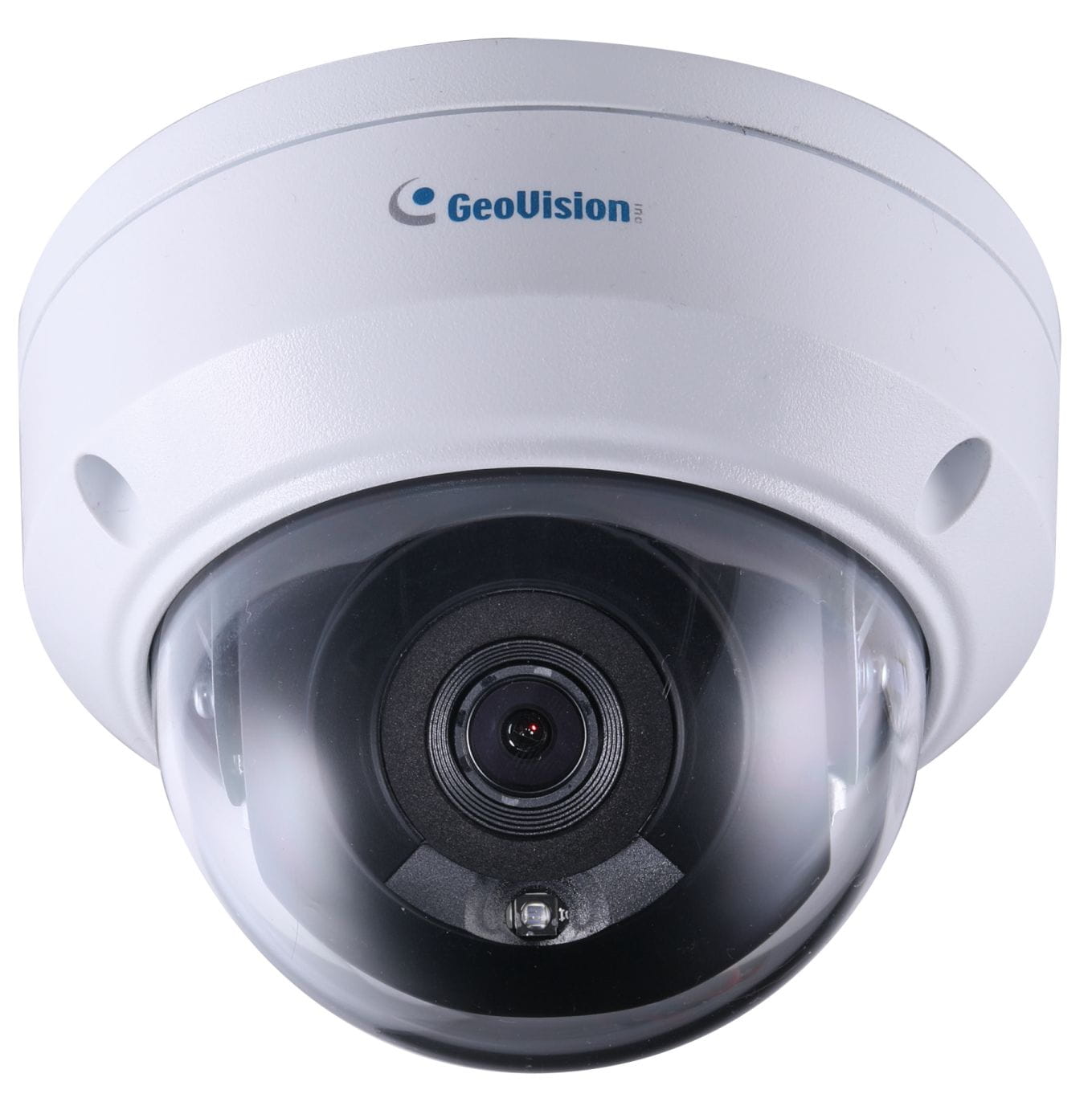

Kamera IP mini-kopułkowa IP67 wandaloodporna IK10, oświetlacz 30m, 4.0M-30 kl./s, H.265, WDR PRO, PoE, SDXC, 2.8mm, 3-axis, super-czuła 0.003lx, AI...
Gwarancja: 24 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
GV-TDR4803
- 1 -
GV-TDR4803 AI 4MP H.265 Super Low Lux WDR Pro IR Mini Fixed Rugged IP
Dome
• AI deep learning: AI Perimeter Protection & Classification
(Human, Vehicle)
• 1/3" progressive scan super low lux CMOS sensor
• Min. illumination at 0.003 lux
• Triple streams from H.265, H.264 or MJPEG
• Wide Dynamic Range Pro (WDR Pro)
• Up to 30 fps at 2688 x 1520
• Intelligent IR
• Day and night function (with removable IR-cut filter)
• IR distance up to 30 m (100 ft)
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class
10) for local storage
• 3-axis mechanism (pan / tilt / rotate)
• Ingress protection (IP67)
• Vandal Resistance (IK10)
• Two-way audio
• DC 12V / PoE (IEEE 802.3af)
• ONVIF (Profile G, S, T) conformant
Introduction
GV-TDR4803 is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night
surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at
reduced network bandwidths. The camera adheres to IP67 and IK10 standards, and can be powered through PoE.
Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated
with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.
Models
Model Iris Focal Length (mm) Horizontal FOV Maximum Aperture Image Format
GV-TDR4803-2F
Fixed
2.8 mm 101°
F/1.6 1/3”
GV-TDR4803-4F 4 mm 83.7°
Deep Learning Function
Face Detection
AI Perimeter Protection AI Event Search
(Intrusion, Crossing Line (VMS V18.3 or later)
Entering Area, Leaving Area)
Note: The integration of AI events of the camera to GV-VMS is coming soon.
GV-TDR4803
- 2 -
Dimensions
Specifications
Camera
Image Sensor 1/3" progressive scan super low lux CMOS
Picture Elements 2688 (H) x 1520 (V)
Minimum
Illumination
Color 0.003 Lux (F1.6, AGC ON)
IR ON 0 Lux
Shutter Speed Auto / Manual (1 ~ 1/100000 sec)
White Balance Automatic, Manual
Gain Control Automatic, Manual
S/N Ratio 56 dB
WDR Pro Yes
Dynamic Range 120 dB
Lens GV-TDR4803-2F GV-TDR4803-4F
Megapixel 4M
Day / Night Yes (with removable IR-cut filter)
Lens Type Fixed
Focal Length 2.8 mm 4 mm
Maximum Aperture F/1.6
Mount M12
Horizontal FOV 101° 83.7°
Operation
Focus Fixed
Zoom Fixed
Iris Fixed
IR LED Quantity 1 IR LED
Max. IR Distance 30 m (100 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Streaming Triple streams from H.265, H.264 or MJPEG
Frame Rate
30 fps at 2688 x 1520, 30 fps at 2560 x 1440, 30 fps at 2304 x 1296, 30 fps at 1920 x 1080
(60 / 50 Hz)
* The frame rate and performance may vary depending on the number of connections and
data bitrates (different scenes).
Video Analytics
Motion Detection, Tampering Alarm, Audio Detection
*Tampering alarm and audio detection are only accessible through the camera’s Web
interface, which can be used to trigger alerts such as e-mail and FTP
Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation (Flip, Mirror,
90°, 180°)
Audio Compression G.711
Audio Support Two-way Audio (external microphone and speaker required)
Digital I/O
Input 1 Input, dry contact, NO / NC
Output 1 Relay Output (1A 30V DC / 0.3A 125V AC)
GV-TDR4803
- 3 -
Face Detection
Environment 100 lux
Detectable face
angle
Tilt (Up/Down) ≤ 10°
Swing
(Left/Right
≤ 30°
Max. number of faces Up to 40
Min. face image pixel requirement 80 pixels
Deep Learning Function
AI Analytics
Intrusion, Crossing Line, Entering Area, Face Detection, Leaving Area (Human & Vehicle
classification), People Flow Counting, Crowd Density Monitoring
Network
Interface 10/100 Base-TX Ethernet
Protocol
802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE,
QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)
Video Resolution
Main Stream 2688 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720
Sub Stream 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 640 x 480, 352 x 288
Third Stream (Closed by Default) 720 x 576, 704 x 288, 640 x 360, 352 x 288
Mechanical
Temperature Detector No
Camera Angle
Adjustment
Pan 3° ~ 360°
Tilt 0° ~ 68°
Rotate 3° ~ 360°
Connectors
Power DC Jack (DC 12 V, 1.25 A), PoE
Ethernet RJ-45 connector
Audio
1 in (Audio In Wire); 1 out (Audio Out Wire)
*The Audio In port only support microphones with power supply.
Digital I/O I/O wires
Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10)
*UHS-II card type is not supported.
General
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Humidity 0% ~ 95% (no condensation)
Power Source 12 V DC / PoE (IEEE802.3af)
Max. Power Consumption 4.5 W
Dimensions Ø 108.7 x 81.1 mm (Ø4.3” x 3.2”)
Weight 0.42 kg (0.93 lb)
Ingress Protection IP67
Vandal Resistant IK10
Regulatory FCC, CE, RoHS compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or GV-IP Device Utility (V8.7.2.1)
Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot,
Defog, Text Overlay, Image Masking
Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian,
Spanish, Traditional Chinese
Applications
Software Supported
GV‐VMS (V17.4.2 / V18.2.1), GV‐DVR / NVR (V8.9.1), GV‐Control Center (V3.8.0),
GV‐Recording Server / Video Gateway (V2.0.0), GV‐Edge Recording Manager Win version
(V2.0.0), GV‐Redundant / Failover Server (V1.2.0), GV-Mobile Server (V1.5.1)
Smart Device Access GV-Eye for iOS and Android
Live Viewing Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App
GV-TDR4803
- 4 -
Note:
1. Patch files are required for some supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.
Packing List
1. GV-TDR4803 Mini Dome
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Torx Wrench
6. Download Guide
Accessories
Model No. Name Details
GV-Mount107 (must be
used with GV-Mount213)
Pendant Bracket
Dimensions: Ø 120 x 334 mm
(Ø 4.72” x 13.15”)
Weight: 0.74 kg (1.63 lb)
GV-Mount211P Wall Mount and Junction
Box
Dimensions: Ø 233 x 126 x 126 mm
(Ø 9.2” x 5” x 5”)
Weight: 1 kg (2.2 lb)
GV-Mount213 Wall / Ceiling Box Mount
Dimensions: Ø 109 x 39 mm (Ø 4.3” x 1.5”)
Weight: 0.2 kg (0.44 lb)
GV-Mount300-2 Convex Corner Mount
Dimensions: 137 x 233 x 160 mm
(5.4” x 9.17” x 6.3”)
Weight: 1.65 kg (3.64 lb)
GV-Mount310-2 Concave Corner Mount
Dimensions: 111.2 x 369.9 x 210 mm
(2.6” x 11.4” x 6.6”)
Weight: 1.65 kg (3.64 lb)
GV-Mount420
(must be used with
GV-Mount211P)
Pole Mount Bracket
Dimensions: Ø 120 x 120 x 53.4 mm
(Ø 4.7” x 4.7” x 2.1”)
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Ø 67 ~ 127 mm
(Ø 2.6” ~ 5”)
GV-Mount704 (must be
used with GV-Mount107)
Extension Tube
Dimensions: Ø 3.5 x 10 or 20 or 30 or 50 cm
(Ø 1.38” x 3.9” or 7.9” or 11.8” or 19.7”)
Weight: 225 g or 360 g or 500 g or 780 g
(0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb)
GV-PA191 Power over Ethernet
(PoE) Adapter
The GV-PA191 is a Power over Ethernet
(PoE) adapter designed to provide power to
the IP device through a single Ethernet
cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network
connection for IP devices. The GV-POE Switch is available in various models
with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
Dane techniczne
Wejścia alarmowe | 1 |
Wyjścia alarmowe | 1 |
Wyjście audio | 1 |
Wejście audio | 1 |
Rozmiar przetwornika | 1/3 |
Zasilanie PoE | PoE 802.3af 15.4W |
Zasilanie DC | 12VDC |
Szczelność | IP67 |
Odporność mechaniczna | IK10 |
Rozdzielczość wizyjna | 4MPIX |
Typ kamery | Dome, Kopułkowa |
Oświetlacz podczerwieni | ± 30 m |
Zakres dynamiki (WDR) | WDR 120dB |
Typ obiektywu | Stałoogniskowy |
Stała ogniskowa | ± 2.8 mm |
Slot na karty | Tak |
