GV-TBL4810

Dostępność: 101-500
Cena: 1 591,55 zł 1591.55 (368,03 €)
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: GEOVISION
Kod produktu: 84-TBL480W-0010

Opis

Kamera IP typu mini-bullet, IP67 wandaloodporna IK10, oświetlacz 50m, 4.0M-30 kl./s, H.265, WDR PRO, PoE, SDXC, 2.7~13.5mm P-iris, super-czuła 0.002lx, moto-zoom 5x, AI, NDAA...

Gwarancja: 24 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

GV-TBL4810 November 23, 2021
- 1 -

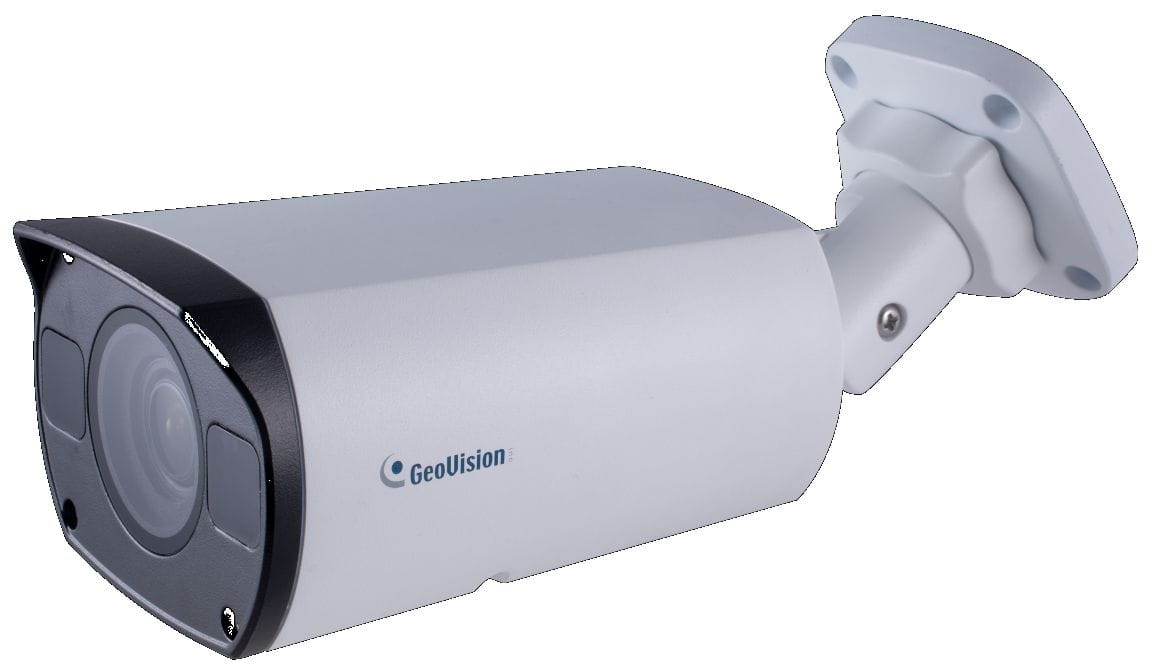

GV-TBL4810 AI 4MP H.265 5x Zoom Super Low Lux WDR Pro IR Bullet IP Camera








• AI deep learning: AI Perimeter Protection & Classification
(Human, Vehicle)
• 1/3" progressive scan super low lux CMOS sensor
• Min. illumination at 0.002 lux
• Triple streams from H.265, H.264 or MJPEG
• Wide Dynamic Range Pro (WDR Pro)
• Up to 30 fps at 2688 x 1520
• Motorized lens for remote focus / zoom adjustment
• Intelligent IR
• IR distance up to 50 m (165 ft)
• Day and night function (with removable IR-cut filter)
• Vandal Resistance (IK10 for metal casing)
• Ingress protection (IP67)
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10)
for local storage
• Two-way audio
• DC 12V / PoE (IEEE 802.3af)
• ONVIF (Profile G, S, T) conformant

Introduction
GV-TBL4810 is an outdoor, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The
camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network
bandwidths. The camera adheres to IK10 and IP67 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated
with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

Deep Learning Function

Face Detection


AI Perimeter Protection AI Event Search
(Intrusion, Crossing Line (VMS V18.3 or later)
Entering Area, Leaving Area)








Note: The integration of AI events of the camera to GV-VMS is coming soon.










GV-TBL4810 November 23, 2021
- 2 -
Dimensions


Specifications
Camera
Image Sensor 1/3" progressive scan super low lux CMOS
Picture Elements 2688 (H) x 1520 (V)
Minimum
Illumination
Color 0.002 Lux (F1.2, AGC ON)
IR On 0 Lux
Shutter Speed Auto / Manual (1 ~ 1/100000 sec)
White Balance Automatic, Manual
Gain Control Automatic, Manual
S/N Ratio 56 dB
WDR Pro Yes
Dynamic Range 120 dB
Lens
Megapixel 4 MP
Day / Night Yes (with removable IR-cut filter)
Lens Type Motorized varifocal lens
Focal Length 2.7 ~ 13.5mm
Maximum Aperture F/1.2
Mount Ø14 mm
Horizontal FOV 98°~31°
Operation
Focus Auto / Manual
Zoom 5x Optical Zoom
Iris Fixed
IR LED Quantity 3 IR LEDs
Max. IR Distance 50 m (165 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Streaming Triple streams
Frame Rate
30 fps at 2688 x 1520, 30 fps at 2560 x 1440, 30 fps at 2304 x1296 (60 / 50 Hz)
* The frame rate and performance may vary depending on the number of connections
and data bitrates (different scenes).
Video Analytics
Motion Detection, Tampering Alarm, Audio Detection.
*Tampering alarm and audio detection are only accessible through the camera’s Web
interface, which can be used to trigger alerts such as e-mail and FTP
Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image
Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format).
Audio Compression G.711
Audio Support Two‐way Audio (external microphone and speaker required)
Digital I/O
Input 1 Input, dry contact, NO / NC
Output 1 Relay Output (1A 30V DC / 0.3A 125V AC)
Face Detection
Environment 100 lux
Detectable
face angle
Tilt (Up/Down) ≤ 10°
Swing (Left/Right ≤ 30°


GV-TBL4810 November 23, 2021
- 3 -
Max. number of faces Up to 40
Min. face image pixel requirement 80 pixels
Deep Learning Function
AI Analytics
Intrusion, Crossing Line, Entering Area, Face Detection, Leaving Area (Human & Vehicle
classification), People Flow Counting, Crow Density Monitoring
Video Resolution
Main Stream 2688 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720
Sub Stream 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 640 x 480, 352 x 288
Third Stream (Closed by Default) 720 x 576, 704 x 288, 640 x 360,352 x 288
Network
Interface 10/100 Ethernet
Protocol
802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP,
PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T),
Mechanical
Camera Angle
Adjustment
Pan 0 ~ 360°
Tilt 0 ~ 90°
Rotate 0 ~ 360°
Connectors
Power DC Jack, PoE
Ethernet RJ-45
Audio
1 in (Audio In Wire); 1 out (Audio Out Wire)
*The Audio In port only supports microphones with power supply
Digital I/O 4-pin terminal block pitch 3.5 mm (0.14”)
Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10)
* UHS-II card type is not supported.
General
Operating Temperature -30 ~ 60°C (-22 ~ 140°F)
Humidity 0 ~ 95% (no condensation)
Power Source 12 V DC / PoE (IEEE802.3af)
Max. Power Consumption 8.5W
Dimensions 244 x 96 x74 mm (9.6” x 3.8” x 2.9”)
Weight 1.0 kg (2.2 lb)
Ingress Protection IP67
Vandal Resistance IK10 for metal casing
Regulatory FCC, CE, RoHS compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Text Overlay, Image Masking
Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,
Russian, Spanish, Traditional Chinese
Applications
Software Supported
GV‐VMS (V17.4.2 / V18.2.1), GV‐DVR / NVR (V8.9.1), GV‐Control Center (V3.8.0),
GV‐Recording Server / Video Gateway (V2.0.0), GV‐Edge Recording Manager Win
version (V2.0.0), GV‐Redundant / Failover Server (V1.2.0), GV-Mobile Server (V1.5.1)
Smart Device Access GV-Eye for iOS and Android
Live Viewing Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App
Note:
1. Patch files are required for some supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.

Packing List
1. GV-TBL4810 Bullet
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Download Guide




GV-TBL4810 November 23, 2021
- 4 -
Accessories
Model No. Name Details
GV-Mount300-2 Convex Corner Mount


Dimensions: 137 x 233 x 160 mm
(5.4” x 9.17” x 6.3”)
Weight: 1.65 kg (3.64 lb)
GV-Mount310-2 Concave Corner Mount


Dimensions: 111.2 x 369.9 x 210 mm
(2.6” x 11.4” x 6.6”)
Weight: 1.65 kg (3.64 lb)
GV-Mount420
(must be used with
GV-Mount503)
Pole Mount Bracket



Dimensions: Ø 120 x 120 x 53.4 mm
(Ø 4.7” x 4.7” x 2.1”)
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Ø 67 ~ 127 mm (Ø 2.6” ~ 5”)
GV-Mount503 Wall Mount Bracket


Dimensions: 125 x 125 x 55 mm (4.9” x 4.9” x 2.2”)
Weight: 0.74 kg (1.63 lb)
GV-PA191 Power over Ethernet (PoE)
Adapter


GV-PA191 is a Power over Ethernet (PoE) adapter
designed to provide power to the IP device
through a single Ethernet cable.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection
for IP devices. The GV-POE Switch is available in various models with different
numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Dane techniczne

Wejścia alarmowe 1
Wyjścia alarmowe 1
Wyjście audio 1
Wejście audio 1
Rozmiar przetwornika 1/3
Zasilanie PoE PoE 802.3af 15.4W
Zasilanie DC 12VDC
Szczelność IP67
Odporność mechaniczna IK10
Rozdzielczość wizyjna 4MPIX
Typ kamery Bullet, Tulejowa, Tubowa
Oświetlacz podczerwieni ± 50 m
Zakres dynamiki (WDR) WDR 120dB
Typ obiektywu Zmiennoogniskowy motozoom
Zmienna ogniskowa (od) ± 2.8 mm
Zmienna ogniskowa (do) ± 12 mm
Slot na karty Tak
