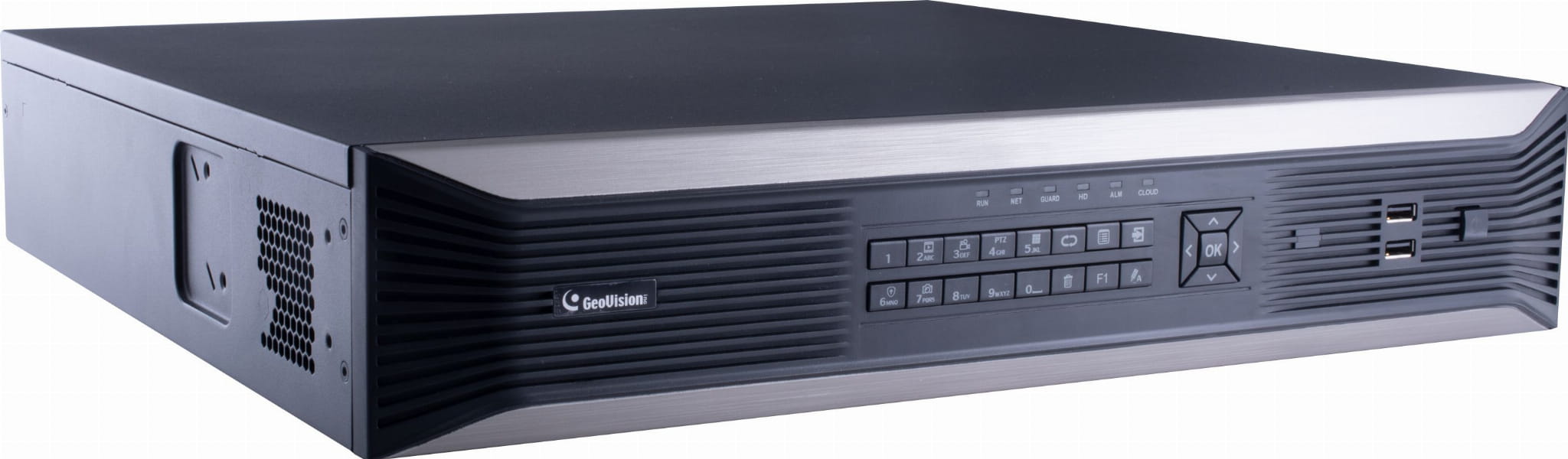

GV-SNVR6403

Rejestrator wideo/audio dla 64 kamer IP z serii GV (NVRGV), 8xHDD, HDMI(4K), HDMI(1080p), VGA(1080p)...

Gwarancja: 24 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-SNVR6403 October 21, 2022
- 1 -
GV-SNVR6403



Introduction
GV-SNVR6403 is a standalone network video recorder with Linux embedded that records video files directly to the internal hard drive
and supports up to 64 IP camera channels for video surveillance. Thanks to its up to 4K resolution video output, GV-SNVR6403
eliminates the need of a separate PC to view and play back video from the unit. It has USB ports that can be used to import or export
system settings, update firmware, store snapshot files and back up videos.





















Features
⚫ 64-channel video recording
⚫ Up to 4000 x 3000 resolution for each channel
⚫ Dual stream support
⚫ Triple display from 3 video outputs: One 4K (HDMI), 2
1080p (HDMI / VGA)
⚫ 8 SATA HDD drawers (3.5") for up to 80 TB storage
⚫ Two-way audio
⚫ 16 sensor inputs and 4 alarm outputs
⚫ Automatic search and setup for IP cameras
⚫ Support for third-party IP cameras through ONVIF and
RTSP protocol
⚫ Continuous, motion, alarm and scheduled recordings
⚫ Timeline playback
⚫ Multi-channel playback
⚫ Display of HDD status and temperature
⚫ DST (Daylight Saving Time) support
⚫ NTP (Network Time Protocol) support
⚫ GeoVision DDNS server support
⚫ E-mail notifications for recording error
⚫ Recording export
⚫ Remote live view through Web browser
⚫ Smart device access (iOS and Android)
⚫ Support for 12 languages

Video Source
H.264 / H.265
GV-IP Camera

GV-SNVR6403
Remote Access

Web Browsers
GV-Software

Live View
·GV-ASManager (V6.0.2 or later)
Live View & Playback
·GV-Control Center (V4.2.0 or later)
·GV-Edge Recording Manager
(V2.3.0 or later)
Video Ouput through HDMI / VGA

3
rd
Party Camera
(ONVIF)
Monitoring resolution in
FHD or 4K

GV-Eye
iOS/Andriod
(V3.0.0 or later)




GV-SNVR6403 October 21, 2022
- 2 -
Specifications
Hardware
System
OS Embedded Linux
No. of Drive Bay 8 (3.5" HDD), up to 80 TB
Power Source Input: AC 100 ~ 240V, 50 ~ 60 Hz
Connectors
Gigabit Ethernet 2 ports, RJ-45 10/100/1000 Mbps
Video Output HDMI output ports x 2, VGA output port x 1
Audio RCA, Audio In/Out
USB Front: USB 2.0 x 2 ports, Rear: USB 3.0 x 1 port
RS-485 Not functional
I/O 16 inputs, 4 outputs
LED Indicators 6 LEDs: RUN, NET, GUARD, HD, ALM, CLOUD (not functional)
Operating Temperature -10°C ~ 55°C (14°F ~ 131°F)
Humidity 0% ~ 90% RH (non-condensing)
Dimensions (L x W x H) 442 mm x 426 mm x 89 mm (17.4" x 16.8"x 3.5")
Net Weight 5.7 kg (12.57 lb)
Regulatory FCC, CE, BSMI, RoHS compliant
Video and Audio
Video Compression H.264, H.265
Video Stream Dual streams from H.264, H265
Video Output 4K (HDMI), 1080p (HDMI / VGA)
Local Viewing
Corridor Mode 3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 / 32
Multi-Window 4 / 6 / 8 / 9 / 16 / 25 / 36 / 64
Audio Compression G.711
Audio Support Yes
Two-Way Audio Yes
Playback Max. 16-ch playback
Disk Array
Array Type RAID 0, 1, 5, 6, 10
Interface
Monitors
VGA Output
1 port (1920 x 1080p / 60 Hz, 1920 x 1080p / 50 Hz, 1600 x 1200 / 60 Hz, 1280 x 1024 / 60
Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz)
HDMI Output
2 ports (3840 x 2160 /30 Hz, 1920 x 1080p / 60 Hz, 1920 x 1080p / 50 Hz, 1600 x 1200 / 60
Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz)
*HDMI audio output is not supported
Operation
Recording
Bandwidth
Input Max. 384 Mbps
Output Max. 384 Mbps
Live View & Playback
Decoding Capability
Up to 12 MP at 30 fps x 2-ch,
Up to 8 MP at 30 fps x 4-ch,
Up to 5 MP at 30 fps x 6-ch,
Up to 4 MP at 30 fps x 8-ch,
Up to 4 MP at 25 fps x 9-ch,
Up to 1080P at 30 fps x 16-ch,
Up to 960P at 25 fps x 32-ch,
Up to 720P at 30 fps x 36-ch,
Up to D1 x 64-ch
*When connected to more than one monitor, live view images for multiple windows will
automatically be converted to sub streams.
Recording Mode
Normal, Motion Detection, Alarm Input, Alarm Output, Manual Alarm, Audio Detection
Recording, Schedule Recording, Event recording, Snapshot, Manual recording
Pre Recording 0 ~ 60 sec. / Default 10 sec.
Post Recording 5 ~ 600 sec. / Default 60 sec.
Instant Playback 5 minutes and 30 seconds
Backup Type USB flash drive of FAT32 or NTFS format
Playback Function
Fast forward / backward (2x, 4x, 8x, 16x)
Slow forward (1/2x, 1/4x, 1/8x,)


GV-SNVR6403 October 21, 2022
- 3 -
Video Analytics Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind
AI Integrated Function
AI Analytics
Intrusion Detection, Cross Line Detection, Enter Area, Face Detection, Leave Area (Human
classification), Auto Tracking, People Flow Counting, Crowd Density Monitoring
*These functions are only applicable when the NVR is connected to AI-capable IP cameras
listed in Compatible GV-AI Capable IP Cameras below.
Management
Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian,
Spanish, Traditional Chinese
Firmware upgrade Upgrade through Web
Web Browser
IE 10 or above
Firefox V52 or above
Google Chrome V45 or above
Edge V79 or above
Network
Protocol
802.1x, ARP, HTTPS, DHCP, IPv4, PPPoE, DDNS, FTP, HTTP, RTSP, UPnP, SMTP, SNMP, DNS,
ICMP, IGMP, NTP, QoS, RTCP, RTSP, RTP, TCP, UDP
System Monitoring and Recovery
Power Restoration Automatic restart after power outage
Remote Viewing
Multi-Window 1 / 4 / 6 / 8 / 9 / 10 / 13 / 16 / 25 / 36 / 64
Monitoring Environment IE browser, non-IE bowsers (Chrome, Edge Firefox, Safari), Mobile app
Access from Web Browsers Live View, Image Snapshot, Playback, Digital PTZ, System Configurations
Applications
Software Supported
GV-Control Center (V4.2.0 or later), GV-Edge Recording Manager Windows Version (V2.3.0 or
later), GV-ASManager (coming soon)
Smart Device Access GV-Eye for iOS and Android (V3.0.0 or later)

Note:
1. Fisheye dewarping is only supported by GV-FER5702.
2. Camera connection is not supported by GV-TMEB5800.
3. Product design and specifications are subject to change without notice.

Accessories
GV-POE Switch
GV-POE Switch is designed to provide power along with network connection for IP devices. It is
available in various models with different numbers and types of ports.

Compatible GV-AI Capable IP Cameras
* GV-BLFC5800, EBD4813, EBFC5800, TBL4810, TDR4803, TFD4800, TVD4810: Firmware V1.04 or later
* GV-EBD8813, EBD8800, TBL8804, TBL8810, TDR8805, TVD8810: Firmware V1.05 or later
* GV-SD4825-IR, SD4834-IR: Firmware V1.02 or later
* GV-PTZ5810-IR: Firmware V1.01 or later


Recommended Hard Disks
GV-SNVR6403 supports 8 SATA HDD (3.5") with up to 80 TB of storage capacity. For system efficiency, it is recommended to use
enterprise-level hard disk drives instead of desktop-level or green HDD.
Note: GV-SNVR6403 does not support 2.5" SATA HDD.




GV-SNVR6403 October 21, 2022
- 4 -
Overview
Back Panel



Dimensions



Packing List
1. GV-SNVR6403
2. SATA cable x 8
3. USB mouse
4. Screw x 32 (for HDD)
5. AC power cord
6. Phoenix Terminal x 4
7. Rack Mounting Bracket x 2
8. Screw M4 (6 mm) x 4
9. Download Guide
