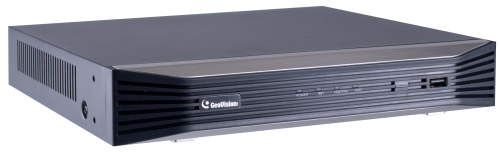

GV-SNVR0812

Rejestrator wideo/audio dla 8 kamer IP z serii GV (NVRGV), 1xHDD, 8xPoE+, HDMI...

Gwarancja: 24 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: GV-SNVR1612

Kod produktu zamiennego: 84-SNR162W-001D

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-SNVR0812 March 28, 2019
- 1 -
GV-SNVR0812


Introduction
The GV ‐SNVR0812 is an H.264/H.265 Linux ‐embedded Standalone Network Video Recorder which records video files directly to the
internal hard drive, supporting up to 8 channels of GV ‐ IP devices for network surveillance. GV ‐SNVR0812 has 8 built ‐ in PoE+ (IEEE
802.3at) ports, functioning to carry network and power to the con nected IP devices. Featuring up to 4K resolution video output,
GV ‐SNVR0812 eliminates the need of a separate PC to view and play back videos. Its USB ports allow you to insert USB flash drive to
import or export system settings, update firmware, save snapshot files as well as back up vi deo in AVI format.


Internet ExplorerGV-SNVR Viewer

· GV-Center V2
· GV-ASManager

· GV-Control Center
·GV-Edge Recording Manager

· GV-Vital Sign Monitor

through HDMI / VGA

(For PTZ Cameras)

3
rd
Party Camera
(ONVIF)
Monitoring resolution in
FHD or 4K

iOS/Andriod



Features
 8 ‐Channel video recording
 Up to 3840 x 2160 resolution for each channel *
 Dual stream support
 8 ‐ Port PoE+ (IEEE 802.3at) for camera connection
 4K (HDMI) / 1080P (HDMI/VGA) video output
 2 ‐way Audio
 1 SATA HDD drawer (3.5") for up to 10 TB storage
 Automatic search and setup of IP devices
 Support for third ‐ party IP devices through ONVIF and RTSP
protocol
 Continuous, motion, scheduled and alarm ‐triggered
recording
 Timeline playback
 Multi ‐channel playback
 Display of HDD status and system temperature
 DST (Daylight Saving Time) support
 NTP (Network Time Protocol) support
 GeoVision DDNS server support
 E ‐mail notification for recording error and password
retrieval
 Recording export
 Remote live view through Web browser
 Fisheye dewarping
 Support for GV ‐Video Server through RTSP protocol
 PTZ control using GV ‐Joystick or on ‐screen panel
 Smart device access (iOS and Android)
 Support for 14 languages
*The resolutions of Main Stream and Sub Stream both must meet the requirements noted under Specifications.

GV-SNVR0812 March 28, 2019
- 2 -
Overview
Front Panel


Back Panel



Specifications
Hardware
System
OS Embedded Linux

No. of Drive Bay 1 (3.5" HDD) up to 10 TB

Power Source
Input: AC 100 ~ 240V, 50 ~ 60 Hz
Output: DC 52V, 1.8A, Max. 100W
PoE: Max. 100W

Megabit
Ethernet
1 port for WAN, RJ ‐ 45 10/100 Mbps,
8 ports for LAN, RJ ‐ 45 10/100 Mbps, PoE+ (IEEE 802.3at)

Video Output 4K (HDMI) / 1080p (HDMI / VGA)

Audio 1 ‐Ch, RCA (2.0 Vp ‐ p, 1 k Ω )

USB 2.0 Front: USB 2.0 Port x 1; Rear: USB 2.0 Port x 2

Connectors
I/O 4 Inputs, 1 Output

NVR 4 LEDs: Power, Network, HDD Fail, HDD Activity

LED Indicator
PoE 8 LEDs for each port

Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)

Humidity 0% ~ 90% RH (non ‐condensing)

Dimensions (L x W x H) 260 x 240 x 44 mm (10.24 x 9.45 x 1.73”)

Net Weight 1.12 kg (2.47 lb)

Regulatory FCC, CE, BSMI, LVD, RoHS compliant


Software

Video and Audio
Video Compression H.264, H.265

Video Stream Dual streams from H.264, H265

Video Output 4K / 1080p (HDMI / VGA)

Display Division 1 / 4 / 6 / 8 / 9

Audio Compression G.711

Audio Support Yes

Two ‐ Way Audio Yes

Supported Video Resolution Main Stream
Sub Stream
2560 x 2048
2560 x 1920
2048 x 1536
2048 x 1520
1600 x 1200
4:3
1280 x 960
1024 x 768, 960 x 720, 640 x 480, 320 x 240

GV-SNVR0812 March 28, 2019
- 3 -
640 x 480 640 x 480, 320 x 240
320 x 240 320 x 240
3840 x 2160
2592 x 1520
2560 x 1440
2304 x 1296
1920 x 1080
1280 x 720
1280 x 720, 640 x 360, 448 x 252
640 x 360 640 x 360, 448 x 252
16 : 9 (Default)
448 x 252 448 x 252
1280 x 1024 1280 x 1024, 640 x 512, 320 x 256
640 x 512 640 x 512, 320 x 256 5:4
320 x 256 320 x 256
2176 x 2048
2048 x 1944
1792 x 1696
1440 x 1376
20 : 19
(Fisheye Camera Only)
1280 x 1200
640 x 608
Operation
Recording Bandwidth Max. 48 Mbps for 8 channels

Recording Mode Round the clock / Motion Detection / Schedule Recording / Alarm ‐triggered Recording

Pre Recording 1 ~ 10 sec.

Post Recording 30 sec.

Instant Playback 3 min.

Backup Type USB flash drive of FAT32 format

Management

Language
Czech / English / Finnish / French / German / Hungarian / Italian / Japanese / Portuguese /
Russian / Slovakian / Slovenian / Spanish / Traditional Chinese

Firmware upgrade Upgrade through OSD or GV ‐ IP Device Utility

Network

Network Type LAN, WAN, Internet

Protocol DHCP, DynDNS, HTTP, NTP, ONVIF, RTSP, TCP, UDP

System Monitoring and Recovery

Power Restoration Automatic restart after power outage

Monitoring Software Watchdog

Remote Viewing

Live View Max. 8 channels connection

Monitoring Environment IE browser, SNVR Viewer for non ‐ IE browsers, Mobile app

Smart Device Access GV ‐ Eye for iOS and Android

Access from IE browser Live View, Image Snapshot, Picture in Picture, Picture and Picture, Digital PTZ

Note:
1. GV ‐SNVR0812 only supports PoE+ (IEEE 802.3at) for camera connection. If your camera requires power supply above 30W, be
sure to power your camera with the compatible PoE switch or its power adapter.
2. For backup efficiency, it is recommended to use external hard drive(s) to back up your recordings .
3. Product design and specifications are subject to change without notice.

Requirements
Supported GV ‐ IP Cameras
 GV ‐Target Series IP Camera (Firmware V1.0 or later)
 GV ‐SD220/220 ‐ S (Firmware V1.02 or later)
 All other GV ‐ IP Cameras (Firmware V2.11 or later) EXCEPT for the models below:
o GV ‐BX110
o GV ‐ BL110
o GV ‐FER12203
o GV ‐MFD110
o GV ‐PT110
o GV ‐PTZ010D
o GV ‐SD010

GV-SNVR0812 March 28, 2019
- 4 -
Note:
1. For supported IP cameras, the resolutions of Main Stream and Sub Stream both must meet the requirements noted under
Specifications.
2. GV ‐SNVR only supports recording frame rates of up to 30 fps.
3. GV ‐SNVR0812 only supports recording bandwidths of up to 48 Mbps.
4. GV ‐SNVR0812 also supports EVS ‐ABD1300 / ABL1300 / ADR1300 and UVS ‐ABD1300 / ABL1300 / ADR1300.

Supported GeoVision Application
 GV ‐Edge Recording Manager (Windows version V1.3.0.0 or later / Mac version V1.1.3.0 or later)
 GV ‐Control Center (V3.5.1 or later)
 GV ‐Center V2 (V17.1 or later)
 GV ‐ Vital Sign Monitor (V17.1 or later)
 GV ‐ Eye (for iOS V2.62 or later / for Android V2.60 or later)
 GV ‐Remote ViewLog V2 (V17.1 or later)

Recommended Hard Disks
GV ‐SNVR00812 supports 1 SATA HDD (3.5") for up to 10 TB of storage capacity. For system efficiency, it is recommended to use
enterprise‐level hard disk drives instead of desktop ‐level or green HDD. For tested hard disk drives, see Appendix in GV ‐SNVR User's
Manual.
Note: GV ‐SNVR does not support the 2.5" SATA HDD.


Supported Web Browsers
 Internet Explorer 10 or later
 Google Chrome
 Mozilla Firefox
 Safari
 Microsoft Edge

Packing List
1. GV ‐SNVR0812
2. AC power cord
3. AC/DC adapter (DC 52V, 1.8A, 100W)
4. SATA cable
5. HDD power cable
6. Screw x 4 (for HDD)
7. Foam foot
8. USB mouse
9. Download Guide
10. Warranty card

Accessories
GV ‐POE Switch
GV ‐POE Switch is designed to provide power along with network connection for IP devices. It is
available in various models with different numbers and types of ports.

GV ‐Joystick V2
GV ‐Joystick V2 facilitates PTZ camera controls. It can be plugged into the GV ‐SNVR for
independent use to empower the operation of PTZ cameras.
