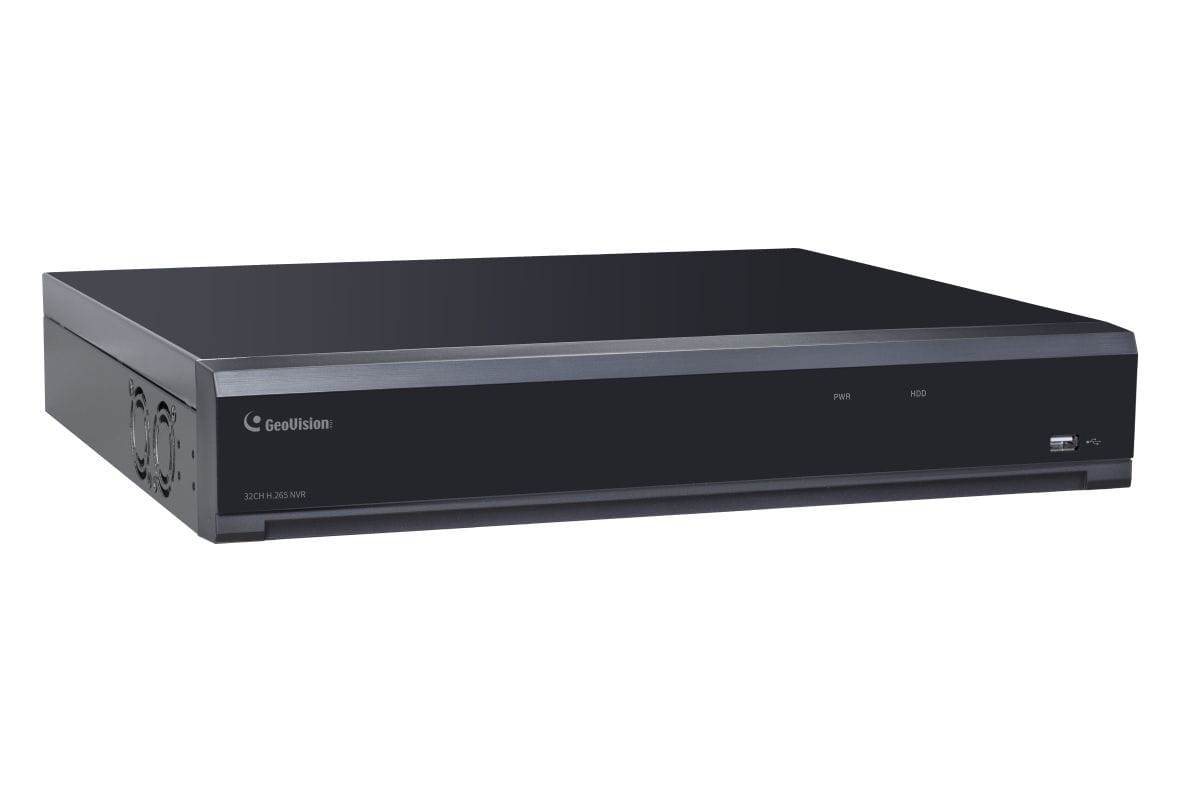

GV-RNVR3240-N

Rejestrator wideo/audio dla 32 kamer IP z serii GV (NVRGV), 4xHDD, HDMI(4K), HDMI(1080p), VGA(1080p)...

Gwarancja: 24 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-RNVR3240-N September 30, 2024 GV-RNVR3240-N


⚫ Realtime AI Face Recognition (face tracking on E-Map,
attendance management, and repeated visitor search)
⚫ H.265 / H.264 video format
⚫ Up to 32-ch IP camera input
⚫ 2-ch HDMI, 1-ch VGA; HDMI #1 at up to 4K (3840 x
2160)
⚫ 16 alarms input and 1 alarm output
⚫ Up to 12 MP resolution recording
⚫ 4 SATA interfaces, up to 12TB for each disk
⚫ Two-way audio
⚫ P2P function for GV-Eye app
⚫ ONVIF cameras supported

Introduction
GV-RNVR3240-N is an H.264/H.265 Linux-embedded Standalone Network Video Recorder which records video files directly to the
internal hard drives. GV-RNVR3240-N supports up to 32 channels of IP cameras for network surveillance. Featuring with up to 4K
resolution video output, GV-RNVR3240-N eliminates the need of a separate PC to view and play back video from the unit. Its USB
ports allow you to connect a USB mouse and a flash drive to back up videos.

With its Web Client on the web browser, users can access several functions, including Live View, Change Stream, Manual Alarm,
Divide Screen, and more.

GV-RNVR3240-N integrates the capacity of AI-capable GV-R Series IP cameras and provides various analytics functions for
perimeter protection. With the Face Recognition functions, users can access the database to track faces on E-Map, keep track of
face attendance, and search for repeat visitors, which makes the surveillance environment easier to use and safer.

Specifications
System
Operating system Embedded Linux
No. of Drive Bay 4 (3.5” SATA HDD), up to 12 TB for each disk
Video and Audio
Compression
Audio: G.711
Video: H.264 / H.265
Resolution 12 MP, 8 MP, 5 MP, 4 MP, 3 MP, 2 MP (1080p), 1 MP (720p)
Decoding
Live / Playback Frame Rate
HDMI 1 HDMI 1 + HDMI 2
12 MP: 60 fps in total (2 CH max.)
8 MP: 120 fps in total (4 CH max.)
5 MP: 180 fps in total (6 CH max.)
4 MP: 240 fps in total (8 CH max.)
3 MP: 330 fps in total (11 CH max.)
2 MP: 480 fps in total (16 CH max.)
720p: 960 fps in total (32 CH max.)
12 MP: 60 fps in total (2 CH max.)
8 MP: 90 fps in total (3 CH max.)
5 MP: 150 fps in total (5 CH max.)
4 MP: 180 fps in total (6 CH max.)
3 MP: 240 fps in total (8 CH max.)
2 MP: 360 fps in total (12 CH max.)
720p: 840 fps in total (28 CH max.)
Playback Max. 16-ch playback



GV-RNVR3240-N September 30, 2024
Operation
Max. Bandwidth
Input 320 Mbps
Output* 320 Mbps
Playback Function
Fast forward/backward (2x, 4x, 8x, 16x)
Slow forward (1/2x, 1/4x, 1/8x, 1/16x)
Event Management
Trigger Schedule, Sensor Input, Motion Detection
Action
-Store Video (AVI format)
-Send e-mails with captured images
-Upload captured images to FTP Server
-Activate relay outputs to control external devices
Web Monitoring
IE 10 / 11
Safari V12.1 or above
Firefox V52 or above
Google Chrome V57 or above
Edge V79 or above
Maintenance Firmware upgrade through Web Browser or Utility
Interface
Monitor
VGA
1 (1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080)
*Sync output with HDMI 1
HDMI 1
1 (1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 2560 x 1400,
3840 x 2160)
*Sync output with VGA
HDMI 2
1 (1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080)
*Spot out only
Connector
Ethernet 2 ports, RJ45 100/1000 Mbps
USB
USB 2.0 x 1 (front)
USB 3.0 x 1, USB 2.0 x 1 (rear)
Audio In 1 RCA
Audio Out 1 RCA
RS-485 1
Alarm Input/Out 16 in / 1 out
e-SATA 1
LED Indicator 2 LEDs: Power, HDD
General
Language
Local
Arabic, Bulgarian, Traditional Chinese, Danish, English, German, Spanish, French,
Japanese, Italian, Portuguese, Russian, Turkish, Finnish, Greek, Hebrew, Hindi,
Korean, Persian, Polish, Romanian, Thai
Web
English, German, Spanish, French, Japanese, Italian, Portuguese, Russian,
Turkish, Traditional Chinese
Mechanical Design
Dimensions
(W x D x H)
378 x 333.7 x 68 mm (14.88” x 13.14” x 2.68”)
Net Weight 2.26 Kg (4.99 lb)
Rack Mount Yes



GV-RNVR3240-N September 30, 2024
Electrical
Power Source
Input: AC 100 ~ 240 V, 50 ~ 60 Hz
Output: 12 V DC, Max. 72 W
Power
Consumption
(excluding HDD and
IP cameras)
8 W
Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)
Humidity Less than 90% RH
Deep Learning Function
Video Analytics
Pedestrian Detection & Vehicle Detection, Perimeter Intrusion Detection, Line
Crossing Detection, Stationary Object Detection, Cross Counting, Heat Map,
Crowd Density Monitoring, Queue Length Detection, Face Detection, Rare
Sound Detection
*The video analytics functions are only applicable when AI-capable GV-R Series
IP cameras are connected to the SNVR.
Face Recognition
Face Search, Face Tracking on E-Map, Repeated Visitor Search, Face Attendance
Management
*Face Recognition function is only applicable when AI-capable GV-R Series IP
cameras are connected to the SNVR.
Network
Protocol
802.1x, DHCP, IPv4/IPv6, DynDNS, HTTP, HTTPS, NTP, RTSP, TCP, SNMP, UDP,
GV-VPN
Remote Monitoring
Access from Web Browser
-Live View: Audio, PTZ Setting, Color Controls, Page View, Manual Alarm
-Playback: Search Recordings, Stretch, Full Screen, Tag Playback, Picture
Playback, Download
-Remote Setting: Channel (Live, Image control, Video Cover, Motion), Record
(Encode, Capture), Alarm (Motion, I/O, Combination Alarm, PTZ Linkage),
Network (IP, DDNS, FTP, Email), Device (HDD Disk /Cloud), System
Live View
PC-Based Software
Max. connection subject to the total output bandwidth of GV-RNVR3240-N
*A total of up to 4-channel connection is supported for one non-IE browser.
Mobile APP Max. connection subject to the total output bandwidth of GV-RNVR3240-N
Playback
PC-Based Software
Max. connection subject to the total output bandwidth of GV-RNVR3240-N
*A total of up to 4-channel connection is supported for each Web browser.
Mobile APP Max. connection subject to the total output bandwidth of GV-RNVR3240-N
Application
Software Supported
GV-Control Center (V4.2.1 or later), GV-Edge Recording Manager Windows
Version (V2.2.8 or later)
Smart Device Access GV-Eye for iOS and Android (V3.2.0)
Note:
1. GV-TMEB5800 is not supported by the GV-RNVR.
2. Fisheye dewarping is not supported by the GV-RNVR.
3. The maximum remote connection is subject to the total output bandwidth. See the maximum output bandwidth column for
4. the specification.*
5. For system efficiency, it is recommended to use enterprise-level hard disk drives. For the supported hard disk drive, see GV-
SNVR HDD Compatibility Table.
6. When exporting recordings on Web browsers, it is suggested to use Internet Explorer or Internet Explorer Mode on
Microsoft Edge.
7. To access live view (main and sub stream) and playback remotely using PC-based software or mobile app, make sure the
local GV-RNVR3240-N exits the playback interface.
8. Specifications are subject to change without notice.



GV-RNVR3240-N September 30, 2024 Compatible GV-R Series IP Cameras
* AI capable models: GV-RBL5800 / RBL5811 / REB5800 / RMS32810


Application



Packing List
1. GV-RNVR3240-N 2. 3.5” HDD Screw Kit x 4
3. Rack Mount x 2 4. Screw kit for Rack Mount
5. USB Mouse 6. Power Adapter
7. Power Cord 8. Download Guide


Accessory
GV-POE Switch
GV-POE Switch is designed to provide power along with network connection for IP devices.
It is available in various models with different numbers and types of ports.



GV-RNVR3240-N September 30, 2024 Dimensions
