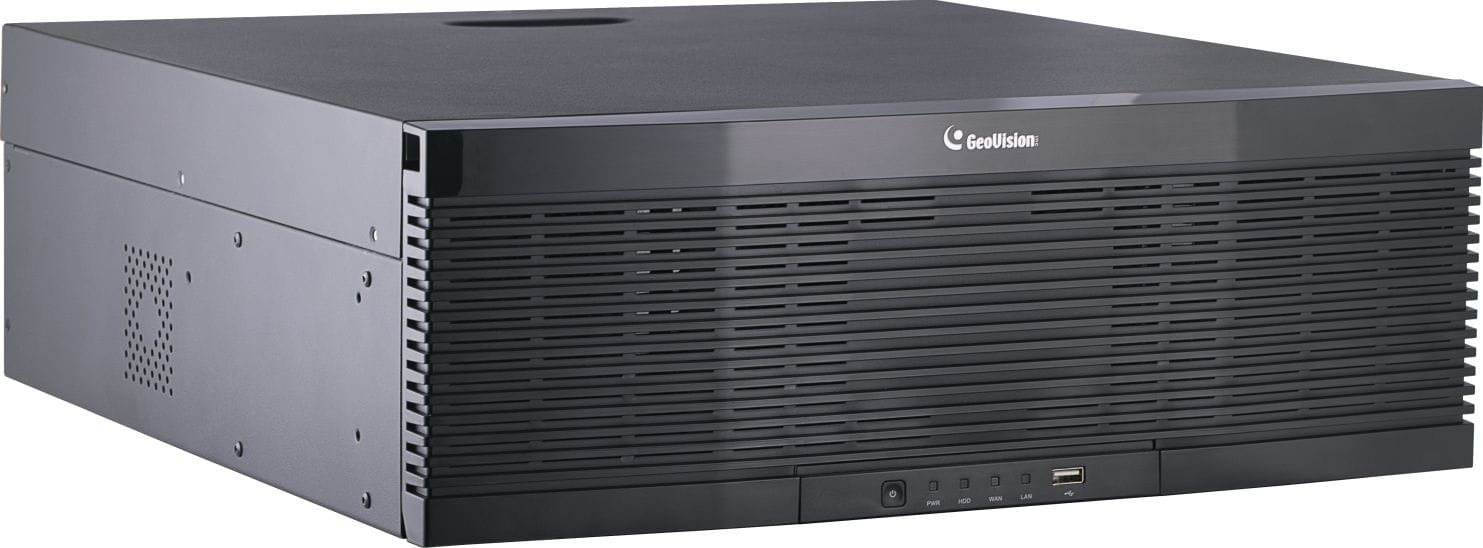

GV-RNVR256G0-N

Rejestrator wideo/audio dla 256 kamer IP z serii GV (NVRGV), 16xHDD, 4xHDMI...

Gwarancja: 24 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-RNVR256G0-N May 16, 2024 GV-RNVR256G0-N


⚫ Realtime AI Face Recognition (face tracking on E-Map,
attendance management, and repeated visitor search)
⚫ H.265 / H.264 video format
⚫ Up to 256-ch IP camera input
⚫ 4-ch HDMI; HDMI #1 at up to 8K
⚫ 16 alarms input and 4 alarm output
⚫ Up to 12 MP resolution recording
⚫ 16-bay hot-swap SATA HDDs, up to 18 TB for each disk
⚫ Two-way audio
⚫ P2P function for GV-Eye app
⚫ ONVIF cameras supported
⚫ RAID 0, 1, 5, 6, 10

Introduction
GV-RNVR256G0-N is an H.264/H.265 Linux-embedded Standalone Network Video Recorder which records video files directly to
the internal hard drives. GV-RNVR256G0-N supports up to 256 channels of IP cameras for network surveillance. Featuring with up
to 8K resolution video output, GV-RNVR256G0-N eliminates the need of a separate PC to view and play back video from the unit.
Its USB ports allow you to connect a USB mouse and a flash drive to back up videos.
With its Web Client on the web browser, users can access several functions, including Live View, Change Stream, Manual Alarm,
Divide Screen, and more.
GV-RNVR256G0-N integrates the capacity of AI-capable GV-R Series IP cameras and provides various analytics functions for
perimeter protection. With the Face Recognition functions, users can access the database for face tracking on E-Map, face
attendance management, and repeated visitor search to enhance the convenience and security of the surveillance environment.

Specifications
System
Operating system Embedded Linux
No. of Drive Bay 16 (3.5” SATA HDD), up to 18 TB for each disk
Video and Audio
Compression
Audio: G.711
Video: H.264 / H.265
Resolution 12 MP, 8 MP, 5 MP, 3 MP, 2 MP (1080p), 1.3 MP (960p), 1 MP (720p)
Decoding
Live / Playback Frame Rate
12 MP: 150 fps in total (5 CH max.)
8 MP: 240 fps in total (8 CH max.)
5 MP: 390 fps in total (13 CH max.)
4 MP: 480 fps in total (16 CH max.)
2 MP: 960 fps in total (32 CH max.)
720p: 2160 fps in total (72 CH max.)
480p: 4560 fps in total (152 CH max.)
Playback Max. 16-ch playback



GV-RNVR256G0-N May 16, 2024
Operation
Max. Bandwidth
Input 1024 Mbps
Output* 800 Mbps
Playback Function
Fast forward/backward (2x, 4x, 8x, 16x)
Slow forward (1/2x, 1/4x, 1/8x, 1/16x)
Event Management
Trigger Schedule, Sensor Input, Motion Detection
Action
-Store Video (AVI format)
-Send e-mails with captured images
-Upload captured images to FTP Server
-Activate relay outputs to control external devices
Web Monitoring
IE 10 / 11
Safari V12.1 or above
Firefox V52 or above
Google Chrome V57 or above
Edge V79 or above
Maintenance Firmware upgrade through Web Browser or Utility
Interface
Monitor HDMI
HDMI 1: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 1600 x
1200, 1920 x 1200, 3840 x 2160, 7680 x 4320
HDMI 2, 3: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 1600 x
1200, 1920 x 1200, 3840 x 2160
HDMI 4: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080
*The device only supports HDMI 1 output 8K. If the output resolution of HDMI 1
is set to 8K, the maximum output resolution of HDMI 3 and 4 will be limited to
1080P, and HDMI 2 will be disabled.
Connector
Ethernet 2 ports, RJ45 100/1000 Mbps
USB
USB 2.0 x 1 (front)
USB 3.0 x 2 (rear)
Line In 1 RCA
Audio Out 1 RCA
RS-232 1 RJ45 (not functional)
RS-485 1
Alarm Input/Out 16 in / 4 out
e-SATA 1
LED Indicator 4 LEDs: Power, HDD, LAN x 2
RAID
RAID Type 0, 1, 5, 6, 10
General
Language
Local
Arabic, Bulgarian, Traditional Chinese, Danish, English, German, Spanish, French,
Japanese, Italian, Portuguese, Russian, Turkish, Finnish, Greek, Hebrew, Hindi,
Korean, Persian, Polish, Romanian, Thai
Web English, German, Spanish, French, Japanese, Italian, Portuguese, Russian, Turkish
Mechanical Design
Dimensions
(W x D x H)
439 x 466.1 x 149 mm (17.28" x 18.35" x 5.87")
Net Weight 9.3 kg (20.5 lb)
Rack Mount Yes



GV-RNVR256G0-N May 16, 2024
Electrical
Power Source Input: AC 100 ~ 240 V, 50 ~ 60 Hz
Power
Consumption
(excluding HDD and
IP cameras)
8W
Operating / Temperature Temperature: -10°C ~ 50°C (14°F ~ 122°F)
Humidity Less than 90% RH
Certification CE, FCC, LVD, RoHS compliant
AI Integrated Function
AI Analytics
Pedestrian Detection & Vehicle Detection, Perimeter Intrusion Detection, Line
Crossing Detection, Stationary Object Detection, Cross Counting, Heat Map,
Crowd Density Monitoring, Queue Length Detection, Face Detection, Rare
Sound Detection
*The video analytics functions are only applicable when AI-capable GV-R Series
IP cameras are connected to the SNVR.
Face Recognition
Face Search, Face Tracking on E-Map, Repeated Visitor Search, Face Attendance
Management
*Face Recognition function is only applicable when AI-capable GV-R Series IP
cameras are connected to the SNVR.
Network
Protocol DHCP, IPv4/IPv6, DynDNS, HTTP, HTTPS, NTP, RTSP, TCP, SNMP, UDP
Remote Monitoring
Access from Web Browser
-Live View: Audio, PTZ Setting, Color Controls, Page View, Manual Alarm
-Playback: Search Recordings, Stretch, Full Screen, Tag Playback, Picture
Playback, Download
-Remote Setting: Channel (Live, Image control, Video Cover, Motion), Record
(Encode, Capture), Alarm (Motion, I/O, Combination Alarm, PTZ Linkage),
Network (IP, DDNS, FTP, Email), Device (HDD Disk /Cloud), System
Live View
PC-Based Software
Max. connection subject to the total output bandwidth of GV-RNVR2560G0-N
*A total of up to 4-channel connection is supported for one non-IE browser.
Mobile APP Max. connection subject to the total output bandwidth of GV-RNVR2560G0-N.
Playback
PC-Based Software
Max. connection subject to the total output bandwidth of GV-RNVR2560G0-N
*A total of up to 4-channel connection is supported for each Web browser.
Mobile APP Max. connection subject to the total output bandwidth of GV-RNVR2560G0-N.
Application
Software Supported
GV-Control Center (V4.2.1, coming soon), GV-Edge Recording Manager Windows
Version (V2.2.8 or later)
Smart Device Access GV-Eye for iOS and Android (V3.2.0, coming soon)
Note:
1. Camera connection is not supported by GV-TMEB5800.
2. Fisheye dewarping is only supported by GV-RFER12700.
3. The maximum remote connection is subject to the total output bandwidth. See the maximum output bandwidth column for
the specification.*
4. For system efficiency, it is recommended to use enterprise-level hard disk drives. For the supported hard disk drive, see GV-
SNVR HDD Compatibility Table.
5. When exporting recordings on Web browsers, it is suggested to use Internet Explorer /Internet Explorer Mode on Microsoft
Edge.
6. To access live view (main and sub stream) and playback remotely using PC-based software or mobile app, make sure the
local GV-RNVR256G0-N exits the playback interface.
7. Specifications are subject to change without notice.



GV-RNVR256G0-N May 16, 2024
Compatible GV-R Series IP Cameras
* AI capable models: GV-RBL5800 / RBL5811 / REB5800
* Others: GV-RFER12700

Applications

















Packing List
1. GV-RNVR256G0-N 2. Hex nuts x 4
3. Screw x 68 (for HDD) 4. Screw M6 (10 mm) x 4
5. Rack Mount x 2 6. USB Mouse
7. Screw for Rack Mount x 6 8. Power Cord
9. Ethernet Cable 10. Download Guide

Accessories
GV-POE Switch
GV-POE Switch is designed to provide power along with network connection for IP devices. It is
available in various models with different numbers and types of ports.




GV-RNVR256G0-N May 16, 2024 Overview
Front View

Rear Panel





GV-RNVR256G0-N May 16, 2024 Dimensions
