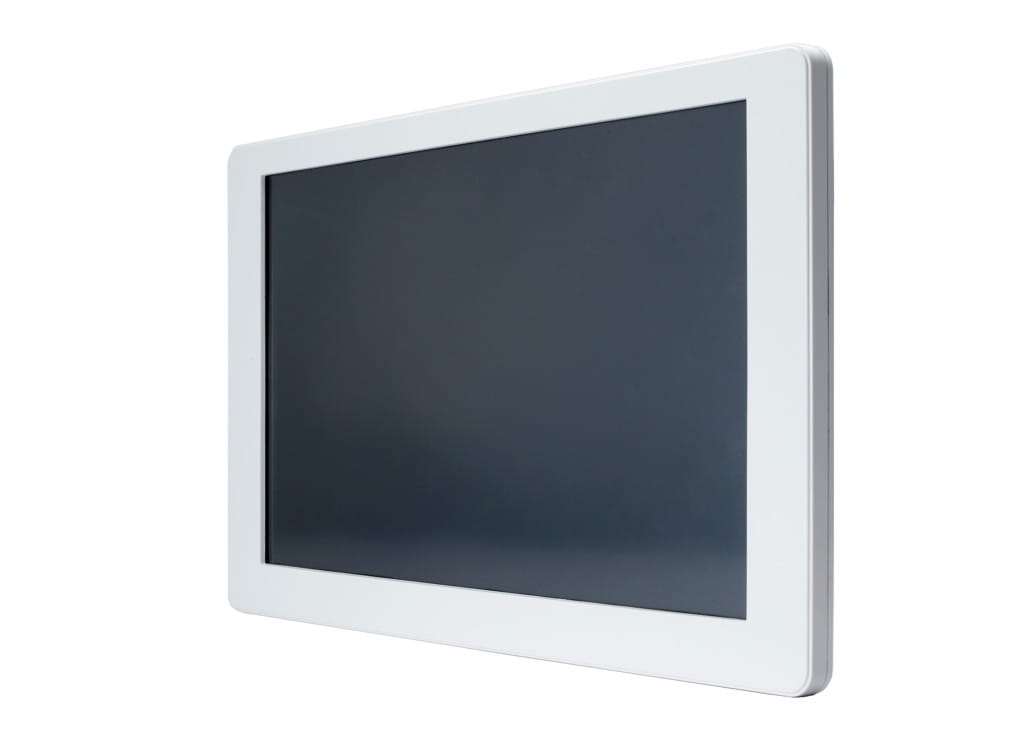

GV-Pad

Stacja podglądu wideo ze zintegrowanym monitorem HD (na żywo, sekwencja), pilot, SD, USB, 1x100Mbit...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-Pad November 16, 2016
- 1 -
GV-Pad




Introduction
The GV ‐ Pad is a panel device that decodes and displays incoming IP streams from GeoVision and third ‐party IP devices. It is
light‐weighted and requires only minimal amount of installation. As a standalone device, the GV ‐ Pad is self equipped with a display
screen and supports almost all the fea tures of a GV ‐ IP Decoder Box. Through the network, a GV ‐ Pad can receive and manage up to 64
IP streams. The administrators can monitor channels, take snapshots of critical moments and pause at a specific channel when events
occur, all through the supplied remote control. GV ‐Joystick can be in stalled to control GeoVision and third ‐ party PT / PTZ / Speed
Dome cameras.




GV-Pad November 16, 2016
- 2 -
Features
* Decode video streams in H.264 codec at a maximum frame rate of the IP device
* Decode up to 5 megapixel IP cameras
* Decode up to 64 IP streams
* Automatical search for ONVIF IP devices
* Support for third ‐ party IP cameras that adhere to RTSP, ONVIF or PSIA
* Single View and Quad View in sequential display
* Support for display of Matrix view through GV ‐Mobile Server
* Support for 10/100 Ethernet over LAN
* Support for Wi ‐ Fi
* Support for GV ‐Joystick control of GeoVision and third ‐ party PT, PTZ and Speed Dome cameras
* S upport for remote firmware upgrade, IP address configuration and addition of new channel
* Display of Matrix view through GV ‐Mobile Server
* IR remote control
* SD/SDHC card and USB drive for snapshot storage and firmware upgrade
* No SD/SDHC card slot & local storage function for Argentina.

Compatible Devices
The GV ‐ Pad is compatible with:
1. GV ‐ IP Camera (except GV ‐BX12201), GV ‐Video Server and GV ‐Compact DVR using H.264 codec
2. Third ‐ party IP devices that support H.264 and adhere to RTSP, ONVIF or PSIA
3. GV ‐Mobile Server

To decode and display non ‐H.264 IP channels or an alog channels, connect the devices to GV ‐System and access them through
GV ‐Mobile Server.

SPECIFICATIONS
Video
Video Codec H.264

Resolution 1280 x 800

Network

Interface 10/100 Ethernet

Protocol TCP, RTSP , ONVIF, PSIA

Mechanical

IR Remote Control Yes

Power Adapter 12V / 3A DC Jack (Max. 36 W)

Ethernet RJ ‐ 45

Local Storage & Firmware USB slot (2.0 backward compatible, FAT32 format)

Connectors
Upgrade SD/SDHC card slot (for Class 6 or above, FAT32 format)

General

Operating Temperature 0 °C ~ 40 °C (32 °F ~ 104 °F)

Operating Humidity 20 % ~ 80 % (with no condensation)

Weather Resistance Indoor use only

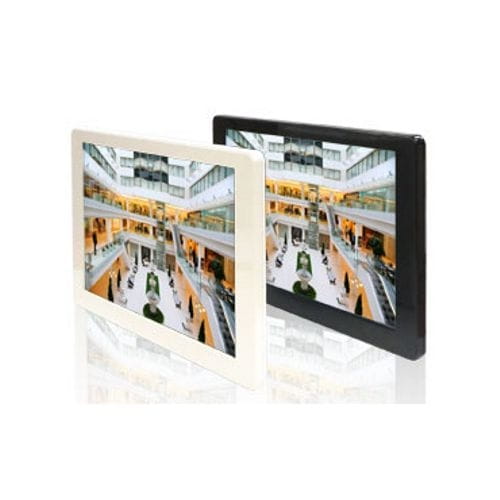

Color Black, White

Dimensions (W x H x D) 342.8 x 220.3 x 38.3 mm (13.5 x 8.7 x 1.5 in)

Net Weight 1160 g (2.6 lb)

Power Consumption 36 W (max. 3 A at 12V DC)

Regulatory CE, FCC compliant

Language English

Note: Specifications are subject to change without notice.



GV-Pad November 16, 2016
- 3 -
Overview

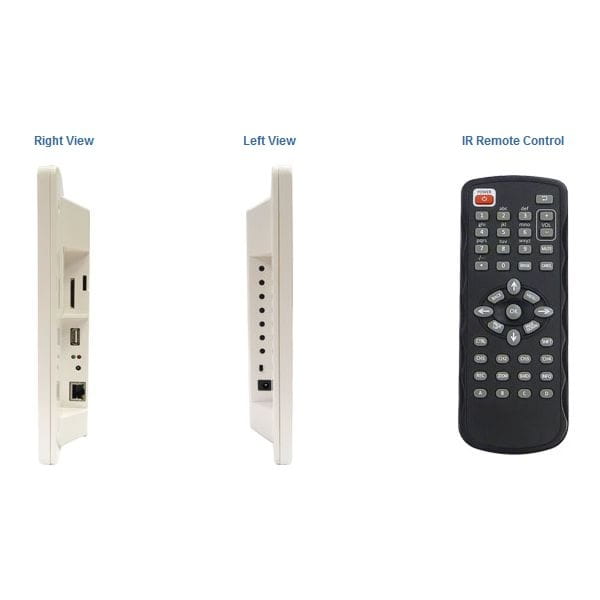

Right View Left View IR Remote Control




Accessories
Name
Details


GV ‐ Joys tick V2
The GV ‐Joystick V2 facilitates focusing, zooming, panning, tilting of GeoVision and third ‐party
PT, PTZ and Speed Dome cameras on GV ‐ IP Decoder Box.


GV ‐WiFi USB
The GV ‐WiFi USB adapter is a plug ‐and ‐play device that provides wireless connectivity to
GeoVision IP devices. The GV ‐WiFi USB Adapter complies with IEEE802.11 b/g/n (Draft 3.0)
standards for wireless networking.


Packing List
* GV ‐ Pad
* IR remote control
* Magnetic hinge
* Screw x 4
* AC/DC adapter (12 V, 3 A, 36 W)
* Power cord
* GV ‐ IP Decoder Box and GV ‐Pad Software DVD
* SD Card
