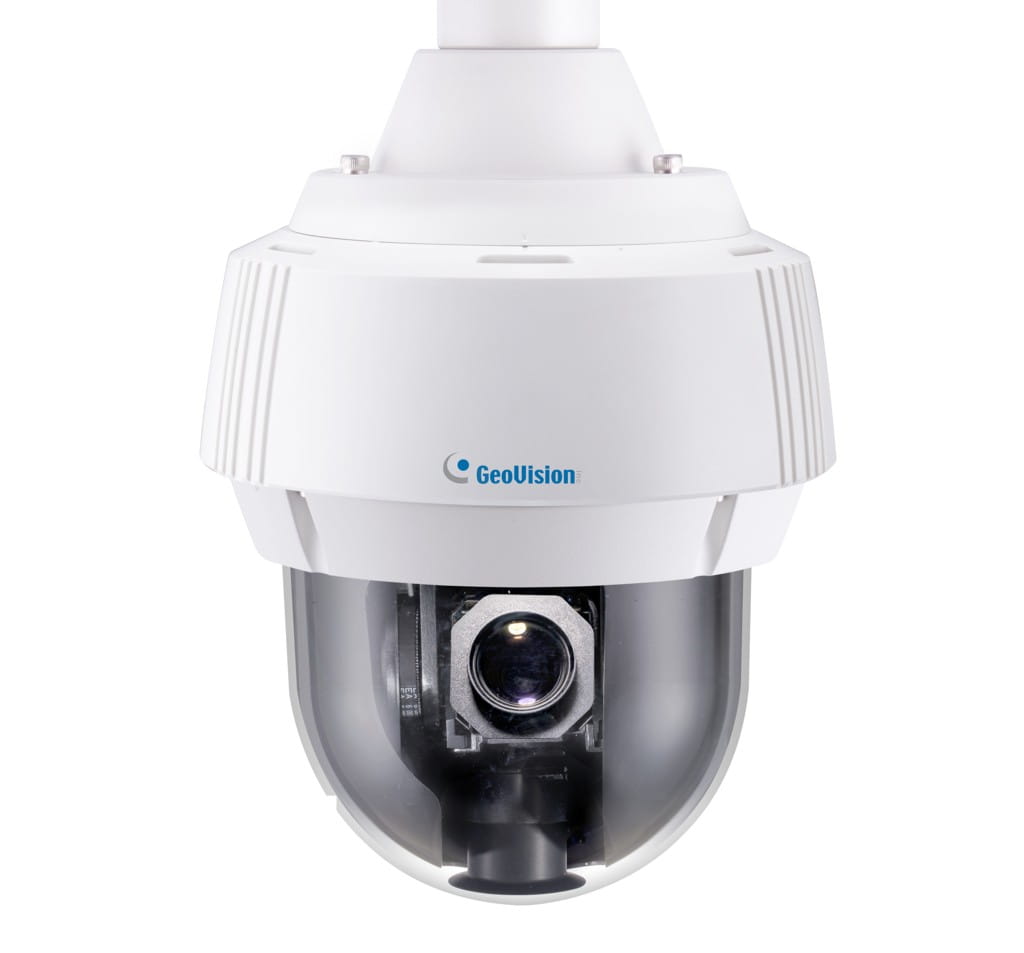

GV-PPTZ7300

Dostępność: 0
Cena: 2 970,93 zł 2970.93 (687,00 €)
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: GEOVISION
Kod produktu: 84-PPTZ730-1000

Opis

Kamera IP szybkoobrotowa IP67 wandaloodporna IK10 panoramiczna, zintegrowana z hemisferyczną, filtr IR, 2.0M-30 kl./s, H.264, WDR PRO, HPoE++, SDXC, moto-zoom 10x, fisheye 5.0M-10 kl./s...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

GV-PPTZ7300 May 6, 2018
- 1 -
GV-PPTZ7300 7MP H.264 Low Lux WDR Panoramic PTZ IP Camera



Key Features
* Panoramic fisheye camera (FE) integrated with a PTZ speed dome (SD)
* FE: 1/2.5’’ progressive scan CMOS
SD: 1/2.86’’ progressive scan CMOS
* Dual streams from H.264 and MJPEG
* FE: Up to 10 fps at 2560 x 1920
SD: Up to 30 fps at 1920 x 1080
* FE: Day and ni ght (Electronic)
SD: Day and night (with removable IR ‐cut filter)
* FE: Wide Dynamic Range (WDR)
SD: Wide Dynamic Range Pro (WDR Pro)
* Vandal resistance (IK10 for metal and polycarbonate casing)
* Ingress protection (IP67)
* Wide temperature tolerance ( ‐40°C ~ 50°C / ‐ 40°F ~ 122°F)
* 2 built‐ in micro SD card slots (SD/SDHC) for local storage (1 each for FE
and SD)
* 4 sensor inputs and 1 alarm output
* DC 24V / AC 24V / High PoE (PoE++, 40 W)
* FE: Provides 360° panorama view
* SD: 10x optical zoom and 32x di gital zoom
* SD: pan 355° and tilt from ‐15° to 195°
* SD: Preset speed at up to 460°/sec
* SD: PTZ movement (Preset, Sequence, Auto Pan, Cruise and Tour)
* Two ‐way audio
* 2D noise reduction
* Defog
* Tampering alarm
* Privacy mask
* Visual automation
* Text overlay
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* More storage option ‐ NAS

* No Memory Card Slot & local storage function for Argentina.
* Optional GV ‐PA901 PoE Adapter is required for applying PoE function.


Introduction
GV ‐PPTZ7300 is a 2 ‐ in ‐ 1 panoramic PTZ IP camera that includes a 5 MP fisheye panoramic camera and a 2 MP IP Speed Dome. The
fisheye camera allows you to monitor all angles of a location, while the speed dome can instantly point toward an area with just one
click on the fisheye live view. Without installing any software, you can watch live view and utilize functions such as motion detection,
privacy mask, and alert notification through the Web interface.





GV-PPTZ7300 May 6, 2018
- 2 -




Dimensions





GV-PPTZ7300 May 6, 2018
- 3 -
Specifications
System Requirements
OS 64‐bit Windows 7 / 8 / 8.1 / 10 / Server 2008 R2 / Server 2012 R2
GV ‐ VMS Version GV ‐ VMS V15.10.1.0 with patch or later
Browser Internet Explorer 7.x or later, Firefox, Google Chrome, Safari
Camera
Image Sensor
FE: 1/2.5” progressive scan CMOS
SD: 1/2.86” progressive scan CMOS
Picture Elements
FE: 2560 (H) x 1920 (V)
SD: 1920 (H) x 1080 (V)
Color
FE: 0.15 Lux
SD: 0.5 Lux
Minimum
Illumination
B/W
FE: 0.15 Lux
SD: 0.1 Lux
Shutter Speed
FE: Automatic, Manual (1/5 ~ 1/8000 sec.)
SD: Automatic, Manual (1/6 ~ 1/60000 sec.)
White Balance Automatic, Manual (2800K ~ 8500K)
Gain Control
FE: Automatic
SD: Automatic, Manual
S/N Ratio
FE: 45 dB
SD: 50 dB (AGC Off)
WDR
FE: Yes (WDR)
SD: Yes (WDR Pro)
Dynamic Range
FE: Up to 72 dB
SD: Up to 100 dB
Optics Lens
Megapixel Yes
Day/Night
FE: Yes (Electronic)
SD: Yes (with removable IR ‐cut filter)
Lens Type
FE: Fixed
SD: 10x Zoom Lens
Focal Length
FE: 1.32 mm
SD: 5.1 ~ 51 mm
Maximum Aperture
FE: F/2.0
SD: F/1.6
Horizontal FOV
FE: 180°
SD: 54° ~ 4.9°
Focus
FE: Fixed
SD: Auto / Manual
Zoom
FE: Fixed
SD: 10x
Operation
Iris
FE: Fixed
SD: Auto / Manual
Operation
Video Compression H.264, MJPEG
Video Streaming Dual streams from H.264 or MJPEG
Frame Rate
FE: 10 fps at 2560 x 1920, 15 fps at 2048 x 1944, 1440 x 1376, 1280 x 1200 (60/50 Hz)
SD: 30/25 fps at 1920 x 1080, 60/50 fps at 1280 x 720, 640 x 360, 448 x 252 (60/50 Hz)
*The frame rate and the performance may va ry depending on the number of connections
and data bitrates (different scenes).
Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Shutter
Speed, D/N, Denoise, WDR, Defog, Metering
Audio Compression G.711, AAC (optional)
Audio Support Two ‐ Way Audio
Sensor Input 4 Input (Dry Contact)
Alarm Output 1 Digital Output (200 mA 5V DC)



GV-PPTZ7300 May 6, 2018
- 4 -

Video Resolution
4:3 2560 x 1920

Main Stream (FE)
20:19 2048 x 1944 (Default), 1440 x 1376, 1280 x 1200

4:3 640 x 480

Sub Stream (FE)
20:19 640 x 608 (Default)

Main Stream (SD) 1920 x 1080 (Default), 1280 x 720, 640 x 360, 448 x 252

Sub Stream (SD)
16:9
640 x 360, 448 x 252 (Default)
Network

Interface 10/100 Ethernet

Protocol
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, 3GPP/ISMA, ICMP, IPv4, NTP, ONVIF (Profile S),
RTP, RTCP, RTSP, SMTP, SSL, TCP/IP, UDP

Mechanical

Temperature Detector Yes

Power DC Jack (DC 24V, 3.75A), PoE++

Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 Connector

Audio 1 in (RCA female for microphone); 1 out (RCA female for speaker)

Digital I/O I/O wires

Connectors
Local Storage
2 micro SD card slots (SD/SDHC, SD version 2.0 only, Class 10)
* SDXC and UHS ‐ I card types are not supported.

PTZ Control Panel

Pan Travel 355°

Tilt Travel ‐ 15° ~ 195°

Manual Speed 0.5° ~ 460°/s

Calibration Auto / Manual

Max. Number 255

Presets
Accuracy 0.2°

Max. Number 8

Sequence
Max. Presets 16

Auto Pan 8

Cruise 4

Max. Number 8

Tour
Max. Number of
Preset / Sequence /
Auto Pan / Cruise
16

Privacy Mask 8

Proportional Pan & Tilt Auto (Pan and tilt speed proportional to zoom ratio)

Automatic Function Preset, Sequence, Auto Pan, Cruise, Tour

Digital Slow Shutter On / Off

Motion Detection On / Off

Wide Dynamic Range On / Off

Day/Night: Mechanical IR Cut
Filter
On / Off

Picture Flip On / Off

Image Freeze On / Off

Digital Noise Reduction On / Off

Input 4

Output 1

Alarm
Reaction Preset, Sequence, Auto Pan, Cruise, Tour

General

Operating Temperature ‐40°C ~ 50°C ( ‐40°F ~ 122°F)

Heater
Heater 1 On: 5°C (41°F); Off: 8°C (46.4°F)
Heater 2 On: ‐ 7°C (19.4°F); Off: ‐2°C (28.4°F)

Fan On 45°C (113°F)

Humidity 20% to 90% (no condensation)

Power Source DC 24V / AC 24V / High PoE (PoE++, 40 W)



GV-PPTZ7300 May 6, 2018
- 5 -
Max. Power Consumption 40 W

Dimension (Straight Tube Mount) Ø 211.63 x 272.00 mm (8.332” x 10.709”)

Weight 3.75 kg (8.27 lb)

Ingress Protection IP67

Vandal Resistance IK10 for metal and polycarbonate casing

Regulatory CE, FCC, RCM, RoHS compliant

Power over Ethernet

PoE Standard PoE++ (40 W) / PD

PoE Power Supply Type End ‐Span

PoE Power Output Per Port 56V DC, 1050 mA. Max. 40 watts

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, PTZ Control, Preset,Sequence, Cruise, Auto Pan, Tour,
Change Video Quality, Bandwidth Control, Image Snapshot, Digital I/O Control, Two ‐ Way
Audio, Picture in Picture, Picture and Picture, Motion Detection, Privacy Mask, Visual
Automation, Tampering Alarm, Wide Angle Lens Dewarping, Text Overlay

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian /
Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

Software Supported
GV ‐ VMS (V15.11.3.0), GV ‐Control Center (V3.4.0.0)
* GV ‐Backup Center and GV ‐Recording Server to be supported in the near future
* GV ‐DVR/NVR not supported

Live Viewing Browser (IE, Chrome, Firefox, Safari)

CMS Server Support
GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor
*Integrated live view not supported in GV ‐Center V2 and GV ‐ Vital Sign Monitor


Note:
1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
2. Mind the following when using an inserted memory card for recording:
* Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical
shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No
guarantee is provided for such causes.
* The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if
you seldom access the memory card.
* Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
* To avoid power outage, it is highly suggested to apply a battery backup (UPS).
* For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
* Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
3. Specifications are subject to change without notice.

Packing List
1. Panoramic PTZ IP Camera
2. Data Cable
3. Mounting Bracket
4. Mounting Cap
5. Tube
6. 2 mm Hex Key
7. 3 mm Hex Key
8. 5 mm Hex Key
9. Rubber Ring
10. RJ ‐ 45 Connector
11. Desiccant Pack x 2
12. Download Guide
13. Warranty Card
Note: Power adapters can be purchased upon request.


GV-PPTZ7300 May 6, 2018
- 6 -
Accessories
Model No. Name
Details

GV ‐Mount102 Straight Tube Box
Mount



Dimensions: 256 x 256 x 316 mm (10.1 x 10.1 x

12.4”)

Weight: 6.6 kg (14.6 lb)



GV ‐Mount207 Pendant Tube



Dimensions: 151.6 x 203.6 x 302.8 mm (5.97 x 8.02

x 11.92”)

Weight: 1.43 kg (3.15 lb)



GV ‐Mount208 ‐ 1 Swan Neck Mount



Dimensions: 1043 x 565 x 256 mm

(41.06 x 22.24 x 10.08“)

Weight: 10.6 kg (23.37 lb)

GV ‐Mount300 Convex Corner Adapter
Kit



Dimensions: 238.6 x 409.5 mm (9.4” x 16.1”)

Weight: 4.27 kg (9.41 lb)

GV ‐Mount310 Concave Corner
Adapter Kit



Dimensions: 123.3.6 x 393.1 mm (4.9” x 15.5”)

Weight: 2.96 kg (6.53 lb)

GV ‐Mount400
Pole Mount Bracket Kit
(Ø 4" ~ 6")



Bracket: 241 x 161 mm (9.5” x 6.3”)

Weight: 1.70 kg (3.75 lb)

Steel Strap: Ø 4" ~ 6"

GV ‐Mount410 Pole Mount Bracket Kit
(Ø 6" ~ 7.5")



Bracket: 241 x 161 mm (9.5” x 6.3”)

Weight: 1.70 kg (3.75 lb)

Steel Strap: Ø 6" ~ 7.5"



GV-PPTZ7300 May 6, 2018
- 7 -

Model No. Name Details
GV ‐Mount501 Convex Corner Box
Mount




Dimensions: 136 x 256 x 256 mm (5.4 x 10.1 x
10.1”)
Weight: 4.8 kg (10.6 lb)

GV ‐Mount702 Extension Tube



Four options are available.
Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1” x 3.9” or 7.9” or 11.8” or 19.7”)
Weight: 180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21 lb or 1.76 lb)
GV ‐Mount908 ‐ 2 In ‐Ceiling Mounting Kit



Mounting plate: 205 x 128 x 227 mm (8.1 x 5 x 8.9”)
Weight: 3 kg (6.6 lb)

GV ‐PA901 PoE Adapter



The GV ‐PA901 PoE adapter is designed to provide
power and network connection to IP cameras over
a single Ethernet cable.
Power Adapter
Contact our sales representatives for the countries and areas supported.
