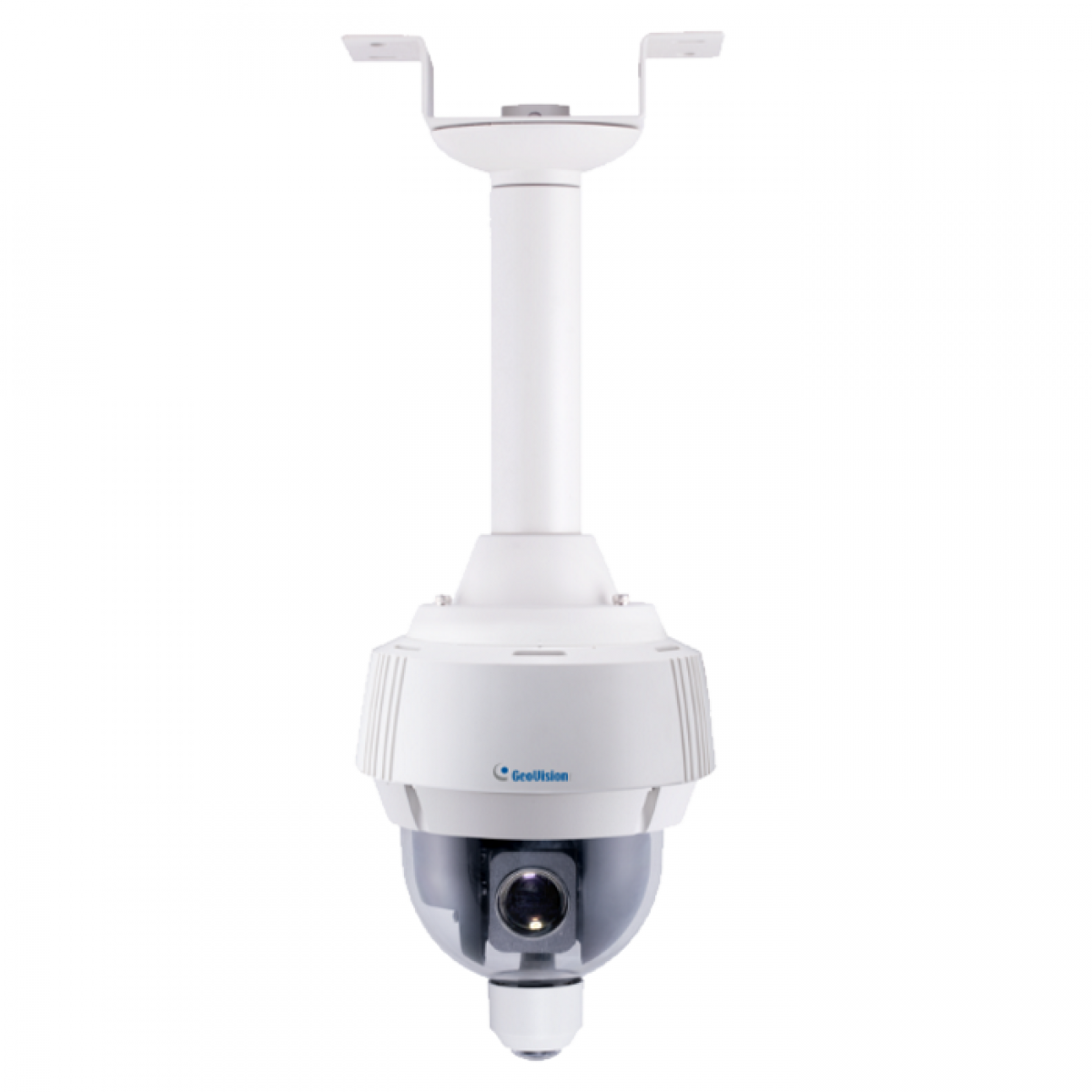

GV-PPTZ14031

Kamera IP szybkoobrotowa IP67 wandaloodporna IK10 panoramiczna, zintegrowana z hemisferyczną, filtr IR, 2.0M-50 kl./s, H.265, WDR PRO, HPoE++, SDXC, moto-zoom 30x, fisheye 12.0M-15 kl./s...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-PPTZ14031 August 11, 2018
- 1 -
GV-PPTZ14031 14MP H.265 30X Zoom Low Lux WDR Pro Panoramic PTZ IP
Camera


Key Features
* Panoramic fisheye camera (FE) integrated with a
PTZ speed dome (SD)
* FE: 1/1.7’’ progressive scan low lux CMOS
SD: 1/3’’ progressive scan low lux CMOS
* Dual streams from H.265 (SD Only), H.264 and
MJPEG
* FE: Up to 15 fps at 4000 x 3000
SD: Up to 30 fp s at 1920 x 1080 (60 Hz), 50 fps at
1920 x 1080 (50 Hz)
* FE: Day and night (Electronic)
SD: Day and night (with removable IR ‐cut filter)
* SD: Wide Dynamic Range Pro (WDR Pro)
* Vandal resistance (IK10 for metal casing)
* Ingress protection (IP67)
* Wide t emperature tolerance ( ‐40°C ~ 50°C / ‐ 40°F
~ 122°F)
* FE: 1 built ‐ in Micro SD card slot
(SD/SDHC/SDXC/UHS‐ I, Class 10) for local storage
SD: 1built ‐ in SD card slot (SD/SDHC/SDXC/UHS ‐ I,
Class 10) for local storage
* 4 sensor inputs and 1 alarm output
* DC 24V / AC 24V / High PoE (PoE++, 53 W)
* FE: Provides 360° panoramic view
* SD: 30x optical zoom and 32x digital zoom
* SD: pan 360° and tilt from ‐15° to 195°
* SD: Preset speed at up to 460°/sec
* SD: PTZ movement (Preset, Sequence, Auto Pan,
Cruise and To ur)
* Two ‐way audio
* 2D noise reduction
* Tampering Alarm
* Privacy mask
* Visual automation
* Text overlay
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* No Memory Card Slot & local storage function for
Argentina.
* Optional GV ‐PA901 PoE Adapter is required for applying
PoE function.


Introduction
GV ‐PPTZ14031 is a 2 ‐ in ‐ 1 panoramic PTZ IP camera that includes a 12 MP fisheye panoramic camera and a 2 MP IP Speed Dome. The
fisheye camera allows you to monitor all angles of a location, while the speed dome can instantly point toward an area with just one
click on the fisheye live view. Without installing any software, you can watch live view and utilize functions such as motion detection,
privacy mask, and alert notification through the Web interface.



GV-PPTZ14031 August 11, 2018
- 2 -

Integrated Live View
2 MP Speed Dome 12 MP Fisheye Camera


Dimensions



GV-PPTZ14031 August 11, 2018
- 3 -
Specifications
System Requirements
OS 64‐bit Windows 7 / 8 / 8.1 / 10 / Server 2008 R2 / Server 2012 R2

GV ‐ VMS Version GV ‐ VMS V16.11.0.0 or later

Browser Internet Explorer 8.x or later, Firefox, Google Chrome, Safari

Camera

Image Sensor
FE: 1/1.7” progressive scan low lux CMOS
SD: 1/3” progressive scan low lux CMOS

Picture Elements
FE: 4000 (H) x 3000 (V)
SD: 1920 (H) x 1080 (V)

Color
FE: 0.1 Lux
SD: 0.5 Lux

Minimum
Illumination
B/W
FE: 0.05 Lux
SD: 0.1 Lux

Shutter Speed
FE: Automatic, Manual (1/25 ~ 1/16000 sec.)
SD: Automatic, Manual (1/6 ~ 1/30000 sec.)

White Balance Automatic, Manual (2800K ~ 8500K)

Gain Control
FE: Automatic
SD: Automatic, Manual

S/N Ratio
FE: 52 dB
SD: 50 dB (AGC Off)

WDR Pro
FE: N/A
SD: Yes

Dynamic Range
FE: Up to 72 dB
SD: Up to 100 dB

Optic Lens

Megapixel Yes

Day/Night
FE: Yes (Electronic)
SD: Yes (with removable IR ‐cut filter)

Lens Type
FE: Fixed
SD: 30x Zoom Lens

Focal Length
FE: 1.505 mm
SD: 4.3 ~ 129 mm

Maximum Aperture
FE: F/2.0
SD: F/1.6

Horizontal FOV
FE: 180°
SD: 58.9° ~ 2.11°

Focus
FE: Fixed
SD: Automatic / Manual

Zoom
FE: Fixed
SD: 30x Optical Zoom

Operation
Iris
FE: Fixed
SD: Automatic / Manual

Operation

Video Compression H.265 (SD Only), H.264, MJPEG

Video Streaming Dual streams

Frame Rate
FE: 15 fps at 4000 x 3000, 25 fps at 2896 x 2768 (60/50 Hz)
SD: 30 fps at 1920 x 1080 (60 Hz), 50 fps at 1920 x 1080 (50 Hz)
*The frame rate and the performance may vary depending on the number of connections
and data bitrates (d ifferent scenes).

Image Setting
Backlight Compensation, Brightness, Contrast, Saturation, Sharpness, Gamma, White
Balance, Flicker ‐less, Shutter Speed, D/N, Denoise, Metering

Audio Compression G.711, AAC (optional)

Audio Support Two ‐ Way Audio

Sensor Input 4 Input (Dry Contact)

Alarm Output 1 Digital Output (4A 30 V DC / 250 V AC)


GV-PPTZ14031 August 11, 2018
- 4 -

Video Resolution
4:3 4000 x 3000 (Default)

Main Stream (FE)
20:19 2896 x 2768

4:3 1024 x 768 (Default), 640 x 480

Sub Stream (FE)
20:19 960 x 912, 640 x 608

Main Stream (SD) 1920 x 1080 (Default), 1280 x 720, 640 x 360

Sub Stream (SD)
16:9
1280 x 720, 640 x 360 (Default), 448 x 256

Network

Interface 10/100 Ethernet

Protocol
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, ONVIF (Profile
S), RTP, RTCP, RTSP, SMTP, SSL, TCP, UDP, UPnP

Mechanical

Temperature Detector Yes

Power DC Jack (DC 24V, 3.75A), PoE++

Ethernet 10/100 Base ‐ T, RJ ‐ 45 Connector

Audio 1 in (RCA female for microphone); 1 out (RCA female for speaker)

Digital I/O I/O wires

Connectors
Local Storage
FE: Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
SD: SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
* UHS ‐ II card types are not supported.

PTZ Control Panel

Pan Travel 360°

Tilt Travel ‐ 15° ~ 195°

Manual Speed 0.1 ~ 460°/s

Calibration Automatic / Manual

Max. Number 255

Presets
Accuracy 0.2°

Max. Number 8

Sequence
Max. Presets 16

Auto Pan 8

Cruise 4

Max. Number 8

Tour
Max. Number of
Preset / Sequence /
Auto Pan / Cruise
16

Privacy Mask 8

Proportional Pan & Tilt Automatic (Pan and tilt speed proportional to zoom ratio)

Automatic Function Preset, Sequence, Auto Pan, Cruise, Tour

Mechanical Flip On / Off

Digital Slow Shutter On / Off

Motion Detection On / Off

Wide Dynamic Range On / Off

Day/Night: Mechanical IR Cut Filter On / Off

Picture Flip On / Off

Image Freeze On / Off

Digital Noise Reduction On / Off

Input 4

Output 1

Alarm
Reaction Preset, Sequence, Auto Pan, Cruise, Tour


GV-PPTZ14031 August 11, 2018
- 5 -

General
Operating Temperature ‐40°C ~ 50°C ( ‐40°F ~ 122°F)

Heater
Heater 1 (15 W) On: 15°C (59°F); Off: 18°C (64.4°F)
Heater 2 (30 W) On: 3°C (37.4°F); Off: 8°C (46.4°F)

Fan On >55°C (131°F) < 15°C (59°F)

Humidity 10% ~ 90% (no condensation)

Power Source DC 24V / AC 24V / High PoE (PoE++, 53 W)

Max. Power Consumption 57.2 W

Dimension (Straight Tube Mount) Ø 211 x 277 mm (8.3” x 10.9”)

Weight 3.3 kg (7.27 lb)

Ingress Protection IP67

Vandal Resistance IK10 for metal casing

Regulatory CE, FCC, RCM, RoHS compliant

Power over Ethernet

PoE Standard PoE++ (53 W) / PD

PoE Power Supply Type End ‐Span

PoE Power Output Per Port 56V DC, 1050 mA. Max. 53 watts

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, PTZ Control, Preset, Sequence, Cruise, Auto Pan, Tour,
Change Video Quality, Bandwidth Control, Image Snapshot, Digital I/O Control, Two ‐ Way
Audio, Picture in Picture, Picture and Picture, Motion Detection, Privacy Mask, Visual
Automation, Tampering Alarm, Text Overlay

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian /
Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

Software Supported GV ‐ VMS (V16.11.0.0), GV ‐Backup Center (V1.2.0.0), GV ‐Recording Server (V1.3.0.0)

Mobile Phone Support GV ‐ Eye for iOS and Android

Live Viewing Browser (IE, Chrome, Firefox, Safari), Mobile App

CMS Server Support
GV ‐Center V2 (V16.11), GV ‐Vital Sign Monitor (V16.11)
*Integrated live view not supported in GV ‐Center V2 and GV ‐ Vital Sign Monitor


Note:
1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
2. Mind the following when using an inserted memory card for recording:
* Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical
shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No
guarantee is provided for such causes.
* The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if
you seldom access the memory card.
* Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
* To avoid power outage, it is highly recommended to apply a battery backup (UPS).
* For better performance, it is highly recommended to use Micro SD card of MLC NAND flash, Class 10.
* Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
3. Specifications are subject to change without notice.


GV-PPTZ14031 August 11, 2018
- 6 -
Packing List
1. Panoramic PTZ Camera
2. Data Cable
3. Pendant Tube
(GV ‐Mount207)
4. 3 mm Hex Key
5. 4 mm Hex Key
6. 5 mm Hex Key
7. Rubber Ring
8. Torx Wrench
9. RJ ‐ 45 Connector
10. Desiccant Pack x 2
11. Download Guide
12. Warranty Card
Note: Power adapters can be purc hased upon request.

Accessories
Model No. Name
Details

GV ‐Mount102 Straight Tube Box
Mount



Dimensions: 256 x 256 x 316 mm

(10.1 x 10.1 x 12.4”)

Weight: 6.6 kg (14.6 lb)



GV ‐Mount103 Straight Tube Mount



Dimensions: 219 x 125 x 340 mm

(8.6 x 4.9 x 13.4”)

Weight: 2.2 kg (4.9 lb)

GV ‐Mount208 ‐ 1 Swan Neck Mount



Dimensions: 1043 x 565 x 256 mm

(41.06 x 22.24 x 10.08“)

Weight: 10.6 kg (23.37 lb)

GV ‐Mount300 ‐ 1 Convex Corner Adapter
Kit



Dimensions: 238.6 x 395.2 x 210 mm

(9.4’’ x 15.5” x 8.2”)

Weight: 4.27 kg (9.41 lb)

GV ‐Mount310 ‐ 1 Concave Corner
Adapter Kit



Dimensions: 111.2 x 369.9 x 210 mm

(4.37’’ x 14.5” x 8.2”)

Weight: 2.96 kg (6.53 lb)




GV-PPTZ14031 August 11, 2018
- 7 -
Model No. Name Details
GV ‐Mount400 ‐ 1 Pole Mount Bracket Kit
(Ø 4" ~ 6")



Dimensions:
Bracket: 68.4 x 240 x 163 mm
(2.69” x 9.44’’ x 6.41”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4" ~ 6"
GV ‐Mount410 ‐ 1 Pole Mount Bracket Kit
(Ø 6" ~ 7.5")



Dimensions:
Bracket: 68.4 x 240 x 163 mm
(2.69” x 9.44’’ x 6.41”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6" ~ 7.5"
GV ‐Mount501 Convex Corner Box
Mount




Dimensions: 136 x 256 x 256 mm
(5.4 x 10.1 x 10.1”)
Weight: 4.8 kg (10.6 lb)

GV ‐Mount702 Extension Tube



Four options are available.
Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1” x 3.9” or 7.9” or 11.8” or 19.7”)
Weight: 180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21 lb or 1.76 lb)
GV ‐Mount908 ‐ 3

In ‐Ceiling Mounting Kit



Mounting plate: 280 x 128 x 238 mm (11 x 5 x 9.3”)
Weight: 2.3 kg (5 lb)
GV ‐PA901 PoE Adapter



The GV ‐PA901 PoE adapter is designed to provide
power and network connection to IP cameras over
a single Ethernet cable.
Power Adapter
Contact our sales representatives for the countries and areas supported.
