GV-POE2411
towar niedostępny
dodaj do przechowalniOpis
Przełącznik/switch zarządzalny, 24xRJ45 1Gb PoE 15.4W lub 13xRJ45 1Gb PoE+ 30W, 4xSFP 1Gb, uchwyty RACK...
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:

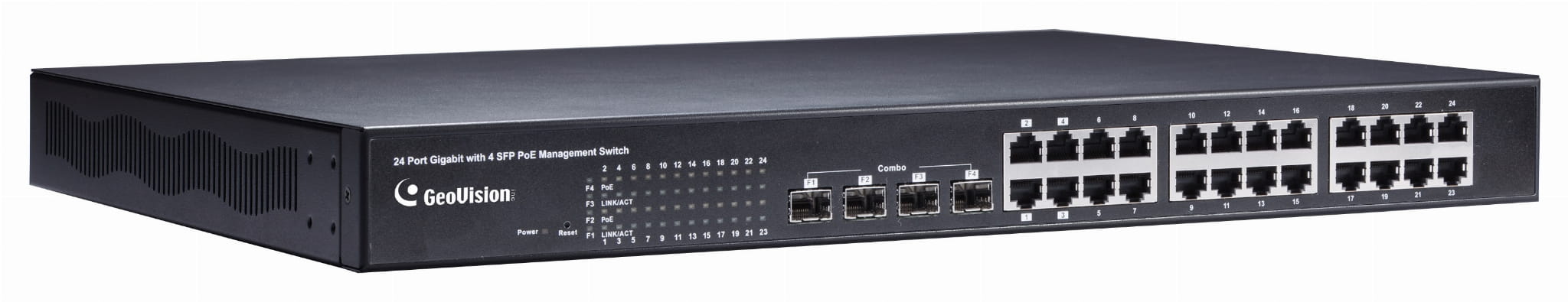

GV-POE2411 24-Port Gigabit 802.3at Web Management PoE
24‐ Port 10/100/1000BaseT(X) PoE+ with 4 Combo Uplink
Ports
IEEE 802.3at compliant (24 Ports at Full 15.4 W)
Up to 9.6 KB Jumbo Frame
Web‐based configuration and management
VLAN, QoS, DSCP, RSTP, IGMP Snooping, Link Aggregation,
LACP, Port Security, Bandwidth
Max. 400 W power consumption
19” rack ‐mount
Up to 23 GV ‐ IP Cameras support
Introduction
GV ‐POE2411 is a 24‐ port 10/100/1000BaseT(X) PoE+ with 4 Combo SFP Rack ‐mount Web Smart PoE Switch. The switch supports IEEE
802.3at Power over Ethernet standard, maximum 400 W power consumption, and no special network cable is required for connecting
your powered devices (PD), such as IP cameras. The switch als o provides exceptionally smart Web management features, such as
VLAN, QoS, RSTP, IGMP Snooping, LACP, Port Security, etc. The switch is designed for medium or large network environment to
strengthen its network connection and efficiency. It also gives you the option of installing it in a 19” cabinet with a rack ‐ m ount kit or
underneath a desk.
Dimensions
GV-POE2411 March 23, 2018
- 1 -
Specifications
Ethernet
Layer Supported L2
Ports
Number of Ports
24 ports
24‐ port 10/100/1000BaseT(X) with RJ ‐ 45 Connectors, PoE+
4 ‐ port SFP Combo Uplink Port
Performance
MAC Address 8 K
Buffer Memory 4 M bits
Jumbo Frames 9.6 KB
Transmission Method Store and Forward
Transmission Media
10/100BaseT(X) Cat. 5 UTP/STP
1000BaseT Cat. 5e, 6 UTP/STP
Filtering/Forwarding Rates
10 Mbps port ‐ 14,880 pps
100 Mbps port ‐ 148,800 pps
1000 Mbps port ‐ 1,488,000 pps
Backplane Capacity 48 Gbps
Smart Features
Port Based VLAN 24
Tag Based VLAN 16, VID 1~4094
IGMP Snooping V1 & V2
Link Aggregation up to 8 groups
Quality of Service (QoS) up to 4 queues, 802.1p, DSCP
Security IEEE 802.1X, Source IP Filter
Port Management
Port State, Speed/Duplex, Flow Control Configuration, Port Mirroring ,
Bandwidth Control, Broadcast Storm Control, PoE
Administrator Management
Web Management, Password Protection, Configuration, Backup / Restore,
Firmware Upgrade
Mechanical Characteristics
LED Indicators
Per Port: Link/Act
PoE Act/Status
Power
Electrical Characteristics
Input 100 ~ 240 V/AC, 50 ~ 60 Hz
PoE Power
Output
IEEE 802.3at Compliant Voltage, Per Port Max. 30 watts
(24 Ports at Full 15.4 W / 13 Ports at Full 30 W)
PoE Power Supply Type End‐Span
Max. Power Consumption 400 W
General
Dimensions (H x W x D) 44 x 440 x 331 mm (1.73” x 17.3” x 13.03”)
Weight 4.7 kg (10.36 lb)
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature ‐20°C ~ 90°C ( ‐ 4°F ~ 194°F)
Humidity 10 to 90% RH (non ‐condensing)
GV-POE2411 March 23, 2018
- 2 -
Standards and Regulatory
Standards
IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.ab 1000BaseT, IEEE 802.3z
1000BaseSX/LX
IEEE 802.3x Full ‐duplex and Flow Control
IEEE 802.3ad Link Aggregation Control Protocol
IEEE 802.1Q VLAN
IEEE 802.1p Class of Service
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1X Port ‐based Network Access Control
IEEE 802.3at Power Over Ethernet (PoE+)
Regulatory CE, FCC Class A, RoHS compliant
Note:
1.The switch is a plug ‐ and ‐play device and compatible with all SFP modules.
2.Specifications are subject to change without notice.
Front Vi ew
Accessories
Name Details
GV ‐ LC
Th e SFP transceiver complies with IEEE 802.3z 1000BaseSX Ethernet,
and provides the media transmission distance up to 220 / 550 m.
GV ‐LC10
Th e SFP transceiver complies with IEEE 802.3z 1000BaseLX Ethernet,
and provides the media transmission distance up to 10 km.
Packing List
1. GV ‐POE2411
2. AC Power Cord
3.Screw x 8
4. Rack Mount Kit
5.User’s Manual CD
6. GV ‐POE2411 Quick Start Guide
GV-POE2411 March 23, 2018
- 3 -
